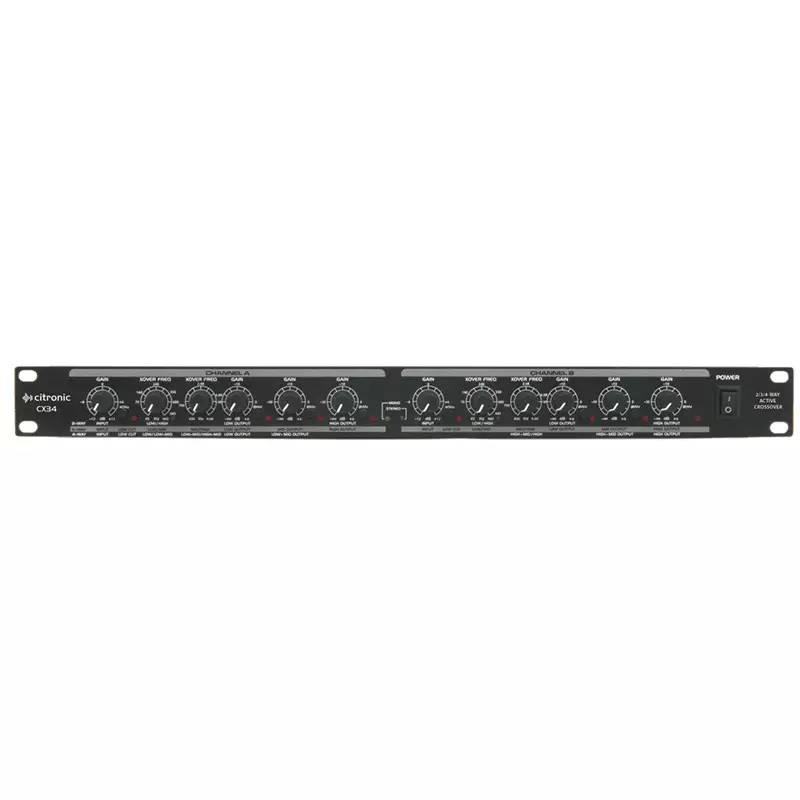

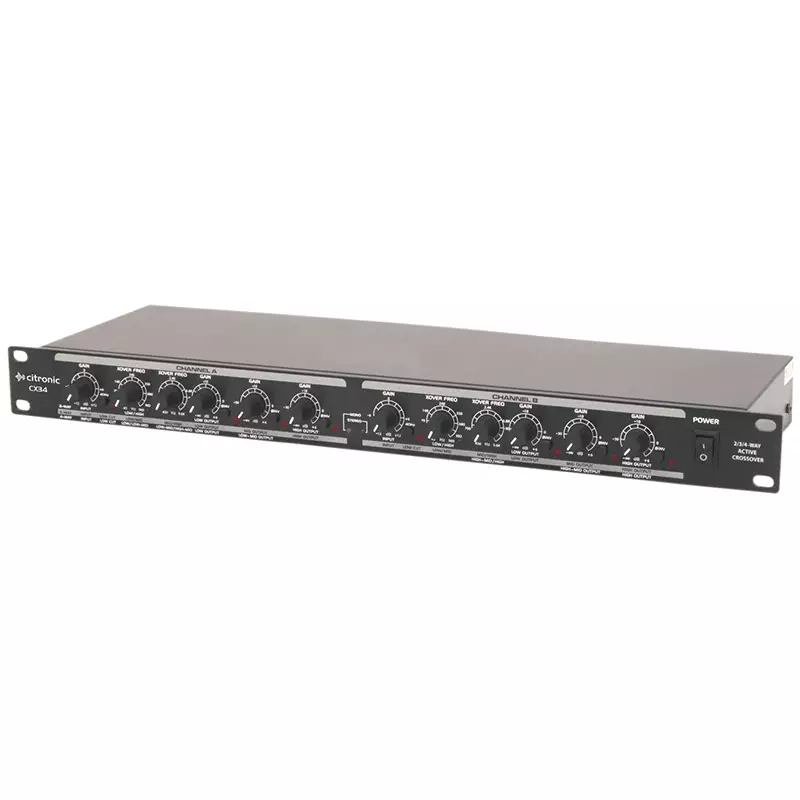

CITRONIC CX34 ACTIVE CROSSOVER 2/3-WAY STERO 4-WAY MONO ACTIVE
OUT OF STOCK
R4,065.00
CITRONIC CX34 ACTIVE CROSSOVER 2/3-WAY STERO 4-WAY MONO ACTIVE
Availability: Out of stock
The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
FEATURES:
- 2 or 3-way stereo, 4-way mono crossover
- 19″ rack mountable
- Linkwitz-Riley 24dB/octave, state variable
- Continuously adjustable cutoff frequencies
- 40Hz ultra-low frequency cut
- Phase invert function

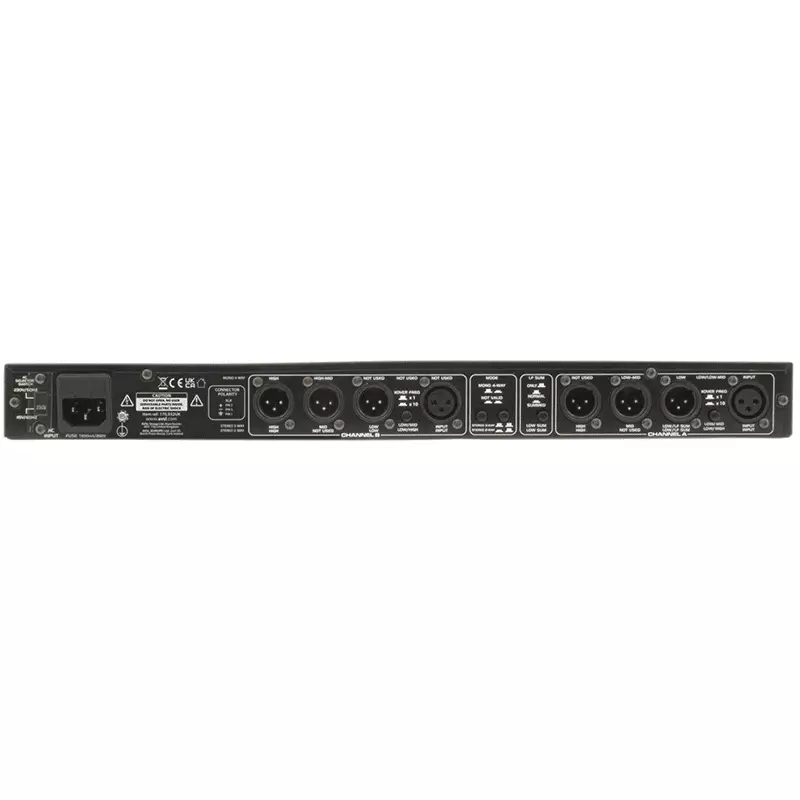

- Inputs and outputs via XLR
SPECIFICATIONS:Â
- Power supply: 115/230Vac, 50/60Hz (IEC)
- Input impedance : balanced: 50k ohms
- Input impedance : unbalanced: 25k ohms
- Output impedance: 200 ohms
- Crossover ranges: 45-960Hz (switchable 10x) or 450Hz-9.6kHz
- Filter slope: 24dB/octave
- Frequency response: 20Hz – 20KHz, +0/-0.5dB
- Signal to noise ratio: >90dB
- THD: <0.004% @ +4dBu, 1kHz
- Dimensions: 482 x 44 x 170mm
- Weight: 2.5kg
