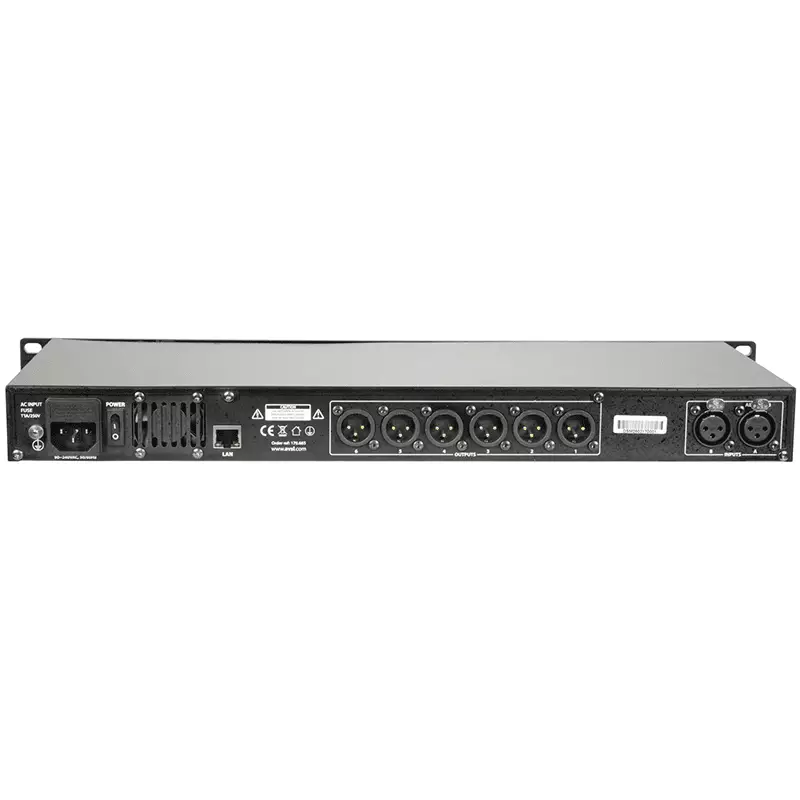

Digital speaker management systems which incorporate crossovers, EQ and limiters for multi-amplifier and speaker setups. These units enable the sound system designer to accurately control the inputs for each power amplifier, providing an ideal matched output suited to each speaker enclosure and its surroundings. A 96kHz 32-bit floating point DSP processor has been utilised to ensure professional quality resolution, controlled either directly via the front panel or USB using the included software. Control can also be distributed through LAN by connecting a local network to the rear panel RJ45 connector, enabling remote speaker setups throughout a building. A high quality speaker management system, which is straightforward enough to use for basic PA systems, yet with enough features to satisfy the most demanding sound reinforcement applications.

FEATURES:

Inputs: 8-band shelving or parametric EQ
Inputs: Phase and Gain correction
Outputs: Crossover types: L-R / Bessel / Butterworth
Outputs: 8-band parametric EQ
Outputs: Adjustable Limiter
All inputs/outputs independently controlled

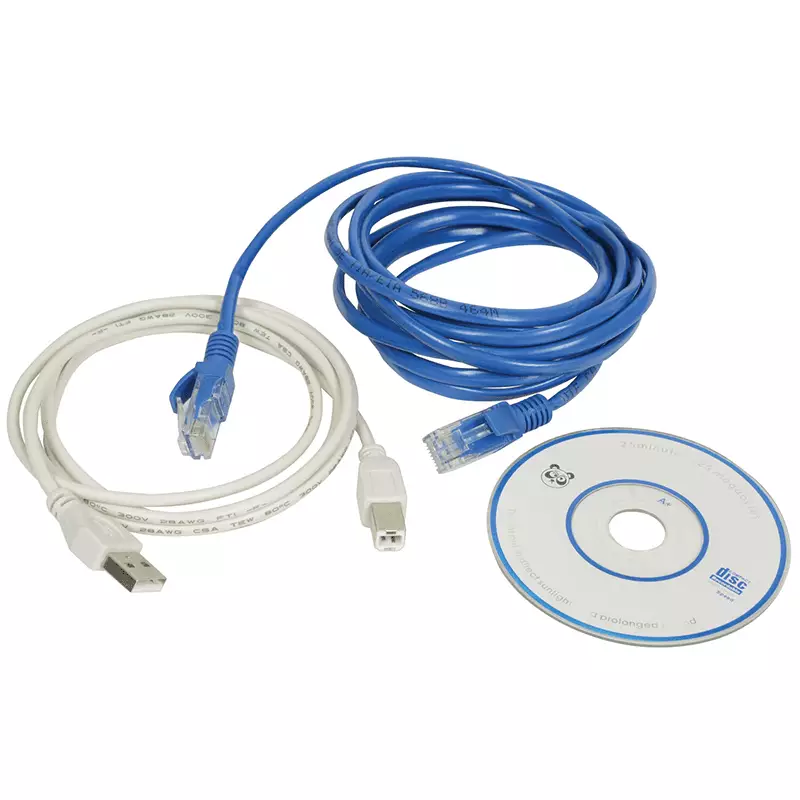

USB interface with PC software included
Network connectivity for remote control
Software included for Win XP (PIII 500, 128MB RAM) or higher

SPECIFICATIONS:

Outputs: 6 balanced XLR
Inputs: 2 balanced XLR or AES digital
Power supply: 115/230Vac, 50/60Hz (IEC)
Power consumption: <25W
Fuse: T315mA
Crossover: HPF + LPF fully programmable per output
Filter type: Linkwitz-Riley; Bessel; Butterworth
PC Com port: USB and LAN (RJ45)
CMRR: 65dB (50Hz-10kHz)
Input/output polarity: In phase (+) or reverse (-)
Input EQ: 8-band parametric EQ
Input Noise Gate: -120dBu to +10dBu
Processor: 96kHz, 32-bit floating point DSP
Mute: Any input or output channel
Limiter: 1 per output (adjustable)
Output EQ: 8-band: Hi/Lo-shelf or Para
Delay: 0-650ms per output
Frequency response: 20Hz-20kHz
Input impedance : balanced>: 10k Ohms
Output impedance : balanced: <60 Ohms
Dimensions: 482 x 44 x 220mm
Weight: 3.19kg

Price-Flex

Price Flex

Name: CITRONIC DSM26 DIGITAL SPEAKER MANAGEMENT SYSTEM
Brand: Citronic
SKU: 170.665CT
Availability: InStock
