CITRONIC RU105-H HANDHELD MICROPHONE UHF 863 – 865MHz

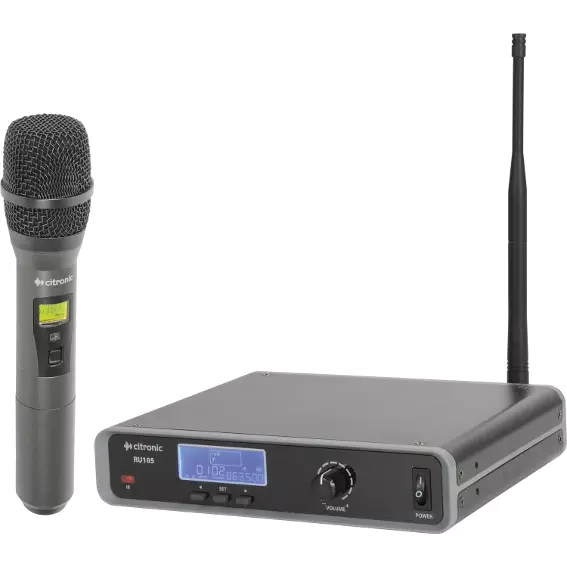

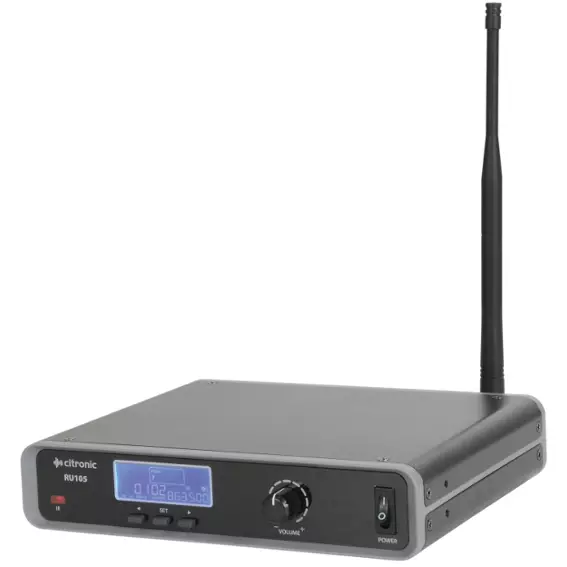

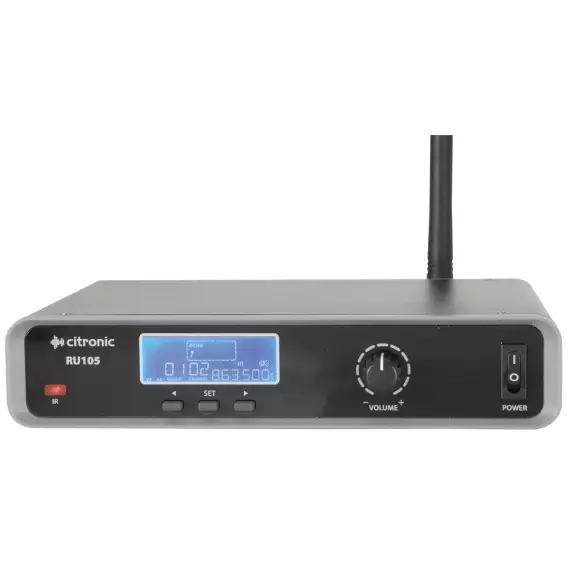

Single channel PLL tuneable UHF wireless system with a handheld transmitter. The receiver unit is compatible with standard 19″ racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 4 RU105 systems can be operated together on the EU licence-free band.

FEATURES:

• PLL tunable with 81 UHF frequencies
• Licence free operation in EU
• Pilot tone & mute circuit for stable signal

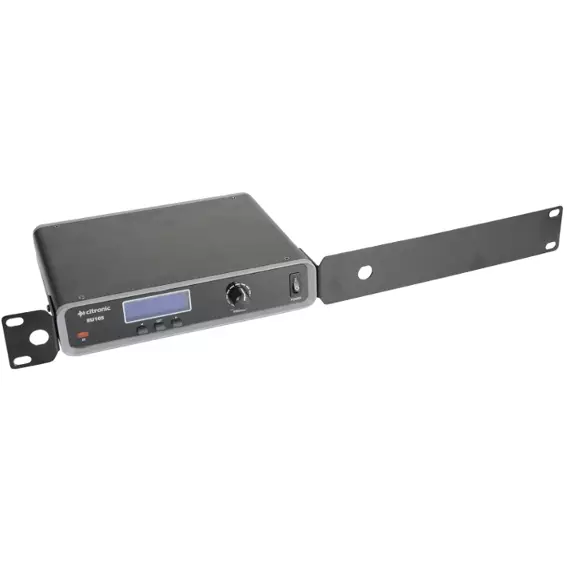

• Rack-mounting accessories included
• Supplied with mains adaptor and 2 x AA batteries

SPECIFICATIONS:

• Power supply: 12-18Vdc, 350mA (mains adaptor included)

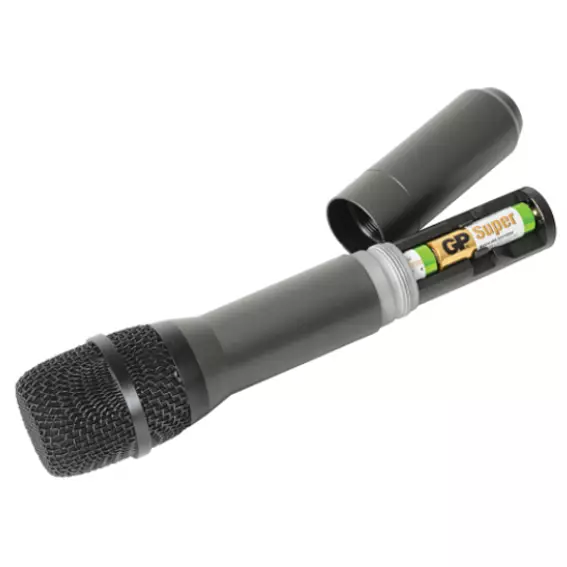

• Batteries: 2 x AA (for transmitter – included)
• Carrier frequency: 863 – 865MHz (81 selectable frequencies)
• Range: 60m
• Signal to noise ratio: >105dB
• THD: 85dB
• Output impedance: 2.2k Ohms
• Output level: 400mV (balanced), 200mV (unbalanced)
• Dimensions : receiver: 44 x 198 x 190mm
• Weight : receiver: 710g
• Dimensions : transmitter: 265 x 49mmØ
• Weight : transmitter: 330g (no battery)
