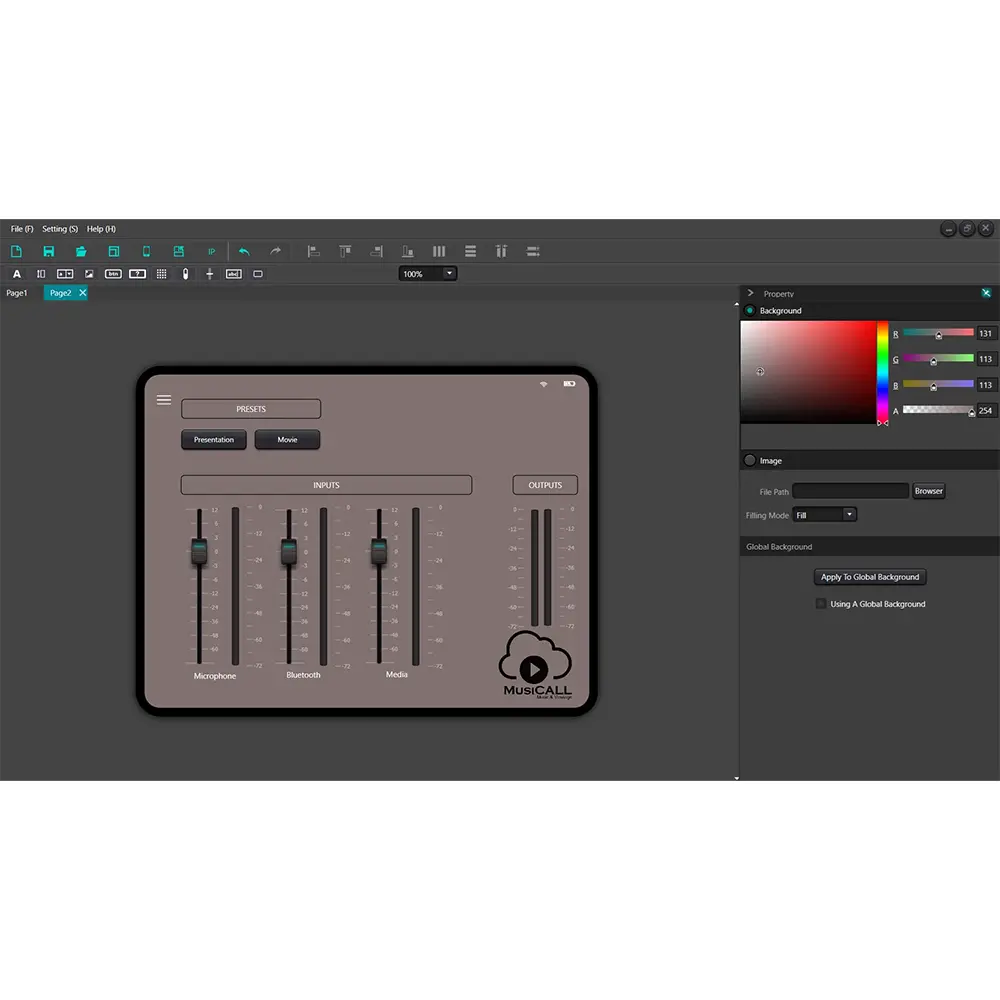

A custom graphical interface for use with Andoid APK and iOS devices can be tailored to the users wishes and can be used with any Android or iOS based touchscreen. The GUI Editor software is easy to use and supplied with the matrixes. Pre-configured touchscreens are available, MDM-CON4 and MDM-CON10.

Use GPIO’s to connect potentiometers to control volumes and switches to set presets. Other uses could be Routing, Gain, Mute, send RS232 command to another device and Audio detect.

FEATURES:

ADI SHARC platform with semi-open architecture.
Integrated management of multiple devices in the sofware.
Perfect sound quality (at 24bit/48kHz.)
Each channel has its own independent adaptive feedback suppression which can find and suppress audio feedback automatically.
Full-duplex Adaptive Echo Cancellation (AEC) and Active Noise Cancellation (ANS).
Gain sharing Auto Mixer Control (AMC).
Automatic Gain Control (AGC).
Full-featured audio mixing matrix supports adjustable input level.
Provides up to 8 presets, each can work independently.
Supports audio channel duplicating, linking, and grouping.
Supports RS-232 and UDP central control.
Provides the flexibility to assign UDP port number, with the control commands available through the contral software.
Works with PoE zone controllers, software programmable.
Built-in dual channel USB sound card can be used for audio recording, audio broadcasting, and video conference.

SPECIFICATIONS:

Processor: ADI SHARC 21489
Sampling rate: 48K/24bit
Input gain: 0/6/12/18/24/30/36/42/48dB
Phantom power: +48V/10mA max
Frequency response: ±0.3dB (20~20kHz)
Maximum level: +18dBu
THD+N: <-95dB @17dBu
Input dynamic range: 113dB
Output dynamic range: 113dB
Channel isolation @1kHz: 108dB
Input impedance (balanced connection): 5.4KΩ
Output impedance (balanced connection): 600Ω
System delay: <3ms
Working power supply: 230V
Dimensions (width x depth x height): 482x260x45mm
Shipping weight: 4KG
