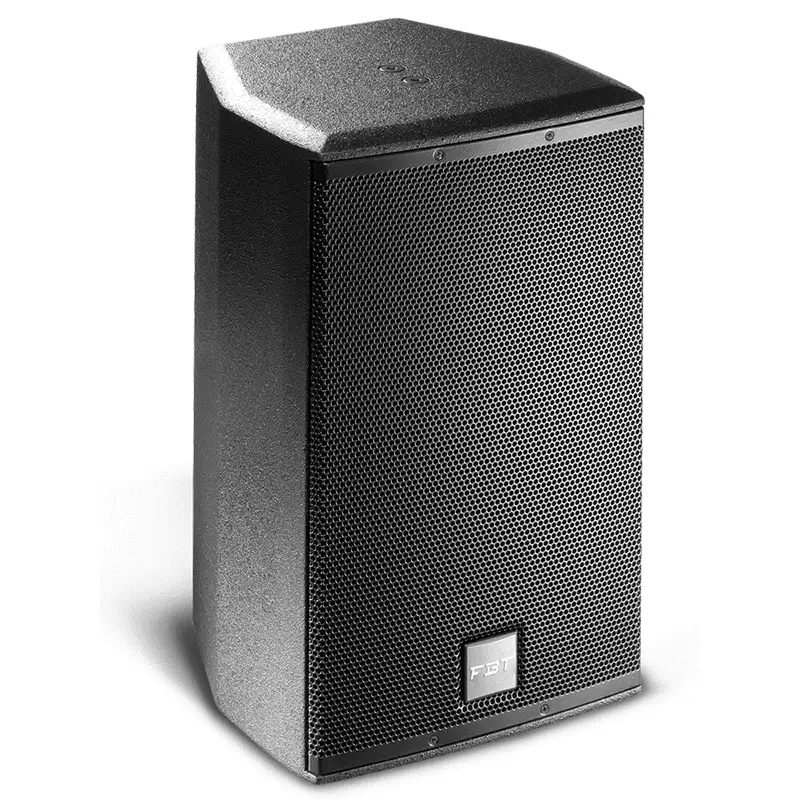

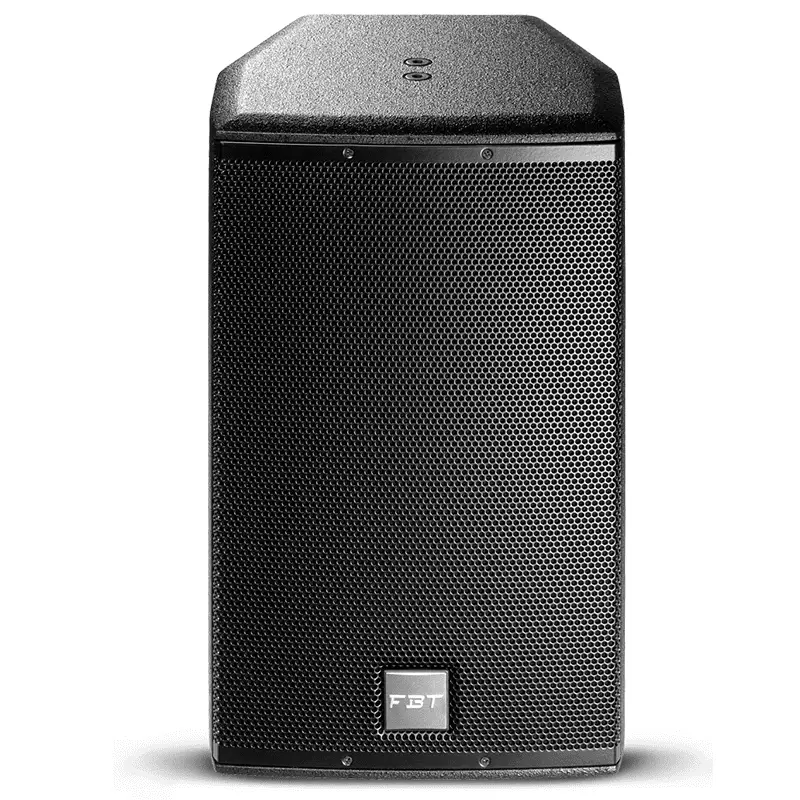

The Archon 106 is a 6.5″ and 1″ domed full-range passive speaker designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the installed sound market perfect for modern indoor spaces.

FEATURES:

• Stylish architectural cabinet design
• Acoustically transparent steel grilles with protection cloth
• High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
• Baltic birch plywood cabinets available in black or white extra texture paint
• Choice of different RAL paint colours on order
• Choice of different paint finish: glossy, matt, textured and more, on order
• Custom designed low frequency woofers, made in Italy
• Custom designed high frequency compression drivers, made in Italy
• Rotatable horns for optimal horizontal or vertical sound dispersion angle
• Selectable bi-amp/full range crossover network
• Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
• Possibility to install line transformers for 100V/70V applications
• Possibility to order weatherproof versions for outdoor use
• Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)

SPECIFICATIONS:

• Configuration:2 Way
• Frequency response:60Hz – 22kHz
• Low frequency woofer:6.5″ with 1.5″ VC
• High frequency driver:1″ Dome Tweeter
• Maximum SPL cont./peak:112/115dB
• Dispersion:110 x 110 (HxV)
• Crossover frequency:3kHz
• Input connector:4x Euroblock
• Net Dimension (WxHxD)216 x 360 x 216mm
• Net Weight: 5.5kg
• Transport Dimension (WxHxD):300 x 440 x 300 mm
• Transport Weight:7.5kg
• Recommended Amplifier:300w RMS
• Long term power:150w
• Short term power:600w
