FBT CLA112SB PASSIVE SUBWOOFER 12inch 600W RMS BLACK

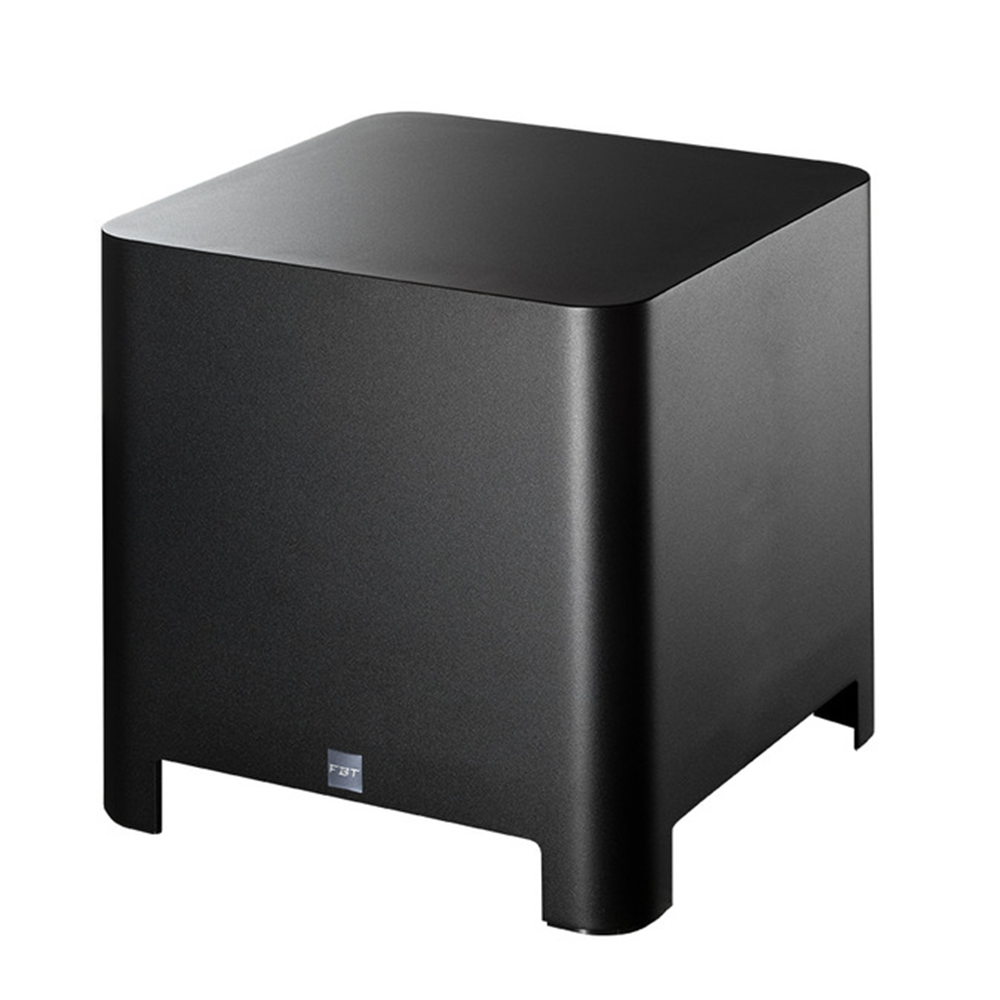

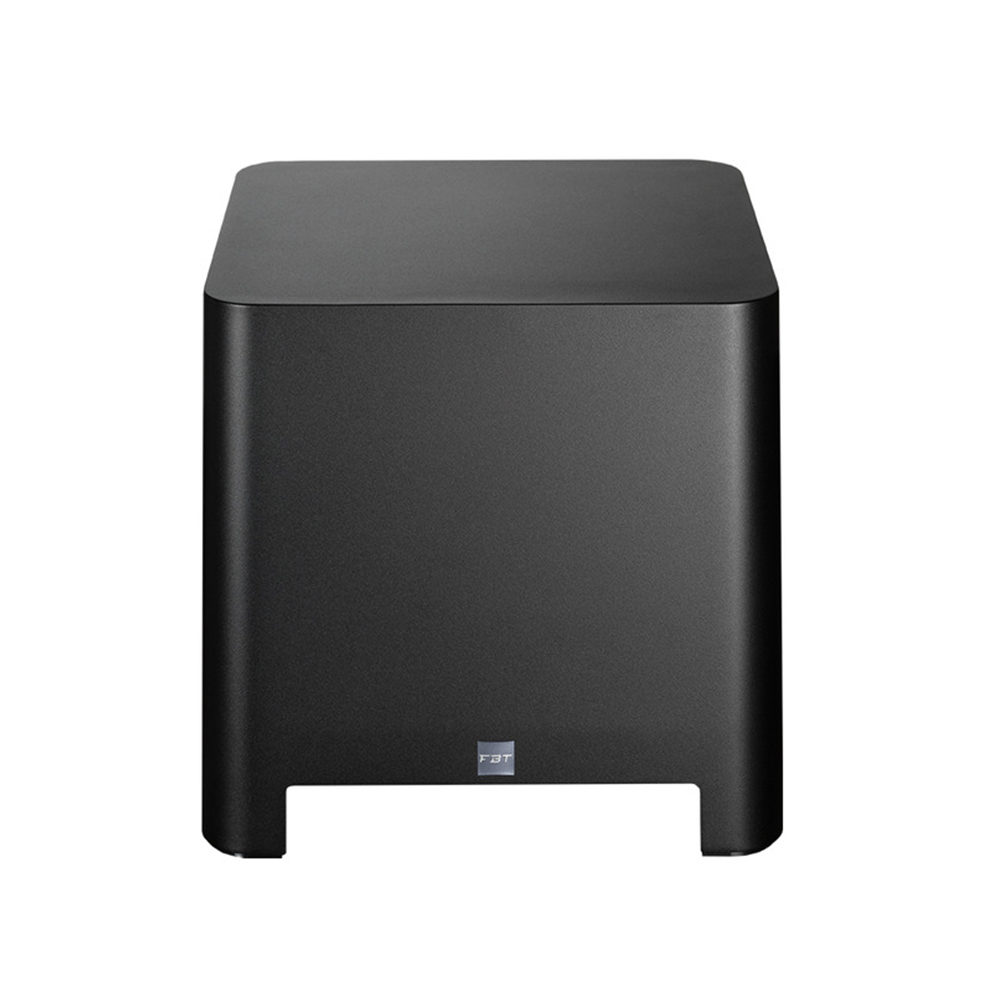

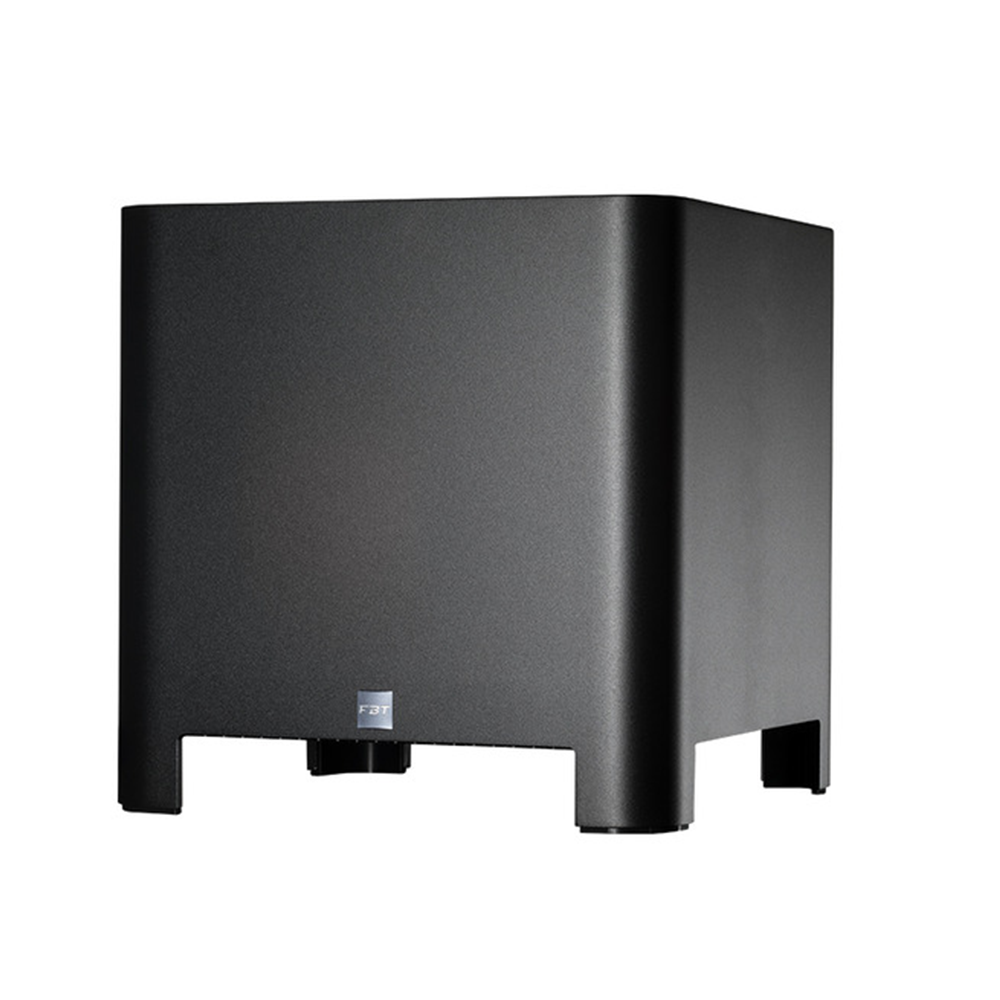

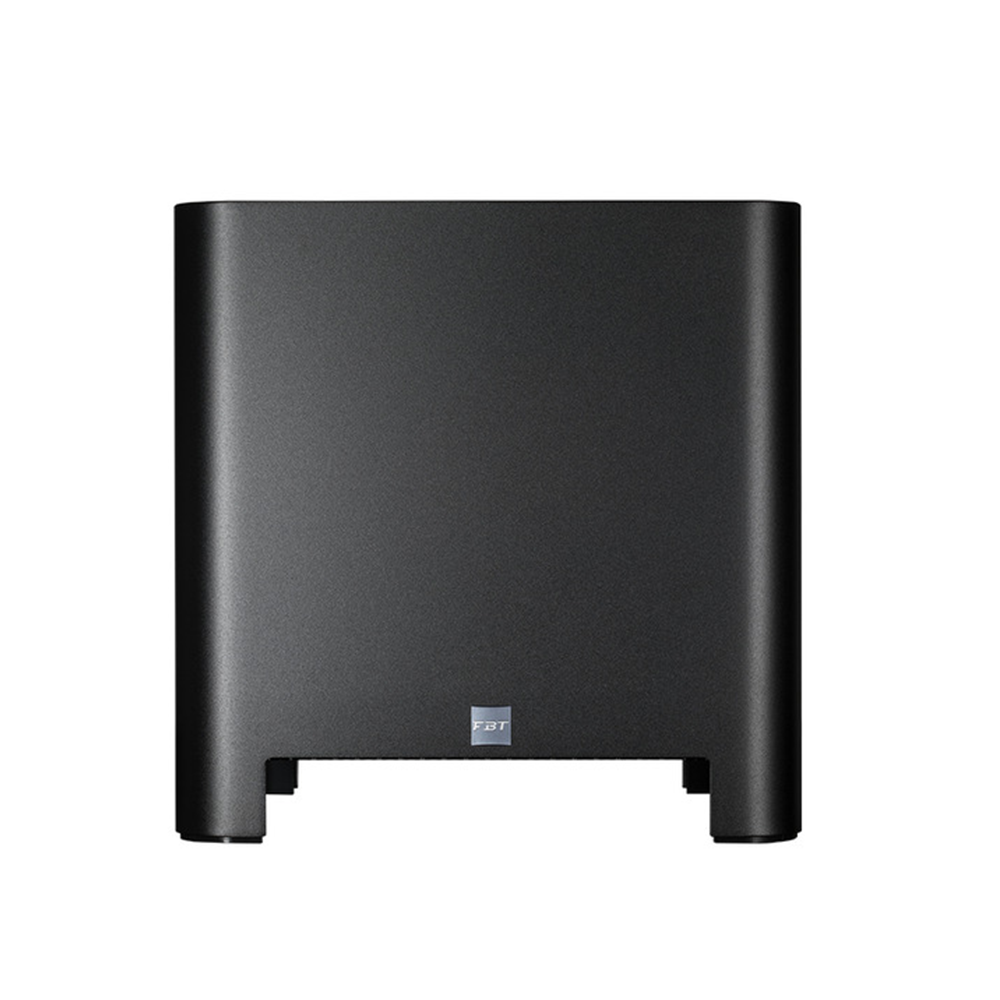

The FBT CLA 112S is a passive subwoofer particularly suitable to extend the bandwidth of VERTUS CLA series; the low-profile cabinet is easy to hide in any installation, but the architectural aesthetic makes it desirable to show. The FBT CLA 112S features one 12″ transducer with a 2.5″ voice coil. The power handling capacity of 600W RMS provides high fidelity sound for both speech and music applications with a maximum SPL of 130dB. The FBT CLA 112S may be stacked on the ground with the possibility of safety attachment to the ground (four optional fixing pins). The audio input and link to another subwoofers are connected via 4 poles plug-in screw terminal.

CAUTION | No internal passive crossover, it needs external processing.

FEATURES:

• High excursion custom 12″ woofer with 2.5″ voice coil
• 600W RMS recommended amplifier
• 4-pin Barrier terminal block connector IN/LINK
• Aluminium cabinet (0.31″) with scratch-resistant paint finish
• IP55 rating for outdoor installation
• Available in black or white as standard or RAL color as an option

SPECIFICATIONS:

• Recommended HP filter: 35Hz -24dB Oct.
• Configuration: Single-driver subwoofer
• Recommended Amplifier: 600W RMS
• Long Term Power: 300W
• Short Term Power: 1200W
• Sensitivity (@1W/1M: 96dB
• Impedance: 8 Ohm
• Frequency Response: 40Hz – Preset Dependant (@-6dB)
• Low Frequency Woofer: 12″ (2.5″ VC)
• Maximum SPL Cont/Peak: 127/130dB
• Dispersion: Omnidirecitonal
• Input Connector: 4-pin Barrier terminal block
• Net Dimension (WXHXD): 400 x 410 x 400mm
• Net Weight: 25kg
• Transport Dimension (WXHXD): 465 x 475 x 460mm
• Transport Weight: 27.5kg
