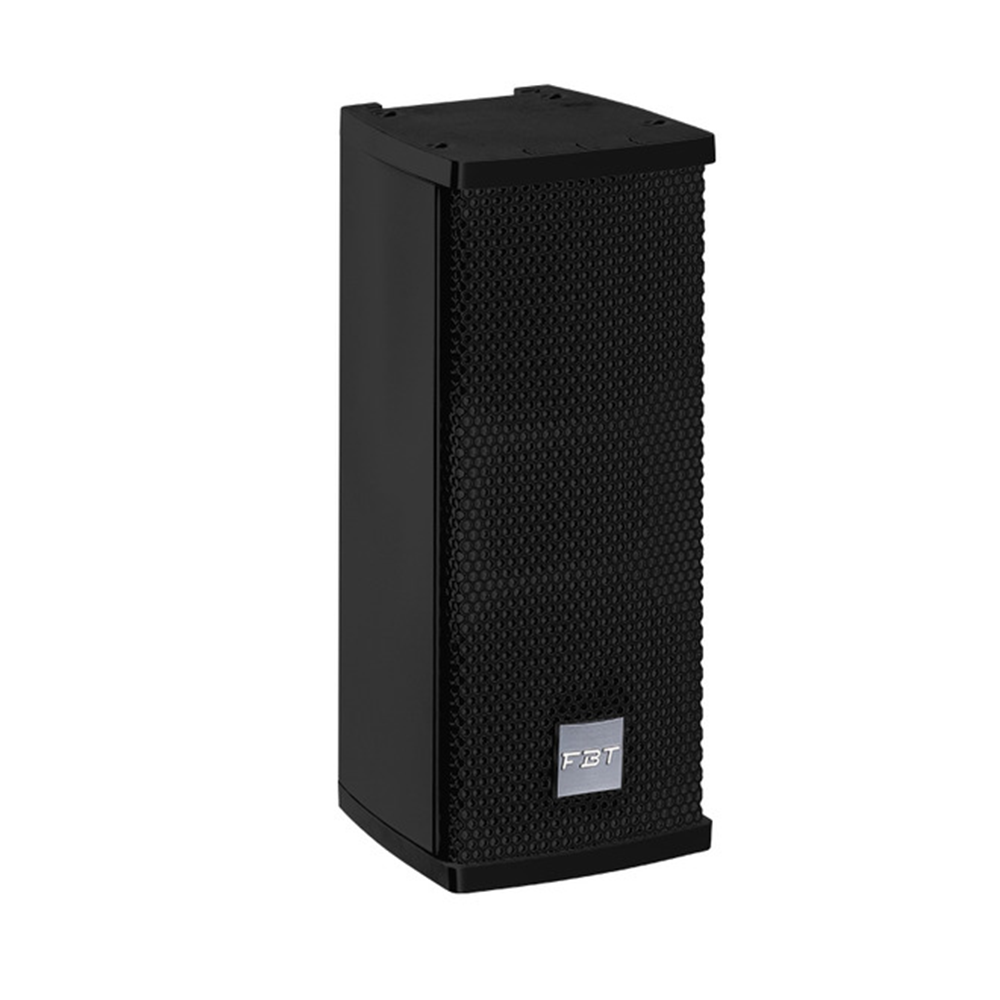

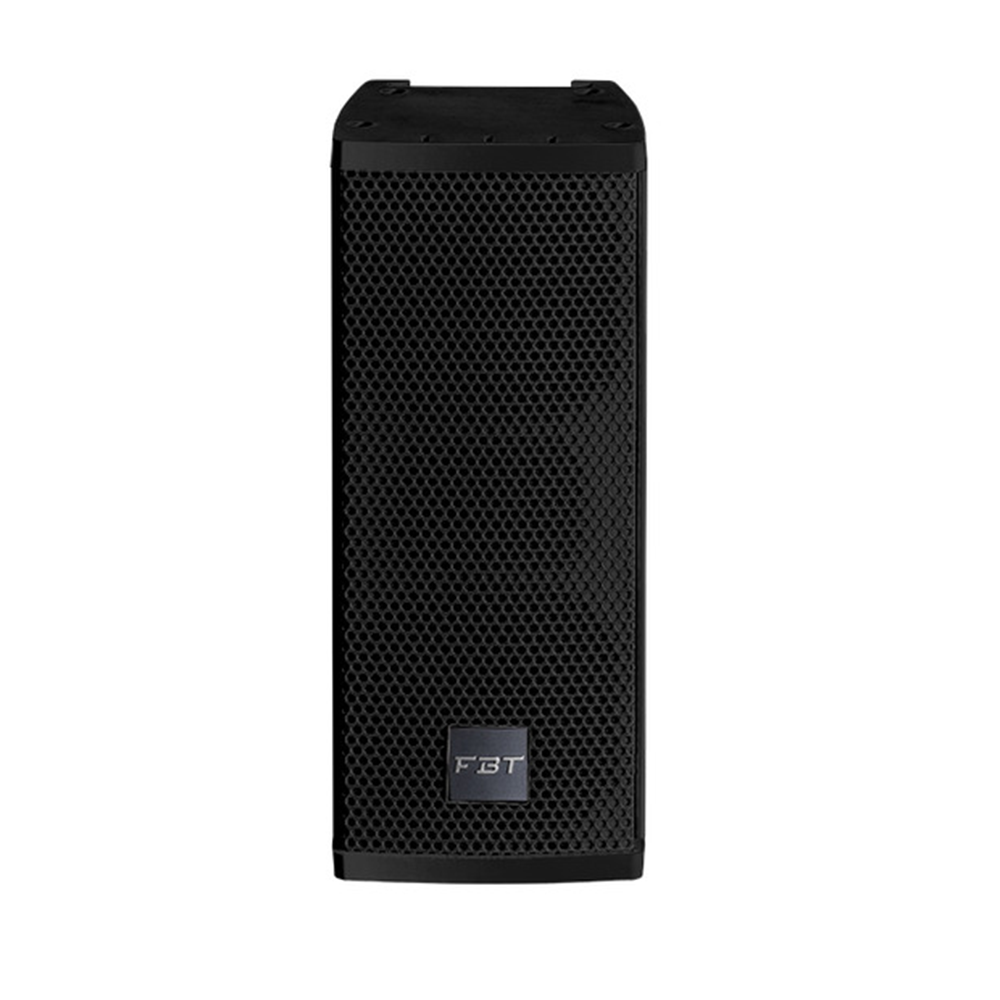

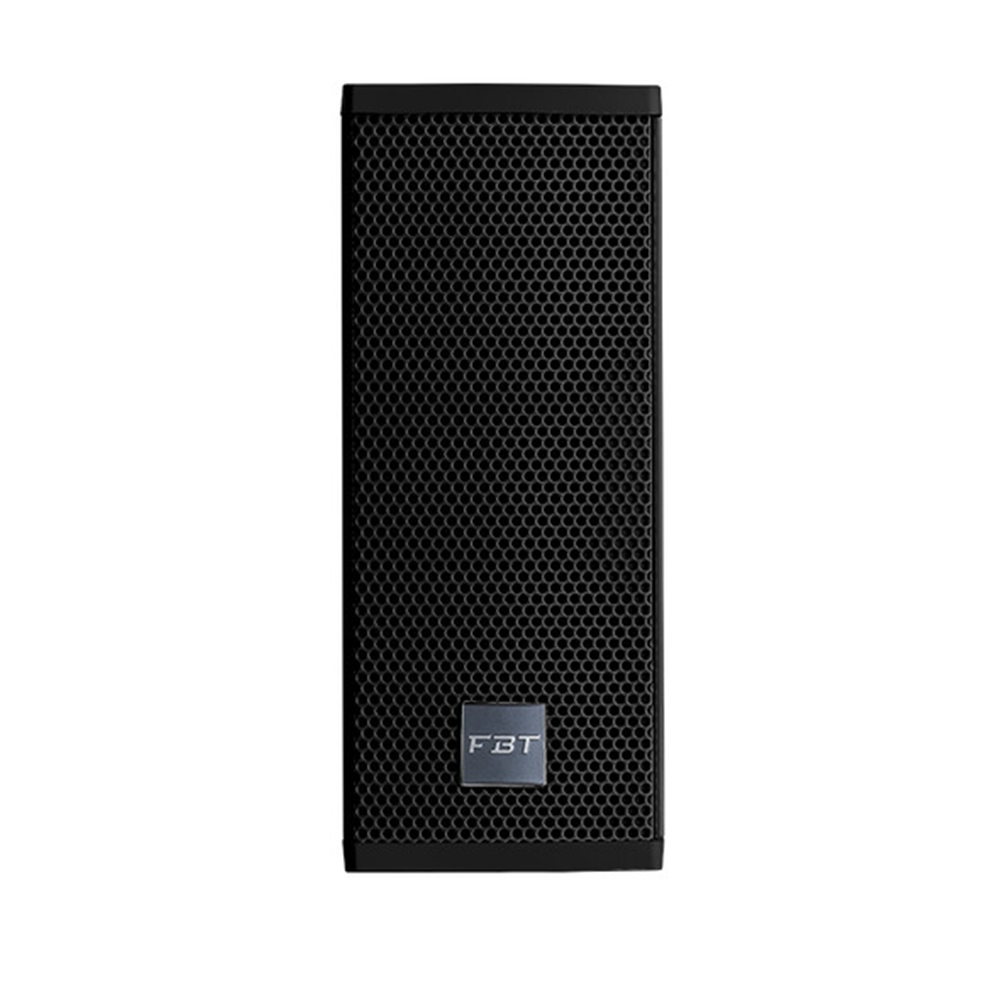

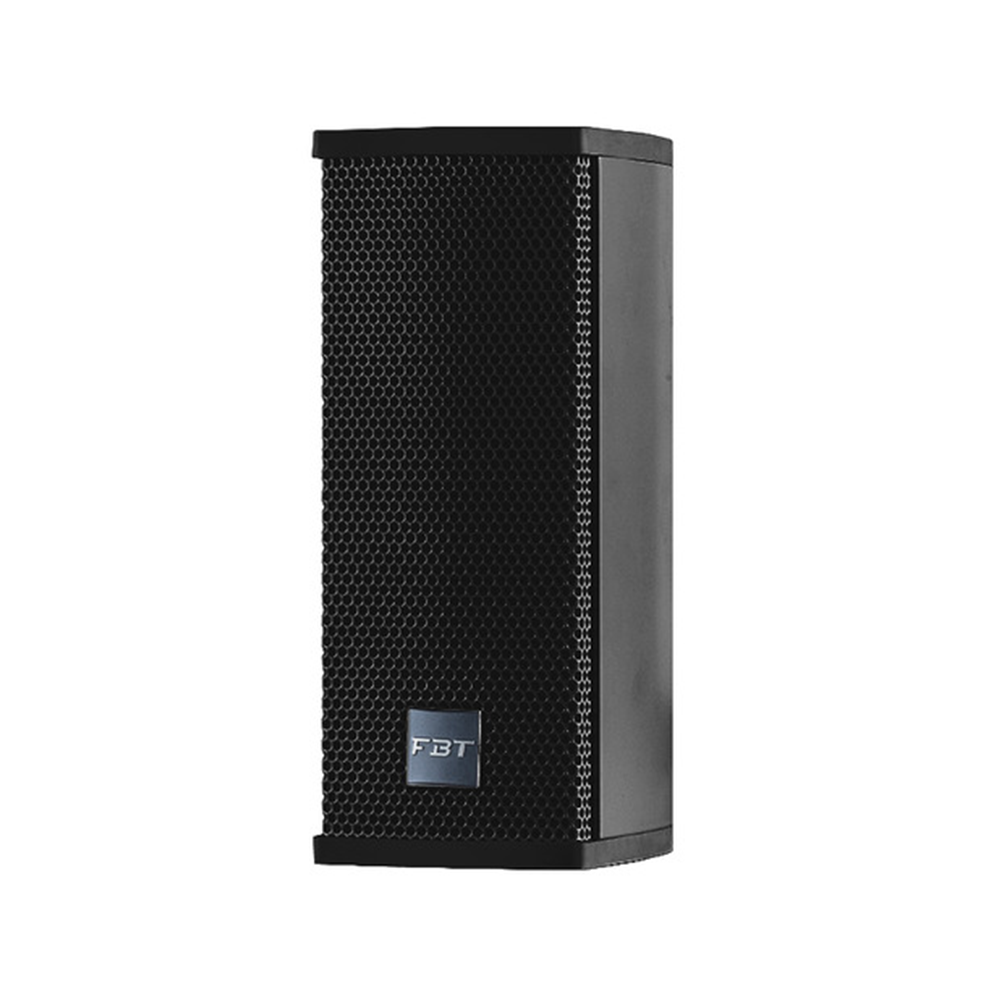

FBT VERTUSCLA203TB 2X4″ PASSIVE COLUMN LINE ARRAY 50W IP55 100V RMS

VERTUS CLA 203T is a passive 2-way column speaker designed for fixed indoor installations where compact dimensions, intelligibility, and design integration are key. It incorporates two custom 3″ woofers with 0.75″ voice coils and a 1″ neodymium dome tweeter, housed in an extruded aluminum enclosure available in black or white finish. The speaker includes a switchable 70V/100V transformer with power taps at 30/20/10/5W, as well as an 8 Ohm low-impedance input. Connections are made via ceramic screw-terminal block with IN & through wiring. CLA 203T is IP55-rated and EN 54-24 certified, making it suitable for voice alarm and emergency systems.With 160 Hz–20 kHz frequency response and SPL of 101 dB, it ensures full-range coverage for speech and background music applications. Four rear fixing points support horizontal or vertical mounting using the optional WM-23 directional bracket

FEATURES:

• Configuration: 2-way
• Low Frequency Woofer: 2 × 3″ – 0.75″ VC
• High Frequency Driver: 1″ neodymium dome tweeter
• Recommended Amplifier: 60W RMS
• Transformer: 70V/100V – taps: 30 / 20 / 10 / 5 W taps
• Maximum SPL: 101 dB
• Material: Extruded aluminum with steel grille

SPECIFICATIONS:

• Configuration: 2 way
• Recommended amplifier: 60W RMS
• Nominal impedance: 8 Ohm
• Frequency response: 160Hz – 20KHz @-6dB
• High frequency driver: 1″ Dome
• Low frequency driver:2 x 3” – 0.75” VC
• Sensitivity (@1W/1m): 87
• Maximum SPL cont/peak: 101/89 (@1W/1m)
• Dispersion:120°x110° HxV (2kHz)
• Recommended HP filter: 140hz – 24dboct
• Input connector: Ceramic screw bloc
• Net Dimensions (W × H × D): 100 x 249 x 125mm
• Net Weight: 1.5kg
