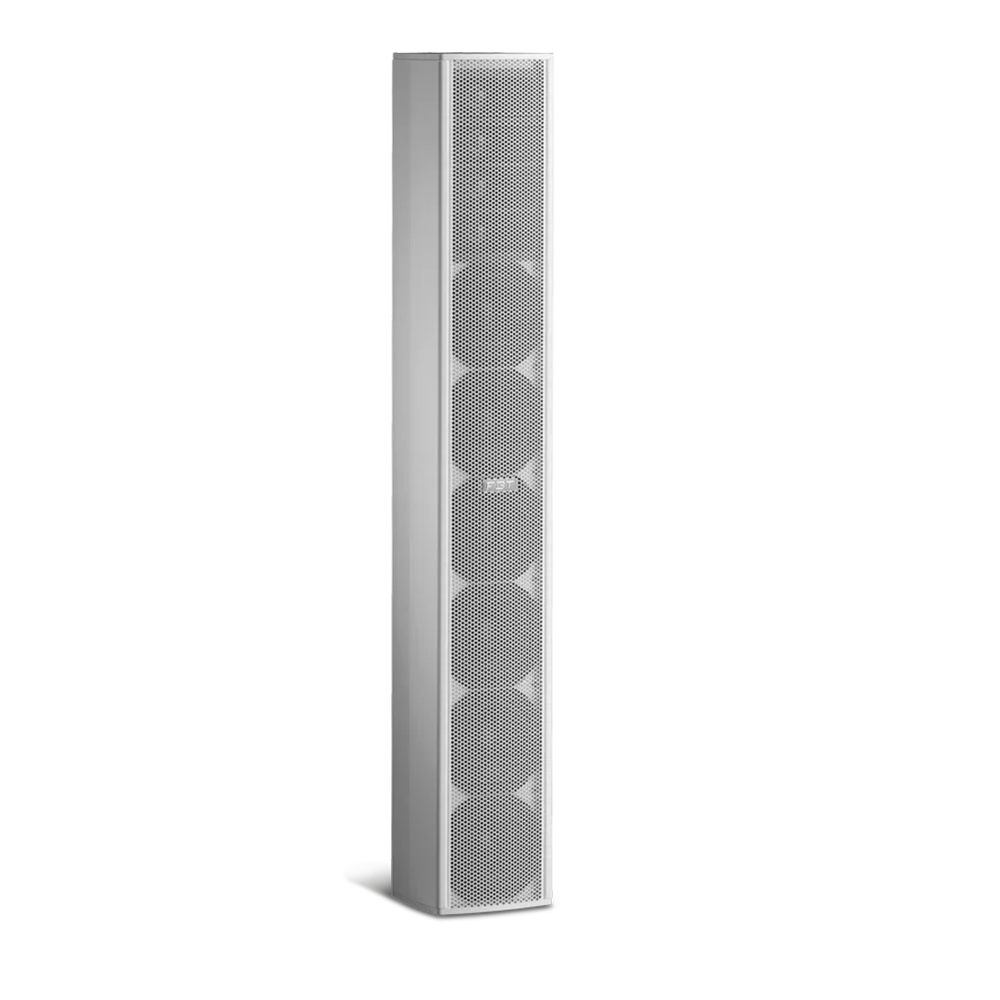

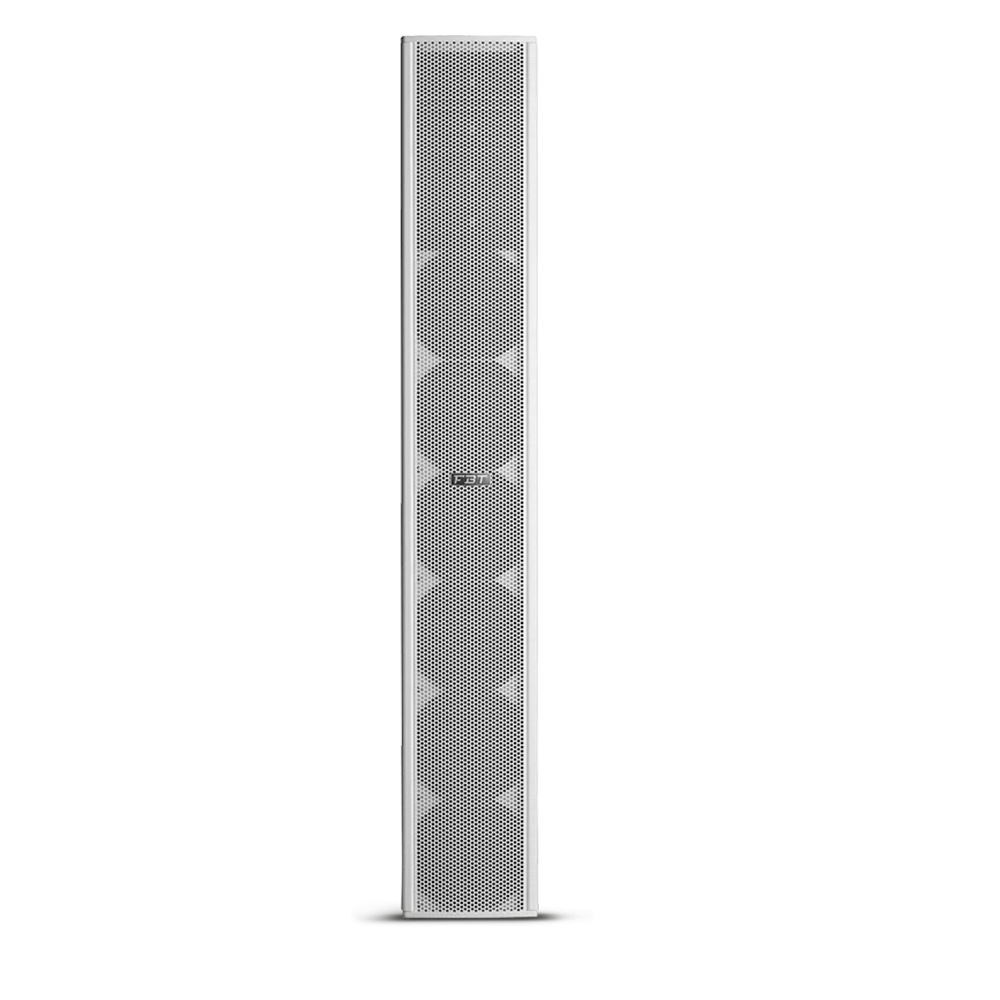

FBT VERTUSCLA604 6X4″ + 4X1.” PASSIVE COLUMN LINE ARRAY 250 RMS WHITE

VERTUS CLA 604 is a passive 2-way column line array speaker designed for fixed installations in reverberant indoor environments. It incorporates six 4″ custom woofers with 1″ voice coils and four 1″ neodymium dome tweeters mounted on a waveguide, offering controlled vertical dispersion and exceptionally wide horizontal coverage for improved voice and music intelligibility. The enclosure is constructed from extruded aluminum with a perforated steel grille and features an integrated fire-resistant cable. The CLA 604 supports both low-impedance (8 Ohm) and 100V operation with optional transformer taps at 100W and 50W. Connection is via a 4-wire through-terminal, and mounting is simplified with included wall bars. The unit is EN 54-24 certified for voice alarm systems. Available in black or white, it is ideal for conference spaces, auditoriums, churches, and meeting venues requiring full-range performance with compact form factor.

FEATURES:

• Configuration: 2-way
• Low Frequency Woofer: 6 x 4″
• High Frequency Driver: 4 x 1″– 1.4″ VC
• Recommended Amplifier: 250W RMS
• Maximum SPL: 110 dB
• Material: birch plywood Extruded aluminum with perforated steel grille

SPECIFICATIONS:

• Configuration: 2 ways
• Recommended amplifier: 250W RMS
• Long Term power: 100W
• Short term power: 500W
• Nominal impedance: 8 Ohm
• Frequency response: 140Hz – 20kHz @ -6dB
• Low Frequency woofer: 6 × 4″ – 1″ VC
• High frequency driver: 4 × 1″ – 1″ VC
• Maximum SPL cont/peak: 110dB (100W, 1m)
• Dispersion: 200° × 70° (500Hz) / 190° × 40° (1kHz) / 120° × 15° (2kHz) / 110° × 30° (4kHz) H × V
• Input connector: Cable, 4 connectors
• Net Dimensions (W × H × D): 130 × 849 × 133 mm / 5.1 × 33.4 × 5.2 inch
• Net Weight: 10.5kg
• Transport Dimensions (W × H × D): 245 × 930 × 220 mm
• Transport Weight: 12kg
