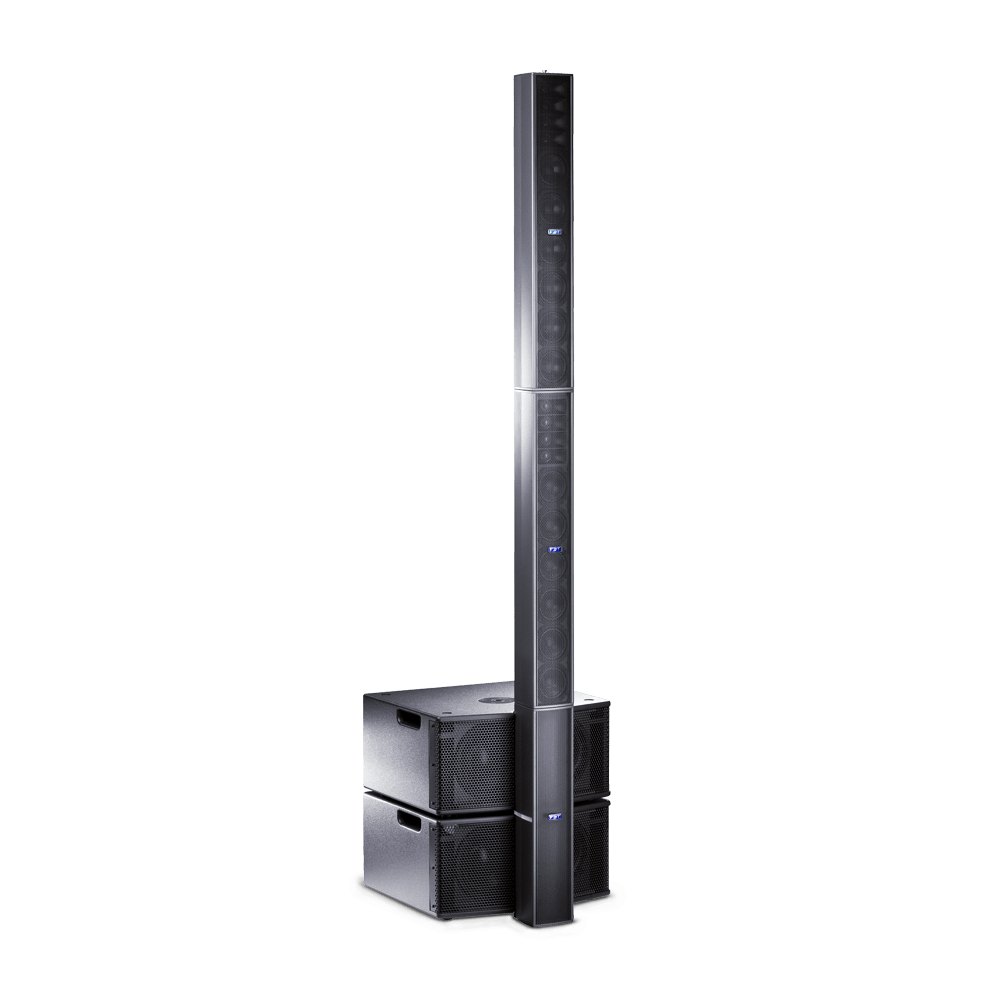

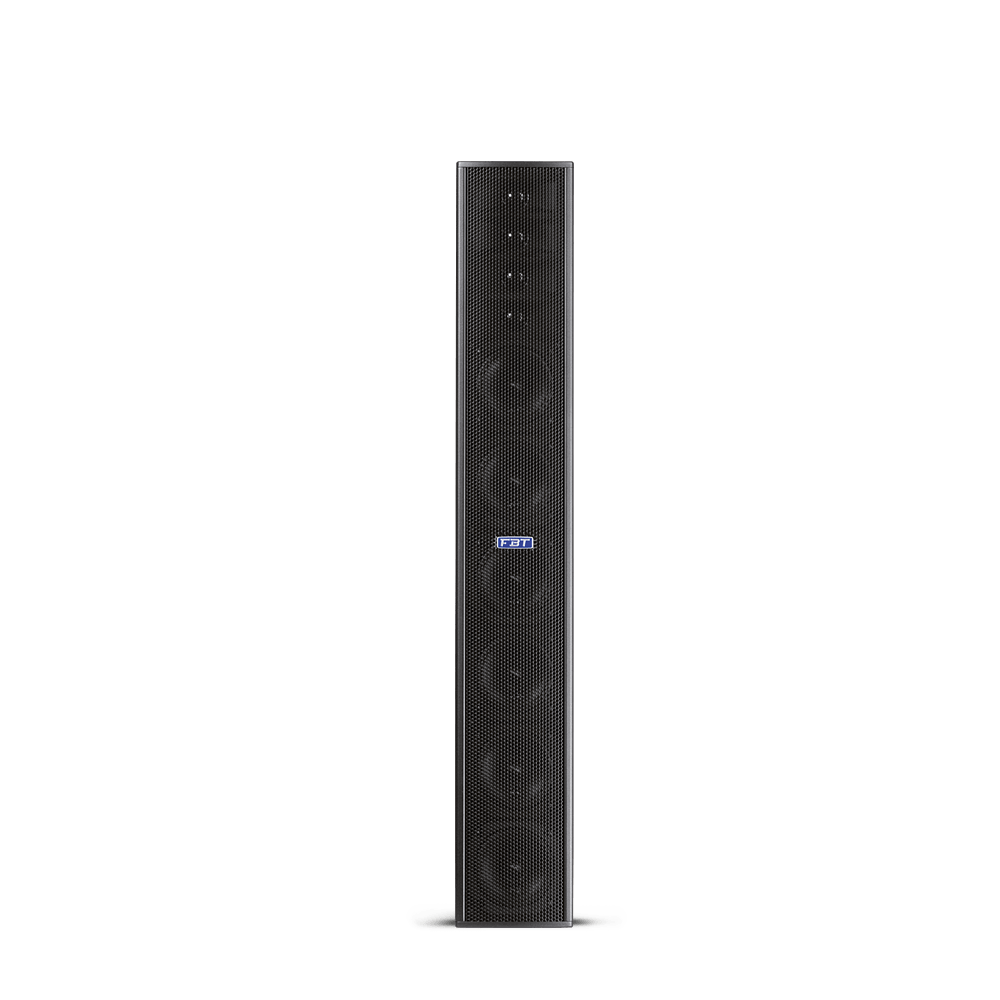

The Vertus CLA 604 active Column Line Array has 6 x 4″ custom woofer with 1″ voice coil and 4 x 1″ dome neodymium tweeters on a waveguide. Built in amplifier delivers 400W + 100W RMS to achieve 125DB SPL Designed to work with the CLA 208SA Subs.
FEATURES:
- 2-Way
- Bi-Amped
- 6x 4″ Neodymium woofer
- 4x 1″ Neodymium tweeter with horn
- 400W Class D amplifier for the bass range
- 100W Class D amplifier for high frequencies
- Built-in switched mode power supply
- DSP Processor with 4 equalizer presets

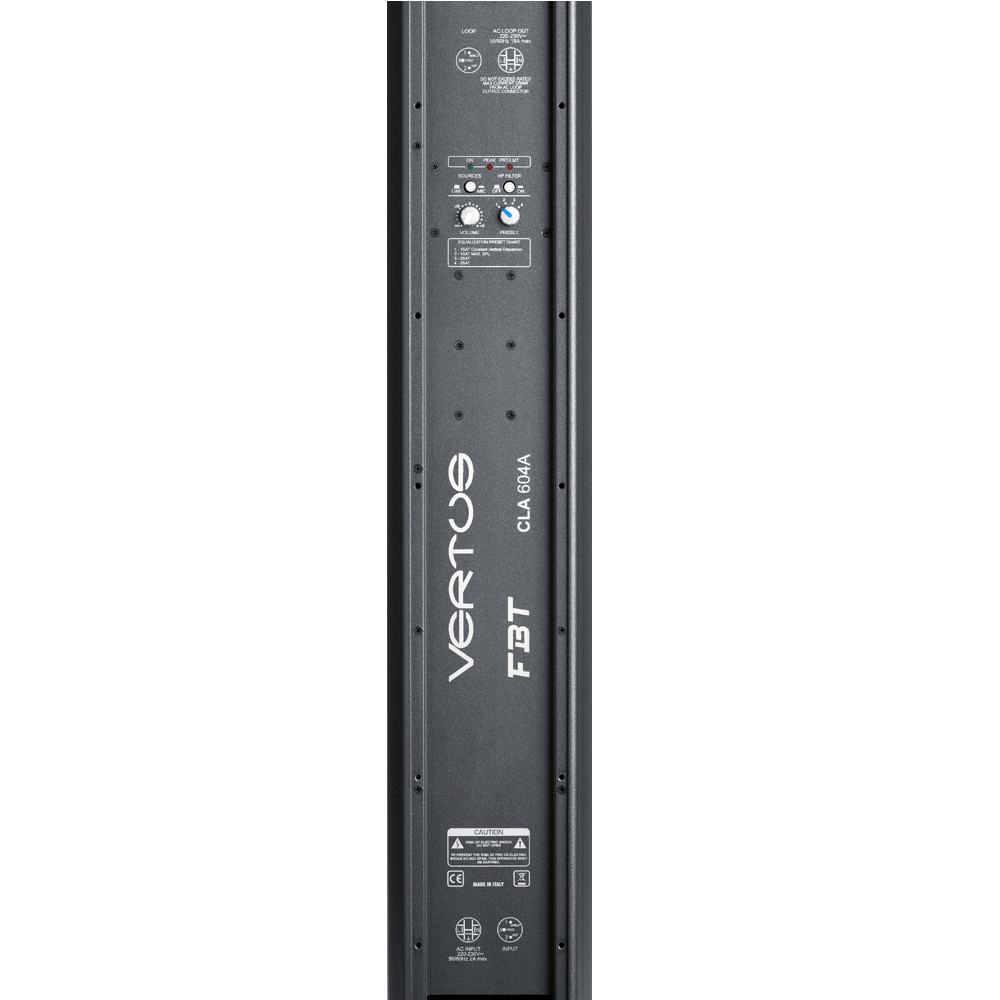

- Control panel with volume, presets, HP filter, mic/ line, status LED
- Aluminium housing (deep drawn)
- Powder coated surface

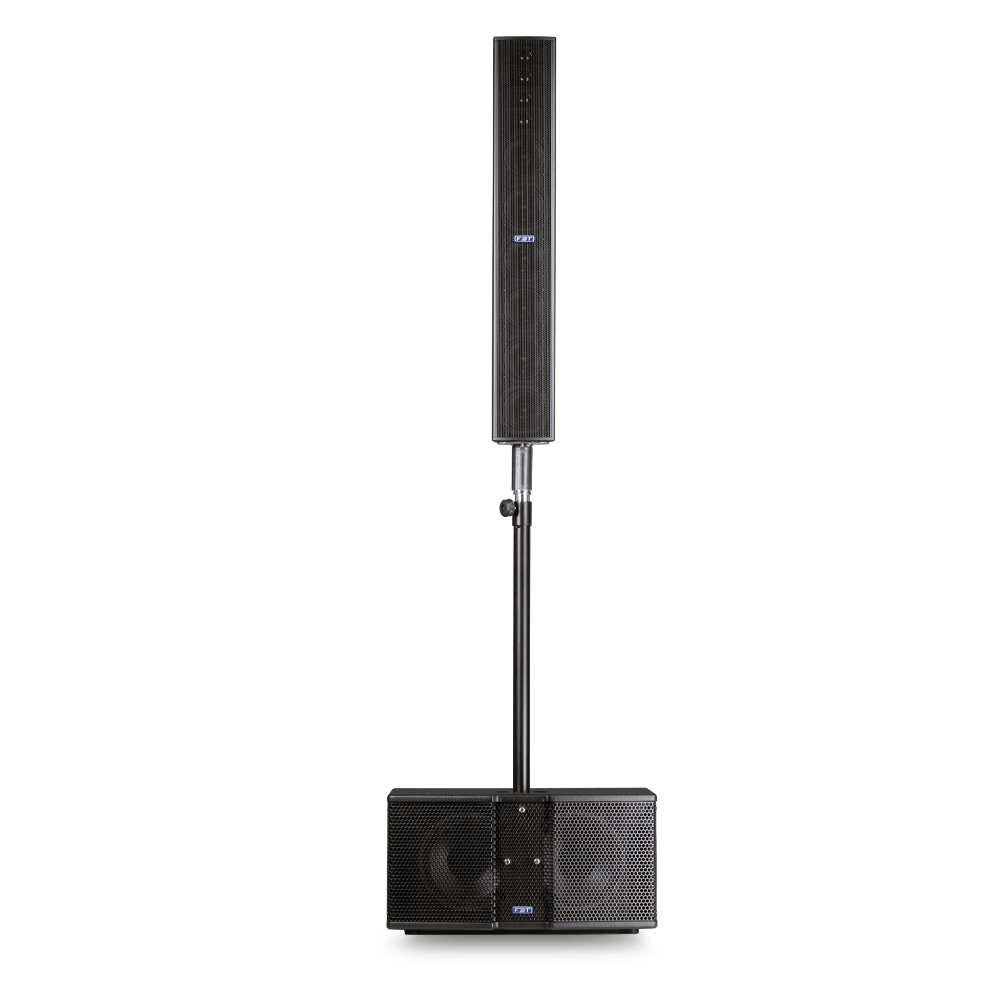

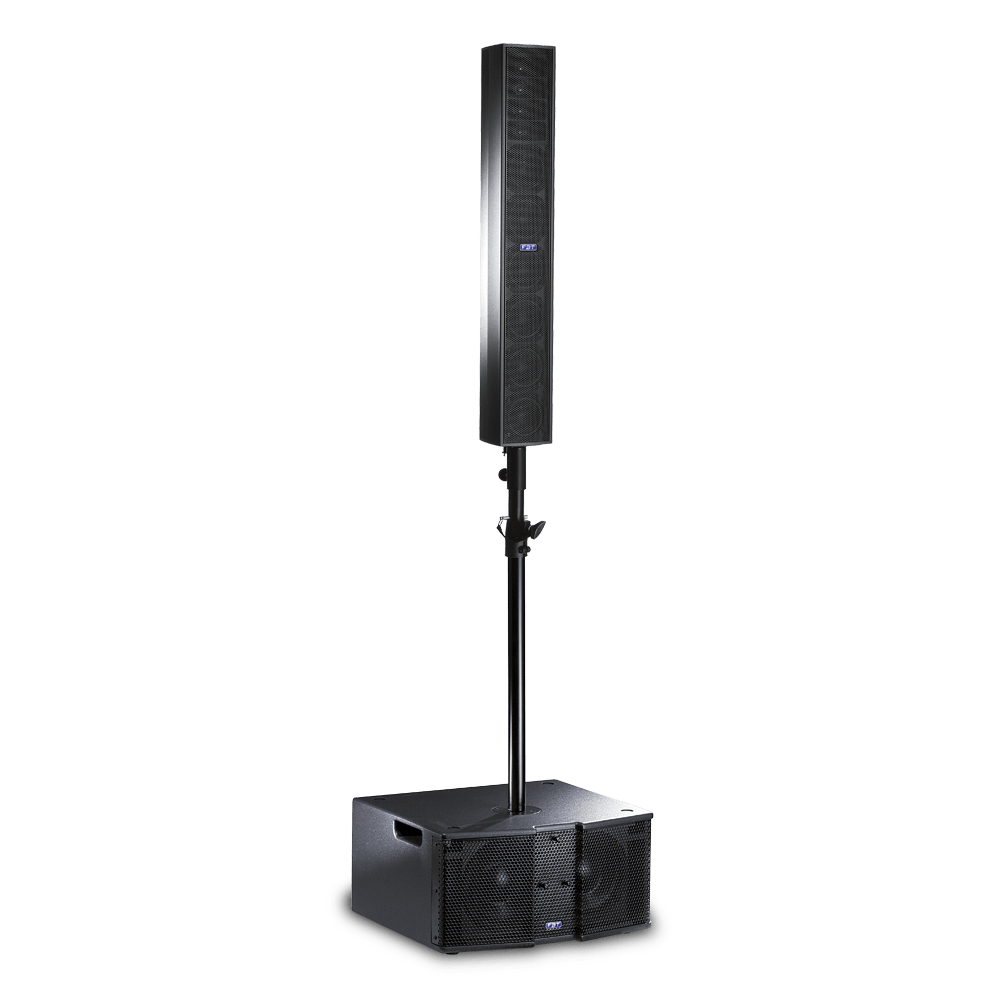

- Tripod or wall mountable
- Frequency range: 130 Hz – 20 kHz
- Max. SPL: 125 dB
- 100° x 20°
- XLR Signal and power twist for power input and output
SPECIFICATIONS:
- Built-in amplifier LF/HF: 400/100 W RMS
- Built-in amplifier peak LF/HF: 800/200 W
- Frequency response: 130Hz- 20kHz -6dB
- Low frequency woofer: 6 x 4″ – 1″ coil inch
- High frequency driver: 4 x 1″ – 1″ coil inch
- Maximum SPL cont/peak: 122/125 dB
- Dispersion: 100° x 20° H x V
- Input impedance: 22 Kohm
- Crossover frequency: 2.5 KHz
- Ac power requirements: 450 VA
- Input connector: XLR with loop
- Power cord: 5 mm
- Net Dimension (WxHxD): 130x841x130 mm
- Net weight: 9 / 19.84 kg
- Transport Dimension (WxHxD): 220x930x220 mm
- Transport weight: 11.5 kg
