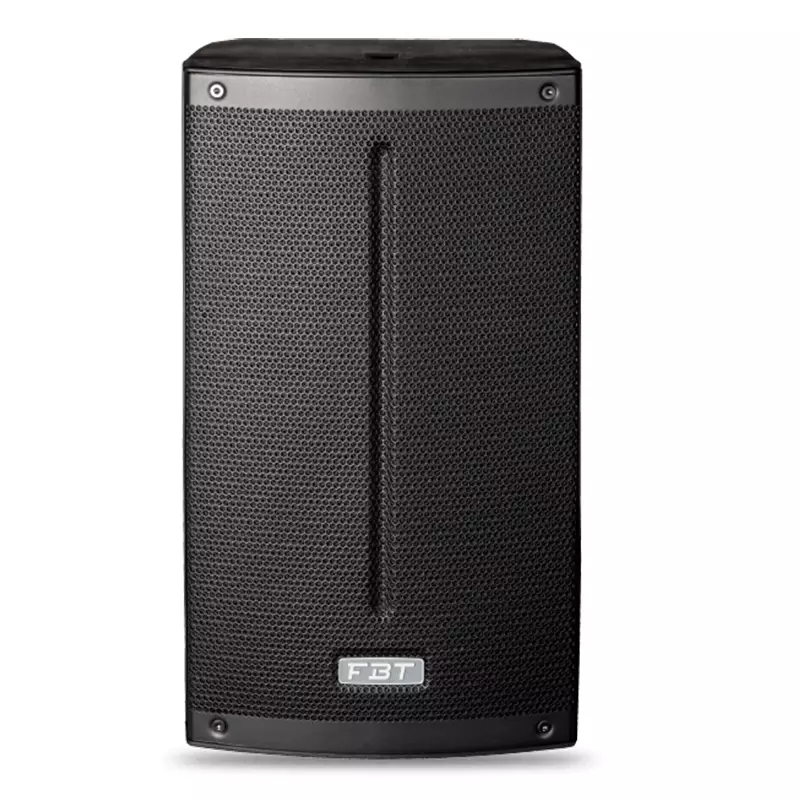

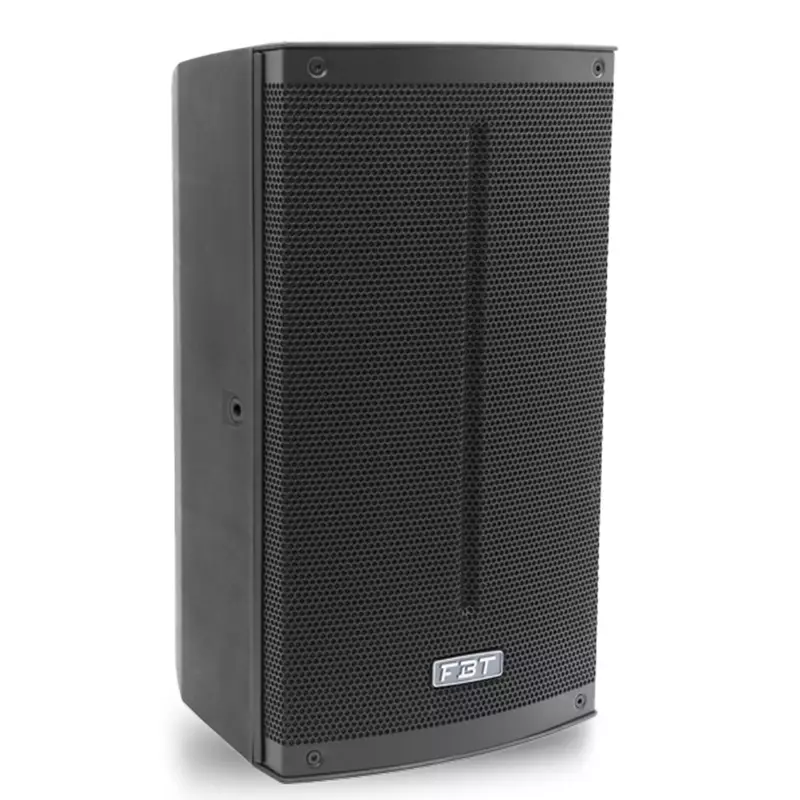

The X LITE 110 is a 2-way passive speaker designed for compact sound reinforcement in a wide range of live and fixed applications. Featuring a 10” woofer with 2.5” voice coil and a 1” HF compression driver with a 1.4” voice coil, it delivers a frequency response of 65Hz–20kHz and a maximum SPL of 124 dB. The 90° x 60° constant directivity horn ensures uniform dispersion, while the gas-injected polypropylene enclosure offers durability in a lightweight format.Ideal for portable PA, monitors, installations, or multimedia setups, the X-Lite 110 includes 4 M10 rigging points, a 35mm pole socket, and an asymmetrical shape for use as a stage monitor (30°/45° angles). Connection is via dual Neutrik NL4 Speakon connectors. Optional wall brackets are available for both horizontal and vertical mounting.
FEATURES:
- Configuration: 2-way speaker design
- Low-Frequency Woofer: 10″ with 2.5″ voice coil
- High-Frequency Driver: 1″ with 1.4″ voice coil
- Recommended Amplifier Power: 350 W RMS
- Maximum SPL: 124 dB
- Enclosure Material: Gas-injected polypropylene
SPECIFICATIONS:
- Configuration: 2 way
- Recommended amplifier: 350W
- Long Term power: 175W
- Short term power: 700W
- Nominal impedance: 8Ohm
- Frequency response: 65Hz – 20kHz -6dB
- Low Frequency woofer: 10” – 2.5” coil
- High frequency driver: 1” – 1.4” coil
- Sensitivity (@1W/1m): 96dB
- Maximum SPL cont/peak: 121 / 124dB
- Dispersion: 90° x 60° H x V
- Crossover Frequency: 2kHz
- Recommended HP filter: HP 55Hz – 12/24dB oct
- Recommended external filter: FBT DSP Processor
- Input connector: 2 x Speakon NL4
- Net Dimension (WxHxD): 293 x 536 x 300 mm
- Net Weight: 12.8 Kg
