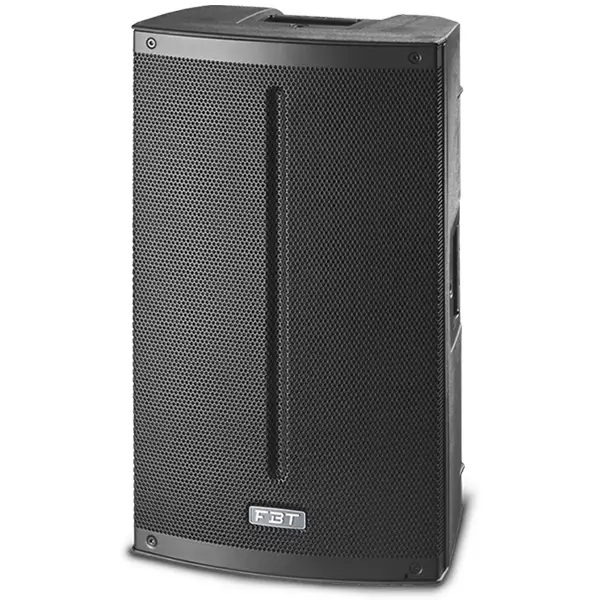

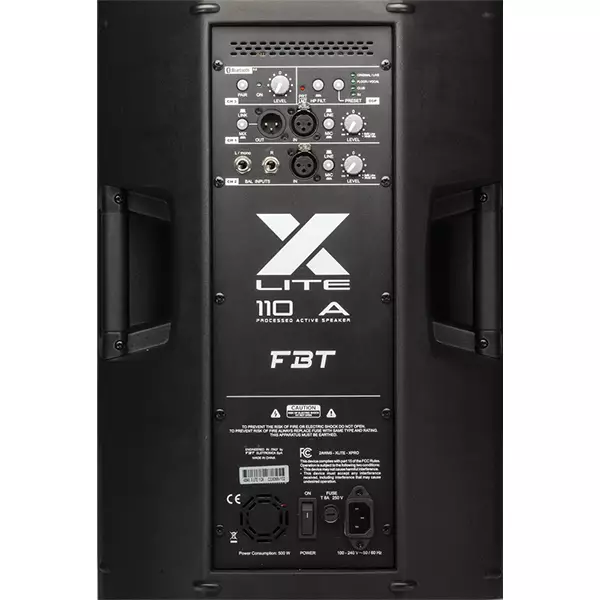

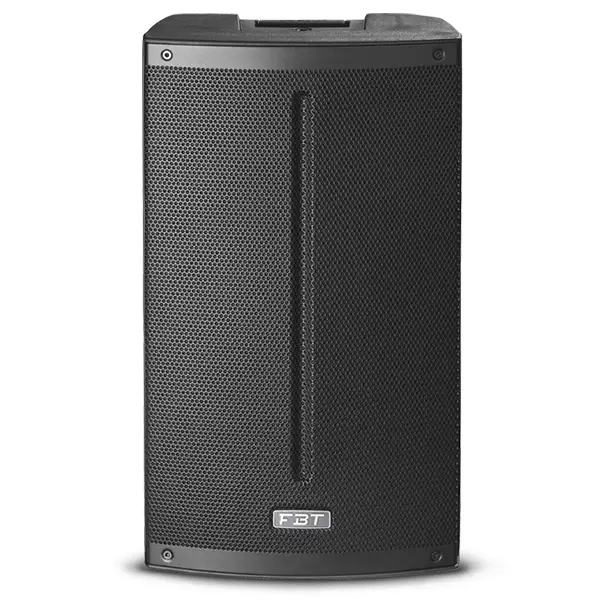

The X LITE 110A is a compact, versatile 2-way active speaker designed for portable PA, stage monitoring, and small venue installations. Built into a durable gas-injected polypropylene cabinet, it features a 10” woofer with 2.5” voice coil and a 1” HF compression driver with 1.4” coil, coupled to a 90° x 60° constant directivity horn for uniform coverage and natural sound. Powered by a 1200W + 300W Class D amplifier, the system delivers up to 127 dB SPL. The control panel features three input channels: one XLR mic/line input, one selectable stereo line input (jack/XLR), and one Bluetooth 5.0 channel with pairing LED; preset selector, high-pass filter, and XLR output with selectable CH1 or mix link. With its 30°/45° monitor angles, 35mm pole mount, 4 M10 rigging points, and wall bracket compatibility, it adapts to any application—whether on the floor, mounted, or suspended.
FEATURES:
- 2 way bi-amplified system in bass-reflex
- Polypropylene molded enclosure
- Woofer custom 10’’ (LF) / 2.5’’ voice coil
- 1’’ throat / 1.4’’ voice coil HF compression driver
- 1200W / 300W Built-in amplifier (LF / HF)
- Bluetooth 5.0
- 3-channels mixer
- 4 DSP presets
- 30° / 45° monitor taper
- Universal switching mode power supply 100 – 240 VAC
- M10 rigging points
SPECIFICATIONS:
- Configuration:2 Way
- Frequency response:58Hz – 20KHz
- Low frequency woofer:10″ – 2.5″ VC
- High frequency driver:1″ – 1.4″ VC
- Maximum SPL cont./peak:123/127 dB
- Dispersion:90 x 60
- Input impedance:22
- Input connector: XLR IN/OUT
- Net Dimension (W x H x D): 300 x 536 x 301.5mm
- Net Weight: 13kg
- Transport Dimension (W x H x D): 370 x 615 x 380mm
- Transport Weight: 14.8kg
- Built in amplifier peak: LF 1200w HF 300w
