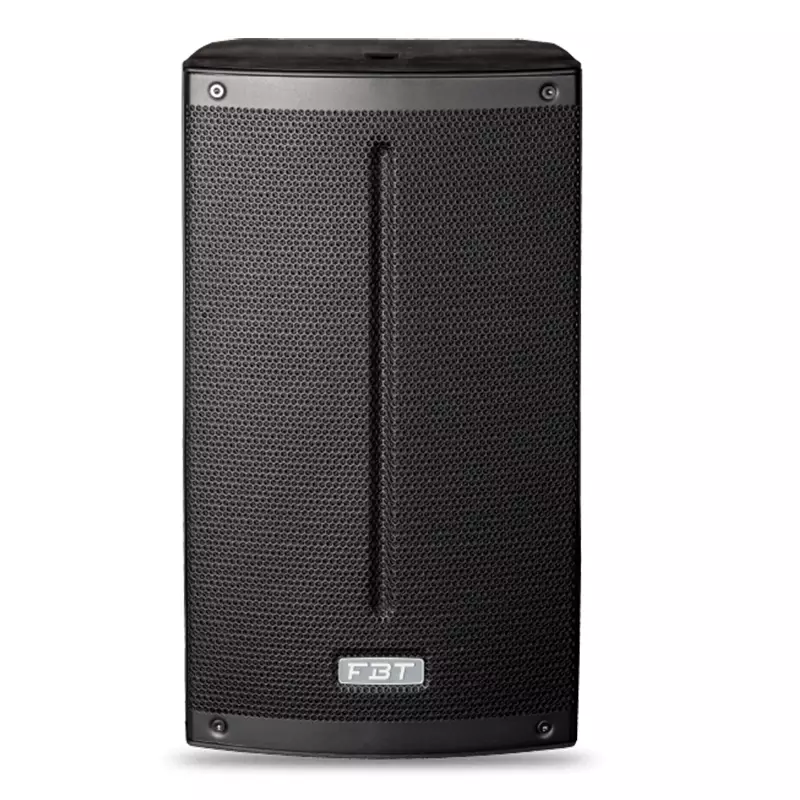

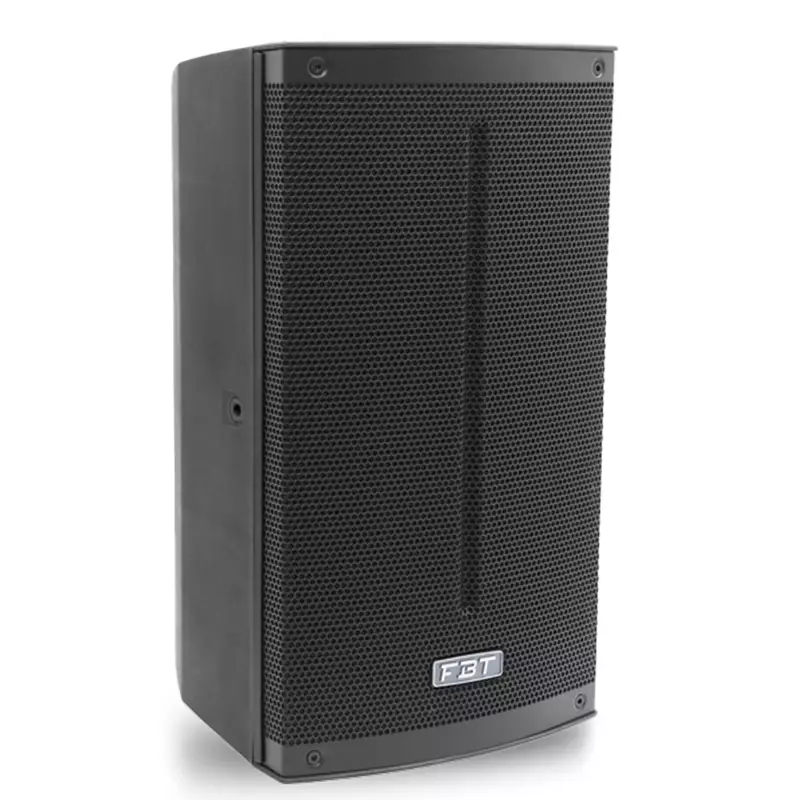

The X LITE 112 is a passive 2-way speaker designed for versatile sound reinforcement applications. Featuring a 12″ woofer with a 2.5″ voice coil and a 1″ compression driver with a 1.4″ voice coil, it delivers a maximum SPL of 126.5 dB with a frequency response from 55 Hz to 20 kHz. The cabinet is made from gas-injected molded polypropylene, ensuring a lightweight yet robust structure. It includes four M10 rigging points, a 35mm pole mount socket, and can also be used as a floor monitor thanks to its asymmetric shape. Designed for both fixed installations and portable setups, X-Lite 112 is equipped with two Neutrik NL4 speakon connectors and a steel grille for driver protection.
FEATURES:
- Configuration: 2-way
- Low Frequency Woofer: 12″ – 2.5″ VC
- High Frequency Driver: 1″ – 1.4″ VC
- Recommended Amplifier: 400W
- Max SPL:Â 126.5 dB
- Material: Gas-injected polypropylene with steel grille
SPECIFICATIONS:Â
- Configuration: 2 ways
- Recommended amplifier: 400W RMS
- Long term power: 200W
- Short term power: 800W
- Nominal impedance: 8Ohm
- Frequency response: 55Hz – 20kHz
- Low frequency woofer: 12 – 2.5 coil inch
- High frequency driver: 1 – 1.4 coil inch
- Sensitivity (@1W/1M): 97dB
- Maximum SPL cont./peak: 123.5 / 126.5dB
- Dispersion: 90° x 60° H x V
- Crossover frequency: 1.8kHz
- Recommended hp filter: HP 45Hz – 12/24dB oct
- Recommended external filter: FBT DSP Processor
- Input connector: 2 x Speakon NL4
- Net dimensions (W x H x D): 352 x 619 x 356 mm
- Net weight: 15.2 Kg
