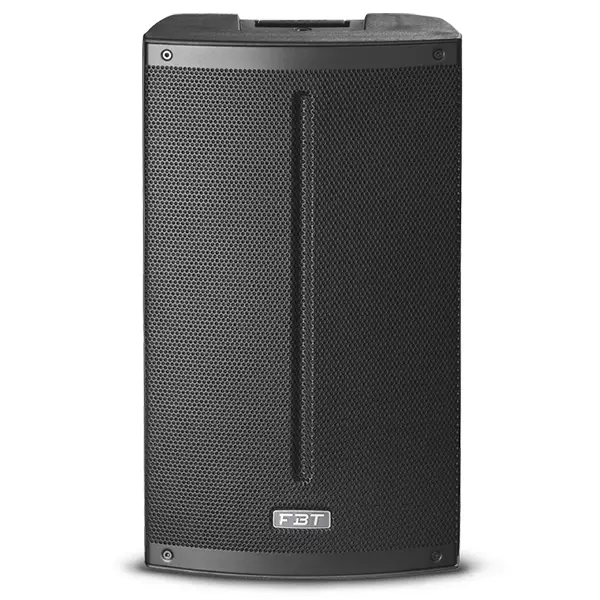

FBT – X-LITE112A 12″ ACTIVE SPEAKER 1500W PEAK

The X LITE 112A is a 2-way bi-amplified loudspeaker with a lightweight gas-injected polypropylene enclosure, delivering high performance for both portable and fixed sound reinforcement applications. Equipped with a 12″ woofer (2.5″ VC) and a 1″ compression driver (1.4″ VC), it reaches a peak SPL of 129 dB with a frequency response from 50 Hz to 20 kHz. The integrated Class D amplifier delivers 1200W LF + 300W HF. The control panel features three input channels: one XLR mic/line input, one selectable stereo line input (jack/XLR), and one Bluetooth 5.0 channel with pairing LED; preset selector, high-pass filter, and XLR output with selectable CH1 or mix link. Four M10 rigging points and standard 35mm pole socket ensure flexible mounting. Its asymmetrical design also allows for use as a stage monitor.

FEATURES:

• 2-way bi-amplified system in bass reflex
• Polypropylene moulded enclosure
• Woofer custom 12” (LF) / 2,5” voice coil
• 1” throat / 1,4” voice coil HF compression driver
• 1200/300W built-in amplifier (LF/HF)
• Bluetooth 5.0
• 3-channels mixer
• 4 DSP presets
• 30° / 45° monitor taper
• Universal switching mode power supply 100-240 VAC
• M10 rigging points
• 4 DSP presets

SPECIFICATIONS:

• Configuration:2 Way
• Frequency response:50Hz – 20KHz
• Low frequency woofer: 12″ / 2.5″ VC
• High frequency driver: 1″ – 1.4″ VC
• Maximum SPL cont./peak:124 / 129
• Dispersion:90 x 60
• Input impedance:22
• Input connector:XLR IN/OUT, Jack ST
• Net Dimension (W x H x D): 356 x 619 x 357
• Net Weight: 16.3kg
• Transport Dimension (W x H x D): 440 x 700 x 445
• Transport Weight: 18.9kg
• Built in amplifier: 1200 / 300 LF/HF
