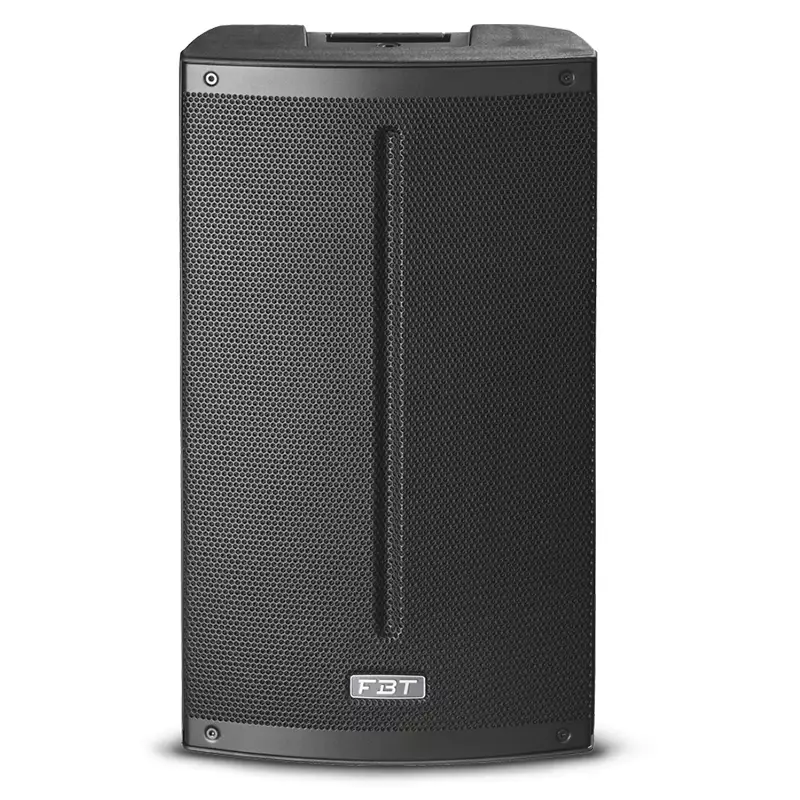

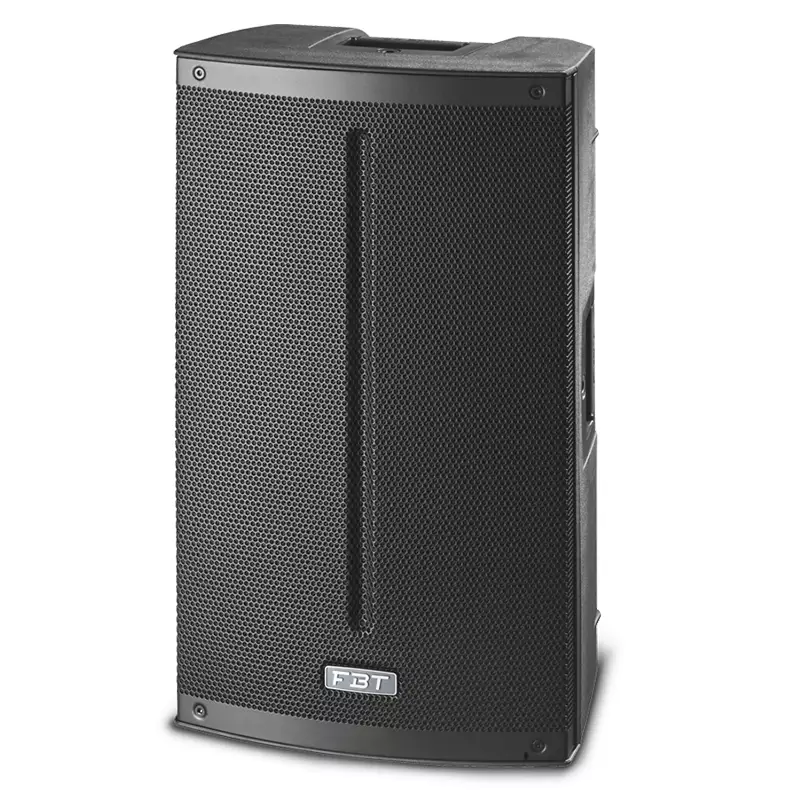

The X LITE 115 is a passive 2-way speaker designed for versatile sound reinforcement in portable and installed applications. Housed in a gas-injected polypropylene cabinet with steel grille, it features a 15″ woofer with 2.5″ voice coil and a 1″ compression driver with 1.4″ voice coil, delivering a peak SPL of 127.5 dB and a frequency response from 50 Hz to 20 kHz. The asymmetrical enclosure allows use as a floor monitor, while four M10 rigging points and a 35mm pole socket ensure flexible mounting. The speaker is equipped with two Neutrik NL4 speakon connectors for input and link.
FEATURES:
- Polypropylene cabinet with gas injection moulding designed to eliminate unwanted resonance
- High-efficiency custom FBT speakers with high linear excursion capacity
- Compression drivers with 25mm aperture and 35mm coil
- 1200W LF and 300W HF high dynamic Class D amplifier
- Universal switching power supply 100-240Vac
- Bluetooth 5.0
- DSP processor with 4 equalization presets
- Advanced filtering algorithms, dynamic equalization of low frequencies, energy control that change depending on the preset chosen
- 3-channel mixer: one dedicated BLUETOOTH 5.0 channel, two independent micro/line channels with separate volume and one with stereo jack input, balanced XLR MIX output or CH1 LINK
- Built-in handles, M10 anchor points for suspended installation, stand support, 30° and 45° diffuser monitor profile.
SPECIFICATIONS:Â
- Configuration: 2
- Recommended amplifier: 400W RMS
- Long term power: 200W
- Short term power: 800W
- Nominal impedance: 8Ohm
- Frequency response: 50 Hz – 20kHz
- Low frequency woofer: 15 – 2.5 coil inch
- High frequency driver: 1 – 1.4 coil inch
- Sensitivity (@1W/1M): 98dB
- Maximum SPL cont./peak: 124.5 / 127.5dB
- Dispersion: 90° x 60° HxV
- Crossover frequency: 1.6kHz
- Recommended hp filter: HP 45Hz – 12/24dB oct
- Recommended external filter: FBT DSP Processor
- Input connector: 2 x Speakon
- Net dimensions (W x H x D): 433 x 706.5 x 400 mm
- Net weight: 20.5 Kg
