FBT – X-PRO110A 10″ PROCESSED ACTIVE SPEAKER RMS

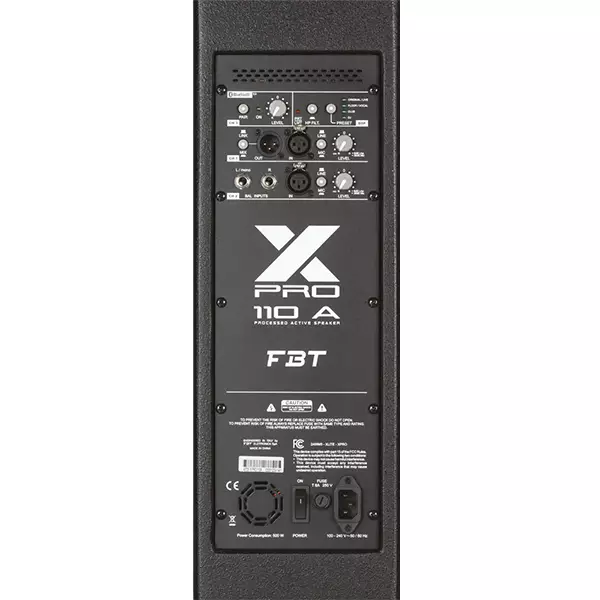

X PRO 110A is a compact active 2-way loudspeaker designed for portable sound, installations, and stage monitoring. It features a 10″ woofer with a 2.5″ voice coil and a 1″ compression driver with a 1.4″ voice coil, mounted on a rotatable 80° x 50° constant directivity horn. The Class D bi-amplification system delivers 1200W LF + 300W HF and achieves a max SPL of 127 dB with a frequency response of 58 Hz – 20 kHz. The control panel includes a three-channel input section: one XLR mic/line input, one selectable stereo line input (jack/XLR), and one Bluetooth 5.0 channel with pairing LED. Other features include DSP preset selector, high-pass filter, two mic/line selectors, and an XLR output with CH1 or mix link selector. Constructed from plywood with a steel grille, X PRO 110A integrates M10 rigging points and a 35 mm pole socket for mounting

FEATURES:

• 2-way bi-amplified system
• Plywood cabinet
• Woofer custom 10”LF / 2.5’’ voice coil
• 1” throat / 1.4” voice coil HF compression driver
• 1200/300W built-in amplifier max (LF/HF)
• Bluetooth 5.0
• 3 channels mixer
• 35° monitor taper
• 4 DSP presets
• 80° H x 50° V rotatable constant directivity horn
• Universal switching mode power supply 100-240 VAC
• M10 rigging points APPLICATIONS

SPECIFICATIONS:

• Configuration:2 Way
• Frequency response:58Hz – 20KHz
• Low frequency woofer:10″ – 2.5″ VC
• High frequency driver:1″ – 1.4″ VC
• Maximum SPL cont./peak:123/127 dB
• Dispersion:80 x 50
• Input impedance:22
• Input connector: XLR IN/OUT/JACK ST
• Net Dimension (W x H x D): 314 x 550 x 315mm
• Net Weight:13.5kg
• Transport Dimension (W x H x D):410 x 625 x 410mm
• Transport Weight:15.5kg
• Built in amplifier peak:LF 1200w HF 300w
