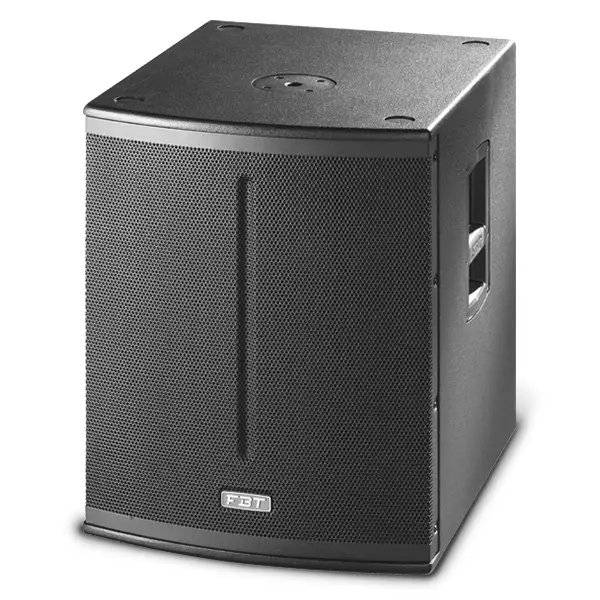

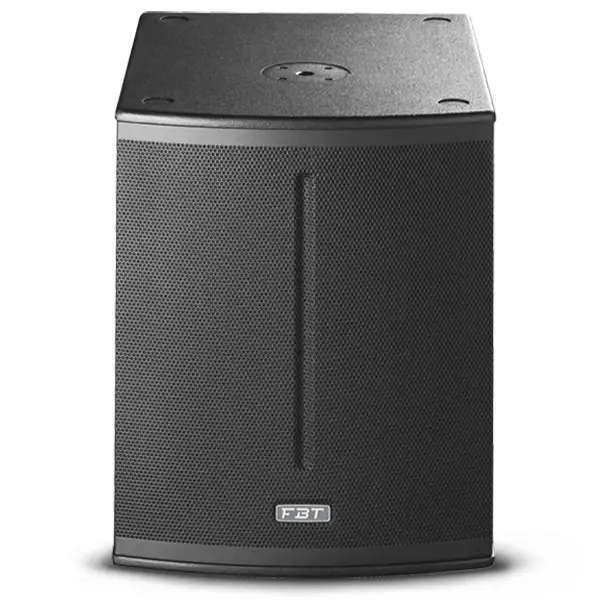

FBT – X-SUB115SA 15″ PROCESSED COMPACT BAND-PASS ACTIVE SUB 1200W RMS

The FBT X-SUB 115SA provides the following performance criteria: frequency response of 42Hz to 120Hz @ -6dB, maximum SPL of 135 dB peak, 1200W Class D amplifier.

The FBT X-SUB 115SA provides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies). The FBT X-SUB 115SA feature 0,59″ birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design aluminium handles and four optional 100mm/3,93″ transport wheels.

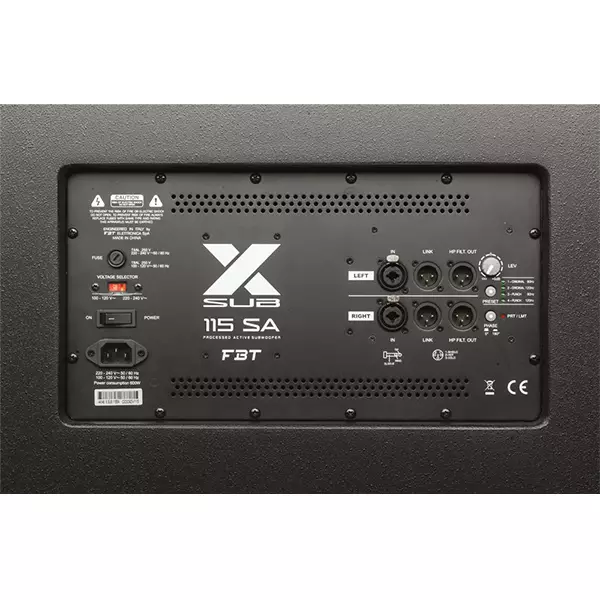

The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators.

FEATURES:

• Active subwoofer
• 15″ woofer / 3″ voice coil
• Frequency response 42Hz – 120Hz
• 4 DSP presets
• 1200W RMS Class D power amplifier
• 15mm / 0.59″ birch plywood cabinet
• Optional 100mm / 3.93″ transport wheels
• M20 stand pole mount

SPECIFICATIONS:

• Frequency response: 42Hz – 120KHz
• Low frequency woofer: 15″ – 3″ VC
• High frequency driver: 1″ – 1.4″ VC
• Maximum SPL cont/peak: 135 dB half space
• Dispersion: omnidirectional
• Input impedance: 22
• Input connector: RCA With loop
• Net Dimension (WxHxD): 455 x 586 x 570
• Net Weight: 30kg
• Enclosure: Plywood
• Grill: Steel with powder coat black paint finish
