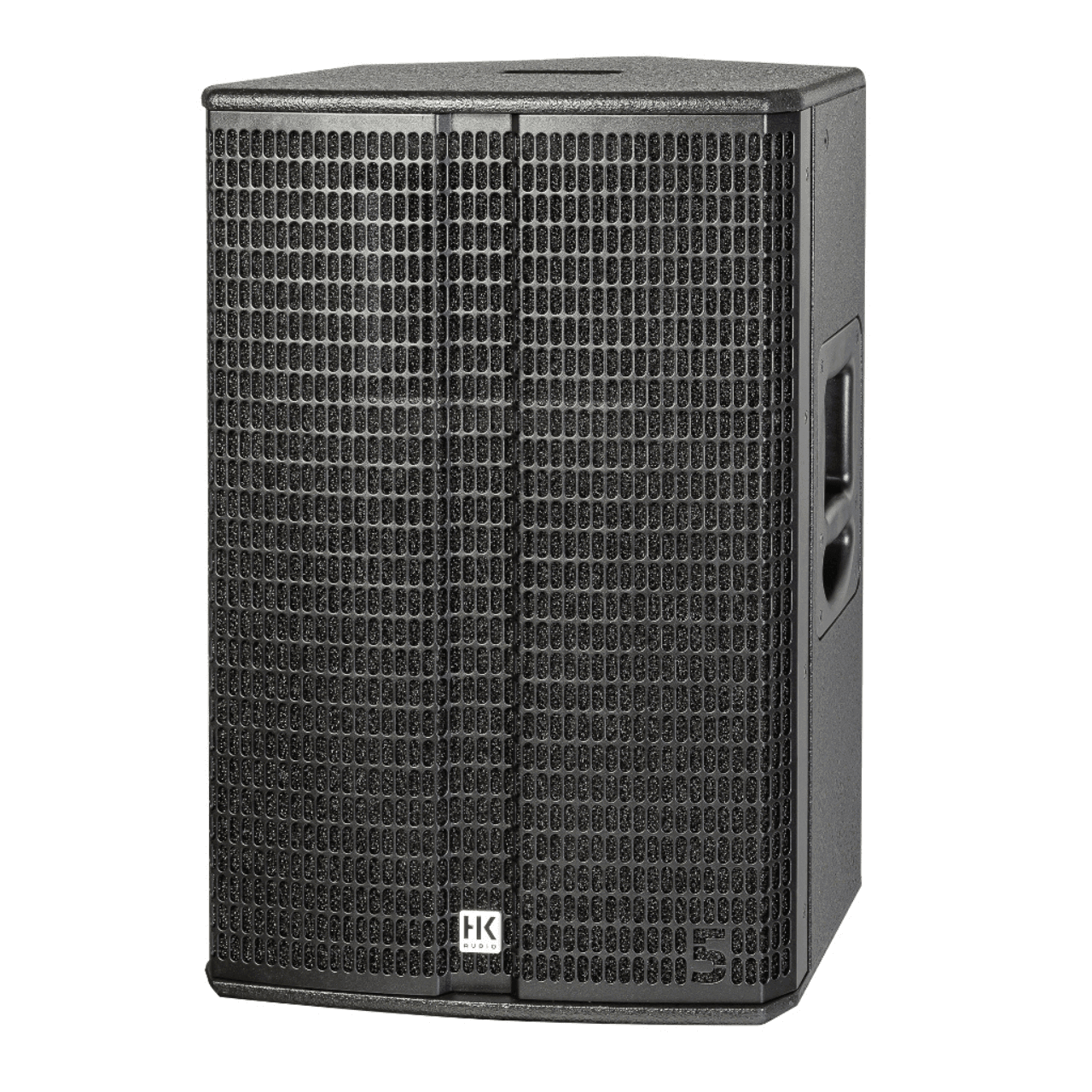

Name: HK Audio LINEAR 5 MK II 115 XA
Brand: HK Audio
SKU: LINEAR 5 MKII 115 XA
Availability: InStock

The LINEAR 5 MK II XA models are compact, flexible, multifunctional mid/high units with impressive range and crystal clear, assertive sound. Due to the multifunctional enclosure shape with slanted monitor edge, they can be operated as low-feedback stage monitors or as powerful mid/high system units in conjunction with the subwoofers. The rotatable horns ensure optimal dispersion even when used on their side – although rotating the horn is not strictly necessary with the 110 XA and 112 XA due to the narrow dispersion angles. Even on small and narrow stages, precise sound coverage is possible without any problems.

General Specifications

Max. SPL @ 10 % THD	130 dB half space (70 Hz – 12 kHz averaged)
Max. SPL Peak @ 10 % THD	138 dB half space
Frequency response +/-3 dB	64 Hz – 12 kHz
Frequency response -10 dB	59 Hz – 19 kHz
Power amp output (RMS/Peak)	600 / 1,200 W
Amplifier type	Class D – bi-amped
Low/mid speaker	1 x 15″, 3″ voice coil
HF driver	1″, 1.7″ voice coil
Horn characteristics	70° x 50° CD horn, rotatable
Active x-over frequency	1.6 kHz FIR X-over with 72 dB/oct.
Maximum input level	20 dBu

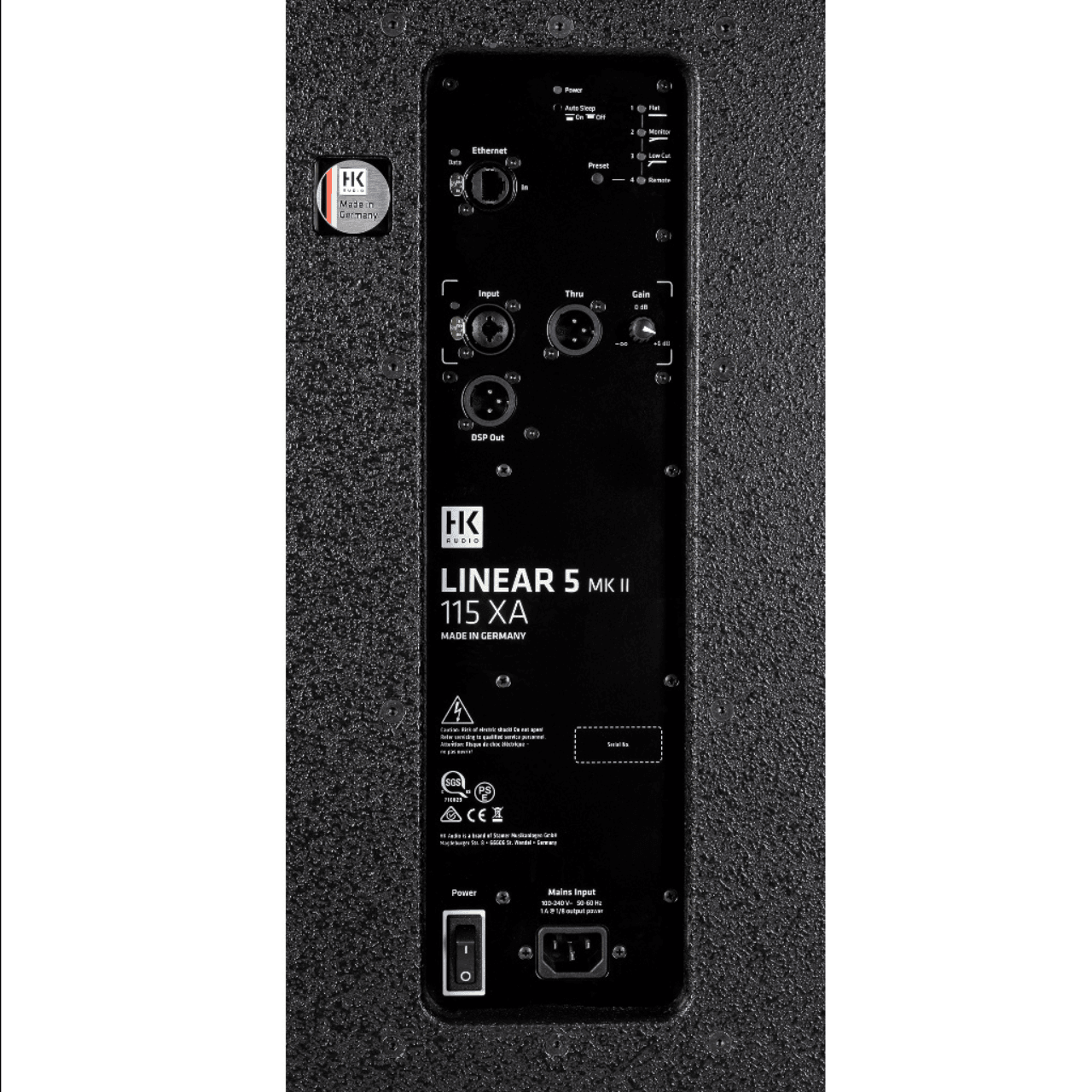

Analogue inputs	1 x XLR combo balanced
Analogue Thru	1 x XLR balanced
DSP Out	1 x XLR balanced
Network port	EtherCON RJ45, 1 x In
Filter presets	Flat, Monitor, Low Cut, Remote
Remote software	DSP CONTROL (Windows, Mac OS)
DSP functions	Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate	48 kHz
System latency	Less than 2 ms
Mains connection	1x IEC connector with V-Lock securing system, 100-240 V
Power consumption	1 A / 100–240 V nominal according to EN 62368-1
Setup angle	31°

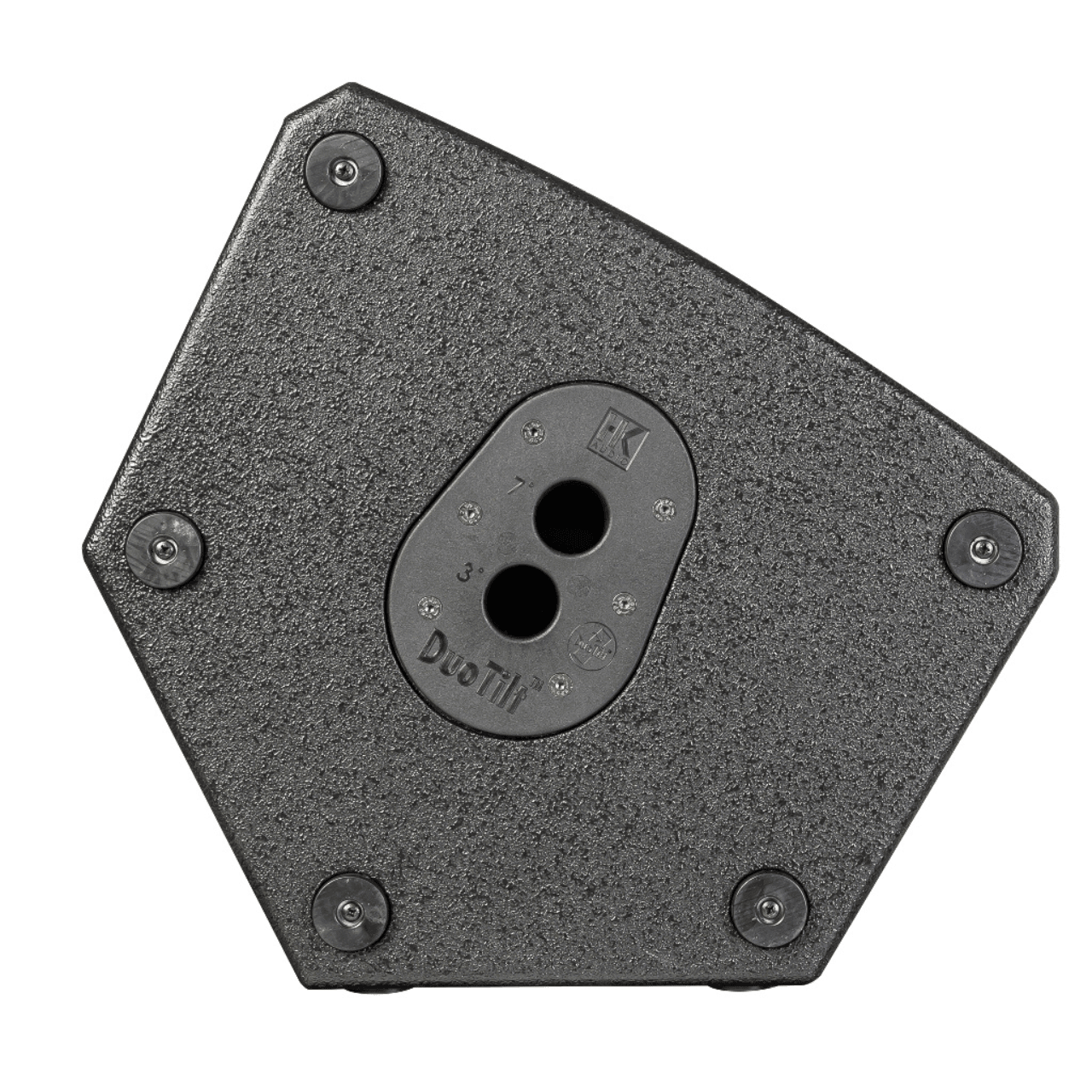

Pole mount	DuoTilt 3°/7°
Rigging points	3x M8 (AP-8)

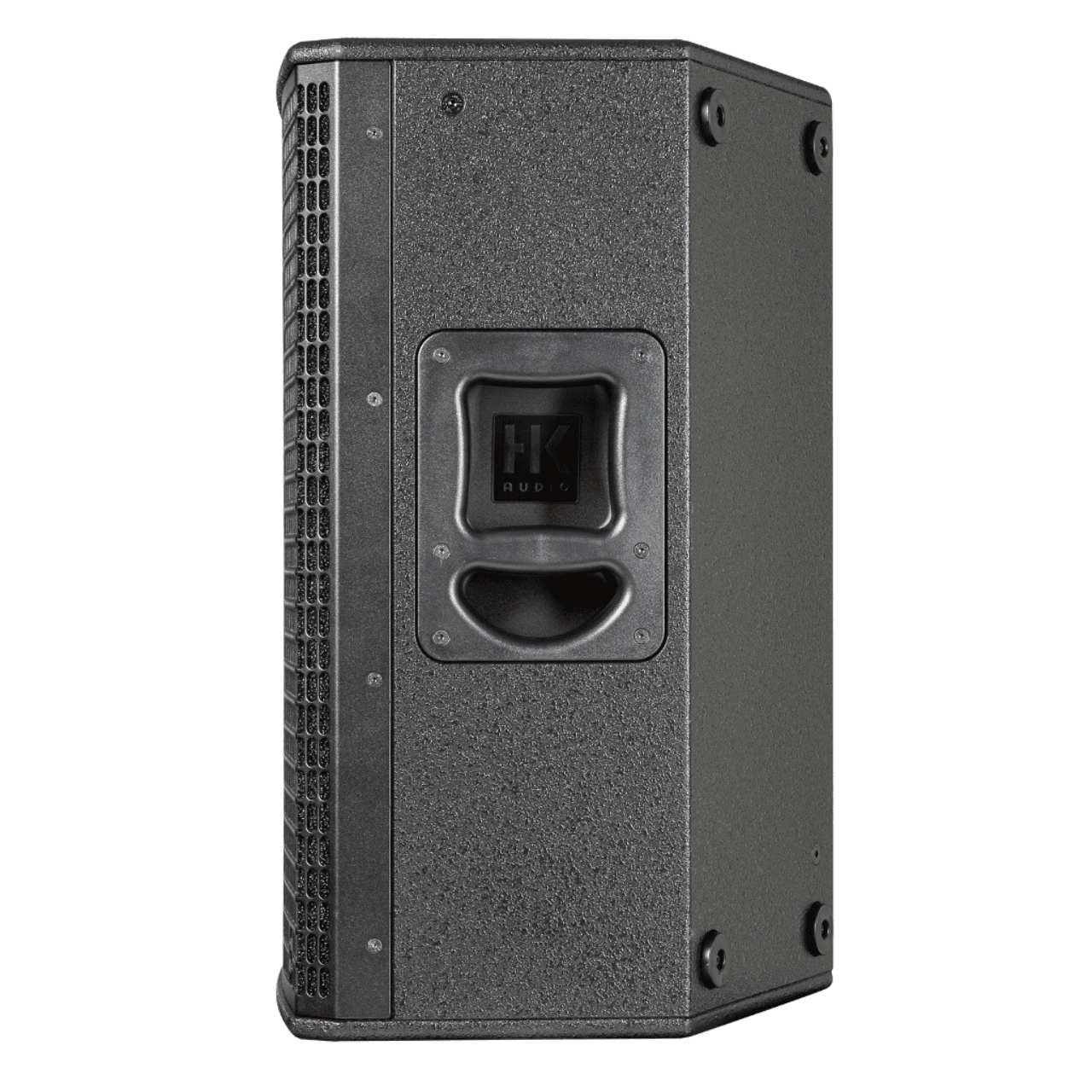

Carrying handles	2 x MultiGrip, 1 x SingleGrip
Housing	Hybrid (birch multiplex/MDF)
Surface	Black acrylic enamel
Front grille	2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)	45 x 68.5 x 42 cm 17-23/32 x 26-31/32 x 16-17/32″
Weight	27.6 kg / 60.85 lbs
