Amplifier Power and Performance: The LINEAR 5 MKII 115FA boasts a Class D bi-amped amplifier that delivers 600 W RMS and 1200 W peak power. This powerful amplification drives consistent, high-quality sound across a broad frequency range, ensuring the speaker reaches a maximum SPL of 130 dB (with 10% THD) and peaks at 138 dB. This design allows the speaker to deliver clear, impactful sound at any volume level, covering frequencies from 57 Hz to 12 kHz, or 54 Hz to 19 kHz at -10 dB.

Speaker Components: Equipped with a 15” low/mid speaker featuring a 3” voice coil and a 1” high-frequency driver with a 1.7” voice coil, the 115FA provides detailed, full-range audio reproduction. This combination of high-quality components ensures exceptional low-end response and crisp mid/high frequencies, catering to diverse professional audio needs.

Precision Dispersion: The 115FA features a rotatable 60° x 40° constant directivity (CD) horn, allowing for flexible placement and optimized coverage in different environments. An active FIR X-over set at 1.6 kHz with a steep 72 dB/octave slope further enhances sound dispersion by minimizing distortion and ensuring precise audio distribution.

Advanced DSP Functions: This model’s built-in DSP allows for extensive audio control and customization. Key DSP features include a 10-band parametric EQ, high-pass and low-pass filters, delay, polarity inversion, level adjustment, limiter, and mute. Additionally, users can select from preset sound profiles—Flat, Boost, Low Cut, and Remote—to quickly adjust for different acoustic settings. DSP CONTROL software, compatible with both Windows and Mac OS, supports further fine-tuning.

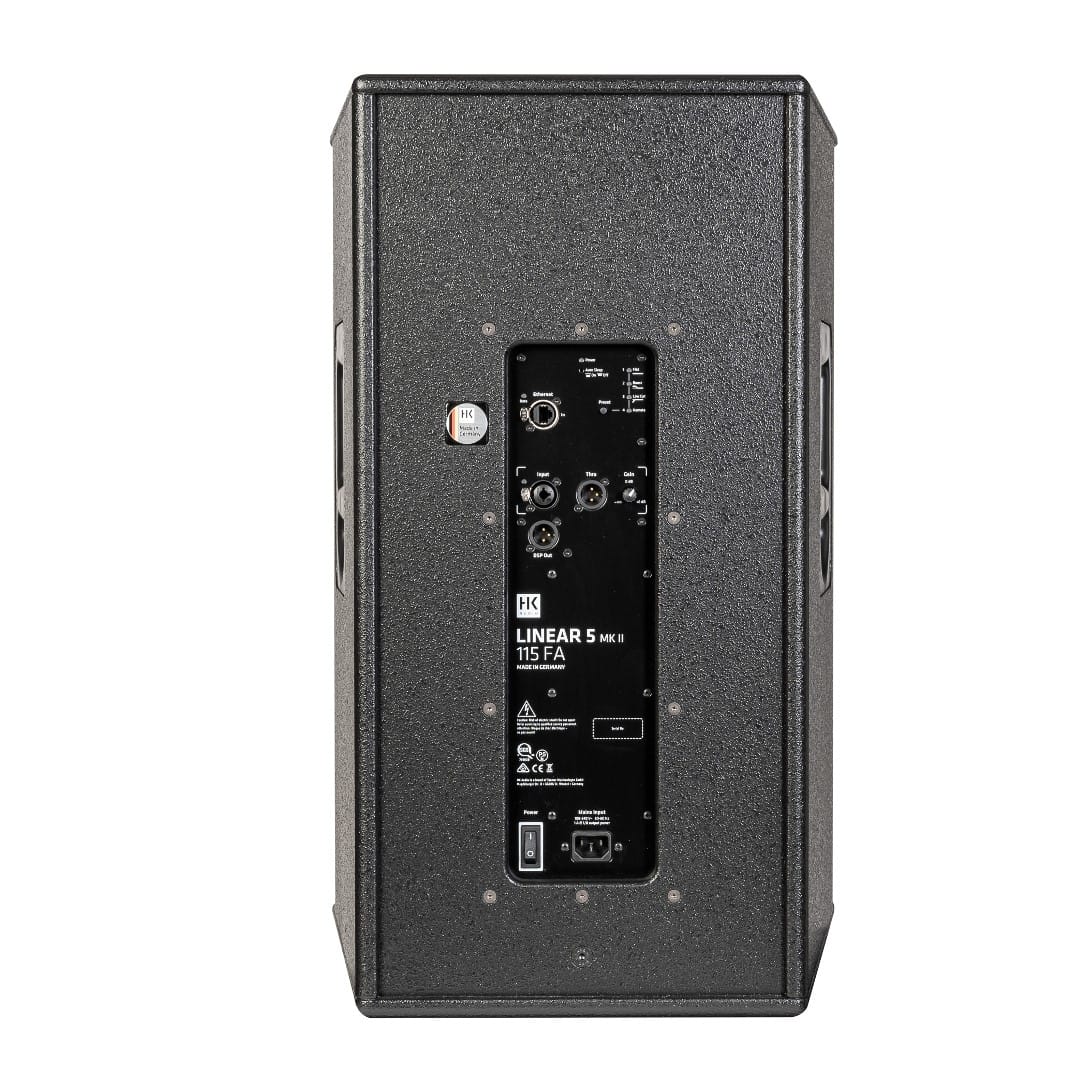

Versatile Connectivity: The LINEAR 5 MKII 115FA offers versatile input and output options, making it easy to integrate into various sound setups. It includes a balanced XLR combo input, balanced XLR thru, and DSP out, along with a network port for remote control via EtherCON RJ45.

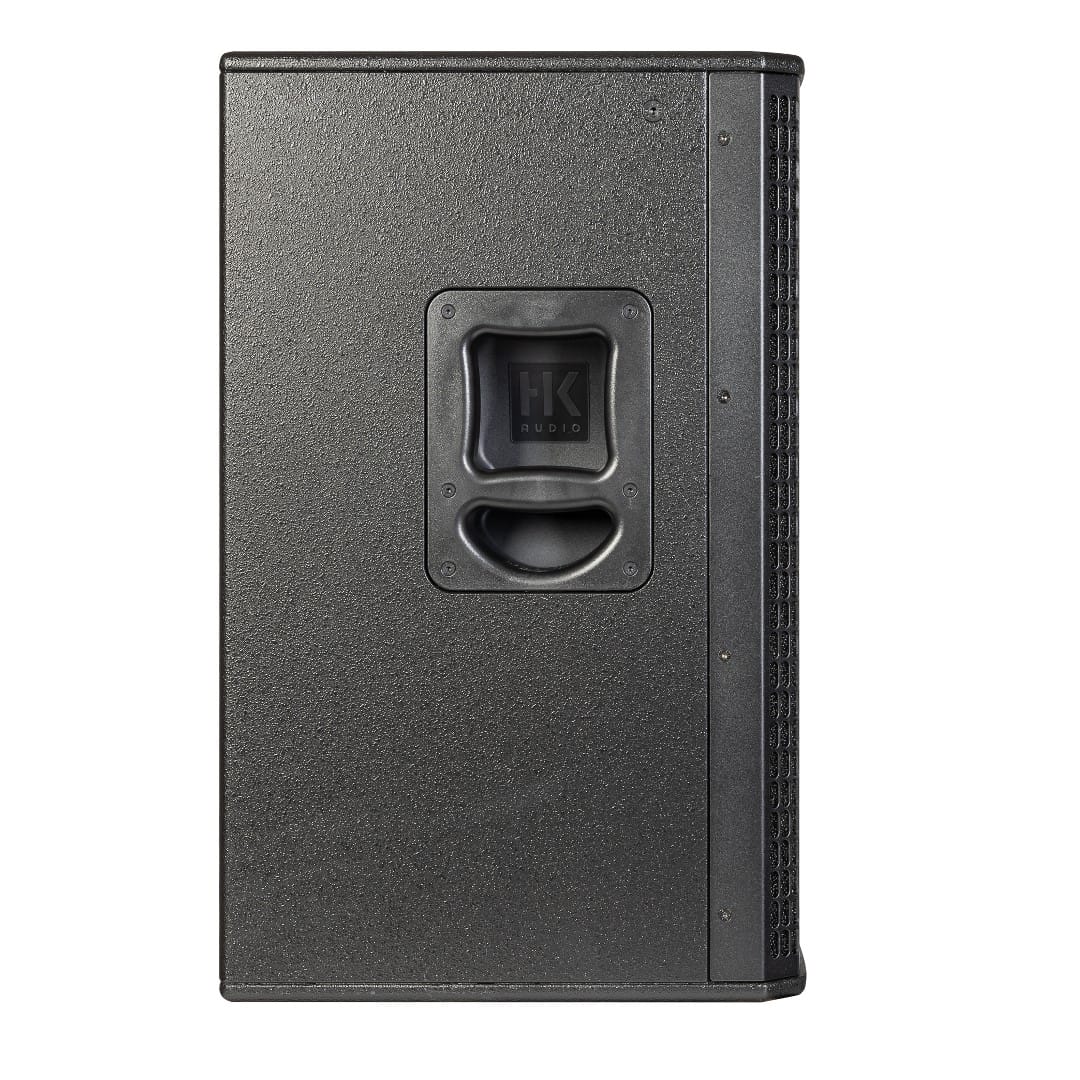

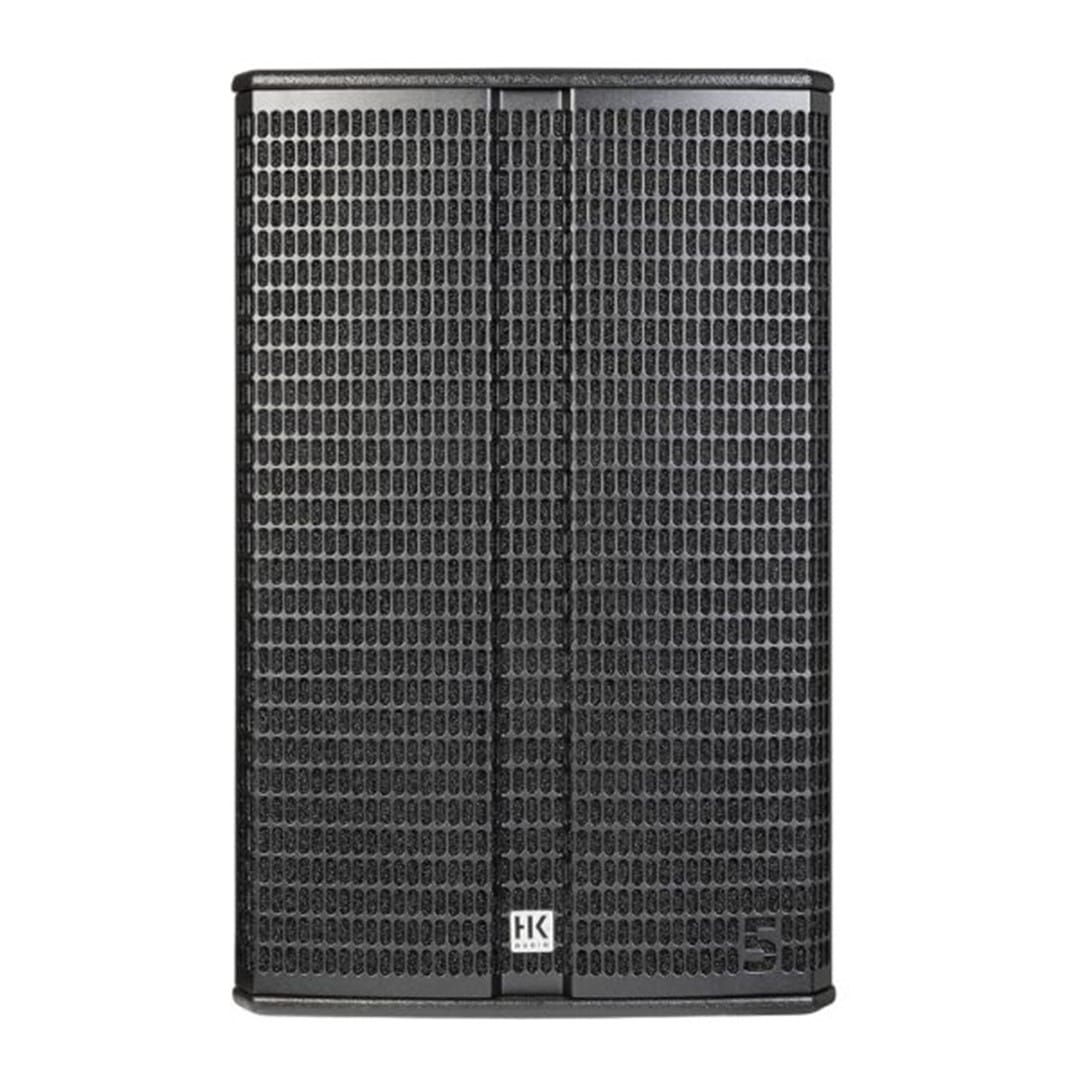

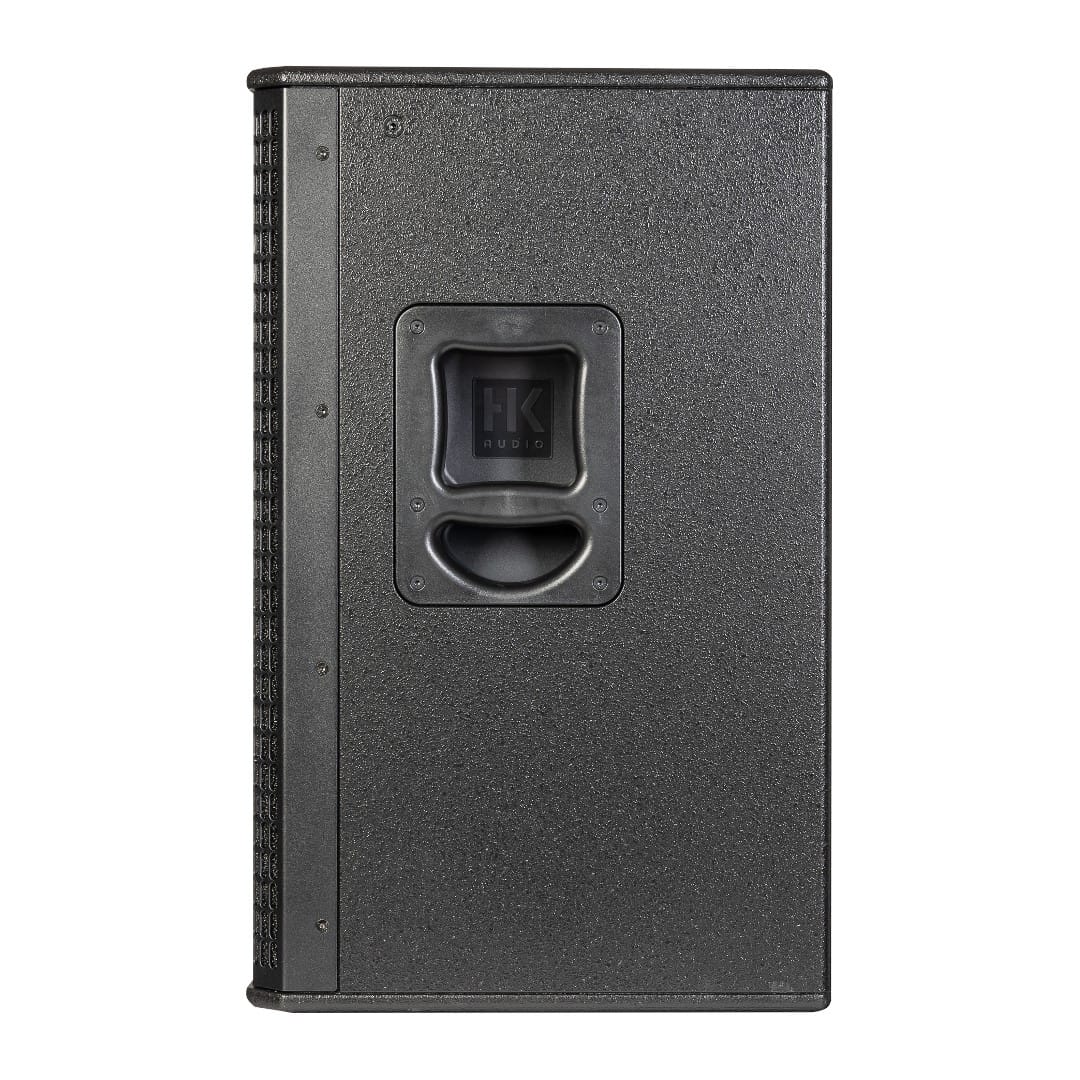

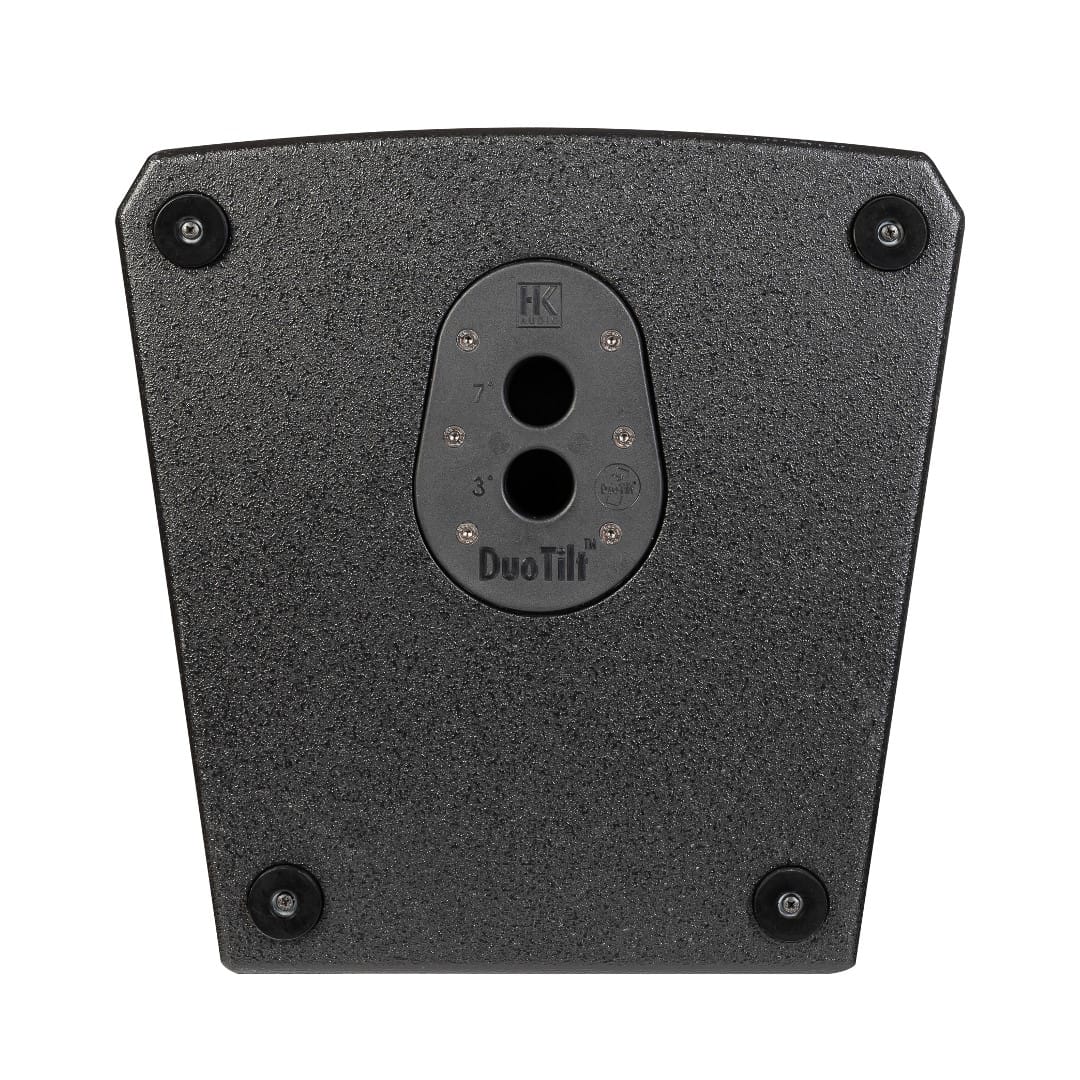

Durable Build and Handling: Designed for reliability, the 115FA is housed in a rugged hybrid birch multiplex/MDF enclosure with a black acrylic enamel finish. The speaker is protected by a 2 mm metal grille with acoustic foam backing, safeguarding it during transport and use. For ease of setup and handling, the 115FA includes DuoTilt pole mounts at 3°/7°, three M8 rigging points, and two MultiGrip handles.

Specifications:

Max SPL @ 10% THD: 130 dB (half space, 70 Hz – 12 kHz averaged)
Max SPL Peak @ 10% THD: 138 dB (half space)
Frequency Response (±3 dB): 57 Hz – 12 kHz
Frequency Response (-10 dB): 54 Hz – 19 kHz

Amplifier:

Amplifier Type: Class D, bi-amped
Power Output (RMS/Peak): 600 W / 1200 W

Speaker Components:

Low/Mid Speaker: 1 x 15″ with 3″ voice coil
High-Frequency Driver: 1″ with 1.7″ voice coil
Horn Characteristics: 60° x 40° CD horn, rotatable
Crossover Frequency: Active FIR crossover at 1.6 kHz with a 72 dB/octave slope

Inputs and Outputs:

Analogue Input: 1 x XLR combo, balanced
Analogue Thru Output: 1 x XLR, balanced
DSP Output: 1 x XLR, balanced
Network Port: EtherCON RJ45 (1 x In)

DSP Features:

DSP Functions: Fully parametric 10-band EQ, high-pass and low-pass filters, polarity inversion, level adjustment, delay, limiter, mute
Filter Presets: Flat, Boost, Low Cut, Remote
Remote Software: DSP CONTROL (compatible with Windows and Mac OS)
Sample Rate: 48 kHz
System Latency: Less than 2 ms

Physical and Mechanical:

Housing: Hybrid birch multiplex/MDF
Surface Finish: Black acrylic enamel
Front Grille: 2 mm metal grille with black acoustic foam backing
Pole Mount: DuoTilt (3°/7°)
Rigging Points: 3 x M8 (AP-8)
Carrying Handles: 2 x MultiGrip handles
Dimensions (WxHxD): 44.8 x 70.7 x 44.75 cm (17-2/3 x 27-4/5 x 17-2/3 inches)
Weight: 30.2 kg / 66.47 lbs

Power Requirements:

Mains Connection: 1 x IEC connector with V-Lock securing system, 100-240 V
Power Consumption: 1 A / 100–240 V nominal (according to EN 62368-1)

Price-Flex

Price Flex

Name: HK Audio LINEAR 5 MK2 115FA
Brand: HK Audio
SKU: LINEAR 5 MK2 115FA
Availability: OutOfStock
