Product Description

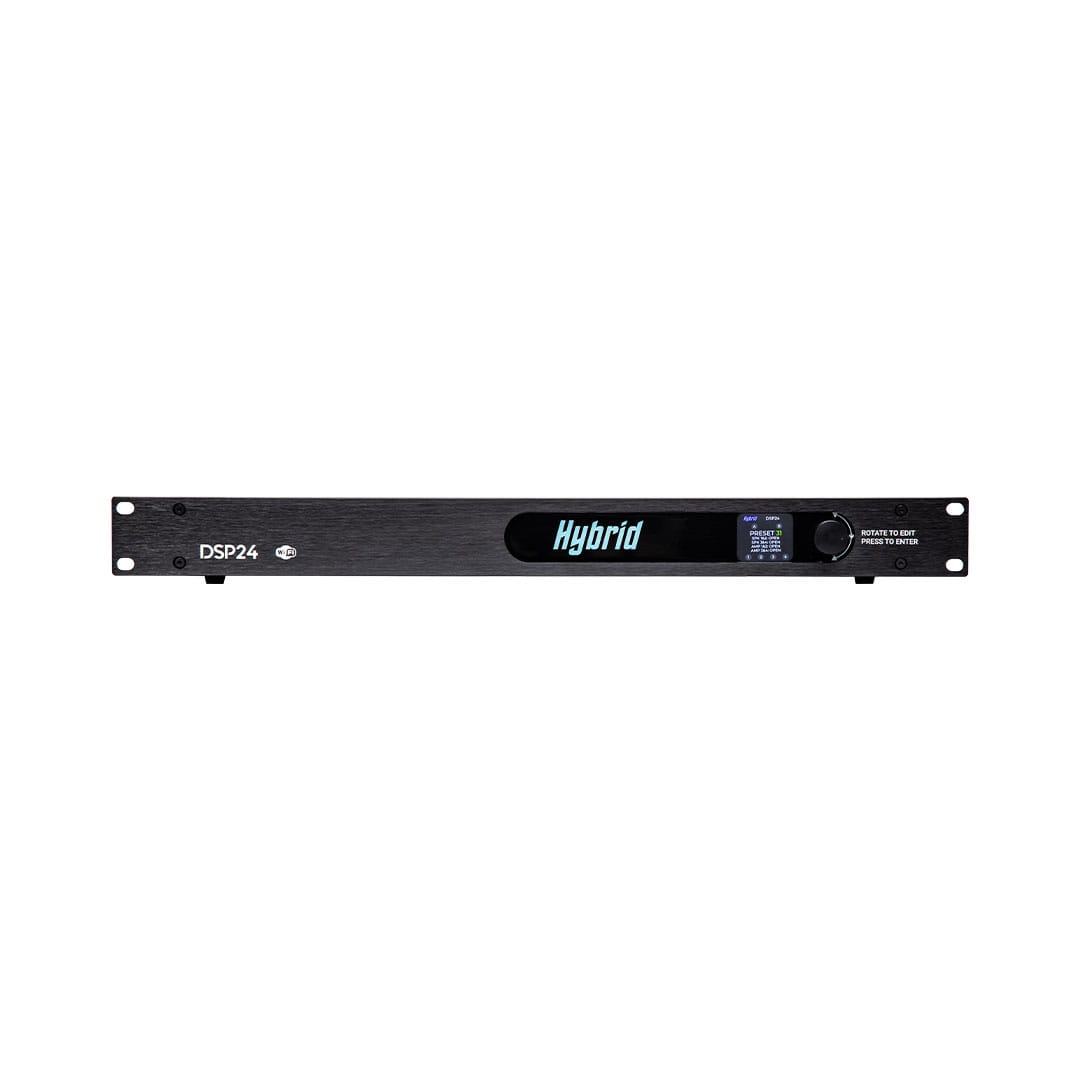

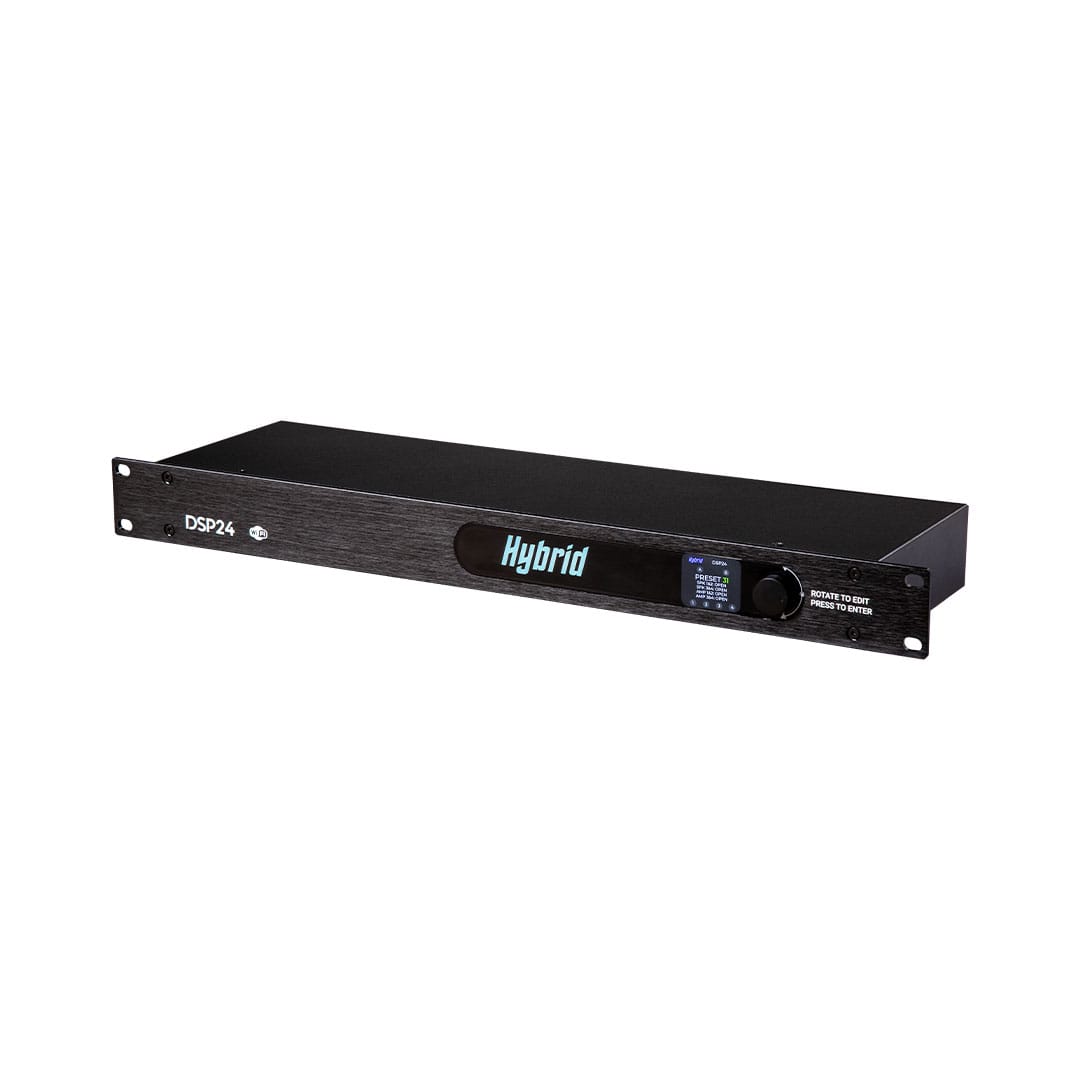

DSP24

2 IN/4 OUT PROCESSOR

The ideal replacement for conventional analogue processors, such as crossovers, graphic equalisers and limiters, with password protection.

3 × PARTIALLY EDITABLE ONBOARD PRESETS

Require no technical knowledge or experience to set up.

27 × PRE-LOADED NON-EDITABLE HYBRID PRESETS

Set up to work with the majority of Hybrid and Hybrid+ amplifier and speaker combinations. Requires no technical knowledge or experience.

2 × FULLY EDITABLE PRESETS

Can be edited with software accessed from PC or smart device.

FEATURES

  • Linked left and right inputs
  • 4 × input PEQs, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass)
  • Outputs 1 and 2 linked by default
  • Outputs 3 and 4 linked by default
  • HPF or LPF with 6, 12, 18 and 24 dB/oct slopes
  • Crossover types include Linkwitz–Riley, Butterworth or Bessel filters
  • Linked outputs 1 and 2 can switch between PEQ or 30-band graphic EQ
  • Linked outputs 3 and 4 can switch between PEQ or 30-band graphic EQ
  • 8 × PEQs for linked outputs 1 and 2, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass)
  • 8 × PEQs for linked outputs 3 and 4, each with selectable filters (high-shelf, low-shelf, notch, high-pass and low-pass)
  • Time-alignment up to 15 ms on linked outputs 1 and 2 and linked outputs 3 and 4
  • Linked outputs 1 and 2 and linked outputs 3 and 4 have each have a limiter (attack, release and threshold)
  • Independent phase invert for all outputs
  • Independent mute function for all outputs
  • Electronic Earth-lift
  • Utilities menu allows you to load the preset from a device, save the preset to a device, write the preset, change and save the password, upgrade the firmware and change the LED logo’s colour and intensity

TECHNICAL SPECIFICATIONS

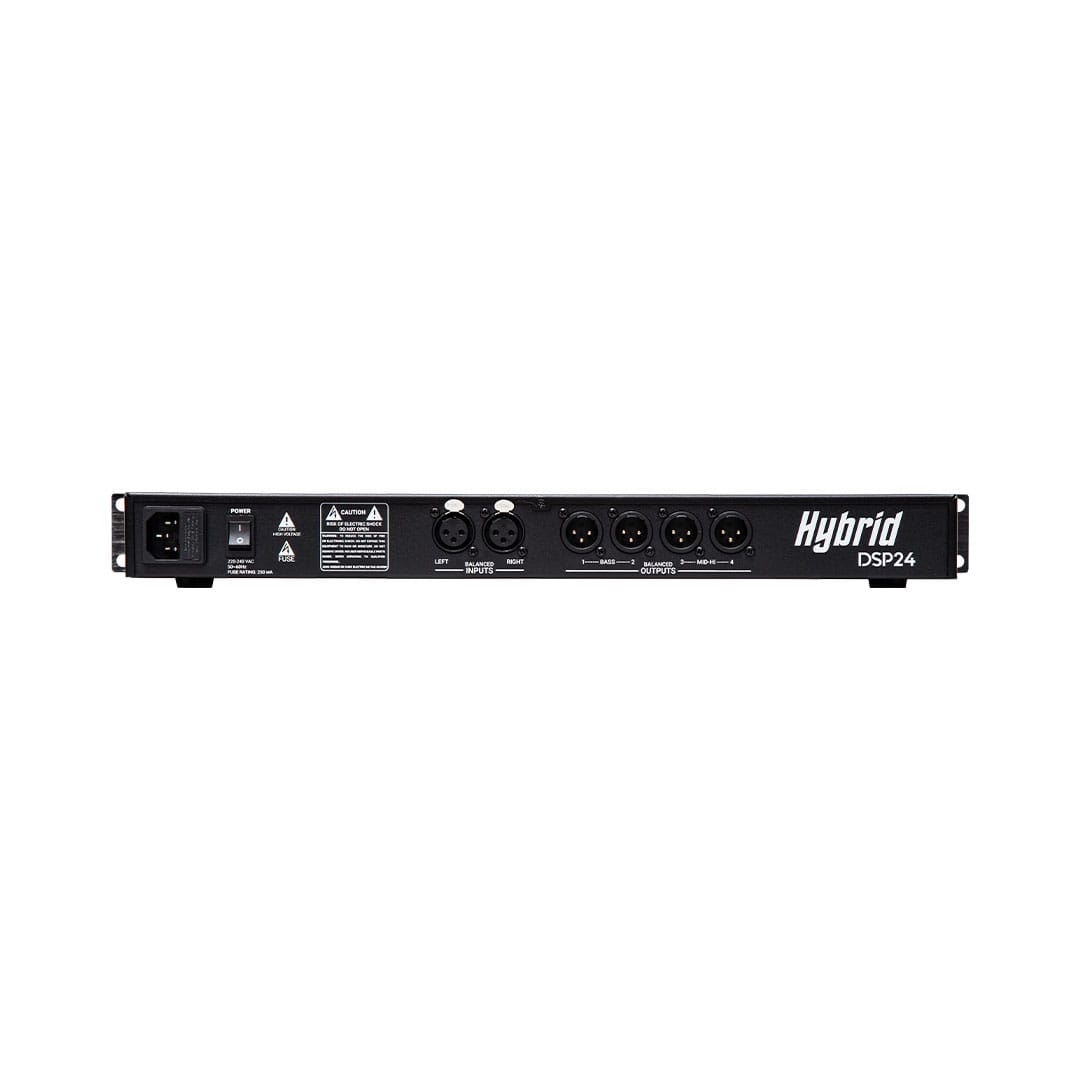

Analogue inputs (A and B)Electronically balanced XLR
Analogue outputs (1, 2, 3 and 4)Electronically balanced XLR
Maximum RMS input level+20 dBu
Input impedance20 kΩ @ 1 kHz
Dynamic range100 dB
Resolution24-bit Delta-Sigma
Maximum RMS output level+20 dBu
Dynamic range104 dB typ.
Output impedance100 Ω @ 1 kHz
Frequency response10 Hz to 35 kHz (±3 dB)
Overall dynamic range102 dB
THD + noise ratio0,005% @ 0 dBu
Mains voltage100–240 VAC 50–60 Hz
Fuse rating250 mA
Power consumption<10 W
Mains connectorStandard IEC receptacle
Net dimensions (H×D×W)45 mm × 127 mm × 483 mm
Shipping dimensions(H×D×W)70 mm × 85 mm × 560 mm
Net weight1.6 kg
Shipping weight2 kg
