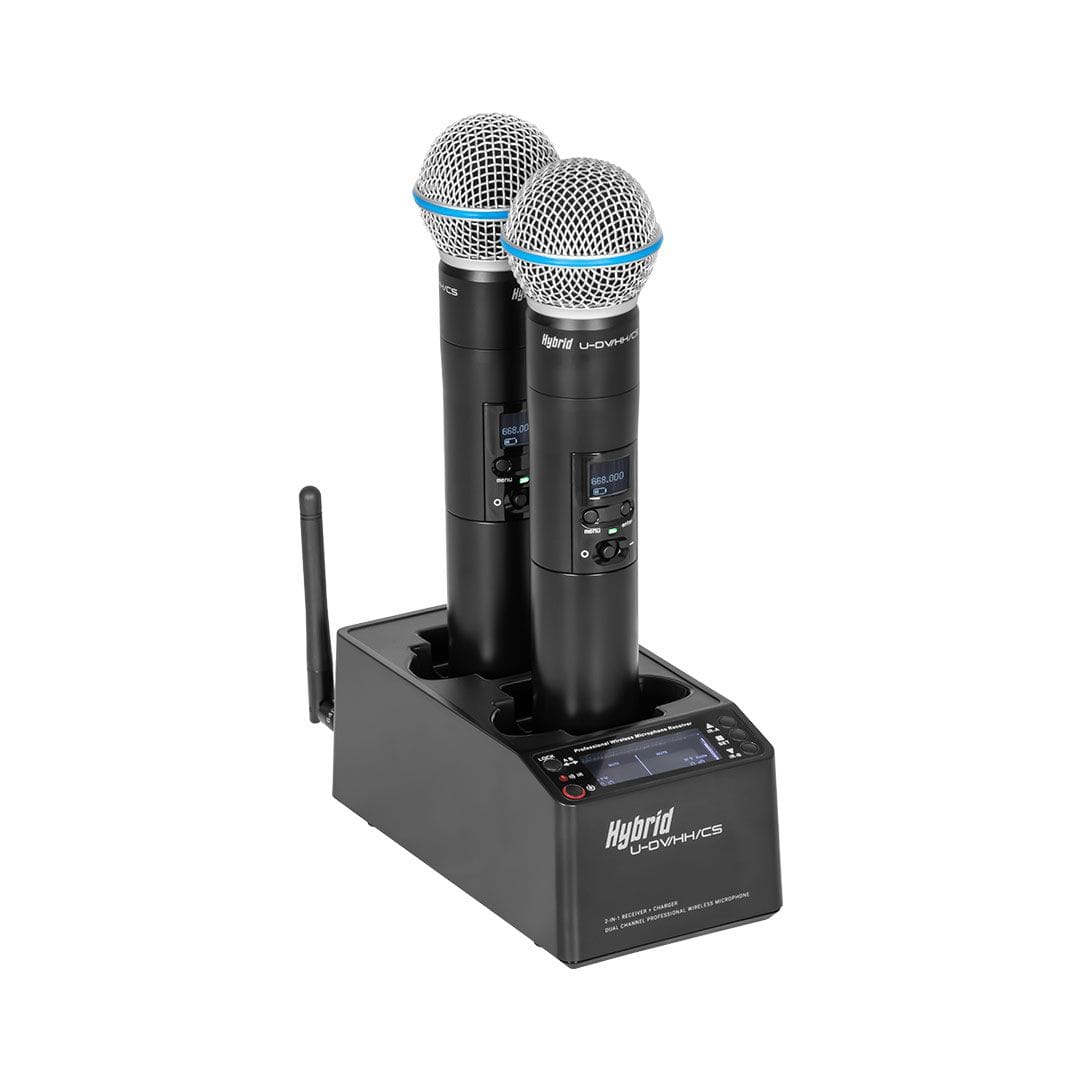

Hybrid U-DV/HH/CS

UHF dual handheld, variable frequency, with charging station

The Hybrid U-DV/HH/CS 2-in-1 Wireless Microphone System delivers clear, reliable sound through UHF transmission with 32 selectable channels to minimize interference. It features automatic frequency matching, cardioid directivity, and low-noise balanced output for professional audio performance. The receiver also functions as a charging dock, while the lock function, adjustable sensitivity, and LCD display enhance ease of use. Perfect for stages, meetings, and events, it offers dependable, high-quality sound in any setting.

General specifications
Frequency range: UHF 470 – 786 MHz
Frequency response: 40 Hz – 18kHz
Frequency stability: ±0.005 %
Modulation mode: Wide-band FM
Modulation range: 25 MHz
Channels: 50 RF channels per microphone
Working distance: 40 m
Channel spacing: 250 kHz
Dynamic range: 100 dB
Maximum deviation: ±45 kHz
AF response: 65 Hz – 15 kHz (±3 dB)
THD: <0.5 %
Balanced audio output: ±500 mV

Microphone specifications
Modulation mode: FM
Turntable bandwidth: 50 MHz
Frequency interval: 250 MHz
Maximum deviation: ±45 kHz
Harmonics radiation: <-55 dBc
Transmitter power: 10 mW
Battery power: 3 V
Battery life: 5 Hours

Receiver specifications
Power supply input: 220 – 240 VAC, 50/60 Hz
Power supply output: 12 VDC, 1000 mA
Power consumption: 6 W
S/N ratio: >98 dB
P/N ratio: >80 dB
F/N ratio: >80 dB
Receiver sensitivity: 5 dBu
Weight: 0.29 kg
Dimensions (H x W x D): 68 x 83 x 165 mm
