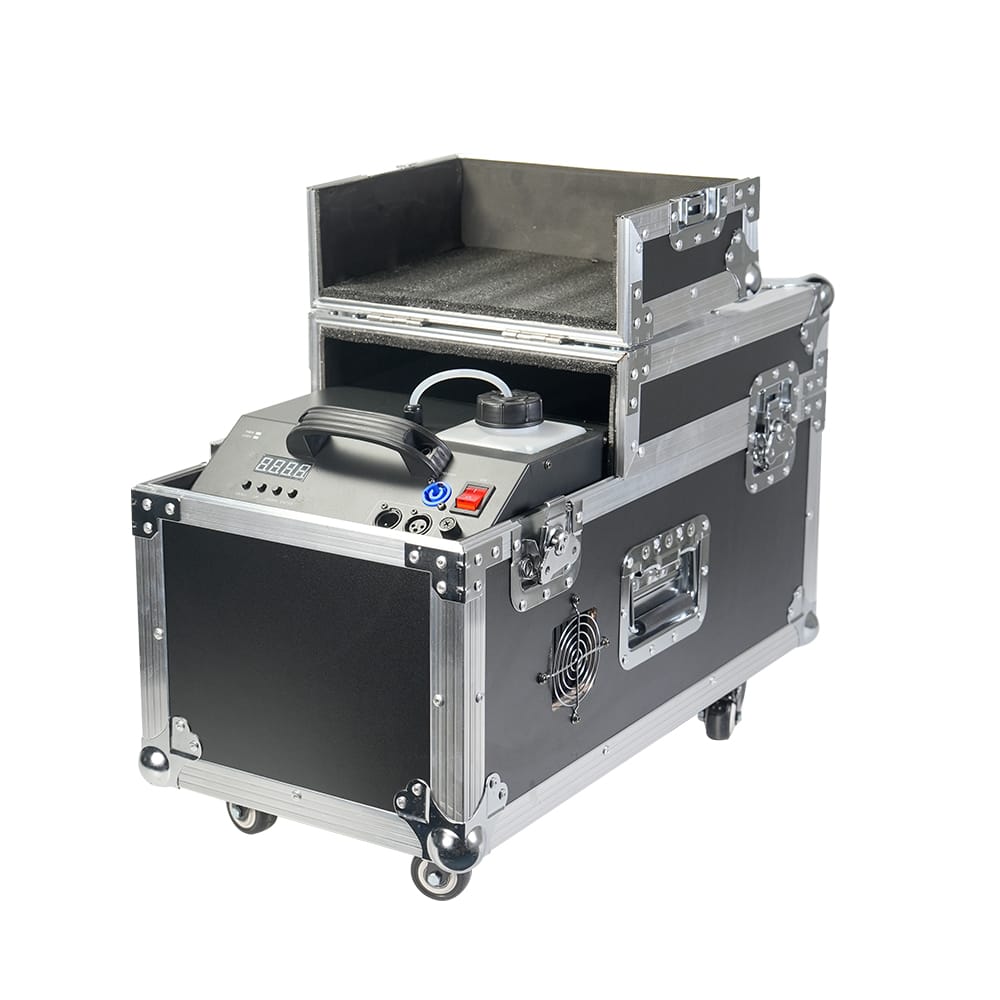

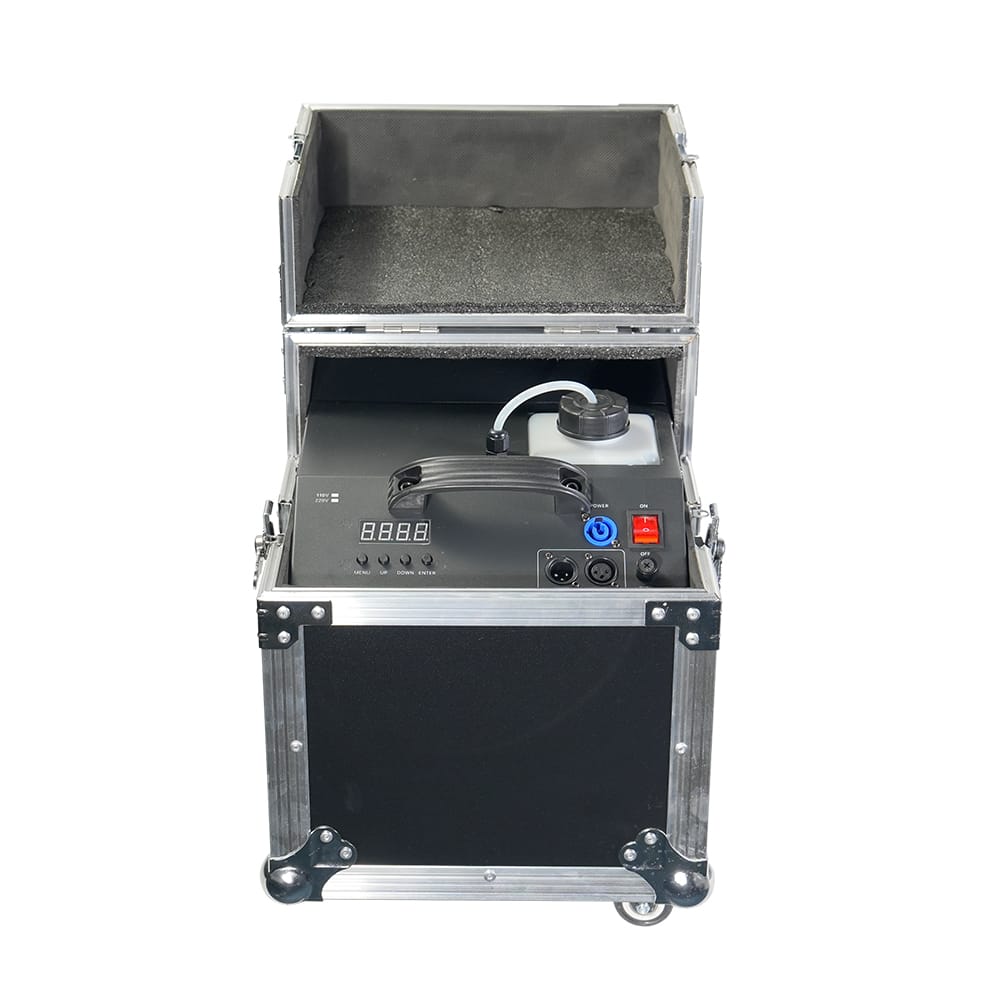

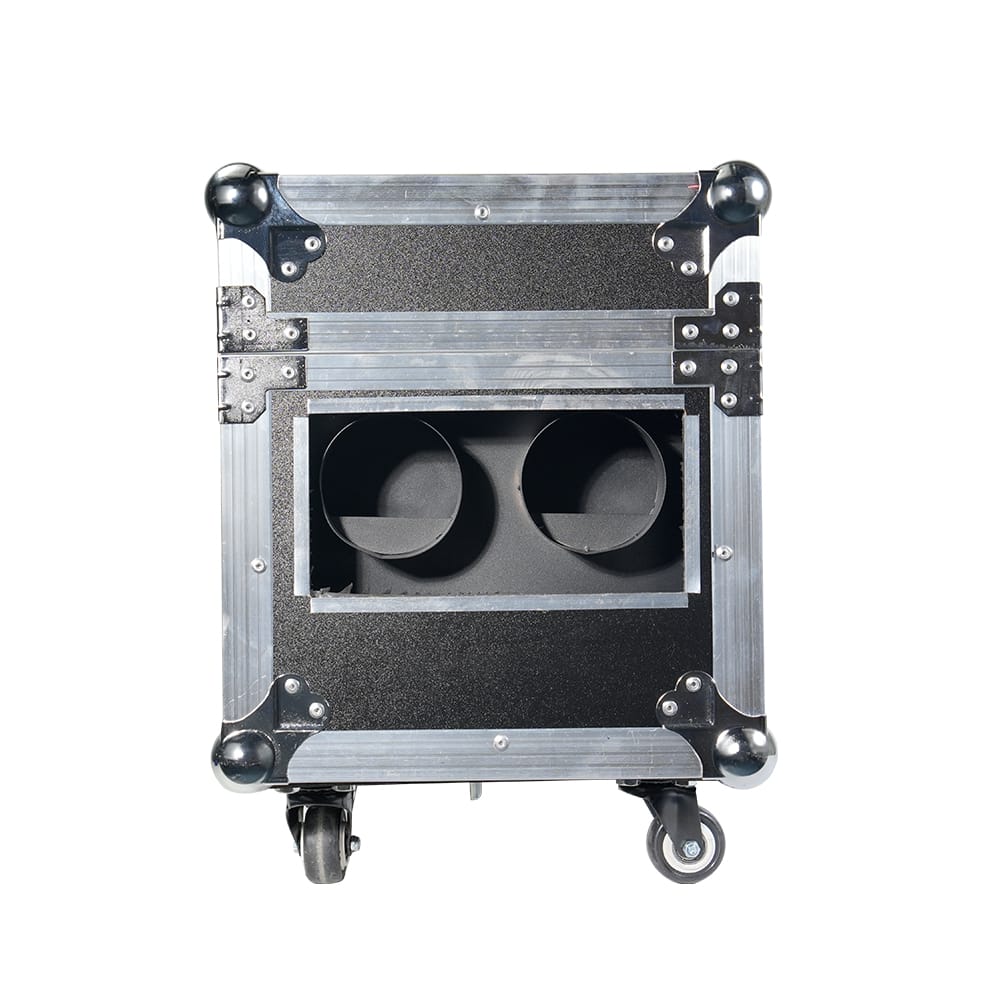

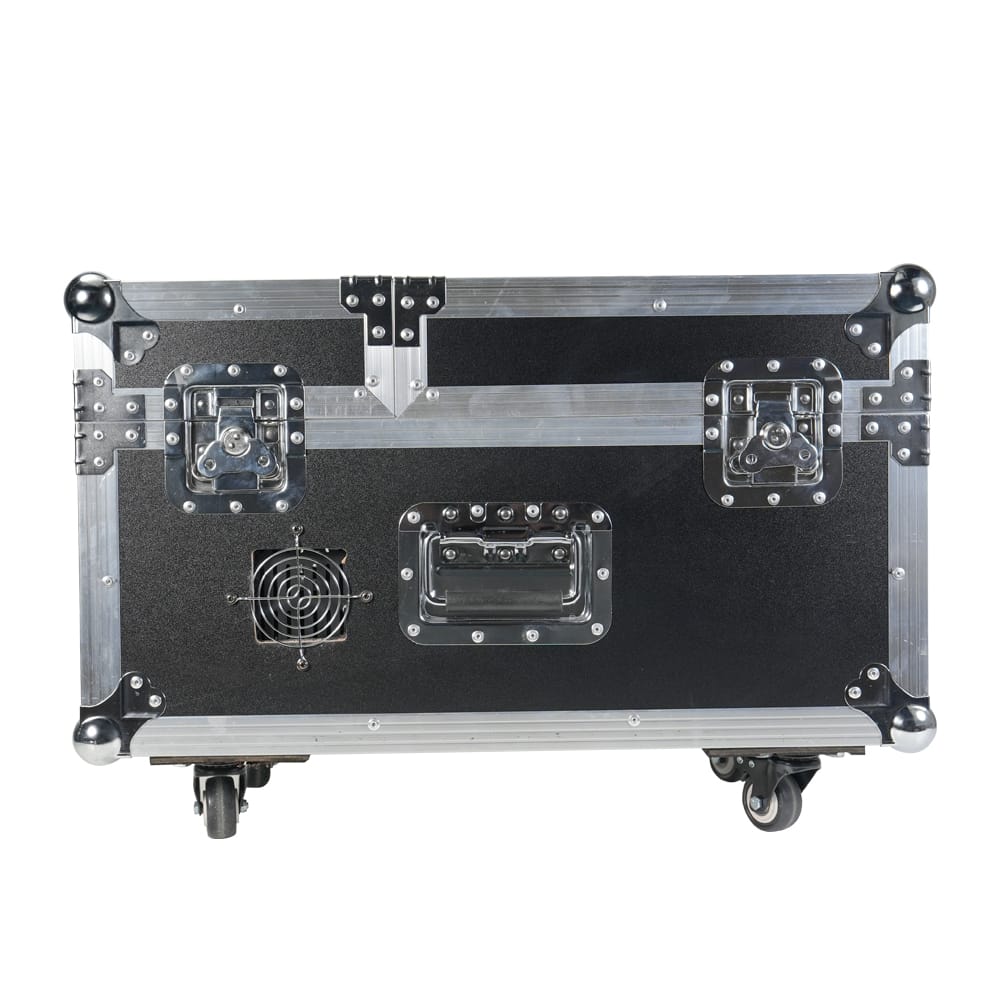

The Imix Ground Cloud 2000 is a high-capacity water-based low fog machine designed for dramatic stage effects. With dual 2000W heating elements, DMX512 control, and wide-area coverage, it creates dense, lingering fog that stays close to the ground—perfect for concerts, theaters, and immersive events.

Key Features

✅ 2000W Dual-Head System – Fast heat-up and consistent output
✅ Water-Based Fog Fluid – Non-toxic, safe for performers and audiences
✅ DMX512 & Manual Control – Remote operation or panel adjustment
✅ Adjustable Output – Fine-tune fog density (P000-P100) and airflow
✅ Auto-Purge Function – Clears residual fog after use (10-second fan delay)
✅ Large Tank Capacity – Extended runtime for continuous performances

Technical Specifications

Setup & Operation

1. Initial Setup

1. Fill Water Tank: Add water until it covers the black probe by 1.5cm.

2. Power On: The display shows UP- during heat-up (ready when ---- appears).

3. DMX Addressing: Set address (AA001-512) via panel or controller.

2. Control Modes

3. Digital Tube Display

Safety & Maintenance

⚠ Avoid Dry Operation – Always ensure water is present to prevent damage.
⚠ Ventilation – Do not use in enclosed spaces (fog reduces visibility).
⚠ Post-Use Care – Drain tank via water valve and wipe clean after each use.
⚠ High-Temp Warning – Heating elements reach extreme temperatures during operation.

DMX Channel Table (2 Channels)

Package Includes:

• 1 × Imix Ground Cloud 2000 Fog Machine

• Water Drain Tube

• Power Cable

• User Manual
