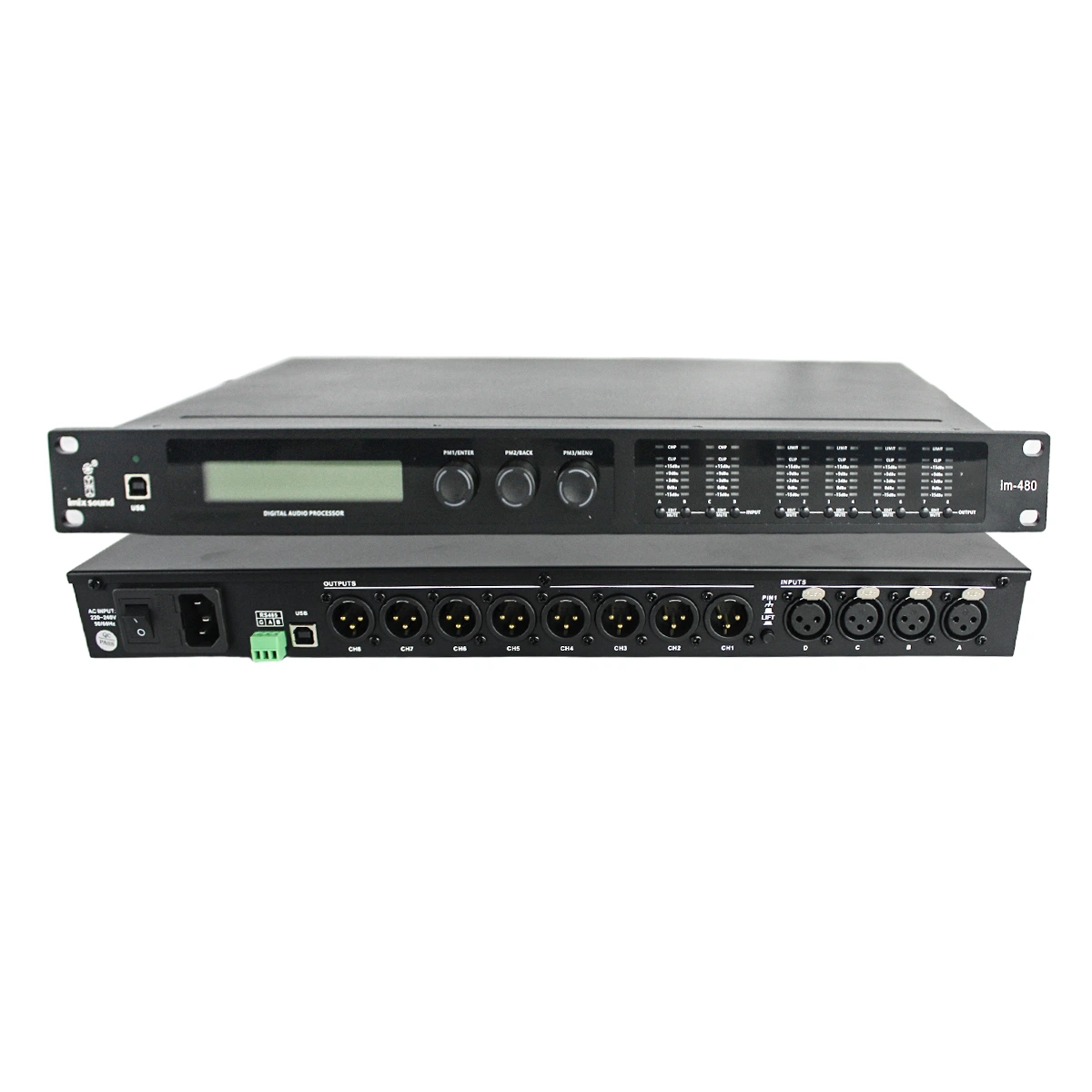

The IMIX IM480 Digital Signal Processor is a high-performance audio processor designed for professional sound applications. It features advanced DSP technology with 24-bit, 48k A/D and D/A conversion and a 128kHz sampling rate, ensuring superior sound quality and precise signal control.

Key Features:

• Comprehensive Digital Processing: Includes gain control, phase reversal, noise gate, equalization, slope filters, dynamic filtering, frequency division, delay, compression, and signal routing functions.

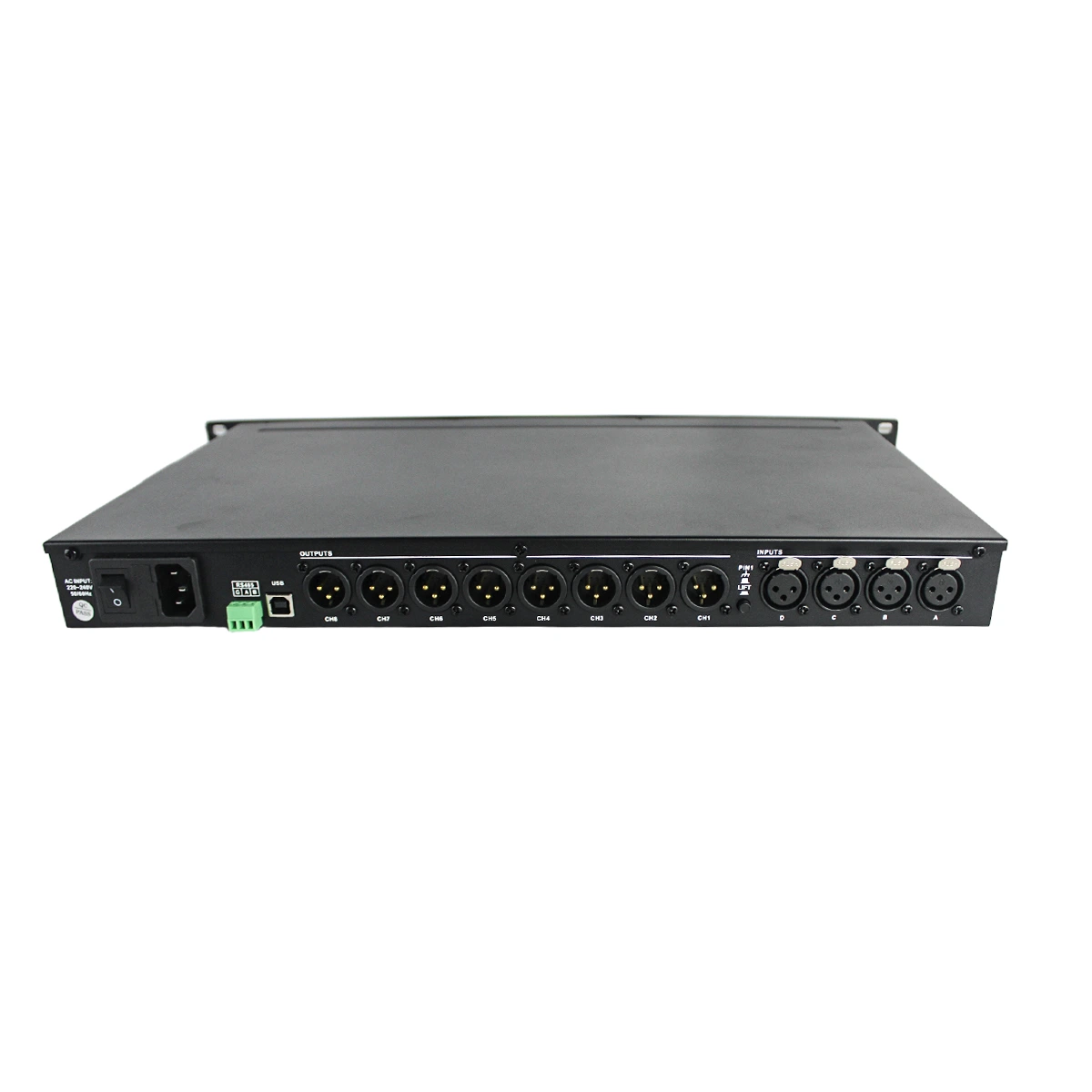

• Balanced Connectivity: Supports four-channel XLR balanced input and eight-channel XLR balanced output, providing high-quality audio transmission.

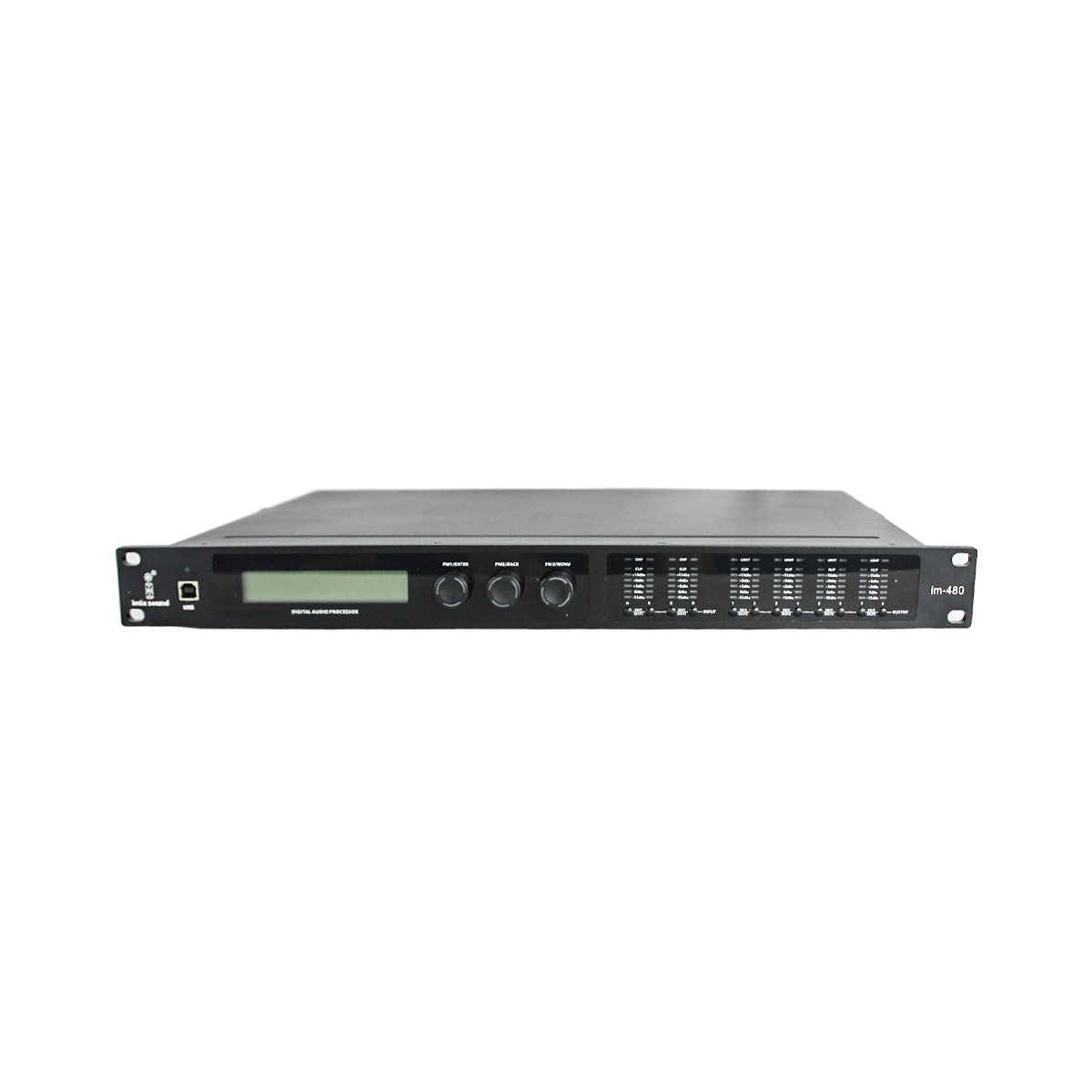

• User-Friendly Interface: Features an LCD screen, multiple parameter control buttons, and USB/RS485 connectivity for seamless integration with PC software for parameter adjustments.
• Flexible Output Control: Equipped with output limiters, compressors, parametric equalizers (30-segment input, 7-segment output), and adjustable gain (-18dB to +12dB).
• Advanced Filters: High-pass (low-cut) and low-pass (high-cut) filters with selectable Butterworth, Linkwitz-Riley, and Bessel 12dB variable Q value options.
• Noise Gate & Compression: Adjustable threshold values, startup time, and release time for precise dynamic control.
• Reliable Power & Protection: Operates on AC 220V-240V @ 50/60Hz with a power consumption of <50W and built-in RF protection.
