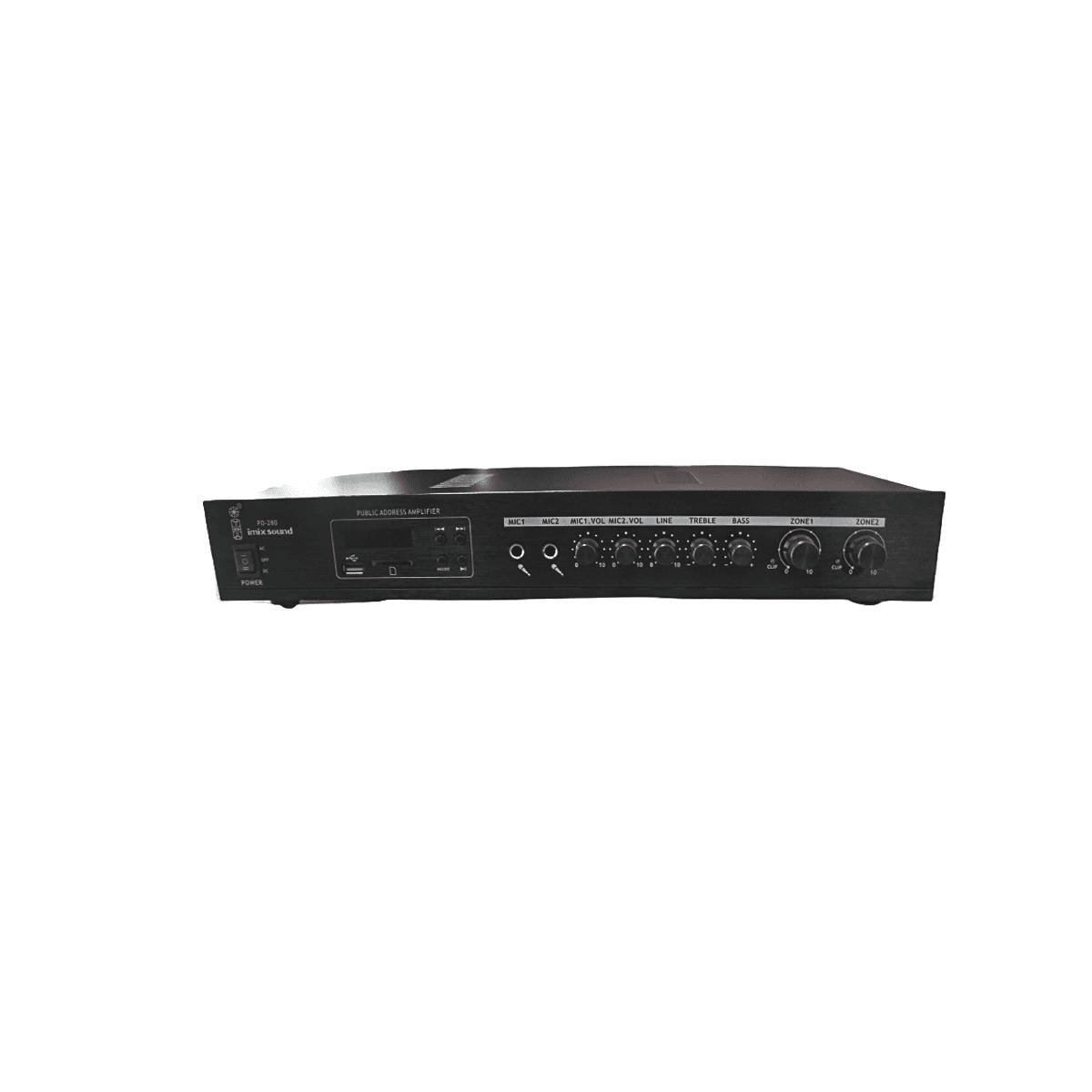

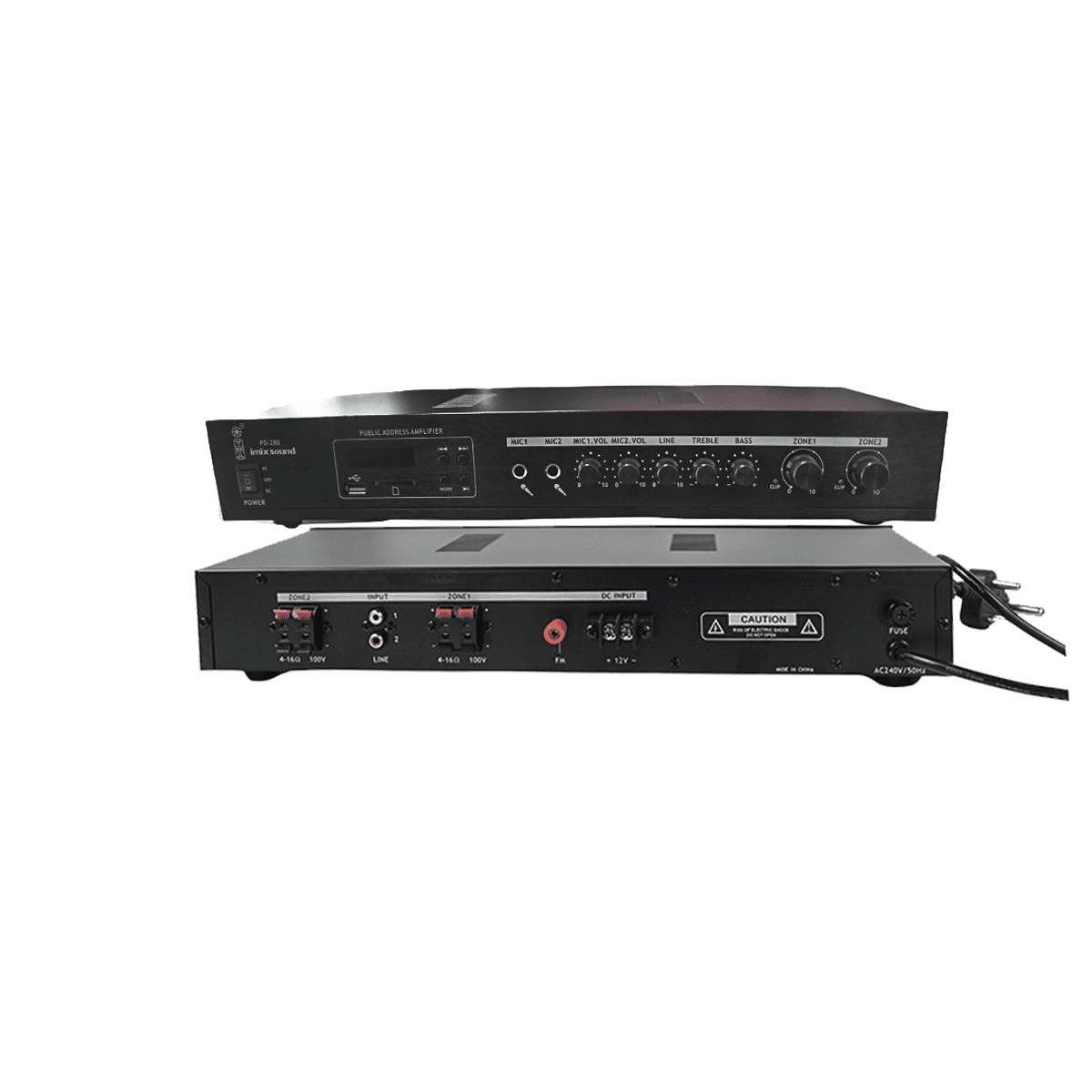

Imix PD280 Mixer Amplifier Dual Zone 100V / 4–16Ω (2 × 60W)

Key Features

• 2 × MIC inputs with independent level control

• Stereo RCA line input with level control

• Dual zone independent volume control (Zone 1 & Zone 2)

• High & Low frequency equalizer (Bass / Treble)

• CLIP indicator for output protection

• Output modes: 4–16Ω and 100V line

• AC 220–240V or DC 12V operation (selectable)

• Built-in MP3 player (USB / SD / FM / Bluetooth)

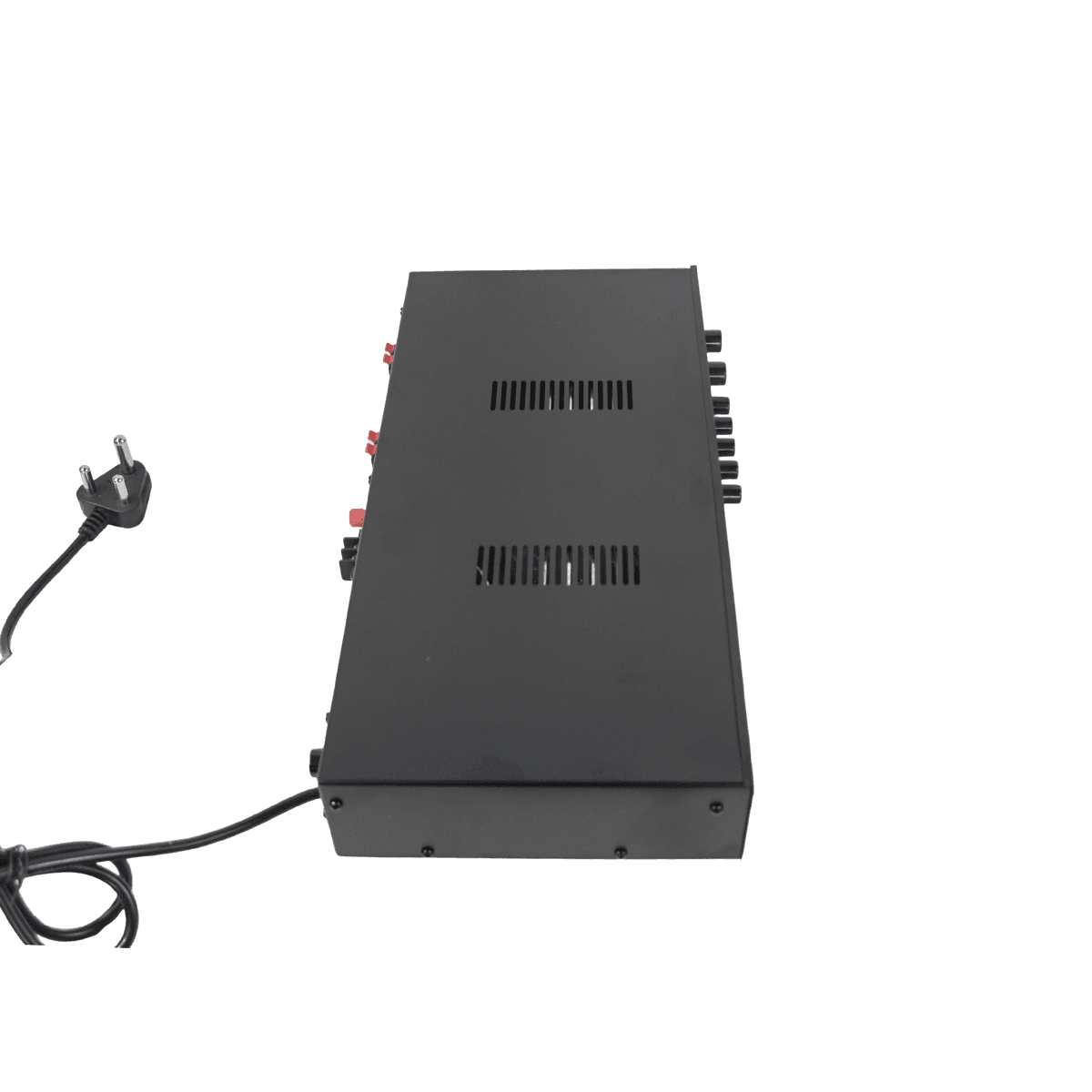

• Natural cooling (fanless design – silent operation)

Output Power

• Rated Output:




  • 2 × 60W @ 100V

  • 2 × 60W @ 4Ω

  • 2 × 50W @ 8Ω

  • 2 × 25W @ 16Ω

• Max Output Power:




  • CH1: 80W

  • CH2: 80W

Important: Do not connect the two amplifier outputs in parallel.

Audio Performance

• Frequency Response: 80Hz – 16kHz (±2dB)

• THD (1kHz): ≤ 2%

• S/N Ratio: > 84dB

• MIC Input: Unbalanced 10KΩ / -45dB

• LINE Input: Unbalanced 10KΩ / -10dB

• Equalizer:




  • Bass ±12dB @ 80Hz

  • Treble ±12dB @ 16kHz

Power Supply

• AC Input: 220–240V ~ 50/60Hz

• DC Input: 12V DC (11V–14V supported)

• Reverse polarity protected

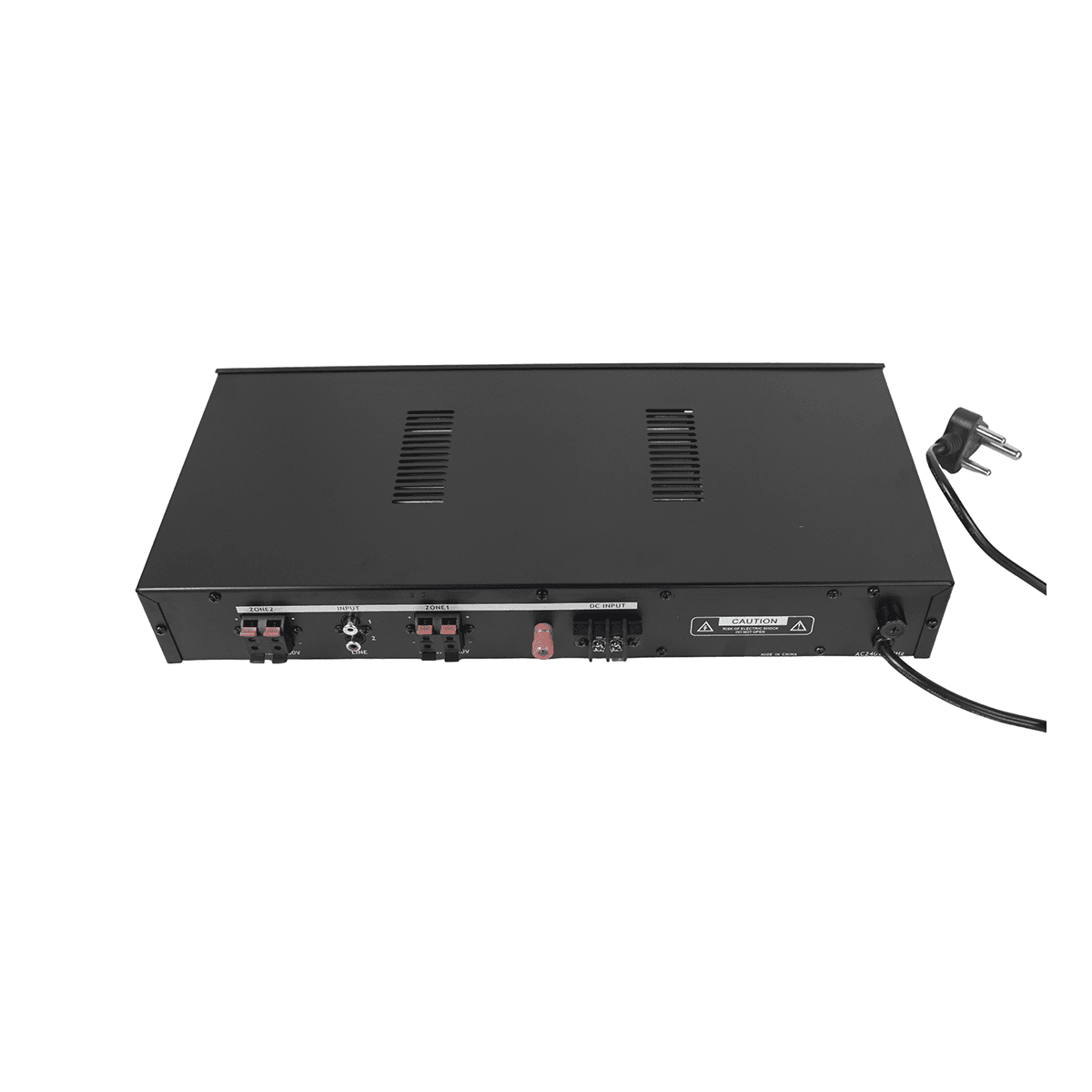

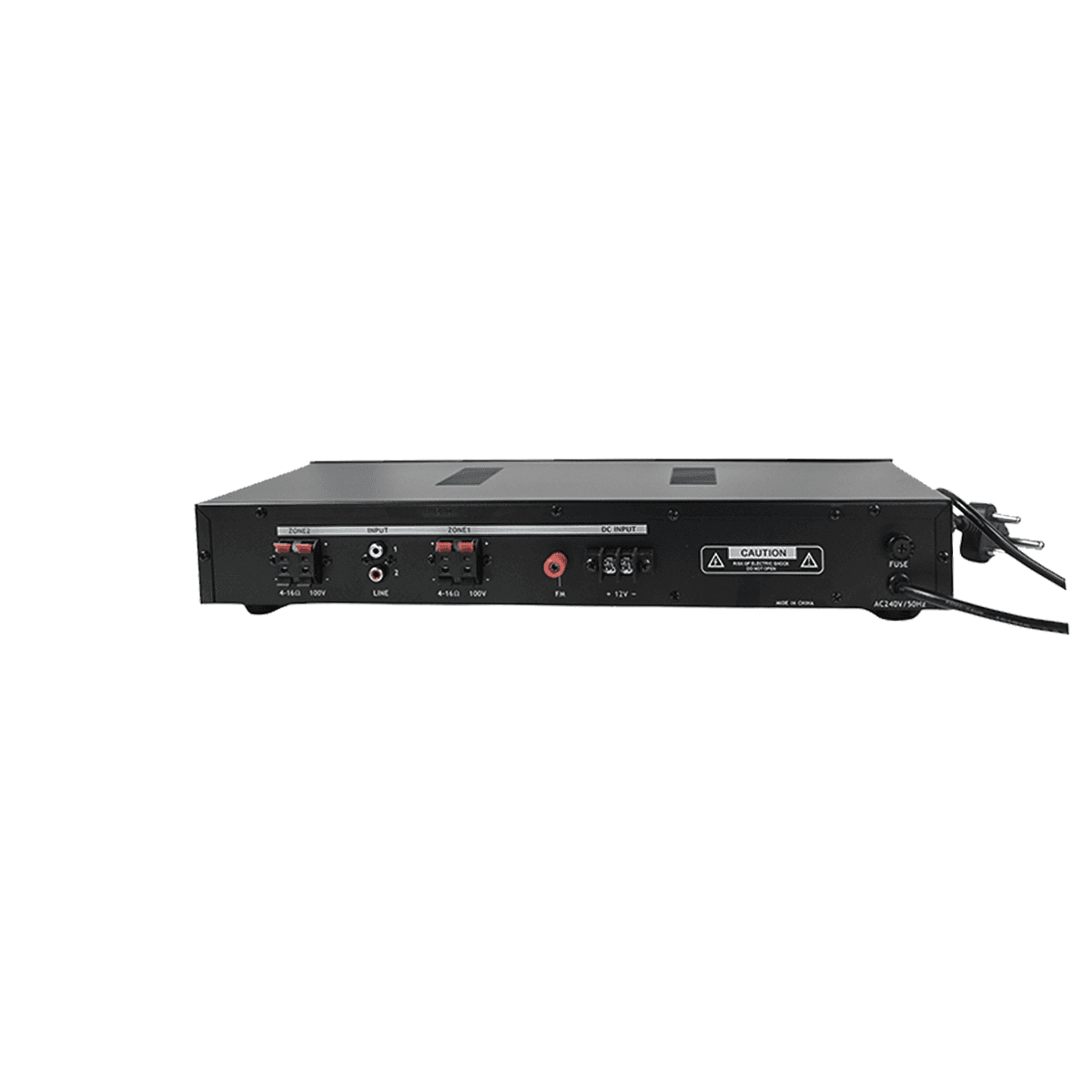

Connectivity

• Zone 1 Output: 100V / 4–16Ω

• Zone 2 Output: 100V / 4–16Ω

• RCA Line Input

• USB Port

• SD Card Slot

• FM Antenna Terminal

• DC 12V Input Terminal

Dimensions

• Unit Size (L × W × H):
  210 × 446 × 66 mm

Applications

Ideal for:

• Schools

• Churches

• Retail stores

• Restaurants

• Office buildings

• Warehouses

• Multi-zone background music systems

The Imix PD280 is a professional dual-zone broadcast amplifier designed for commercial and installation environments. It features independent left/right zone control, built-in MP3 player with Bluetooth and FM radio, and both 100V line and low-impedance speaker outputs.
