ITC T-4S04

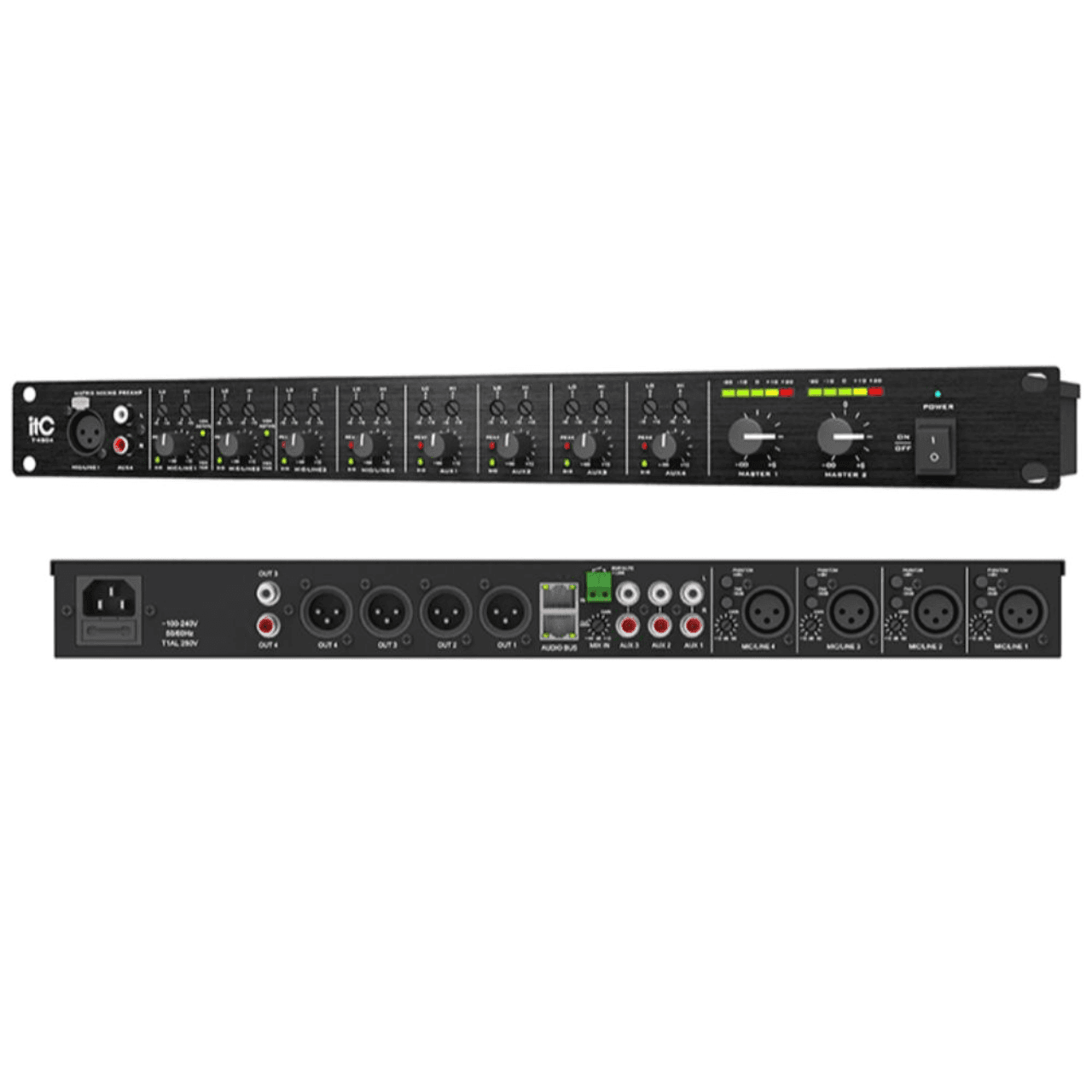

ITC T-4S04 Preamplifier

8 Inputs and 4 Outputs Integrated Preamplifier.

Key Features

• Standard machine cabinet type 1 U height design, black aluminum oxide draw bench panel.
• 4 MIC/LINE XLR balanced inputs, providing 48V phantom power switch.
• 4 AUX accessory unbalanced inputs, there are 2 RCA in each channel, and one of them is on the panel.
• Each channel is equipped with volume control and tone control.
• Signal/peak value LED light monitors the input level of every channel.
• MIC/LINE1,MIC/LINE2 internally installed low cut.
• Each input channel can be assigned to output channel freely through jumper.
• The panel provides one channel of MIC/LIN input in addition, parallel connected with MIC/LINE1.
• MIC1/MIC2 priority control, and adjustable threshold value.
• 4 XLR balanced outputs, in parallel connection with 2 channels of RCA unbalanced outputs.
• 4 RJ45 trunk balanced inputs, whose volume is adjustable, and can be mixed correspondingly into 4 channel XLR outputs.
• 4s of RJ45 trunk balanced outputs mixed signal.
• Output level indicate.
• External mute controls all channels.
• Switching power supply provides electricity.

General Specifications

• Input Sensitivity / Impedance
  • 1-4MIC / Line:  2.5mV/5K balanced, 250mV/5K balanced
  • 1-4AUX RCA In:  400mV/5K unbalanced
• Output Level / Impedance
  • Master 1, 2,3,4:  1V/600 balance (MAX: 7.75V)
  • AUX:  1V/10K unbalanced (MAX: 7.75V)
  • Tone
    • Bass:  15dB at 100Hz
    • Treble:  15dB at 10KHz
  • Low Cut:  200Hz / 12dB per octave slope
• Frequency Response
  • Less Than
    • S/N Ratio:  -1dB(20Hz~20KHz)
      • Line:  More than 60dB
      • THD:  More than 75dB
      • Line:  Less than 0.05%
    • Cross-talk:  More than 0.03%
      • MIC:  More than 60dB
      • Line:  More than 75dB
• Power Consumption Power:  20W
• Power Supply:  ~230V/50Hz
• Dimensions:  484mm X 200mm X 44mm
• Weight:  3.9kg
