JTS CS-W4C CONFERENCE RECEIVER UHF 506 – 542 MHz
OUT OF STOCK

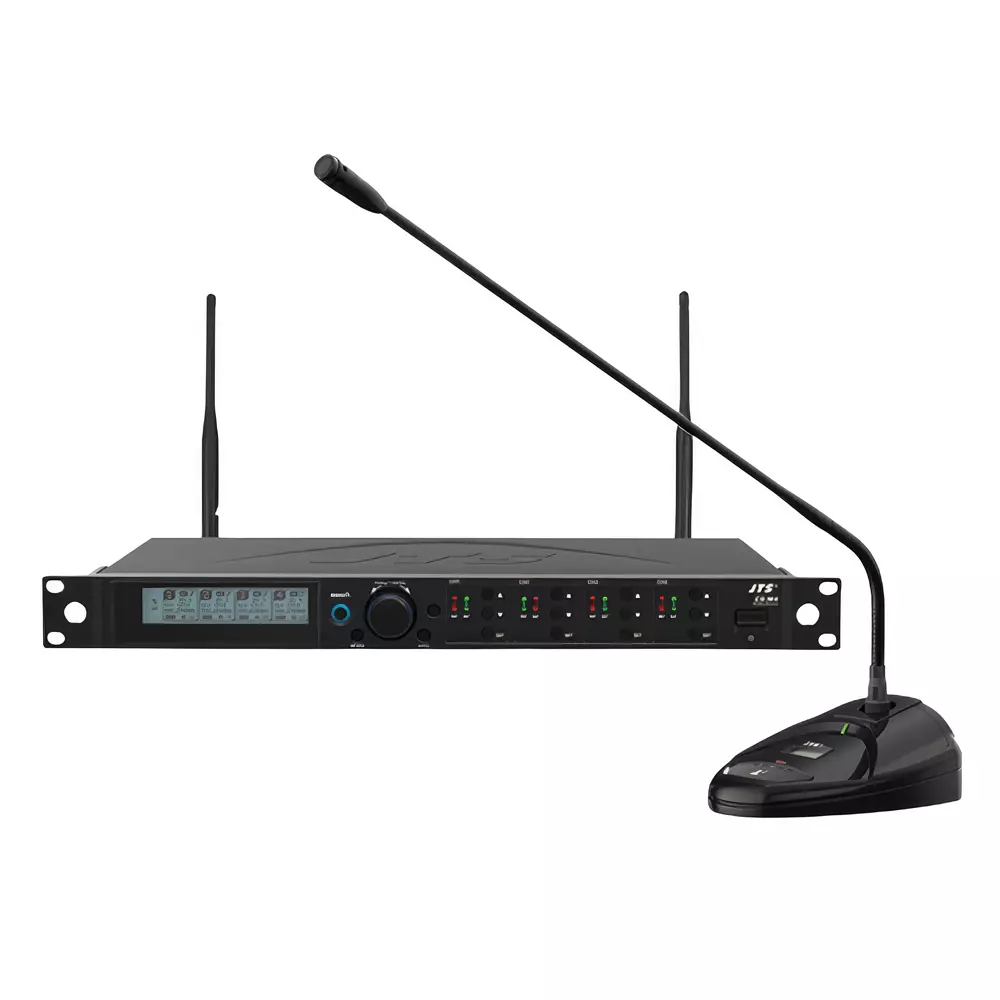

JTS CS-W4C CONFERENCE RECEIVER UHF 506 – 542 MHz
CS-W4C is designed with JTS newest wireless and conferencing technology. It provides maximized compatible channels with a given bandwidth. Built in logic circuit provides conferencing feature. A microphone assigned with priority will work as a chairman unit. It overrides other microphones. Logic setting of one CS-W4C receivers can be cascaded. A microphone with priority in one receiver will also have priority in a cascaded system. JTS patented REMOSET synchronizes all four microphones simultaneously by push one button. The microphone is of 108 MHz bandwidth. This feature allows more attendants to join the conference.
FEATURES:
- 4-channel UHF conference receiver.
- One-touch REMOSET microphone syncing.
- 1,441 selectable frequencies.
- Cascades up to 10 receivers.
- Override, Priority & Open conference modes.
SPECIFICATIONS:Â
- Frequency Preparation: PLL Synthesized Control
- Carrier Frequency Range: 470~960 MHz
- Frequency Setting: 2.4G RF Remoset
- Channel: 4
- Bandwidth: 36 MHz
- S/N Ratio: >105 dB(A)
- T.H.D: <0.6% @ 1 KHz
- Sensitivity: -95 dBm, S/N >80 dB
- CMRR: >80 dB
- Audio Frequency Response: 80 Hz~16 KHz ±2 dB
- Antenna Connector: BNC (Female)
- Antenna Booster Power: DC 12 V/100 mA
- Display: LCD + LED
- Audio Output Level: ±22.5 KHz Dev @ 1 KHz Tone; Ø6.3 Phone Jack: -10 dBV
- Audio Output Level: XLR Jack: -4 dBV (Line), -24 dBV (MIC)
- Audio Output Level: 600 Ω
- Squelch: Pilot Tone & Noise Mute
- Output Socket: XLR Balanced Socket ×5, φ6.3 mm Unbalanced ×1
- Automixer Control: 8PIN MINI DIN Input, 8 PIN MINI DIN Output
- Power Supply: DC 12~15 V/1 A
- Dimension W x H x D: 485 × 45 × 260mm
