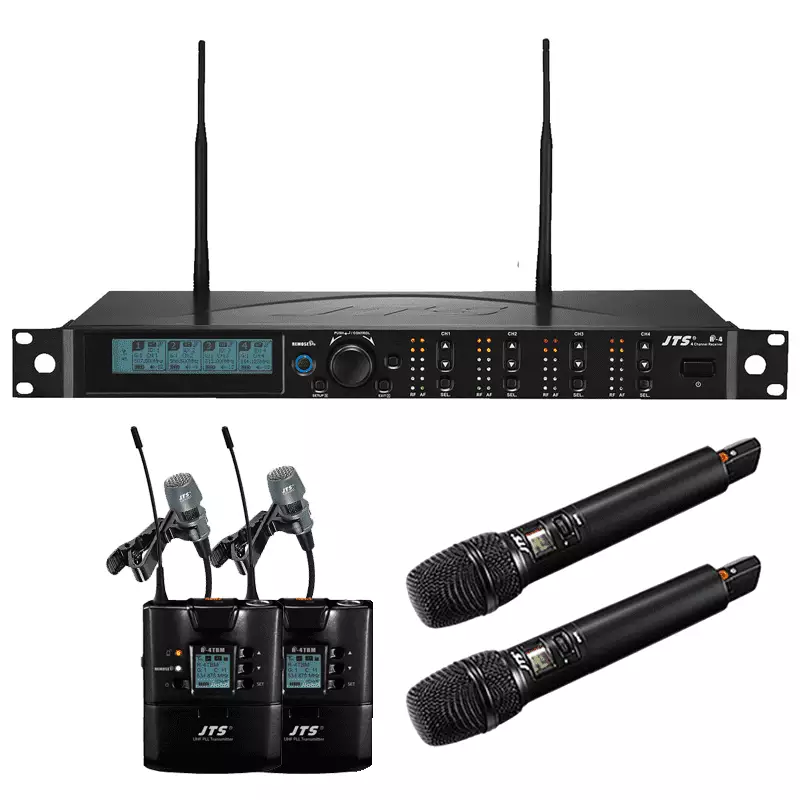

JTS R-4/R-4TB+CM-501 x2 + JSS-4B x2 DUAL HANDHELD DUAL LAPEL MICROPHONE DIVERSITY UHF 614-650 MHz

Dual Handheld + Dual lapel UHF microphone system 614-650 MHz

FEATURES:

• Bandwidth: 36 MHz
• 6 groups, each with up to 22 compatible preset channels
• 1,441 selectable individual frequencies
• RF output and mains voltage output for easily cascading up to 10 x R-4/5 receiver without additional splitter
• REMOSET technology for receiver/transmitter synchronisation
• Auto-scan function
• Pilot tone squelch and noise mute
• LED for indicating RF level and AF level
• Backlit display for indicating battery status of the transmitter, frequency setup, active antenna
• XLR output per channel, bal
• XLR output and 6.3 mm output for mixed signal
• Switchable mic/line for single outputs and mixed outputs
• Metal housing

SPECIFICATIONS:

• Description: wireless receiver
• Carrier frequency range: 506-542 MHz
• Audio frequency range: 50-18,000 Hz
• Channels: 4
• THD: < 0.6%
• Dynamic range: > 105 dB
• Admiss. ambient temp.: 0-40 °C
• Power supply receiver: 100-240 V/50-60 Hz
• Width receiver: 485 mm
• Height receiver: 44 mm
• Depth receiver: 230 mm
• Weight receiver: 2.65 kg
• Net weight: 3.48 kg
