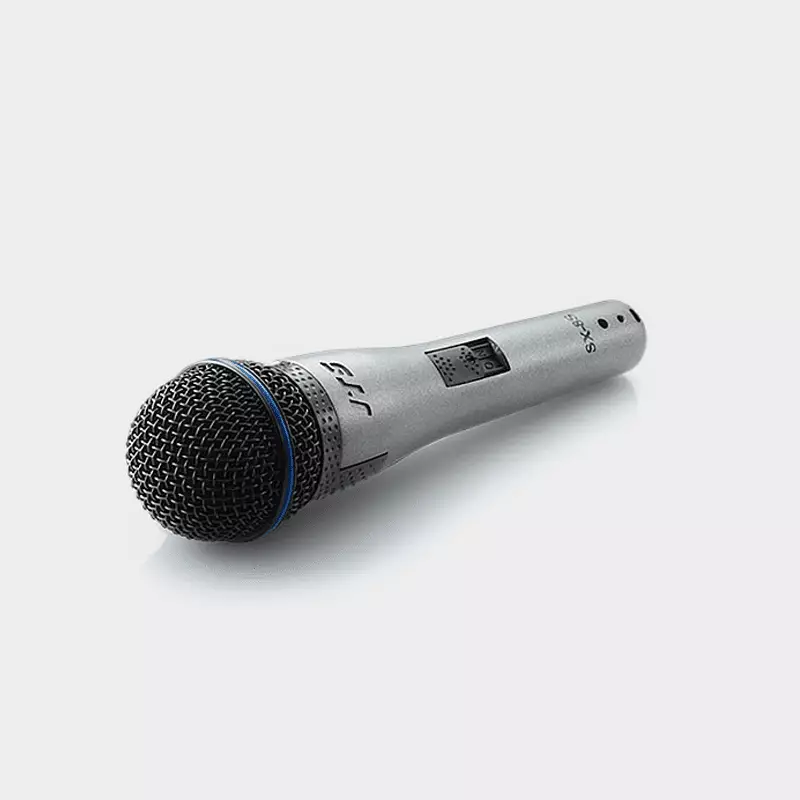

The SX performance series is designed with JTS newest capsule SAM-8. The capsule is machined and assembled on solid steel bar for maximum accuracy and therefore acoustic characters. The precise engineering assures outstanding performance. The smooth frequency response across the full spectrum and accurate directional character provides maximum gain before feedback. The advanced mechanical design minimizes handling noise. The SX series is ideal for a large venue.

FEATURES:

SPECIFICATIONS:

• Type: Moving Coil Dynamic
• Frequency Response: 50~16,500 Hz
• Polar Pattern: Cardioid rotationally symmetrical about microphone axis, uniform with frequency
• Sensitivity(at 1 ,000Hz): -77dB*(0.14mV)*0dB=1V/μbar
• Impedance: 250Ω
• Phasing: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Connector: Three-pin professional audio connector (male XLR type)
• Case: Metallic enamel-painted die cast metal body with hardened, Matte-finished steel grille
• SX-8S: Equipped with Magnetic Reed Switch
