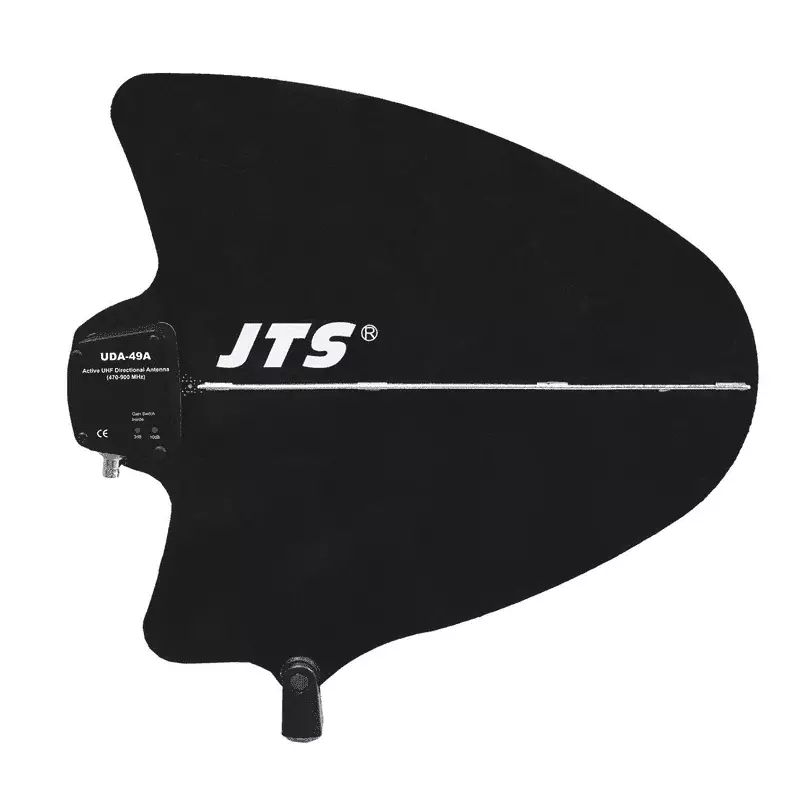

JTS UDA-49AP UHF ANTENNA

The UDA-49A is an Active UHF directional antenna. Designed for wireless microphone systems (reception antenna) or for wireless in-ear monitoring systems.Switchable gain (3 dB/10 dB) to avoid power loss. Power supply via JTS UHF PLL receivers or the active antenna splitter UA-960. Range of 470-960 MHz. Rejects unwanted RF signals, minimises signal loss in multipath receptions and reduces interference susceptibility. BNC connection can be mounted onto any microphone stand with a thread of 9 mm (?”) or 16 mm (?”) 2 x UDA-49A required for true diversity reception.

FEATURES:

SPECIFICATIONS:

• Net Weight: 400g
• Power Supply: 12v, 500mA
• Frequency Band: 470-960MHz
• Effective working angle: 100 degrees
• Antenna Gain: 10dB
• Booster Gain: 3dB/10dB Selectable
