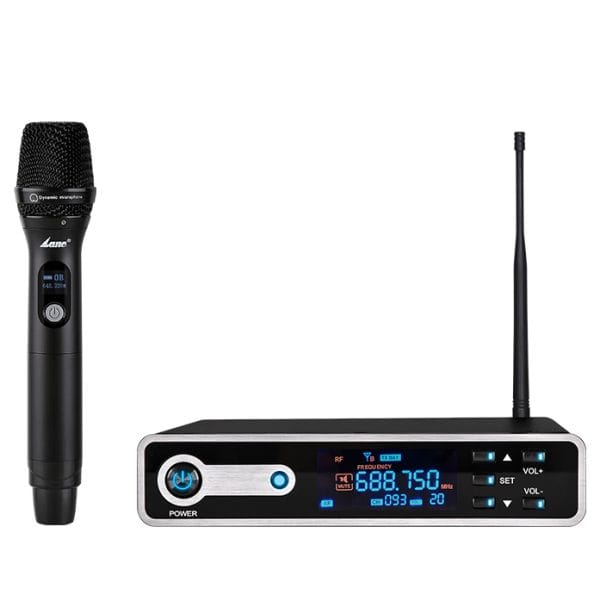

Lane LR-661

The Lane LR-661 is a wireless handheld microphone that can be used for karaoke, conferences, teaching, church, singing, and speaking. It has a hypercardioid polar pattern, LED lights, and is made of aluminum alloy and metal. The LR-661 has a frequency range of 640–690 MHz, a frequency response rate of 30–16 kHz, and a receive sensitivity of less than 108 dB. It also has a modulation mode of FM and a receive distance of more than 60 m

Specification

System

Receiver

Rack Mountable Standard Case.

Main Material

Aluminum Panel ,Metal Case, Metal Handheld Channel: 100 Selectable Frequencies Per Channel

Frequency Mode

The Frequency Automatic Infrared Scanning Display Type: LCD

Microphone Mode

Dynamic Polar Pattern :Hyper Cardioid

Operating Range

60M(Open Environment Can Reach 80-100M)

Features

Fully Integrated Chip Scheme, Fast Transfer, Long Transmission Distance, Stable .Performance

Receiver

Frequency Range

640-690Mhz

Receive Mode

The Secondary Variable Frequency Wireless

Channel

200

Receive Sensitivity

<108dbm Frequency Response:30-18khz

Signal Noise Ratio

>85db Harmonic Distortion:<0.5%

Dynamic Range

>100db Delay:<3ms

Audio Plug

2XLR+Jack Antenna Plug:2TNC500

Input Power Supply

External Power Adapter Receive Distance:>60M

Transmitter

Frequency Range

640-690Mhz Transmit Mode: Micro Power Wireless

Channel

200

Input Power

<10mw

Frequency Response

30-18khz Signal Noise Ratio:>85db Harmonic Distortion: <0.5%

Frequency Error

<15ppm

Frequency Stability

±0.002% Modulation Mode :FM

Working Current

100-120ma Antenna: Sheltered Antenna, Impedance

Power

1.5V(AA*2)
