8 Channel Mixer

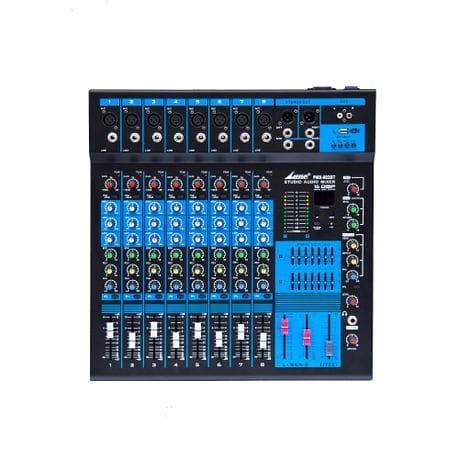

– The Lane PMX-802BT is an 8-channel audio mixer designed for live sound and recording applications.
– It features built-in effects, +48V phantom power for microphones, and an MP3 player for added functionality.
– Ideal for conference rooms, live performances, and music production.

The Lane PMX-802BT mixer is a versatile tool often used by sound engineers and musicians for managing audio inputs and outputs during live events or recordings. Its compact design and multiple features make it suitable for a range of environments, from small gigs to larger conference settings. The built-in effects and MP3 playback capabilities enhance its usability, allowing for creative sound manipulation.

The audio technician set up the Lane PMX-802BT mixer to ensure clear sound quality during the live conference.

General Specifications		Pmx-802bt	Pmx-1202bt	Pmx-1602bt
Frequency Response	Input To Stereo Out	+0.5 Db / -1.5db (20 Hz To 40khz @ 1khz)
Total Harmonic Distortion (Thd+N)	Input To Stereo Out	<0.1% (1khz @ Full Power)
Signal To Noise Ratio (S/N Ratio)		-80db
Input Channels	Mono [Mic / Line]	8	12	16
	Mono / Stereo [Mic / Line]	0
	Stereo [Line]	0
Output Channels	Stereo Out	2
	Monitor Out	1
	Phones	1
	Aux Send	1
	Group Out	0
Input Channel Function	Gain (Mono)	-15db – 60db
	Pad (Mono)	-20db
	Eq High	10khz ± 15db
	Eq Mid	2.5khz ± 15db
	Eq Low	60hz ± 15db
	Peak Led (Mono)
Internal Digital Effect	Input To Effect Volume	0 -10db (@1khz)
Usb Audio Input		Usb 2.0 Version
Blue Tooth Audio Input		Blue Tooth 5.0 Version, 10 Meters Operation
Phantom Power Voltage		+48 V
Power Requirements		Ac 220v / 50 Hz Or Ac 110v/ 60hz
Power Consumption		17w	19w	22w
Dimensions (W X H X D)		43x45x8cm	56.5x45x8cm	70x45x8cm
Net Weight		10kg	11kg	12kg
Included Accessory		Power Cable, Manual
Operating Temperatures		5 ℃ – 45℃

Price-Flex

Price Flex

Name: Lane PMX-802BT
Brand: Lane
Availability: OutOfStock
