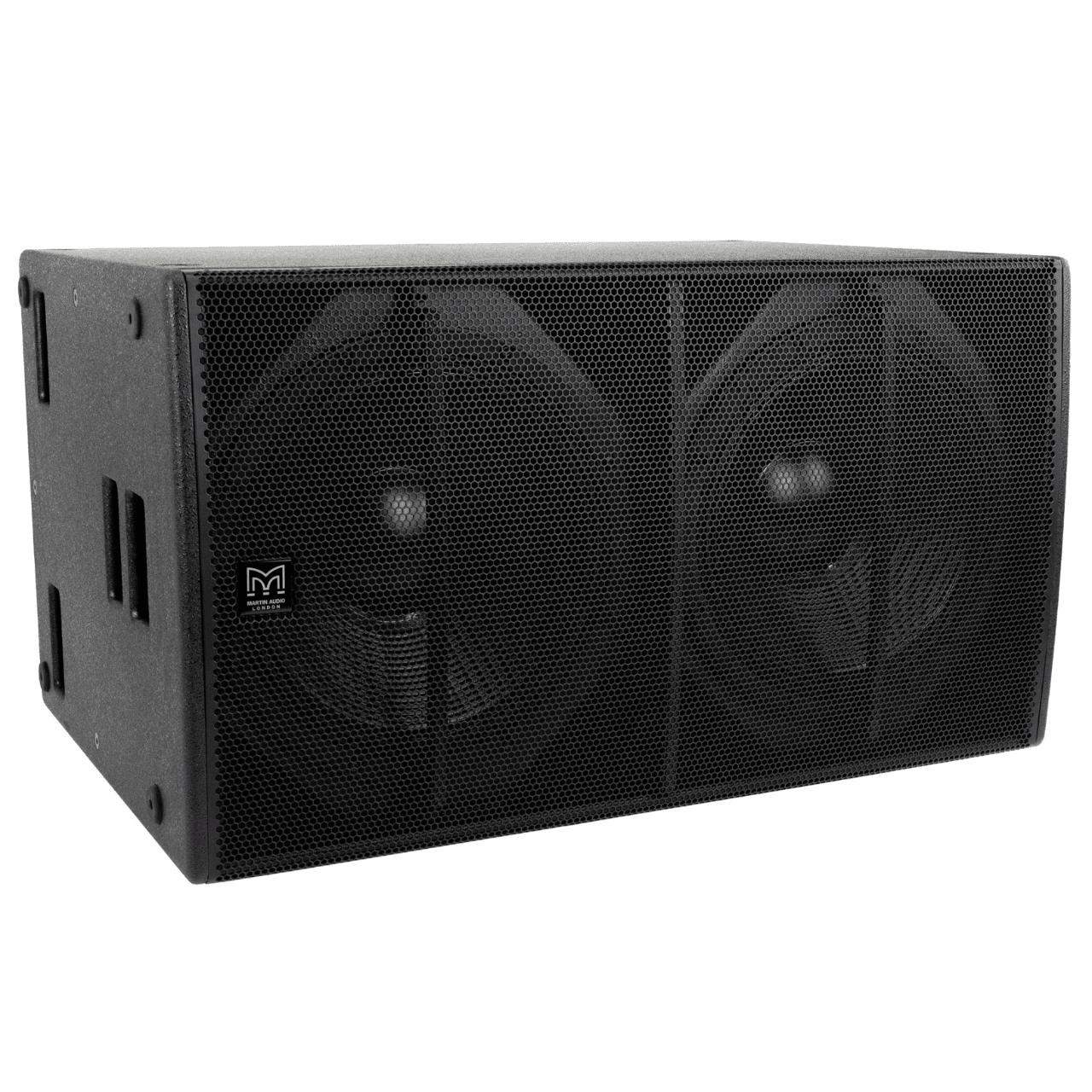

Martin Audio Blackline X218

0 customer reviews
Check stock before ordering
View details

R50,995.00


2 x 18″ Passive Subwoofer

Availability: In stock

Or split into 4x interest-free payments Learn more
Add to quote
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: MART-BLACKLINE X218 Categories: Brand:

Product Description

The Blackline X218 is a dual-driver, high performance subwoofer for use with BlacklineX Series full-range loudspeakers. With an operating range of 42Hz-200Hz + 3dB, it produces high output levels with low distortion and can be used singly or stacked horizontally. It features dual 18” (460mm)/4” (100mm) voice coil, long-excursion drivers in a reflex enclosure with eight large ports that reduce air turbulence at high output levels.

Key Features

  • Dual-driver, direct radiator subwoofer
  • 2 x 18” (460mm) drivers with 4” (100mm) voice coils
  • Durable plywood enclosure
  • Large ports for reduced air noise
  • Powder coated, perforated steel grille
  • Integral ergonomic handles
  • 35mm pole-mount socket
  • Feet for vertical or horizonal operation
  • Rebate recesses for stable horizontal stacking
  • M10 flying inserts

Applications

  • Portable sound reinforcement
  • Live music clubs
  • Bars and restaurants
  • Nightclubs
  • Corporate AV events and conferences
  • Weddings and parties
  • Secondary stages at festivals
  • HoW, leisure centres and retail outlets

The X218 enclosure is constructed from plywood and finished in black textured paint.

For added versatility in deployment, the X218 is fitted with a 35mm pole-mount socket for mounting BlacklineX full-range enclosures, and integral M10 inserts provide for eyebolt suspension of a single enclosure. Ergonomic handles assist ease of handling and the drivers are protected by a perforated steel grille. Rubber feet on the base of the X218 resist movement and align with recesses in the top surface for stable horizontal stacking. Feet are also provided on one side of the enclosure for vertical operation of a single cabinet.

The X218 is supplied as standard without castors, which are available as an accessory pack.

When used with BlacklineX Series full-range systems, crossover and EQ functions can be performed by the DX0.4, DX0.6 or DX4.0 system controllers or by a Martin Audio amplifier with onboard DSP.

General Specifications

  • Type:  Dual-driver, direct radiating subwoofer
  • Frequency Response:  42Hz-200Hz ± 3dB, -10dB @ 33Hz
  • Driver:  18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
  • Rated Power:  1600W AES, 6400W peak
  • Sensitivity:  106dB
  • Maximum SPL:  141dB peak (half space)
  • Nominal Impedance:  4Ω
  • Dispersion (-6dB):  Omnidirectional
  • Crossover:  80-120Hz active
  • Enclosure:  Birch/poplar ply
  • Protective Grille:  Black perforated steel
  • Connectors:  2X NL4 type
  • Pin Connections (Input):  1+/1- Link Through 2+ 2-
  • Pin Connections (Link):  1+ 1- Link Through 2+ 2-
  • Fittings
    • 12X M10 inserts
    • Pole-mount socket
  • Dimensions (WxDxH):  1049mm X 727mm X 587mm / 41.3″ X 28.6″ X 23.1″
  • Weight:  88kgs / 194lbs
