Martin Audio Blackline XP118

0 customer reviews
Check stock before ordering
View details

R39,745.00


18″ Powered Portable Subwoofer

Availability: In stock

Or split into 4x interest-free payments Learn more
Add to quote
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

SKU: MART-BLACKLINE XP118 Categories: Brand:

Product Description

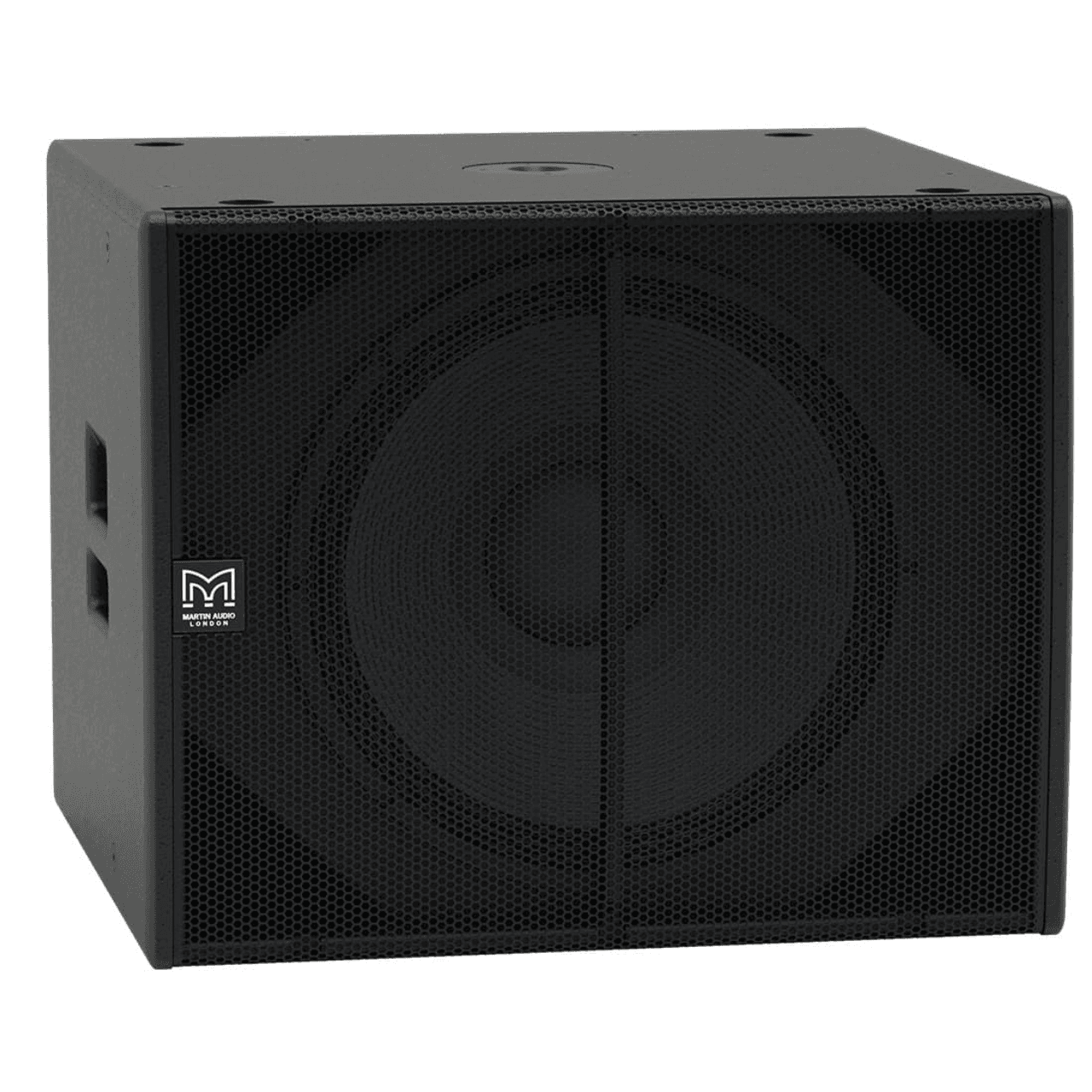

The XP118 is a compact, high performance subwoofer for indoor use with the XP12 and XP15 full-range loudspeakers. It extends the low frequency operating range of the combined system down to 42Hz and can be used singly, stacked in omni or cardioid mode, or flown via integral M10 insets.

Key Features

  • Compact, self-powered subwoofer
  • 1 x 18” (460mm) driver with 4” (100mm) voice coil
  • 2000W of Class D amplification
  • Global power supply with PFC (Power Factor Correction)
  • Onboard DSP with rotary control interface
  • Multi-function display for metering, control and function selection • Peak and RMS limiters
  • Bluetooth® control and streaming option
  • Durable plywood enclosure
  • Screw-free, perforated steel grille
  • Integral ergonomic handles
  • 35mm pole-mount socket

Applications

  • Portable Sound Reinforcement
  • Live Music Clubs
  • Nightclubs, Bars and Restaurants
  • Corporate AV
  • Hotels and Casinos
  • Mobile DJ’s
  • Weddings and Parties
  • HoW Installations
  • Rehearsal Studios

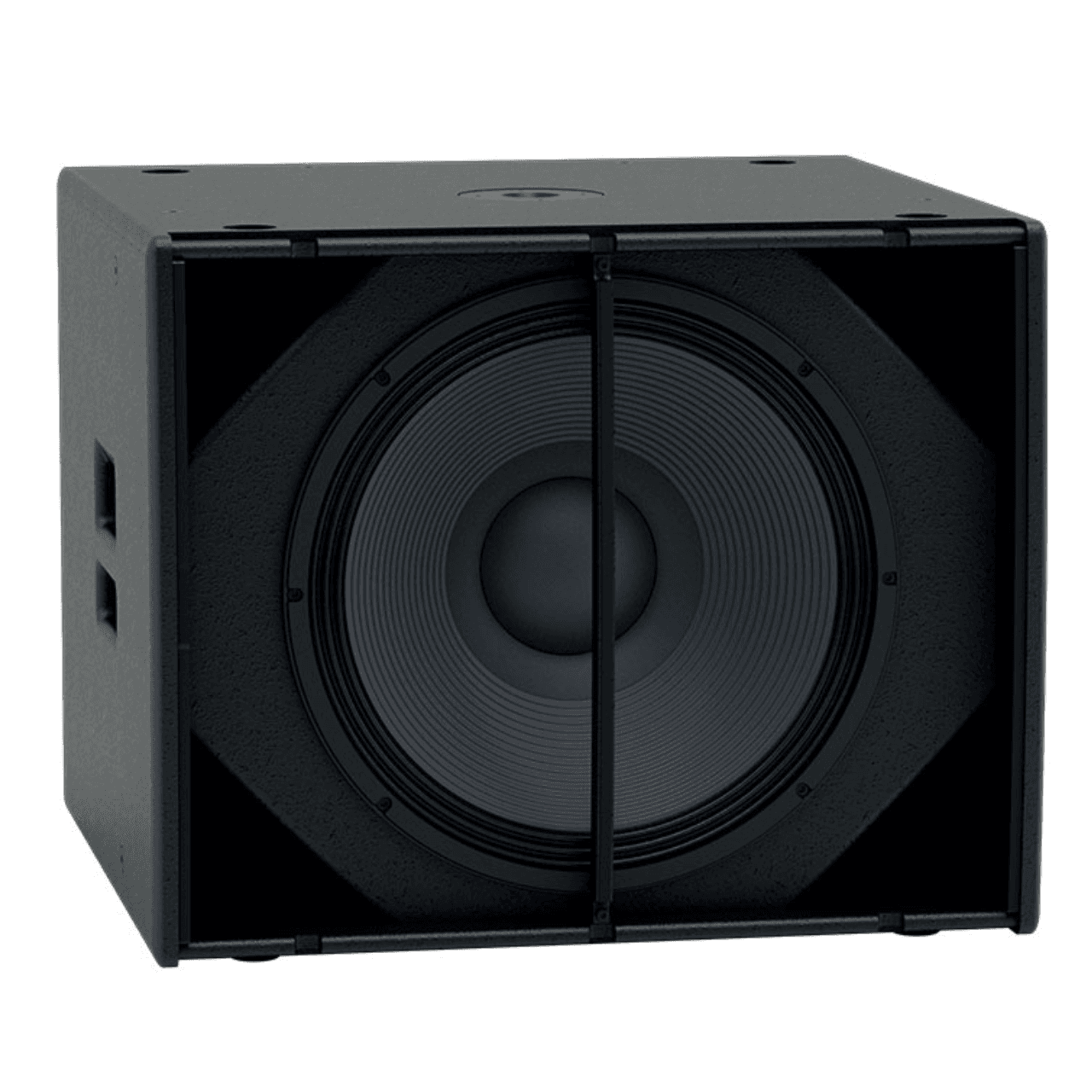

Featuring a long-excursion 18” (460mm)/4” (100mm) voice coil driver in a compact enclosure that has four reflex ports with a large frontal area to reduce turbulent air noise at very high levels.

A convection-cooled Class D amplifier module delivers 2000W peak output to the driver for maximum low frequency extension and chest-thumping punch. Crossover, EQ, metering and

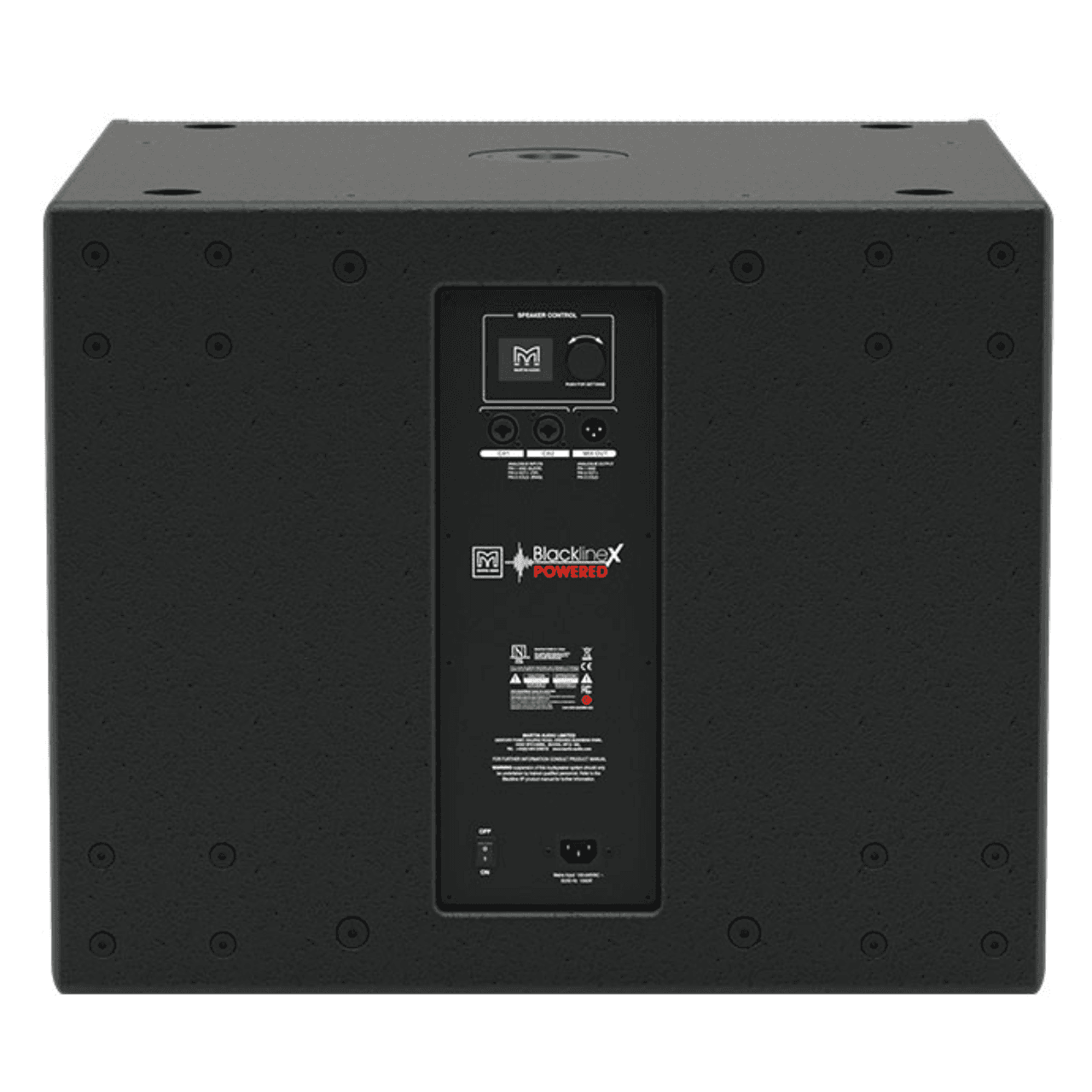

control functions are provided by onboard DSP via a rotary encoder interface and multi-function colour screen on the rear panel.
The XP118 enclosure is built for the road, constructed from durable plywood and finished in textured black paint. A perforated steel grille protects the driver, and the enclosure has a 35mm pole-mount socket in the top surface and two ergonomic side handles.

General Specifications

  • Type:  Compact, Self-powered Subwoofer
  • Frequency Response: 42Hz –150Hz ±3dB, -10dB @ 38Hz
  • Driver:  18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet
  • Maximum SPL:  131dB continuous, 137dB peak (half space)
  • Dispersion (-6dB):  Omnidirectional
  • Crossover:  100Hz, active
  • Input Connectors:  2X female XLR/ 1⁄4” jack combo
  • Mic/Line Input Impedance:  8 kΩ balanced
  • 1/4″ Jack TS Input Impedance:  1 MΩ unbalanced
  • Mix Output Connector:  1X male XLR
  • Mix Output Impedance:  600Ω balanced
  • Input Channel EQ:  3 band
  • Speaker EQ:  4 presets, including cardioid mode
  • Protection:  Peak and RMS limiting, amplifier thermal protection
  • Amplifier Type:  Class D, Bridged Tied
  • Peak Output Power:  2000W total
  • Average Efficiency:  89%
  • Cooling:  Convection
  • Maximum Ambient Temperature:  35°C (95°F) for full output
  • Power Supply Type:  Switch-mode, fixed frequency with PFC
  • AC Input Operating Range:  100 – 240V ~ AC, 50 – 60Hz
  • Power Factor:  > 0.98
  • Nominal Power Consumption:  1000W Max
  • Mains Connector:  3-pin IEC
  • Enclosure:  Birch/poplar ply
  • Protective Grille:  Black perforated steel
  • Fittings
    • 16X M10 inserts
    • Pole-mount socket
    • 2X bar handles
    • Provisions for castors
  • Dimensions (WxDxH):  662mm X 640mmX 536mm / 26.1″ X 25.2″ X 21.1″
  • Weight:  44kgs / 97lbs
