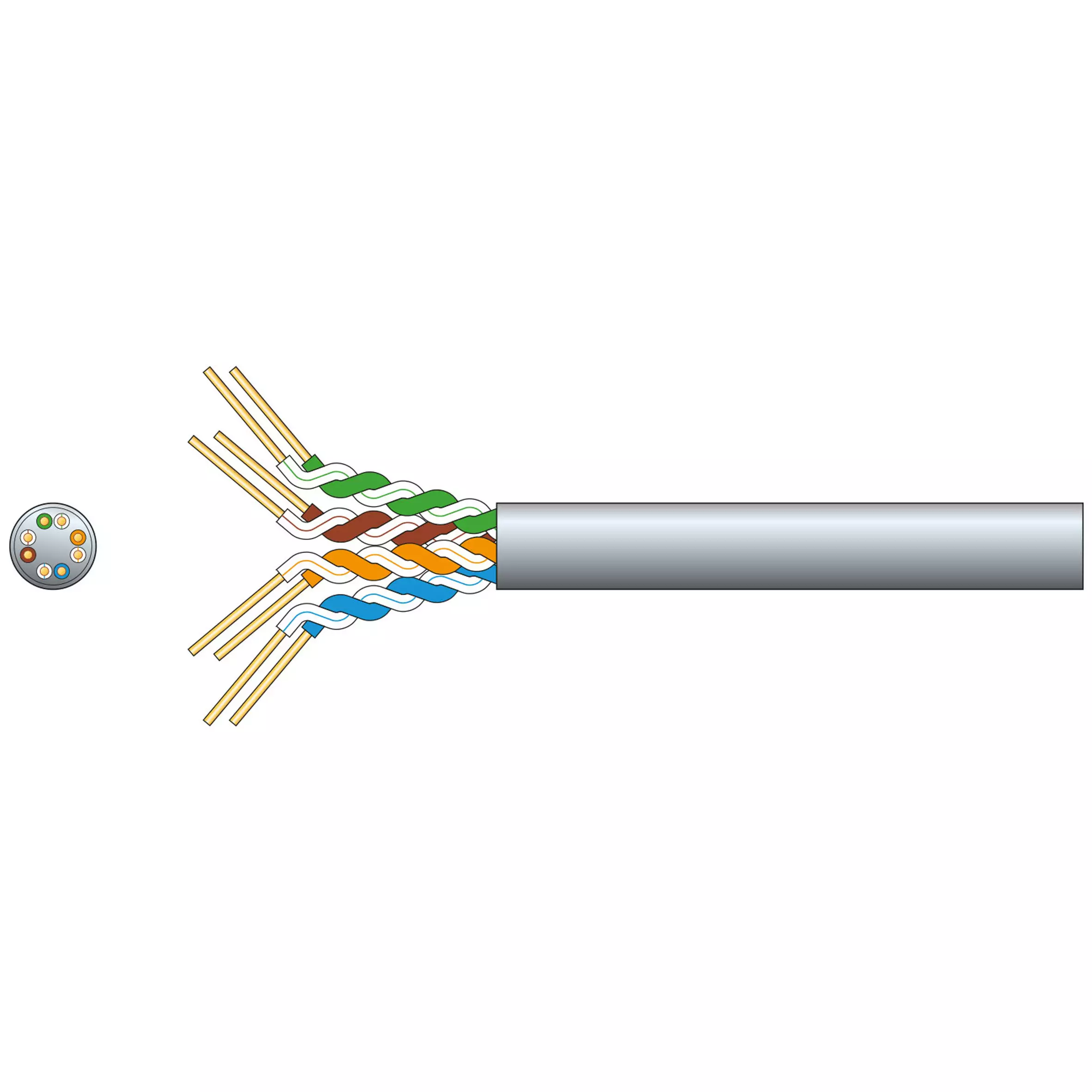

MERCURY CAT5e NETWORK CABLE 305m

Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.

FEATURES:

• Passes Cat5e fluke test 100m at 100MHz
• Solid copper clad aluminium conductor
• Supplied in an easy-pull dispensing box

SPECIFICATIONS:

• Conductor: Solid CCA
• Strands: 8 x 1/0.51mmØ ±2%
• CSA: 8 x 0.204mm²
• Cable diameter: 5mmØ
• Insulation: HDPE 0.19mm thickness
• Sheath: PVC 0.5mm thickness
• Impedance: 100 Ohms (±15)
• DC resistance @ 20°C: 20dB @ 100m
• NEXT: >40dB @ 100m
• PSNEXT: >38dB @ 100m
• Cable colour: Grey
• Length: 305m
• Weight: 6kg
