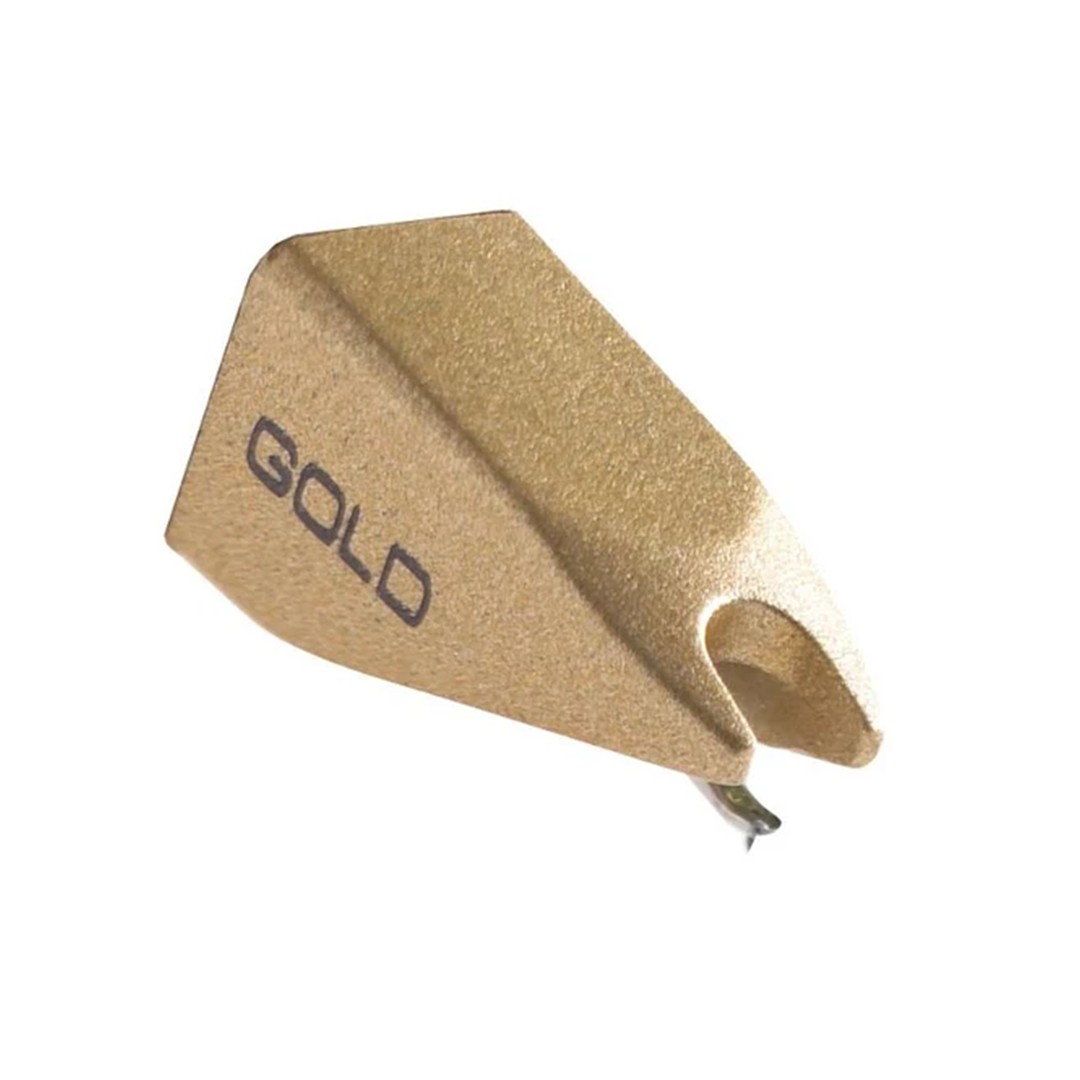

The Ortofon STYLUS GOLD Replacement Stylus provides a refined replacement option for the Concorde Gold cartridge. Its gold-plated design complements its premium positioning. Furthermore, the Special Pro Elliptical diamond supports precise groove contact. This design helps the stylus follow record grooves accurately during playback. The stylus delivers a 6 mV output at 1 kHz and 5 cm/sec. For detailed vinyl playback, the Special Elliptical stylus profile offers a focused contact shape. Its 13/25 μm tip radius supports accurate groove tracing. Additionally, the stylus achieves 80 μm tracking ability at 315 Hz. The 7 μm/mN dynamic lateral compliance supports controlled stylus movement. Therefore, the Stylus Gold suits listeners and DJs seeking detailed vinyl reproduction. The recommended tracking force sits at 3.0 g, or 30 mN. However, users can adjust the force between 2.0 and 5.0 g. Correct setup helps maintain consistent tracking performance during operation. The 20° tracking angle supports the intended stylus geometry. Moreover, the 1.5 dB channel balance helps maintain consistent left and right output. The Stylus Gold provides 23 dB channel separation at 1 kHz. Its 750 Ohm internal impedance works with a recommended 47 kOhm load resistance. Meanwhile, its 450 mH internal inductance supports the cartridge’s electrical characteristics. The recommended load capacitance ranges from 200 to 600 pF. As a replacement stylus, the Ortofon STYLUS GOLD Replacement Stylus weighs 1 g. It offers a practical upgrade path for compatible Concorde Gold cartridge users. Ortofon lists the Stylus Gold within its Concorde MkI replacement stylus range. Additionally, Ortofon advises matching stylus and cartridge combinations carefully for supported performance. This combination balances output, groove tracking, and precise stylus geometry for demanding vinyl playback applications.

Price-Flex

Price Flex

Name: Ortofon STYLUS GOLD Replacement Stylus
Brand: Ortofon
SKU: STYLUS GOLD
Availability: InStock
