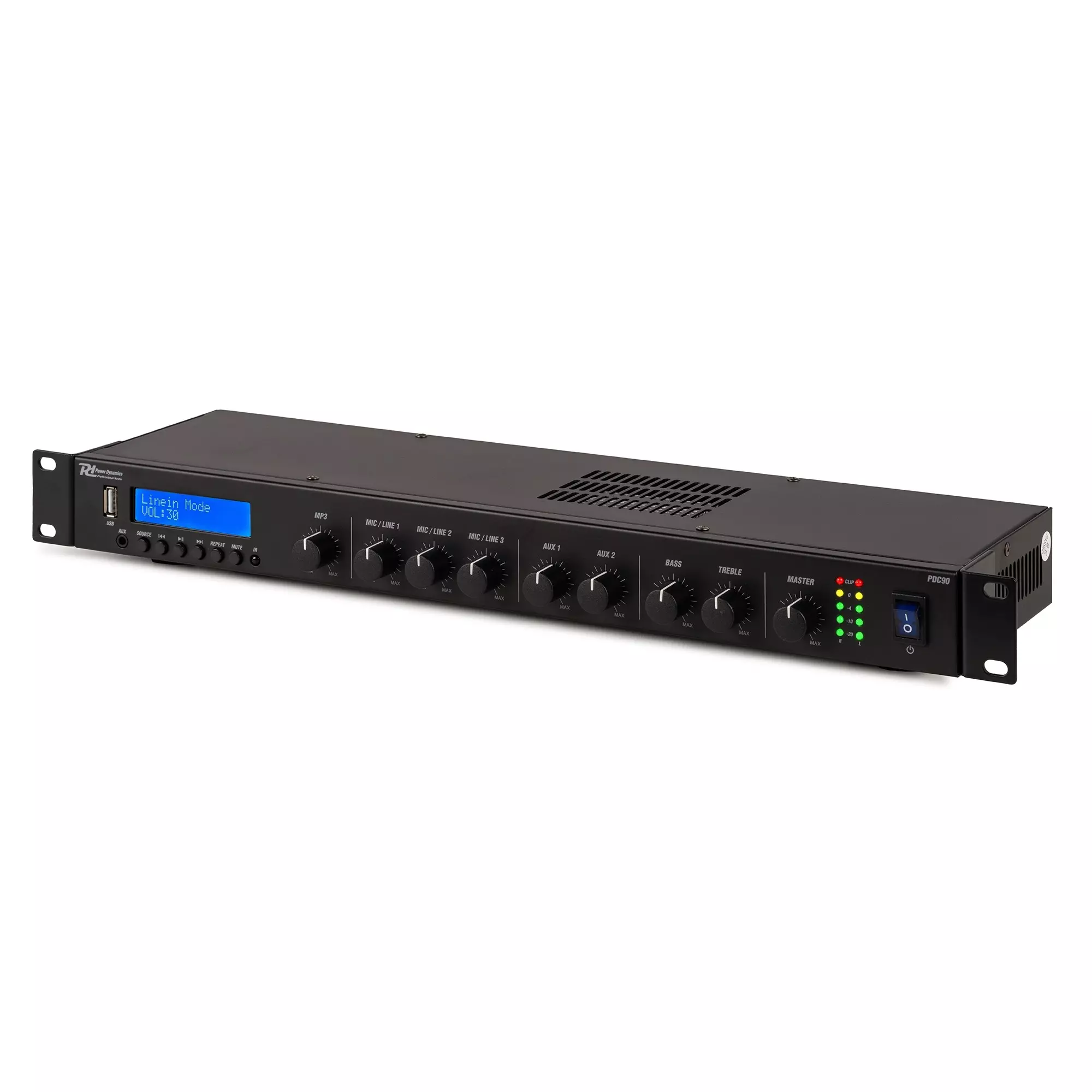

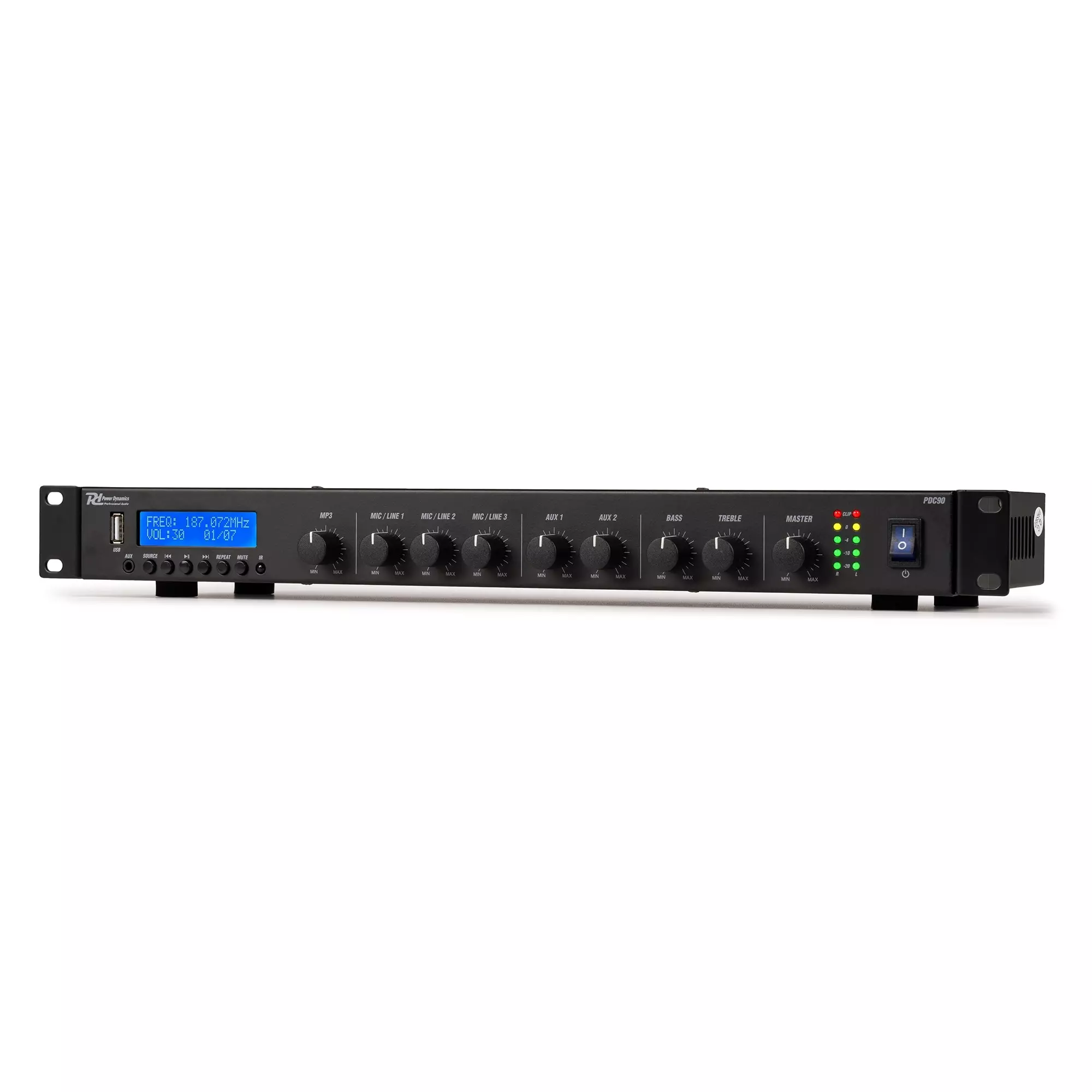

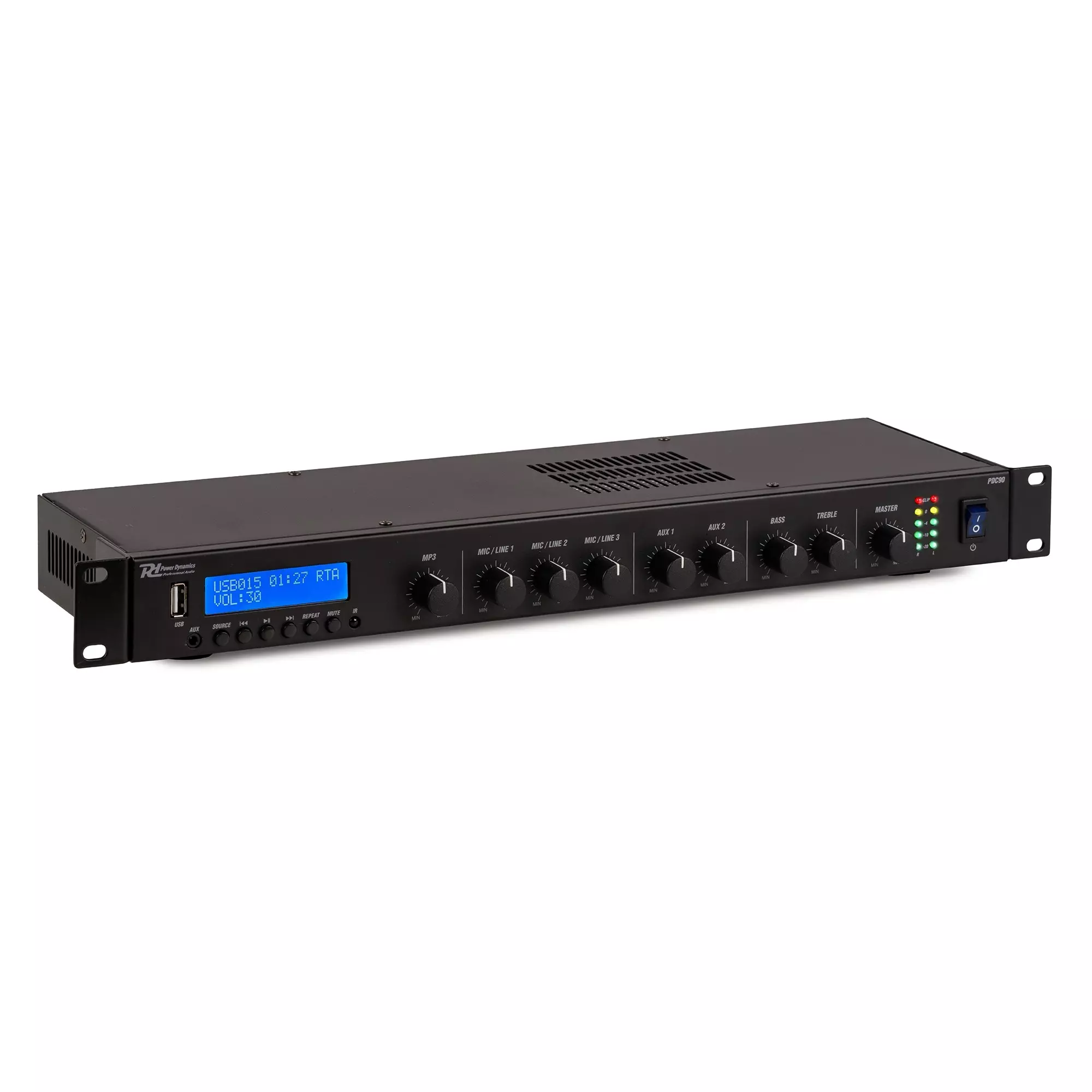

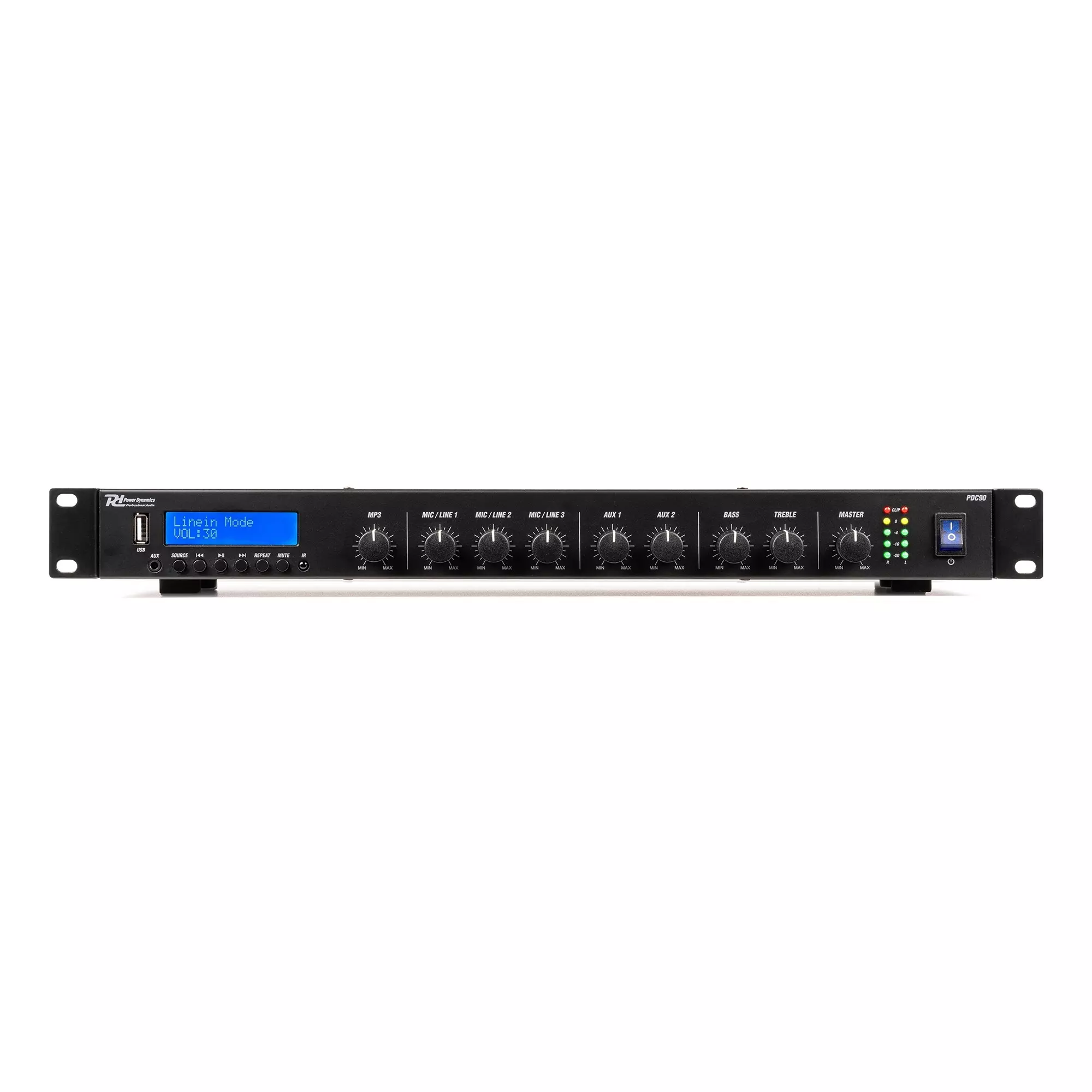

The PDC90 is a compact 1U mixer-amplifier that includes a built-in media player with DAB+, FM radio, and Bluetooth functionality. It features three mono inputs with switchable XLR microphone or line connections, along with two stereo auxiliary line inputs on RCA and a stereo line output. The integrated media player supports multiple playback modes, including a 3.5mm aux input, USB audio, DAB+/FM radio tuner, and Bluetooth streaming from smartphones or tablets. Left and right speaker outputs are provided via standard Phoenix connectors, allowing connection of 2 or 4 speakers. This makes the unit ideal for both permanent music and voice installations, as well as portable PA setups for conferences, events, and fitness classes.

FEATURES:

Class-D amplifier with Multifunctional media player
Integrated DAB+ tuner
BT-receiver for streaming audio

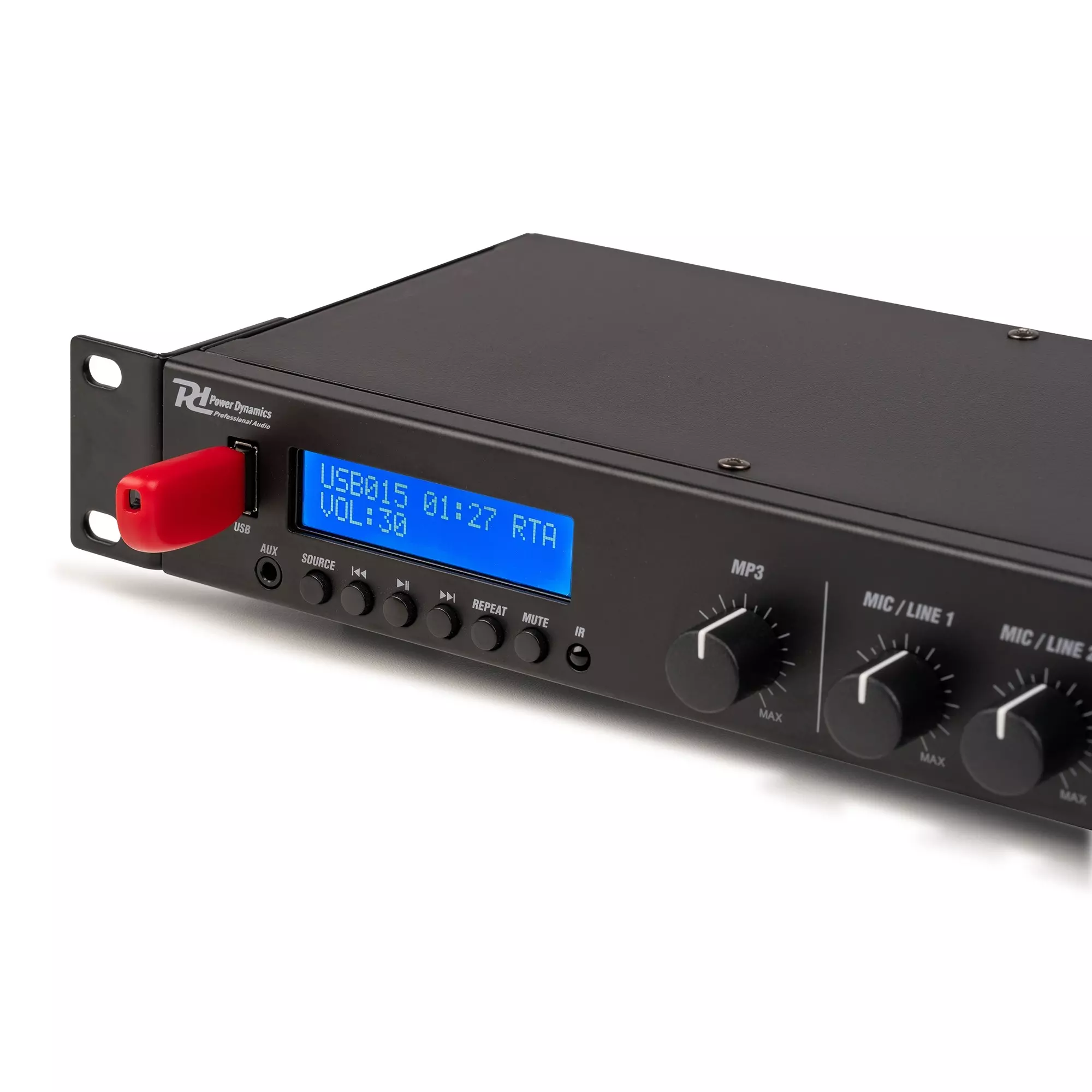

USB media player with display
1x 3.5mm Aux input
3x Mic/Line inputs (XLR) with phantom power
VOX priority on Mic/Line1 with mute level control
Mix output balanced XLR
RCA pre-amplifier output
24V DC Mute control input
Separate level control per input
Treble and bass control

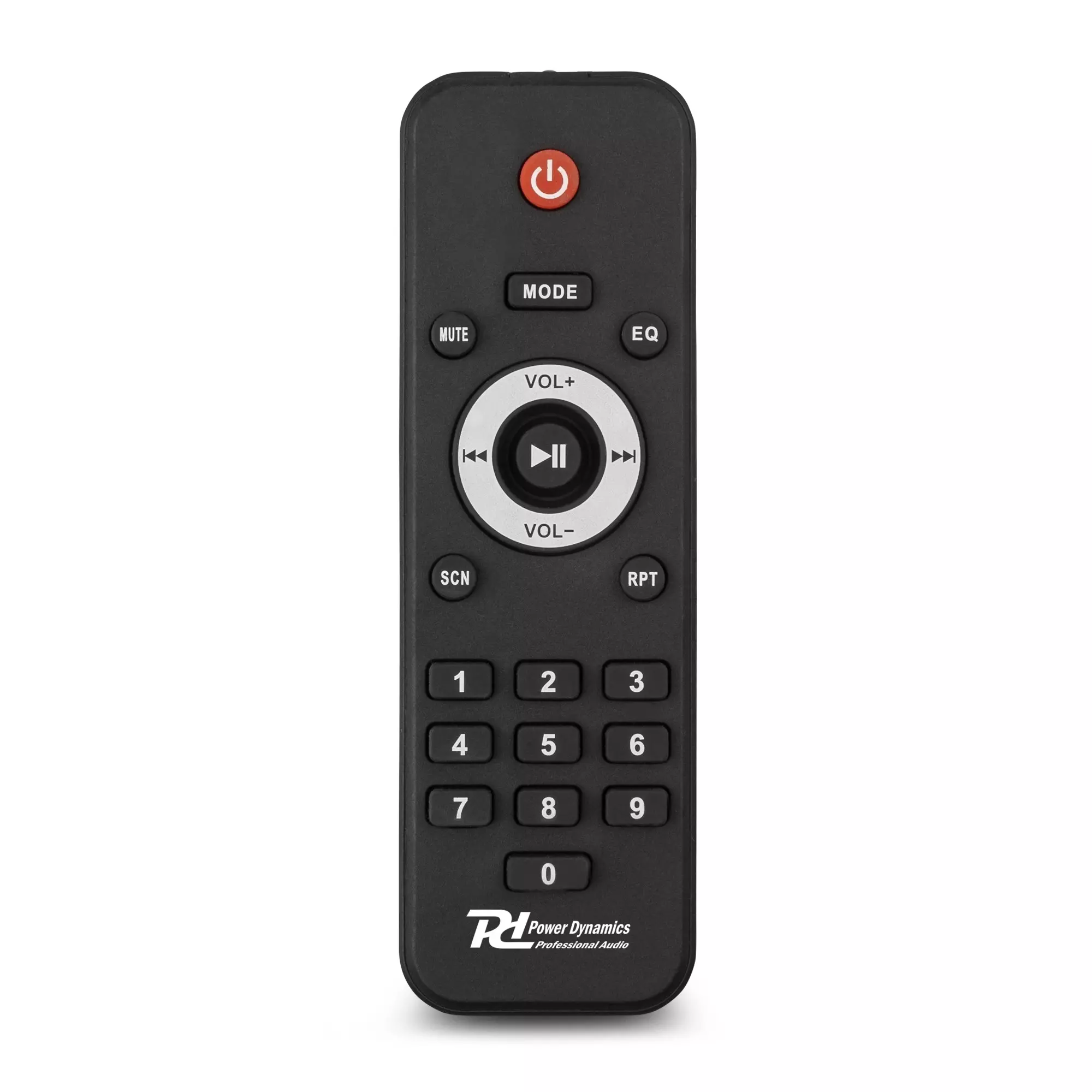

Remote control for MP3 player

SPECIFICATIONS:

Product colour: Black
Playback options: BT 5.0 streaming, USB, DAB+ radio, Line input, Microphone
Frequency response: 100Hz – 20,000Hz
THD: <2%
Signal-to-noise ratio (Mic): >80dB
Signal-to-noise ratio (Line): >80dB
Output level (Nominal): 0dBV
Input connections: 3.5mm Jack, RCA, USB, XLR (3-pin)

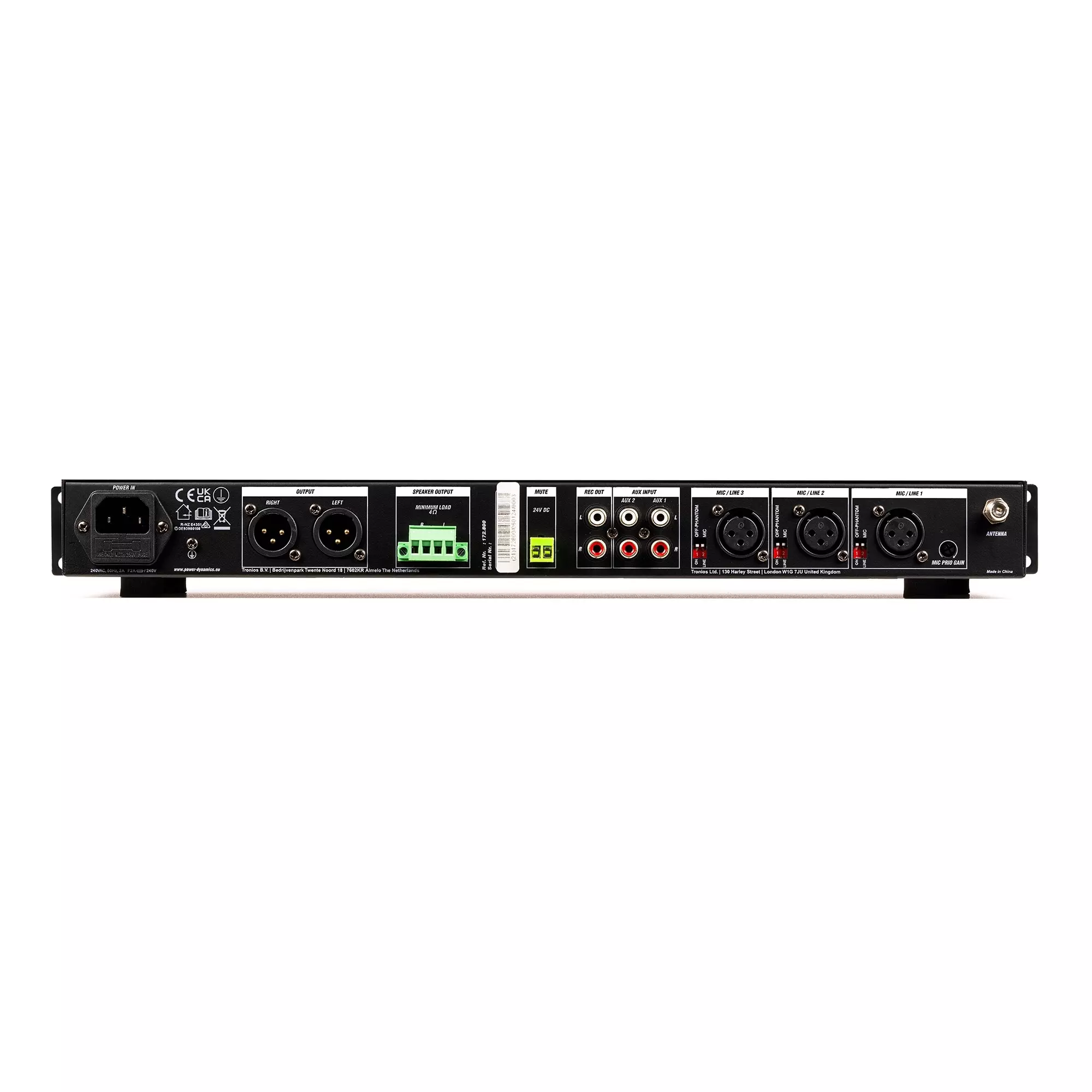

Output connections: RCA, Screw terminal, XLR (3-pin)
Output channels: 2
Output power (RMS): 60W
Power supply: 100–240VAC, 50/60Hz
19 Inch Rack Mount: Yes
Dimensions (L × W × H): 135 × 483 × 45mm
Weight: 1.9kg

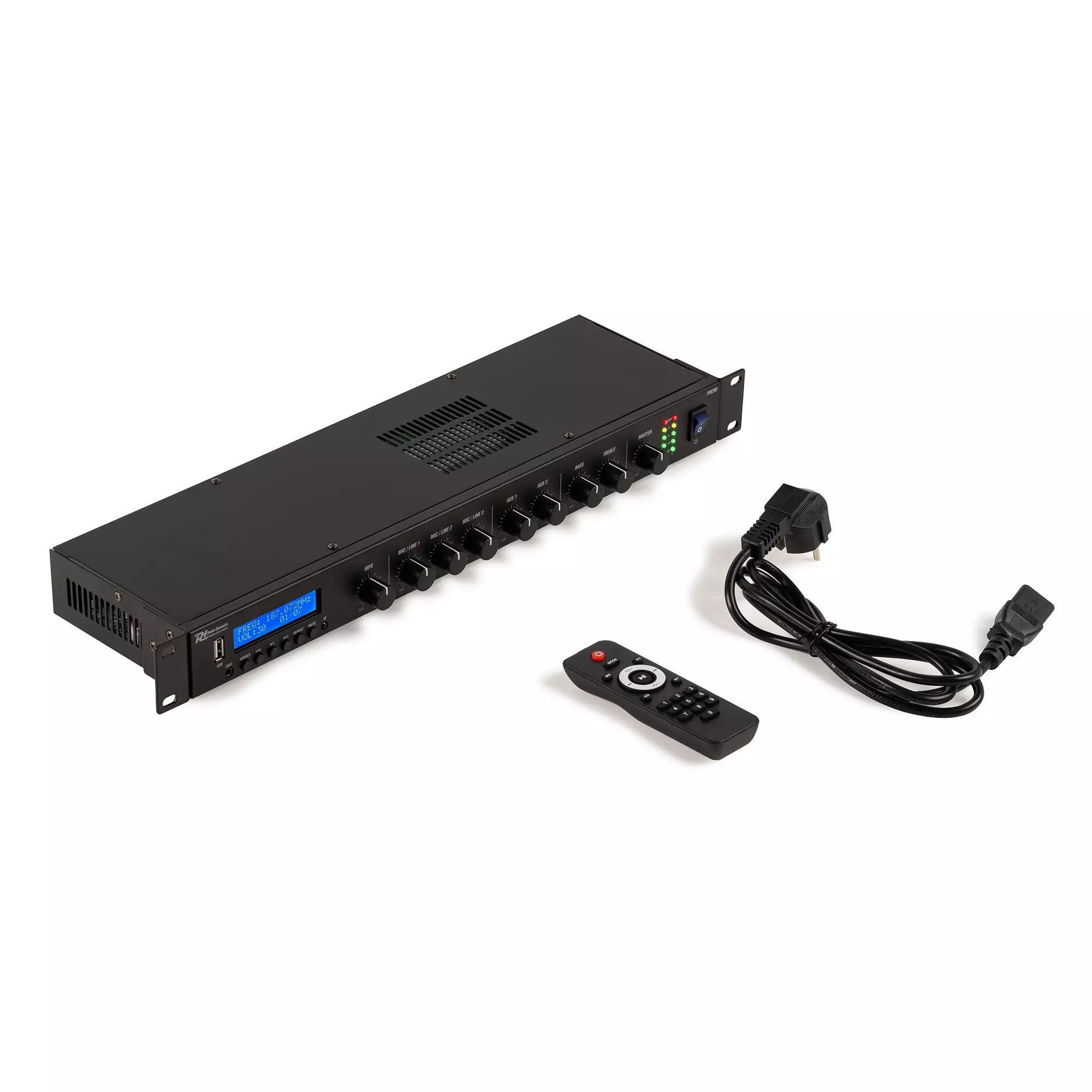

Included accessories: Wireless remote control, Power cable

Price-Flex

Price Flex

Name: PDM PDC90 MIXER AMPLIFIER 1U 2X 60W USB/BT/DAB+
Brand: Power Dynamics
SKU: 172.800PDM
Availability: OutOfStock
