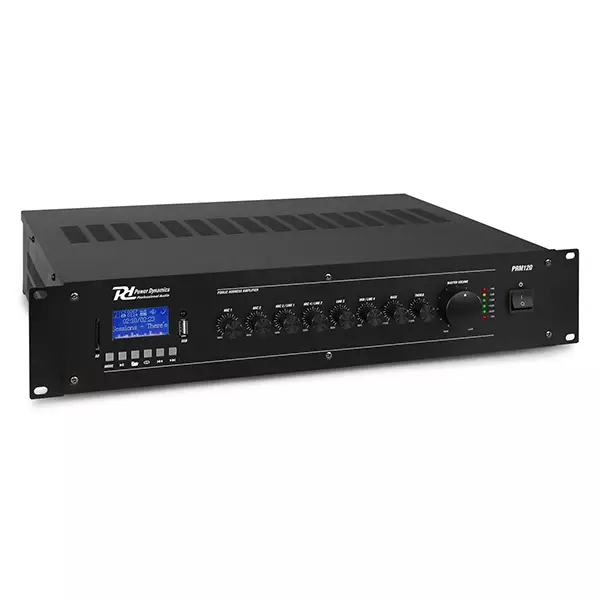

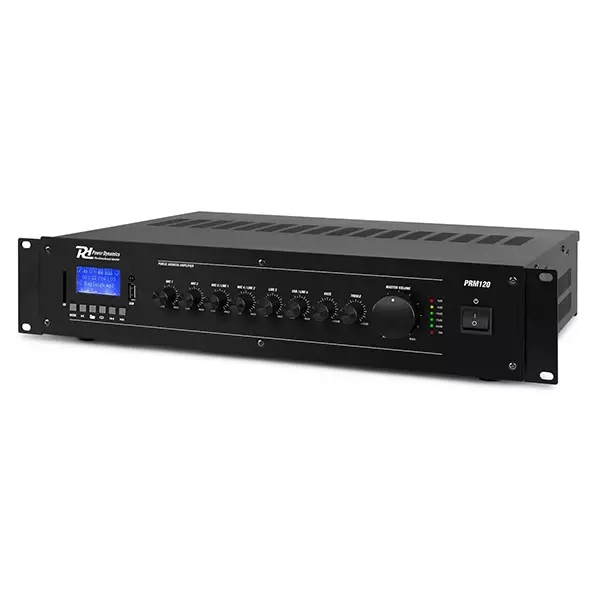

PDM PRM120 100V MIXER AMPLIFIER 120W USB/SD/BT 6 ZONE

The PRM series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These amplifiers are equipped with BT receiver and USB/SD ports for MP3 playback including a bright LCD display with ID3 Tag. All PRM amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.

FEATURES:

• 120W 100V amplifier
• MP3 Player with USB/SD slots
• Using BT wireless technology for audio streaming

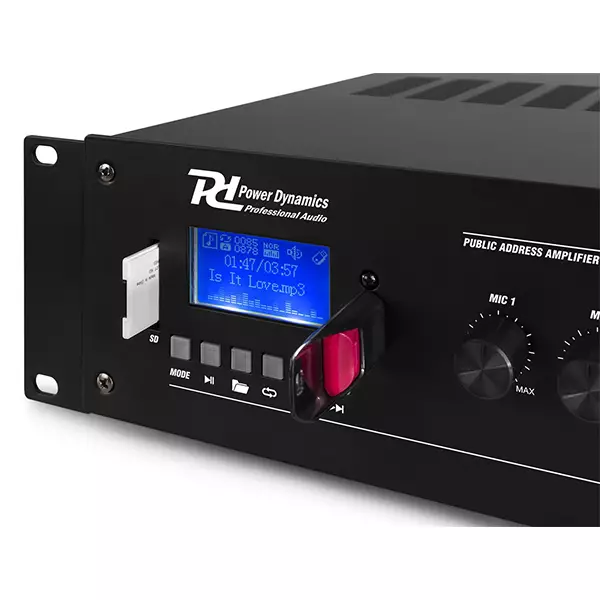

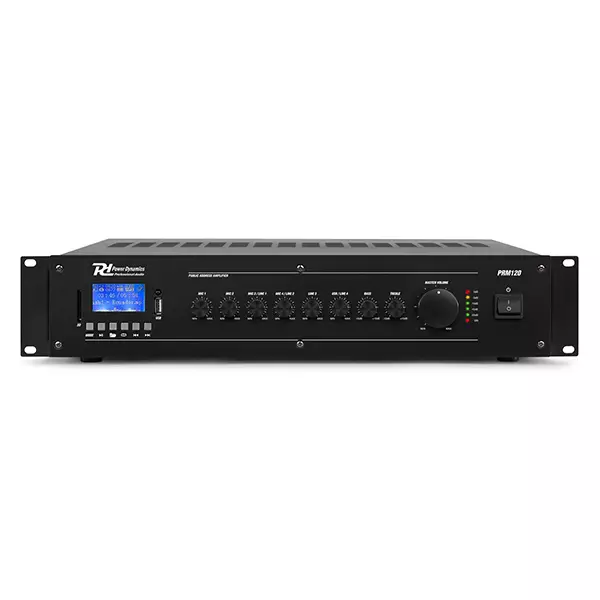

• LCD control panel with ID3 tag

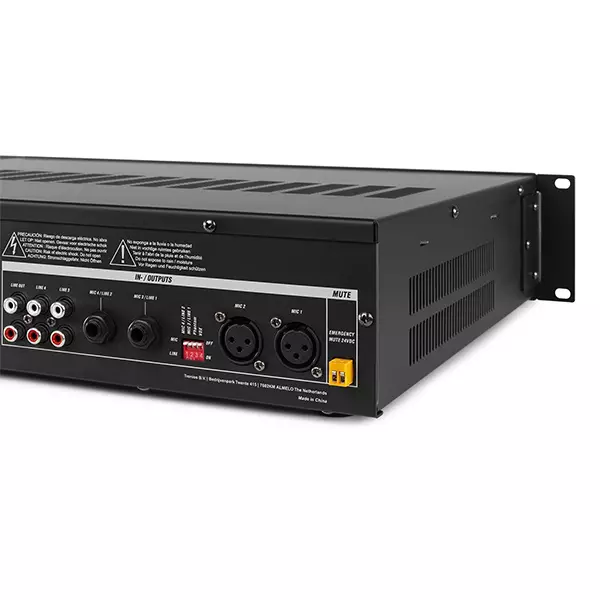

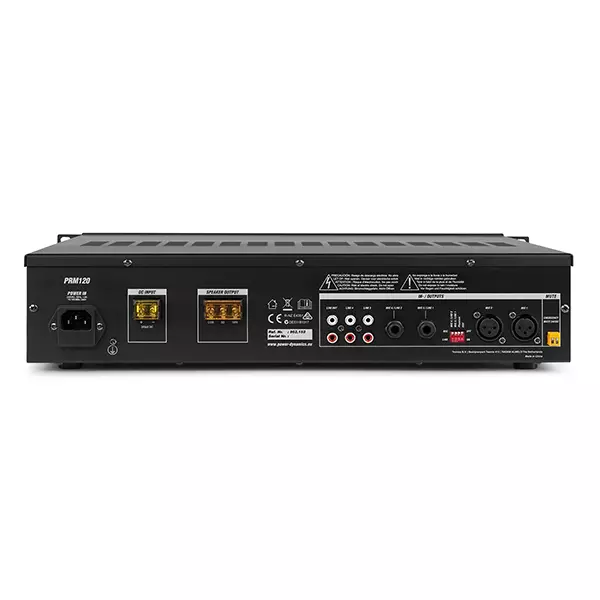

• 2x Mic/line inputs 6.3mm Jack, 2x RCA line inputs and 1x RCA line output
• 2x XLR microphone inputs with switchable phantom power (24V) and VOX priority

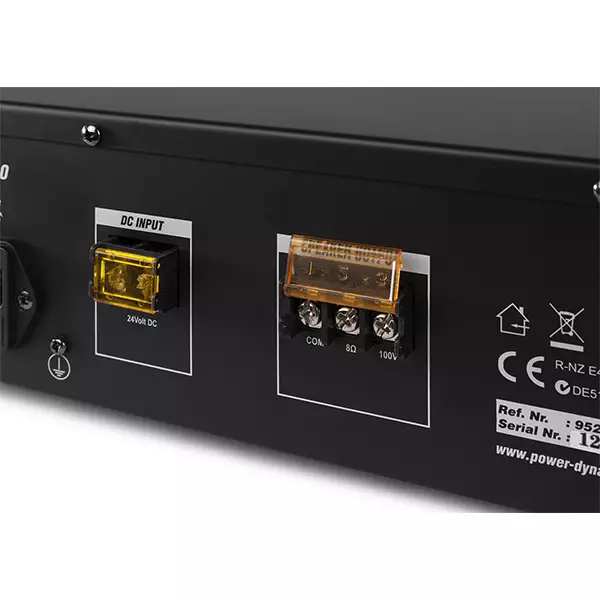

• 100V or 8 Ohm speaker output
• Bass and treble controls

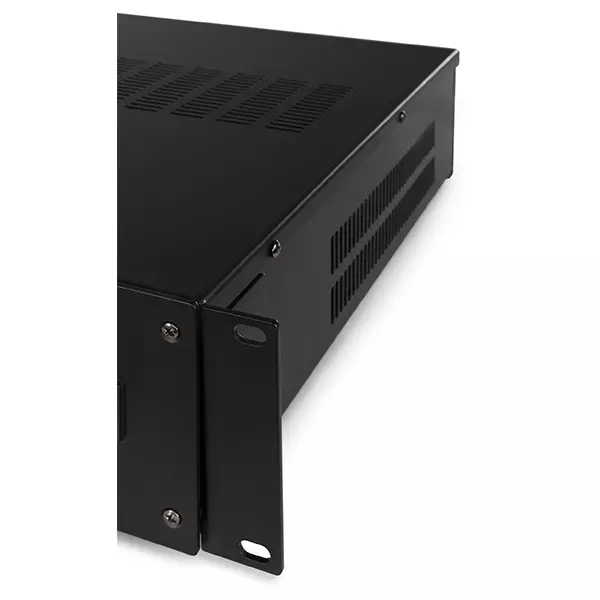

• 19″ Rack mountable (2U)

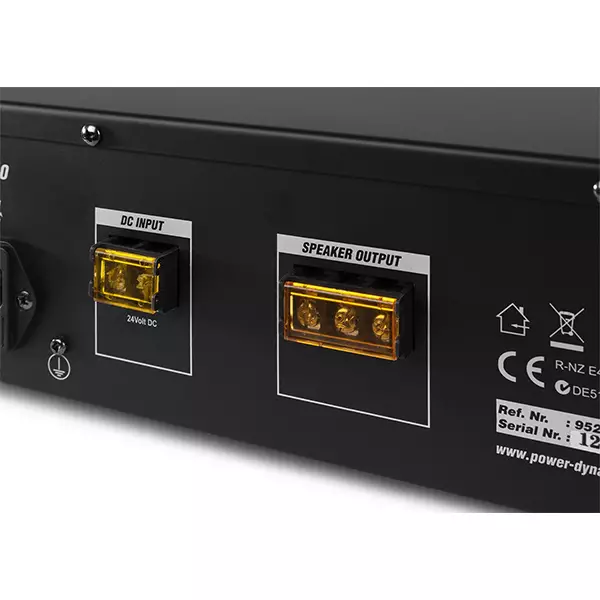

• Emergency operation by 24V battery (not supplied)
• Protections: Overheat, short circuit and power on delay
• Emergency mute input

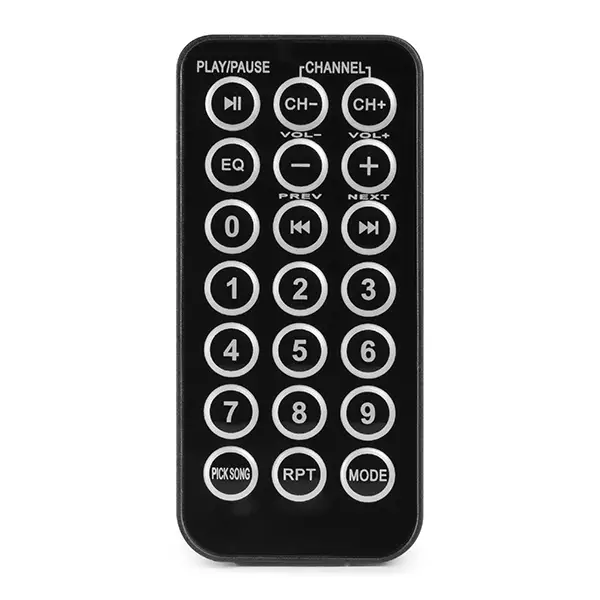

• Including remote control

SPECIFICATIONS:

• Playback options: BT Streaming, SD-Card, USB
• Output power:RMS: 120W
• Impedance: 100V, 8ohm
• Frequency Response: 50Hz – 18.000Hz
• Signal-to-noise ratio: >75dB
• Signal-to-noise ratio:Line: >85dB
• Signal-to-noise ratio:Mic: >72dB
• Power Supply: 100-240VAC 50/60Hz
• Input level:Line: 150-470mV, 10kOhm
• Input level:Mic: 5-8mV, 600Ohm
• THD: <0,5%
• Dimensions (L x W x H): 432 x 88 x 345mm
• Weight: 9.1kg
• Accessories: Power Cable
