PDM PS65 FRAMELESS CEILING SPEAKER 6.5INCH WHITE 30W 100V

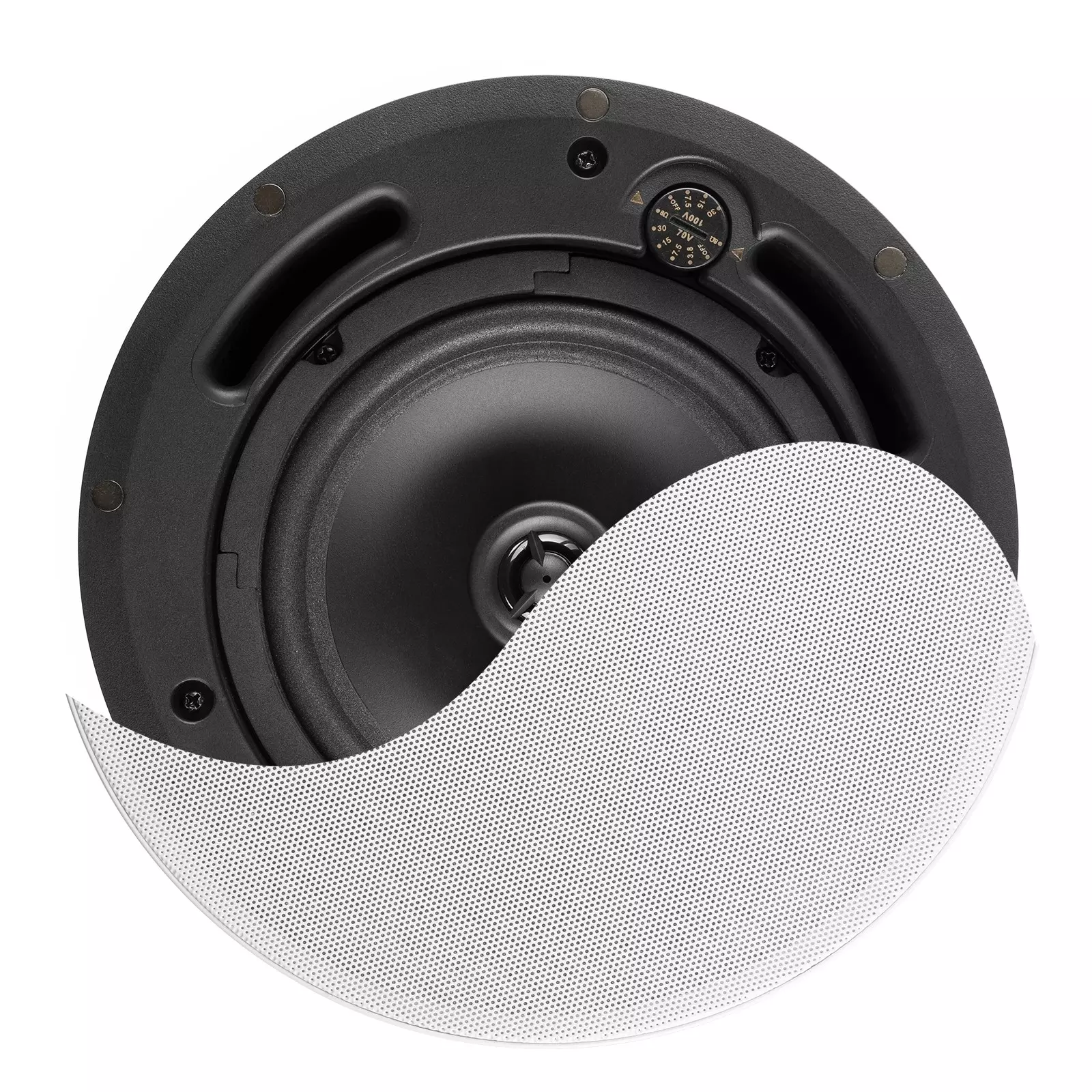

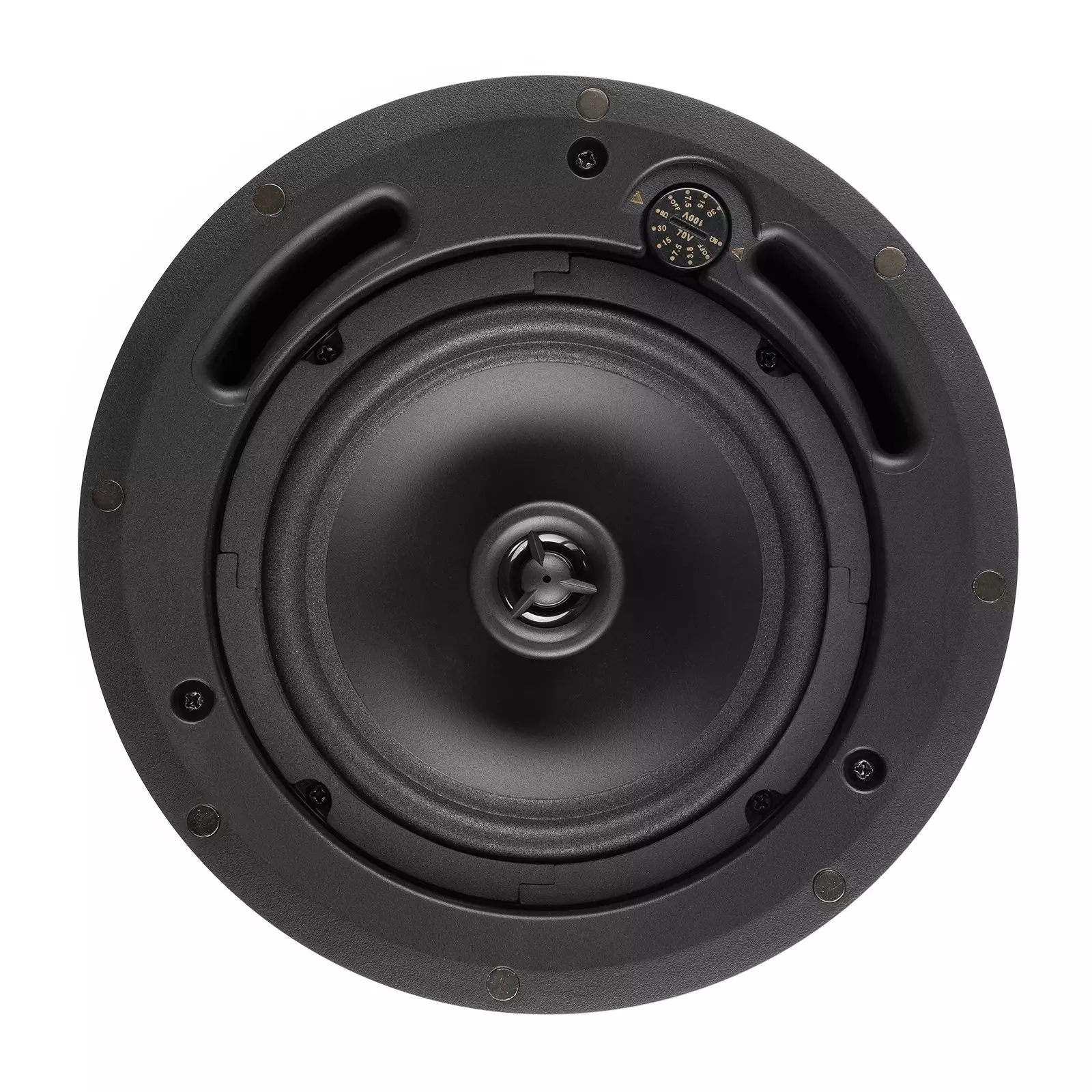

Designed for foreground, background and sound reinforcement applications, the PS series ceiling loudspeakers utilize a high performance 2-way polypropylene woofer in a bass ported enclosure. This ABS housing provides a deeper bass reproduction and a tighter and more focused sound quality. The removable magnetic grille and Fast-Fix lock system ensure smooth installation and convenient tap settings. The rotary selector switch for the 100V tappings is accessible by removing the grille and is easily adjusted with a screwdriver. This makes it possible to easily change the power tap after installation of the speaker unit. The versatile PS ceiling speaker series is perfect for background and foreground music or high-level paging in offices, shops, cafes, restaurants, classrooms, meeting rooms and many other applications.

FEATURES:

• High performance 2-way ceiling speaker with sound box
• In-Ceiling Bass-reflex Back-can enclosure

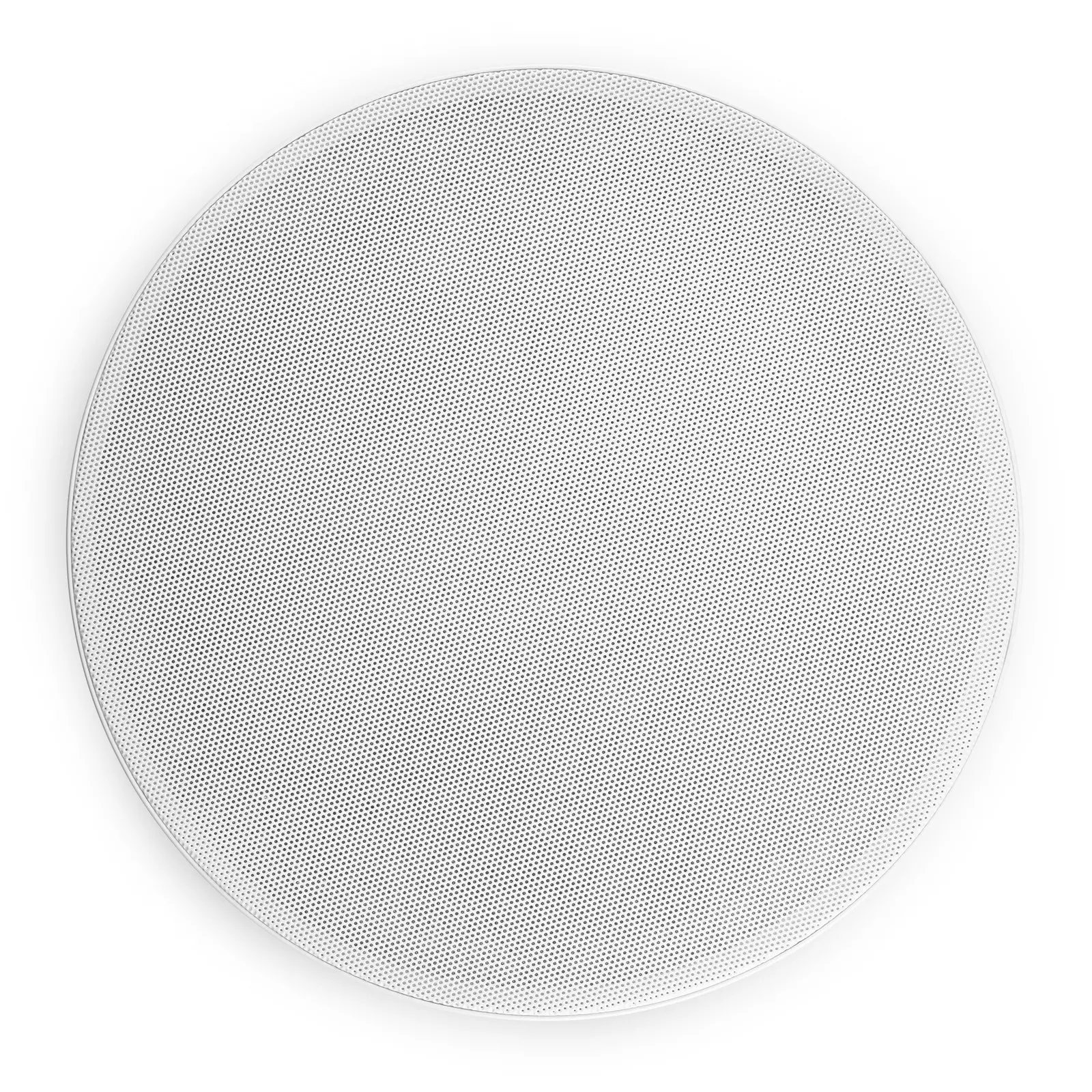

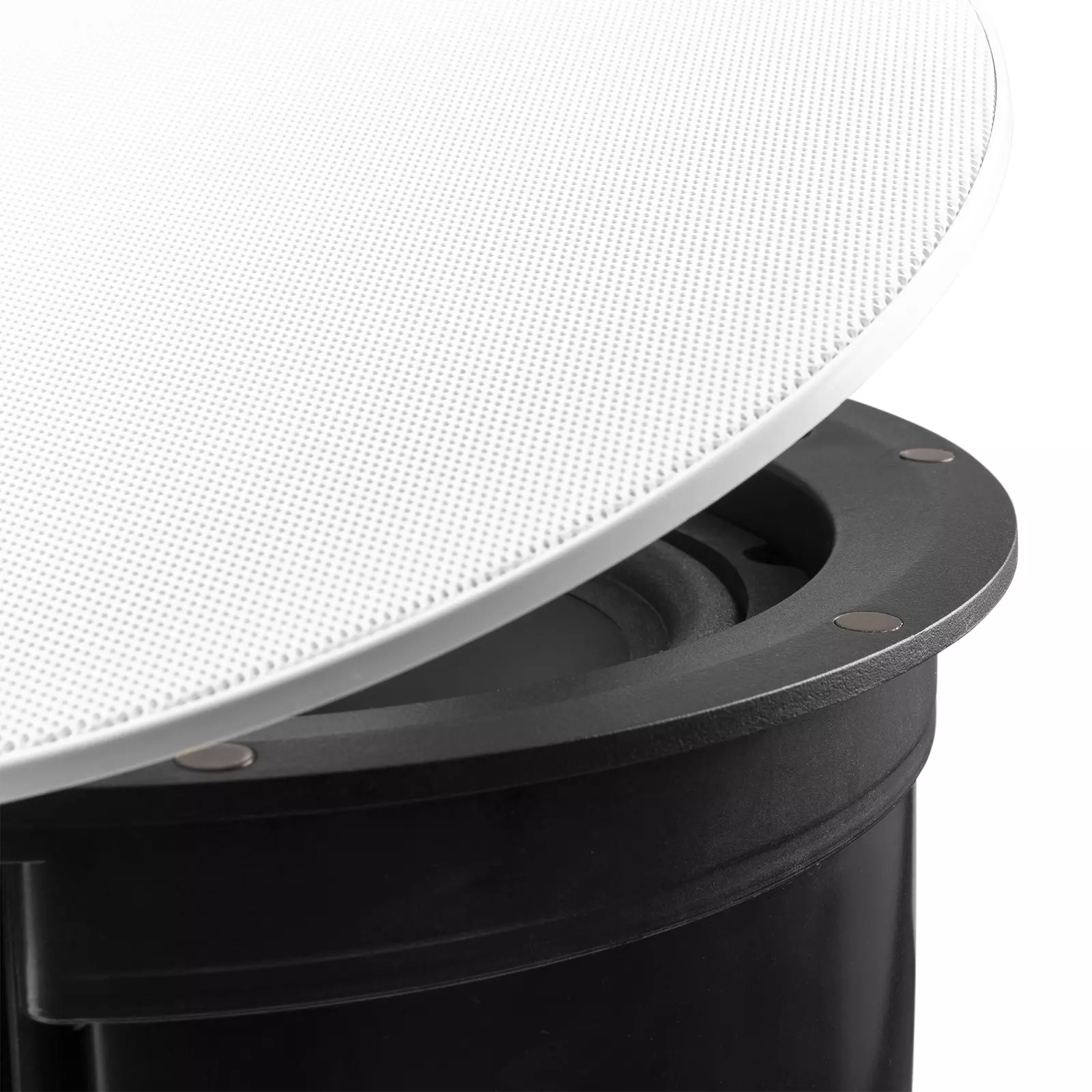

• Removable power-coated iron mesh magnetic grill
• Flush-mount design (only 4mm thickness)
• Low impedance or 100V

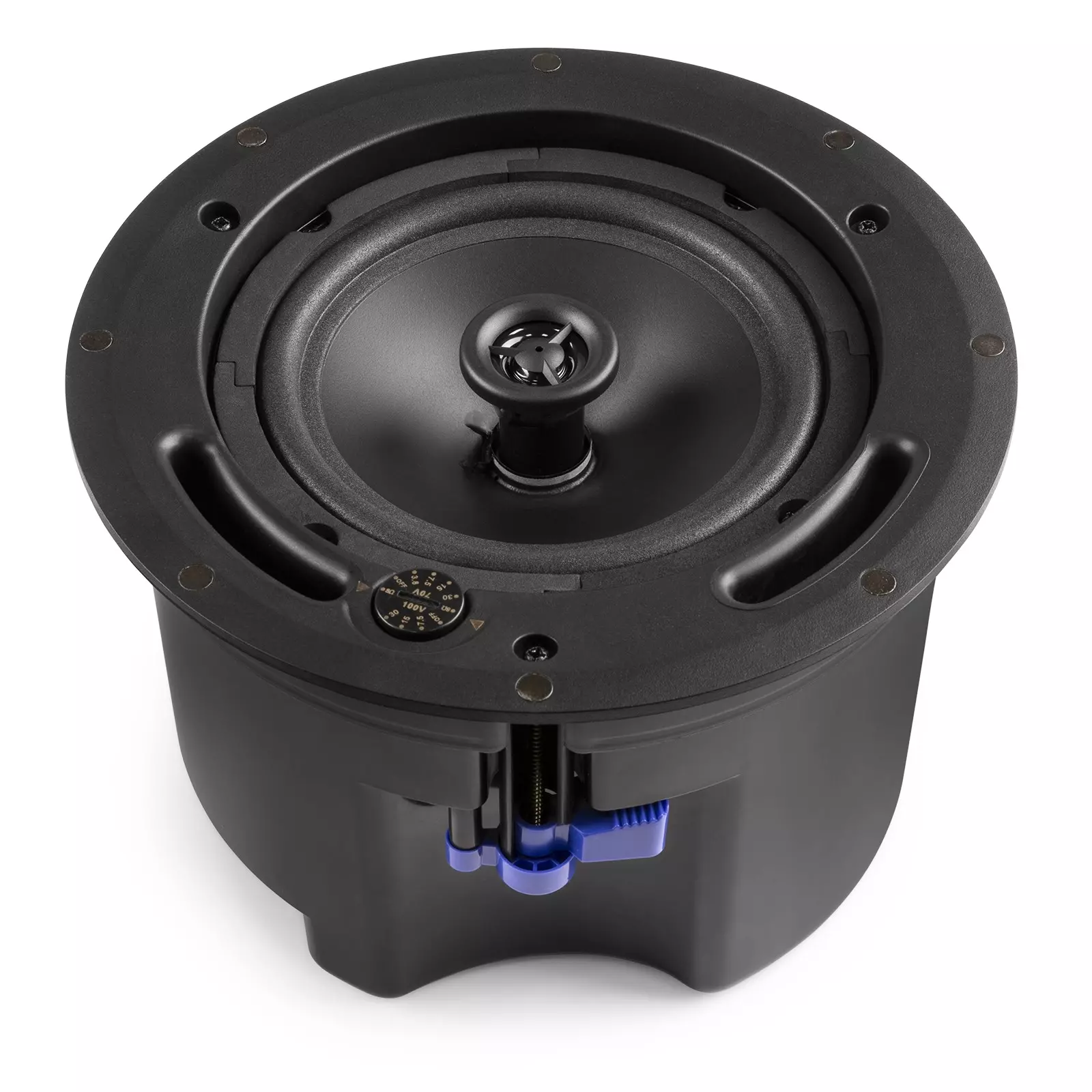

• Front mounted rotary power tap selection
• Polypropylene (sub)woofer
• Mylar dome tweeter
• Quick & Easy install due to Fast Fix lock system

SPECIFICATIONS:

• Speaker Type: Passive (non-amplified)
• Product Colour: White
• Output Power (RMS): 30 W
• Tweeter Type: Mylar
• Diameter Tweeter: 1″
• Diameter Woofer: 6.5″
• Magnet Type: Ferrite
• Impedance: 16 Ohm, 70 V, 100 V
• Tappings Power (100V): 3.75 W, 7.5 W, 15 W
• Tappings Power (70V): 1.5 W, 3.75 W, 7.5 W, 15 W
• Frequency Response: 36 Hz – 16,000 Hz
• SPL @ 1W/1m: 91 dB
• Mounting Diameter: 210 mm
• Mounting Depth: 151 mm
• Dimensions (L x W x H): 248 x 248 x 157 mm
• Weight (kg): 2.05
