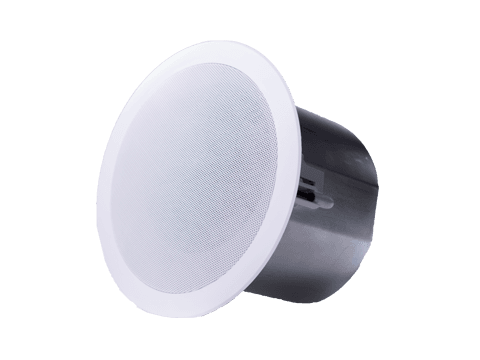

The bassreflex ceiling mount loudspeakers CCS series consist of a low-frequency chassis and an additional high-frequency driver. This closed back allows for a bass reflex construction, which is reflected in the excellent reproduction of music. Atypical for 100 V speakers is the extremely high sound reproduction and the balanced sound picture, which impresses with the first hearing. Wherever powerful basses and clear heights are required to create the right atmosphere, this speaker is the first choice. The performance can be adjusted without great effort with a selector switch below the front grille.

CCS6

Electrical

Rated power, Watts: 60
Driver impedance, Ohms: 16
Effective Frequency Range, Hz (BSEN60268-5): 70-20k
S.P.L. @ 1 m, 1 Watt, dB, Octave, 100 Hz-10 kHz: 88
S.P.L. @ 1 m, Full power, dB, Octave, 100 Hz-10 kHz: 104
Dispersion at 1k/2k Hz, Degrees: 180/160

Environmental

IP-Rating: n/a
Max/Min Amb Temp: -10°C/+55°C
Relative Humidity: ≤65%

Mechanical

Dimensions, front and depth, mm: 263 x 214
Net Weight, Kg: 3.5
Colour (Unless Specified): White, RAL9016
Material: Plastic Baffle ABS with UV inhibitors
Mounting: Rotary compression clamps
Cut-out, mm: Ø230

Applications:

Price-Flex

Price Flex

Name: Penton CCS 6 High Power 16-Ohm Ceiling speaker with back box
Brand: Penton
SKU: CCS6
Availability: InStock

Found a better price elsewhere?

Send us the details and we’ll see if we can match or beat the offer while still providing the service, support and warranty that Bounce Online customers expect.

✔ Trusted South African retailer since 2015
✔ Local warranty and support
✔ Fast nationwide delivery
✔ Competitive pricing on leading brands

Simply complete the form below and we’ll get back to you as soon as possible.

Datasheet

CCS6_Datasheet_AE_en_web
