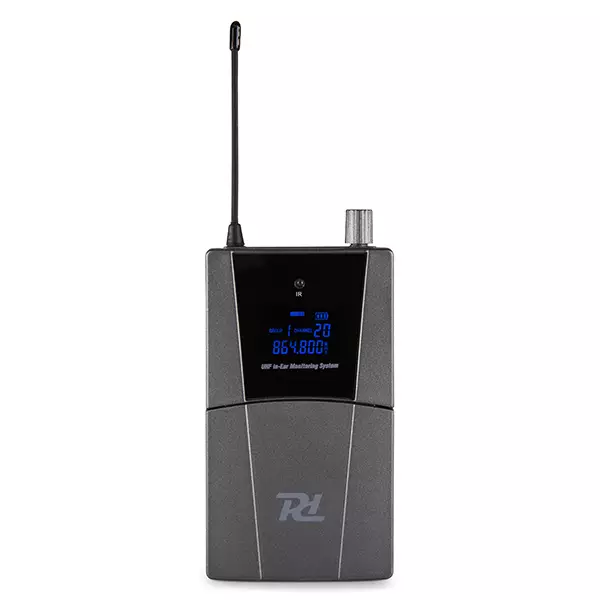

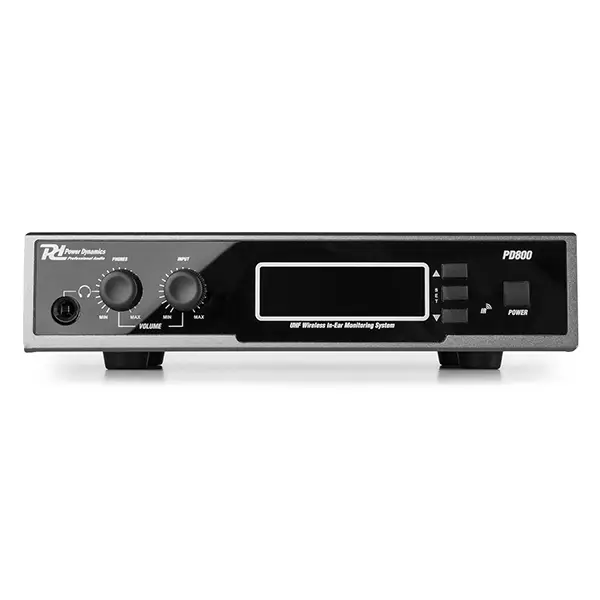

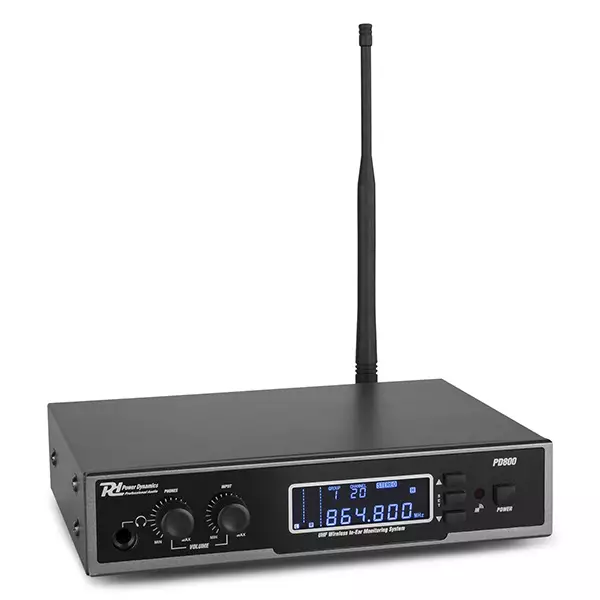

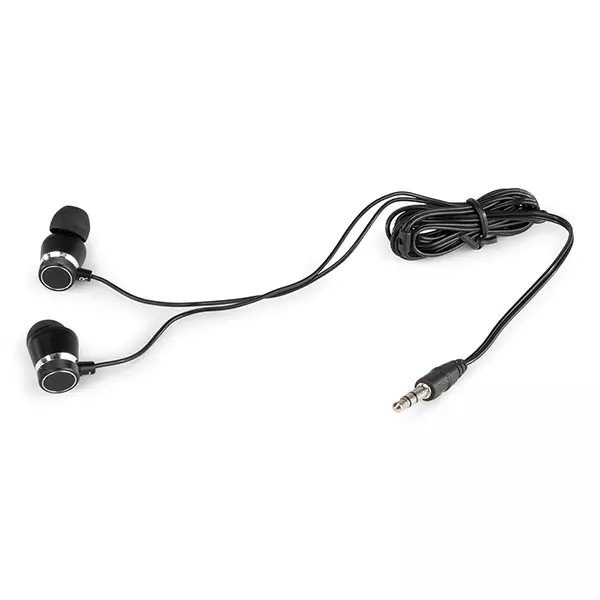

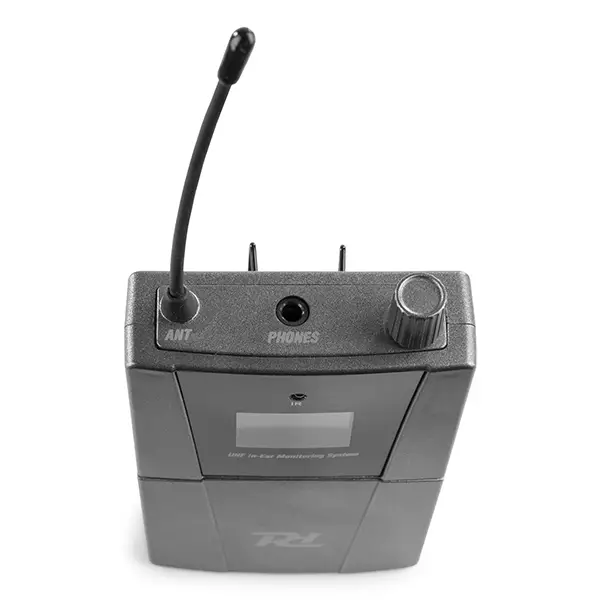

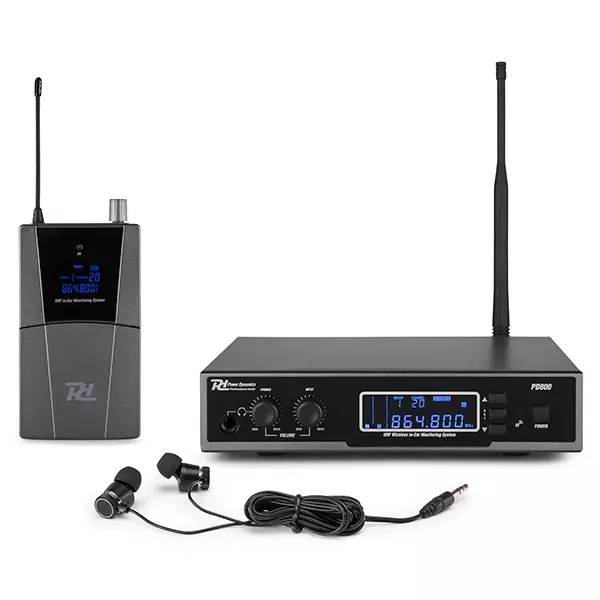

The PD800 is a value for money, great sounding In Ear Monitoring (IEM) system, designed for stage performance and broadcasting. Using up-to-date UHF wireless frequencies, musicians can move around freely onstage, while hearing themselves clearly and without causing damage to their hearing via loud foldback speakers. The set is equipped with an easy to read backlit LCD display on both the receiver and transmitter and comes with an isolated earphone. It’s also possible to use your own custom designed earphones. Perfect for drummers, keyboardist, guitar player, vocalist and other performers.

FEATURES:

• Frequency Range: UHF 863 – 865mHz
• Max. 80m operating range (under typical conditions)
• IR data transmission for channel selection
• PLL oscillator
• 20 selectable channels
• Rugged metal housing
• LCD display function with white backlight
• Signal/noise ratio: > 105dB
• Lockable transmitter and receiver

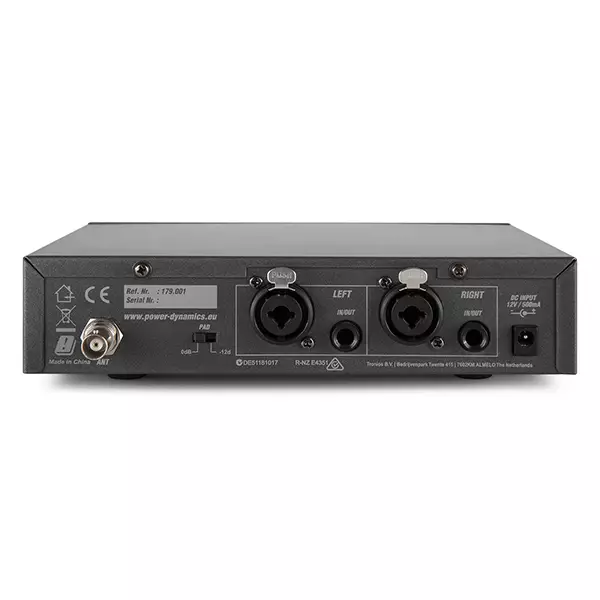

• Input: XLR L+R & 6.3mm Jack L+R
• Output: 6.3mm Jack L+R
• PAD switch 0 / -12dB

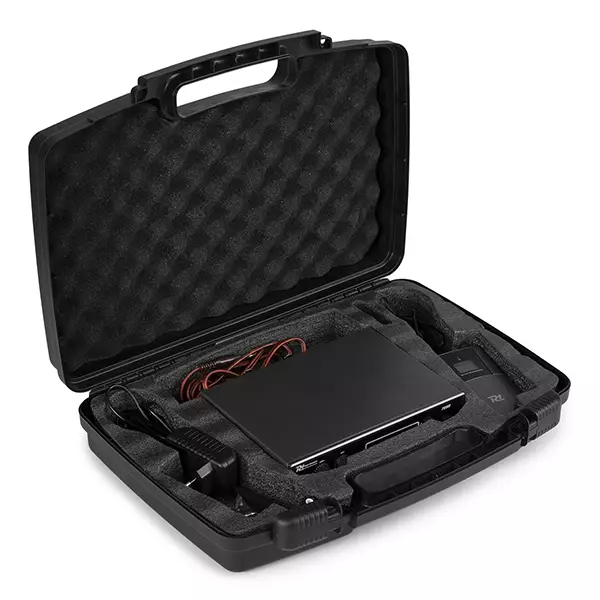

• Supplied in robust plastic case
• Including 19″ brackets

SPECIFICATIONS:

• Input Connections: 6.3 mm jack, XLR (3-pin)
• Output Connections: 6.3 mm jack
• Frequency Range: 863.000 – 865.000 MHz
• Frequency Response: 40Hz – 16.000Hz
• Signal-to-noise ratio: >105dB

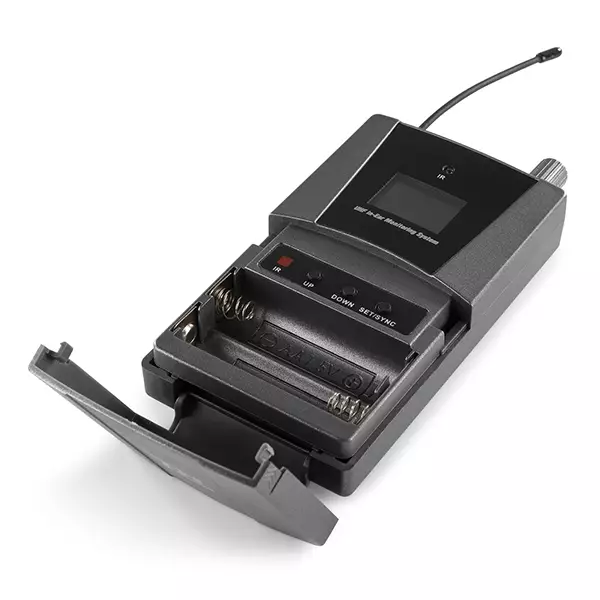

• Batteries: 3V (2x AA)
• Power Supply: 100-240VAC 50/60Hz (12V Adapter)
• Power consumption: 0.05 – 0.023A
• Dimensions:Receiver: 210 x 170 x 45 mm
• Dimensions:Body pack: 120 x 62 x 23mm
• Weight: 2.3kg
• Weight:Receiver: 1.0kg
• Weight:Bodypack: 0.12kg
