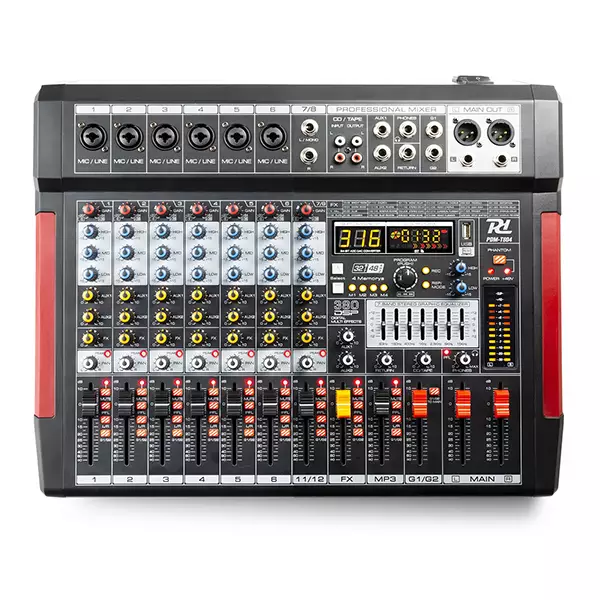

PDM PDM-T804 MUSIC MIXER BT/MP3/USB/DSP/REC 8CH

The PDM-T series is a series of stage mixers equipped with a 32-bit DSP effect processor, stereo 7-band graphic equalizer, BT streaming capability and USB input/output for easy connection to the computer for music recording, etc. It’s also possible to use the one click recording function for easy MP3 recordings on a USB stick. Each channel has its own gain control with treble, mid and bass controls. The microphone preamps offer selectable 48V phantom power on all microphone channels. The PDM-T mixers are designed to provide multi-channel mixing capabilities for bands, musicians, sound engineers, conferences, studio recording and a variety of other live stage applications.

FEATURES:

• 8-Channel multipurpose audio mixer
• MP3 recording/playing via full-duplex USB port (one click recording)
• BT receiver for audio streaming
• +48V phantom power
• Stereo 7-band graphic equalizer
• 380 DSP multi effects with 4 memories
• USB to PC for record and play music (USB interface)
• 8x Microphone-/line input (Combi XLR/Jack)
• High, Mid and Low control for each channel
• Adjustable Pan, aux return input and FX send output
• Adjustable headphone output
• Stereo balanced main outputs (XLR/6.3mm Jack)
• MUTE, PFL (Pre-fader listening), L/R, G1/G2 control on each channel
• LED VU meter and Peak LEDs

SPECIFICATIONS:

• Playback options BT streaming, USB
• Input connections 6.3mm Jack, RCA, USB, XLR (3-pin)
• Output connections 6.3mm Jack, RCA, USB, XLR (3-pin)
• Presets 380
• DSP Resolution 32-bit
• Frequency response 20Hz – 20.000Hz
• THD <0,5%
• Equalizer 7-Bands
• Equalizer: Low 80Hz +15dB
• Equalizer: High 12KHz +15dB
• Power supply 100-240VAC 50/60Hz
• Weight 1,00kg
