2 Channel All-in-One Multi-Media Player CD/MP3 Player with Tuner

The PW-2CMP supports CD/BT/USB/FM/AM/RDS/DAB/DAB+. It also comes with OLED screen.

1. Chanel A: CD/BT/USB with OLED Screen
2. Channel B: BT/USB/FM/AM/RDS/DAB/DAB
3. USB Format Supported: MP3, WAV, WMA, FLAC, APE, Output Mode: RCA(L&R), XLR(L&R)

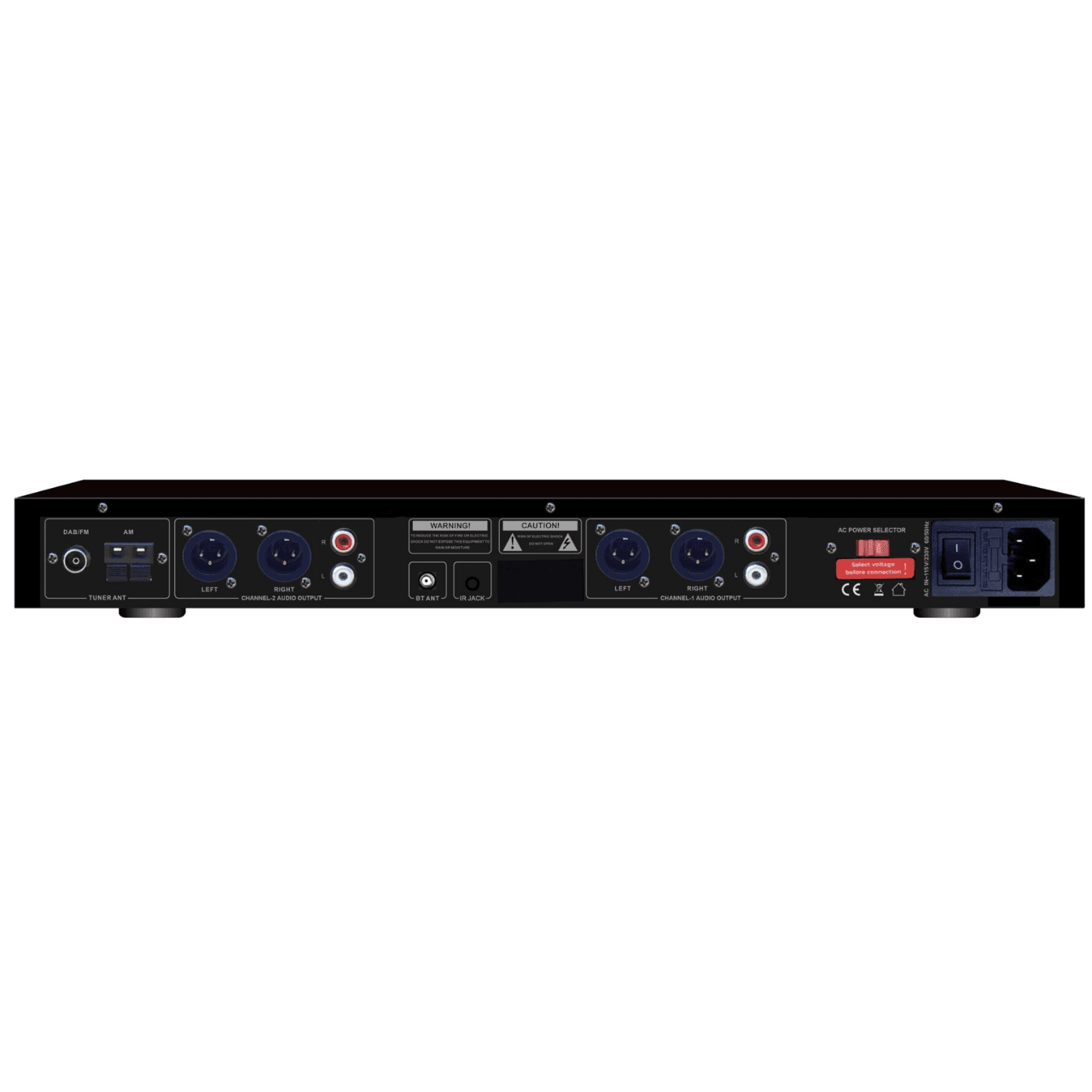

Outputs are XLR or RCA

Key Features

• 1U Height 19” rack mount design
• Three in one audio sources player
• Music player with CD, Mp3 and tuner
• Dual LCD English display with blue back light
• Support various audio formats includes CD, CDR, CDRW, Mp3 & WMA
• Mp3 player with USB input on front panel
• Tuner support AM, FM & RDS

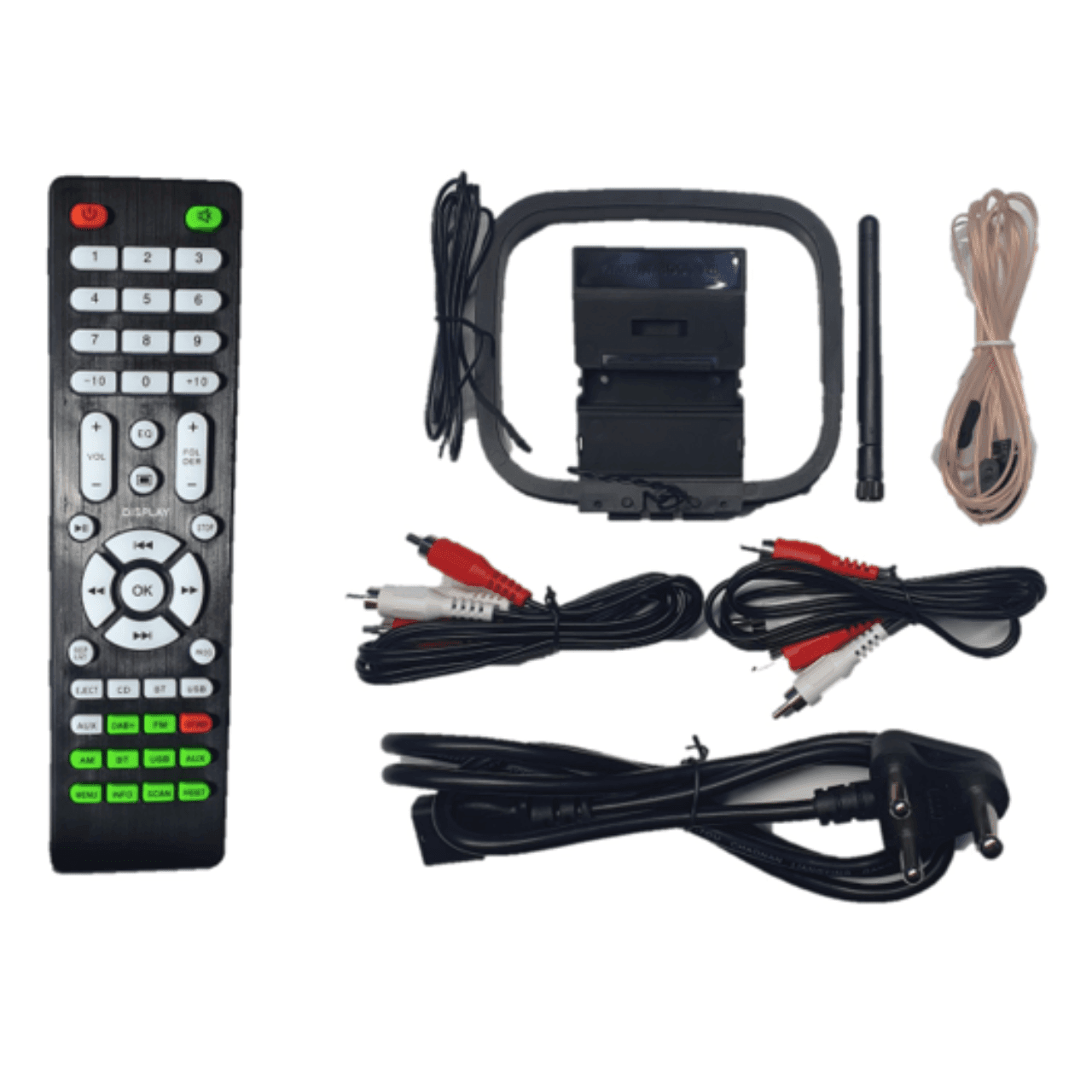

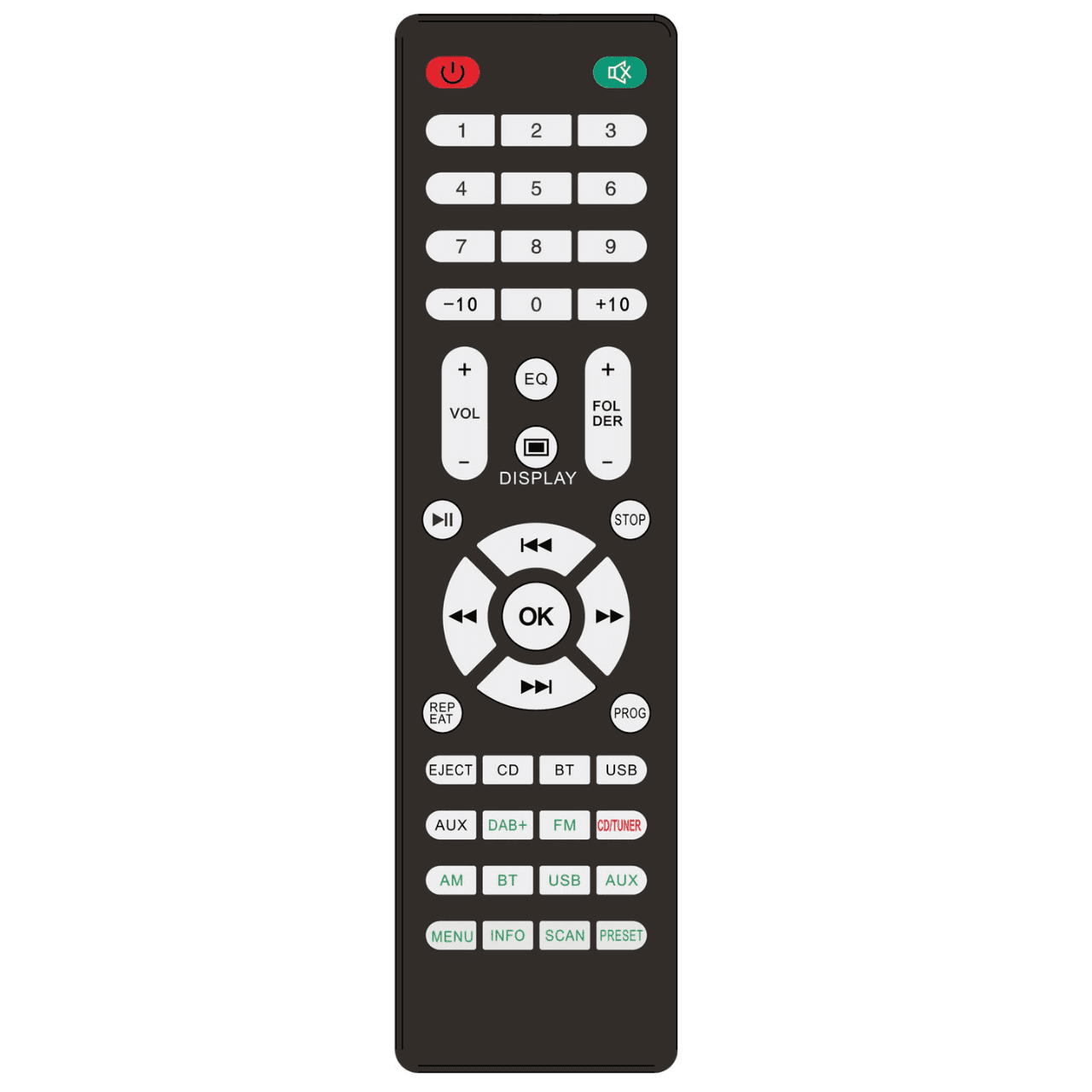

• Supplied with IR remote control

General Specifications

• System:  2-Channel Media Player Channel-L: CD, USB, Bluetooth
• Compatible Media:  Channel-R: USB, Bluetooth, FM (RDS), DAB+ (DAB), AM
• Screen:  x2 OLED Screen
• Playable Formats
  • CD:  CD, CD-R, CD-RW
  • USB:  MP3, WAV, WMA, FLAC, APE
• Bluetooth Version:  Version 5.0
• Frequency Range
  • FM (RDS):  87.50 – 108.00 Mhz
  • DAB+ (DAB):  168.00 – 240.00 Mhz
  • AM:  522 – 1620 Khz
• Frequency Response:  20 Hz – 20 Khz (+0.5 dB)
• S/N Ratio:  More than 105 dB
• T.H.D:  Less than 0.005% RCA terminal x2
• Unbalanced Out L/R
  • Load Impedance:  Over 10 kG/koh ms
  • Output Level:  2 Vrms (M ax. 10 dBu ) at 10 kG/ko hms load XLR terminal x 2 ( 1:GN D, 2:Hot, 3:Cold)
• Balanced Out L/R
  • Load Impedance:  Ove r 600a/oh ms
  • Output Level:  8.23 dBu (Max. 24 d Bu) at 600a/ohms load AC 115/230V 60/50 Hz with selector
• Power Supply:  30W
• Power Consumption:  (0.5W Standby)
• Dimensions:  372mm X 267mm X 49mm
