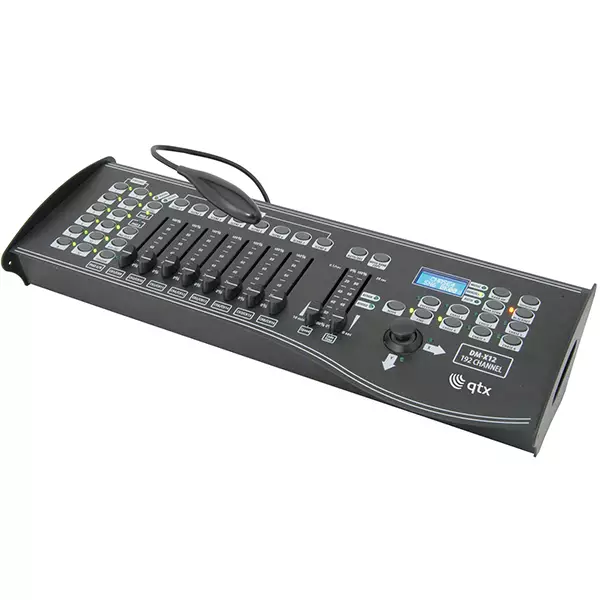

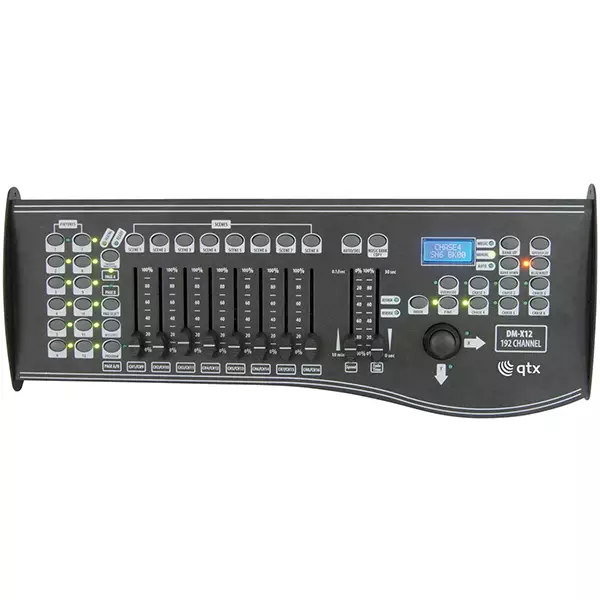

This 192 channel DMX controller has a joystick which can be programmed to control certain channels. This is then an ideal tool to fine tune the pan and tilt movements on a moving head or scanner. It comes complete with an LED gooseneck light that can be plugged in to the rear and help in dark environments. The unit itself has 12 scanner buttons, each controls up to 16 channels on each fixture, whilst the 30 programmable bank buttons hold 8 scenes each. These scenes can be programmed into 6 chase sequences each holding up to 240 scenes which can be triggered by sound, manually by tap or automatically by the time faders between 0.1 seconds and 10 minutes. This controller is ideal for small theatres or stage applications.

FEATURES:

High quality LCD display with easy readout
Joystick to control X & Y parameters of a moving head / scanner
12 scanners each with 16 channels
30 banks each with 8 programmable scenes (240 scenes in total)
8 channel slider with page up and page down
6 chase banks
Music, auto or manually triggered chase sequences
Speed control from 0.1 second to 10 minutes
MIDI connection facility (MIDI IN) to run the unit synchronous with your MIDI unit or compatible software
Blackout button
File dump allows data to be sent or received between two units
Built-in microphone or LINE IN RCA jack socket for accurate audio triggering
LED gooseneck lamp provided

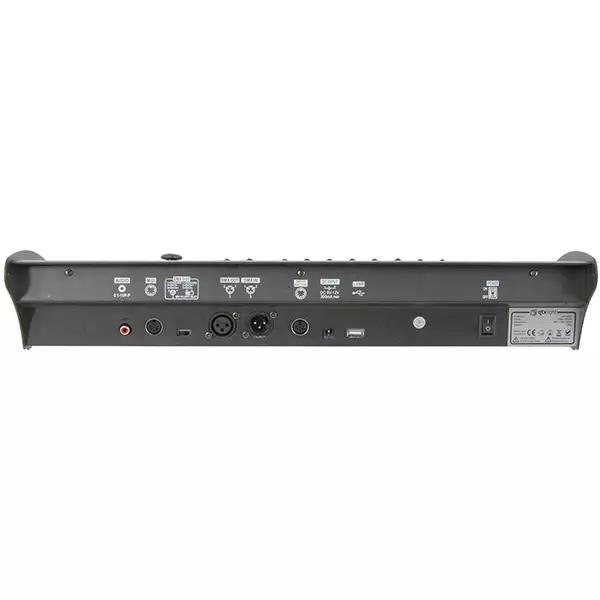

DMX polarity switch at the rear
Power failure memory

SPECIFICATIONS:

Power supply: 9Vdc, 1A
Dimensions: 482 x 190 x 90mm
Weight: 3.0kg

Price-Flex

Price Flex

Name: QTX DMX12 DMX CONTROLLER 192 CHANNEL
Brand: QTX
SKU: 154.092
Availability: OutOfStock
