A balanced patch cable designed for installation, boasting a 26AWG construction and 2 x 0.18 mm², features a very thin PVC jacket with a diameter of 3.3 mm, ideal for cabinet wiring to optimize space, coupled with durability ensured by a robust PVC jacket, and enhanced electrical performance and tensile strength thanks to special LLDPE insulation. Moreover, its exceptional shielding, provided by AL fleece and drain wire, ensures optimal signal integrity, while its highly flexible nature, facilitated by professional stranded wire technology, caters to diverse installation needs. Primarily suited for internal rack wiring, as well as audio and HiFi components, it comes in two sleek colors: Grey and Black.

FEATURES:

• Very thin PVC jacket with a diameter of 3.3 mm, suitable for the wiring inside thecabinet, save more space
• Durability due to the special robust PVC jacket
• Use special LLDPE for the insulation, ensure a good electrical performance and tensile strength
• Wonderful shielding 100% provided by AL fleece and drain wire
• Highly flexible due to a professional stranded wire technology
• Internal wiring of racks
• audio and HiFi components
• Color: Grey, Black
•

SPECIFICATIONS:

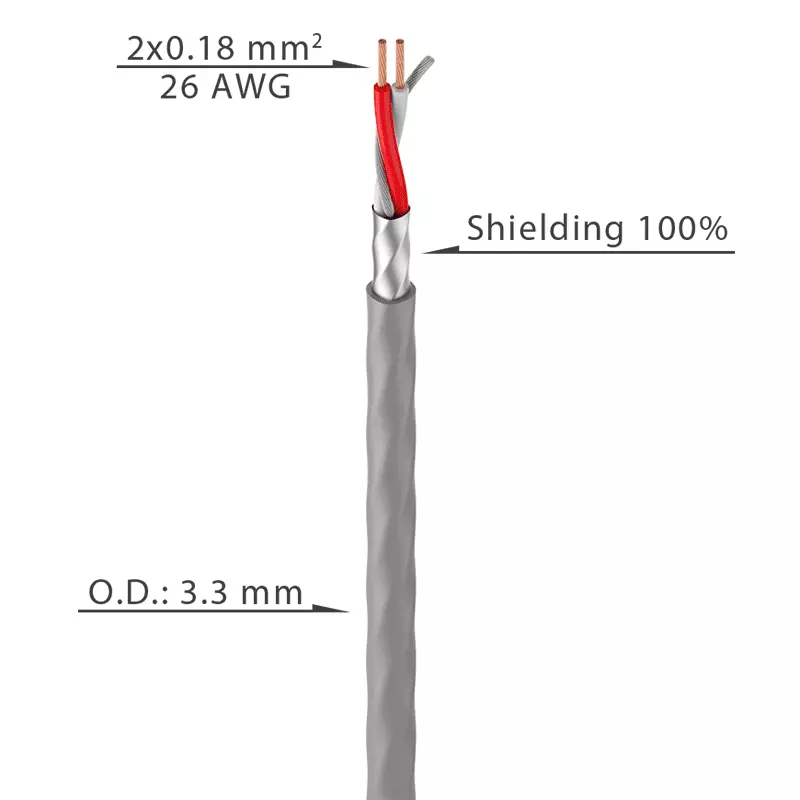

• Jacket, diameter: PVC 3.3 mm
• AWG: 26
• No. of inner conductors: 2 x 0.18 mm²
• Copper strand per conductor: 16 x 0.12 mm
• Conductor insulation: LLDPE 1.20 mm
• Drain Wire: 25 x 0.12 mm Tin copper
• Shielding: AL fleece
• Shielding factor: 100%
• Temperature range: min. -20°C
• Temperature range: max. +70°C
• Packaging: 100/300 m roll
