48V phantom power supply, fully discrete circuit design with a dual-transistor class A buffer circuit structure combined with custom audio transformer, achieving excellent signal fidelity and transmission capabilities.

FEATURES:

48V phantom power supply, no battery required
Megohm-level input impedance
Extremely high dynamic headroom, handles high-level instruments with ease

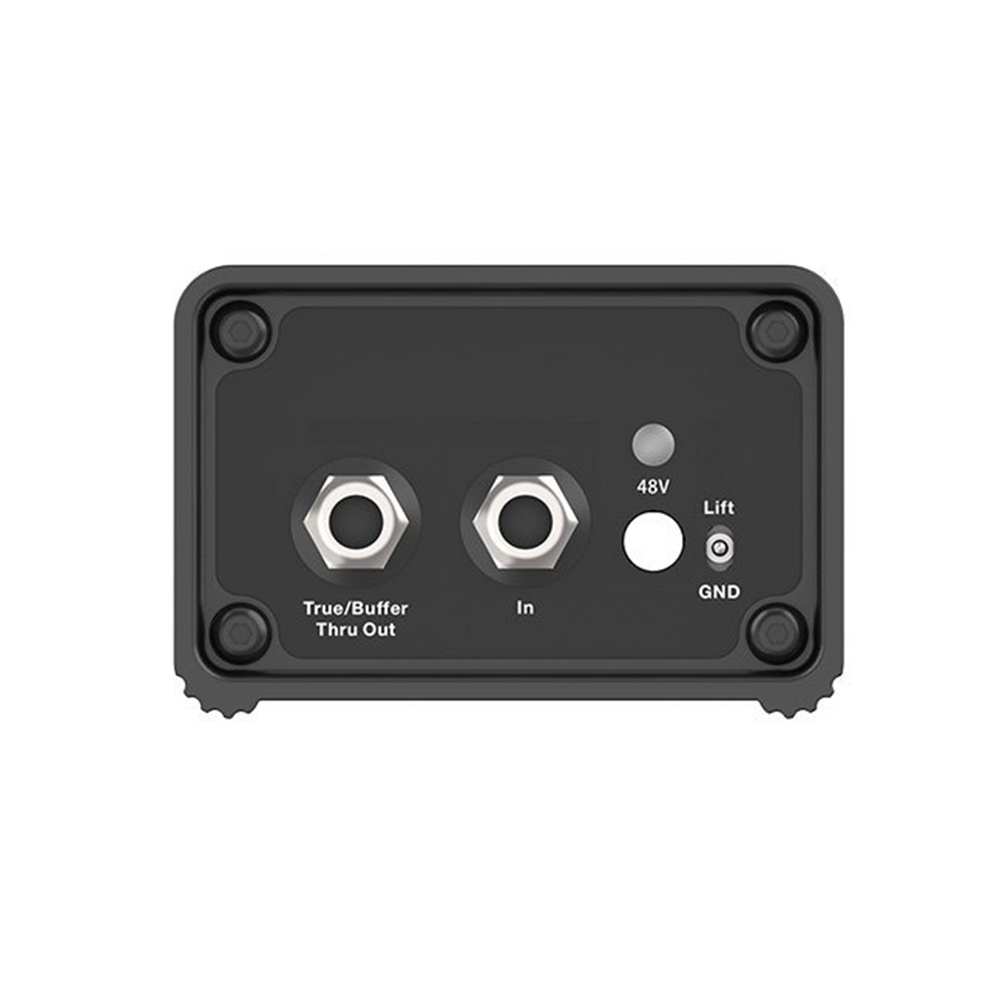

Chain port supports direct through and buffered switchable output
Audio isolating output transformer
48V power supply with LED button indication
Fully discrete circuitry

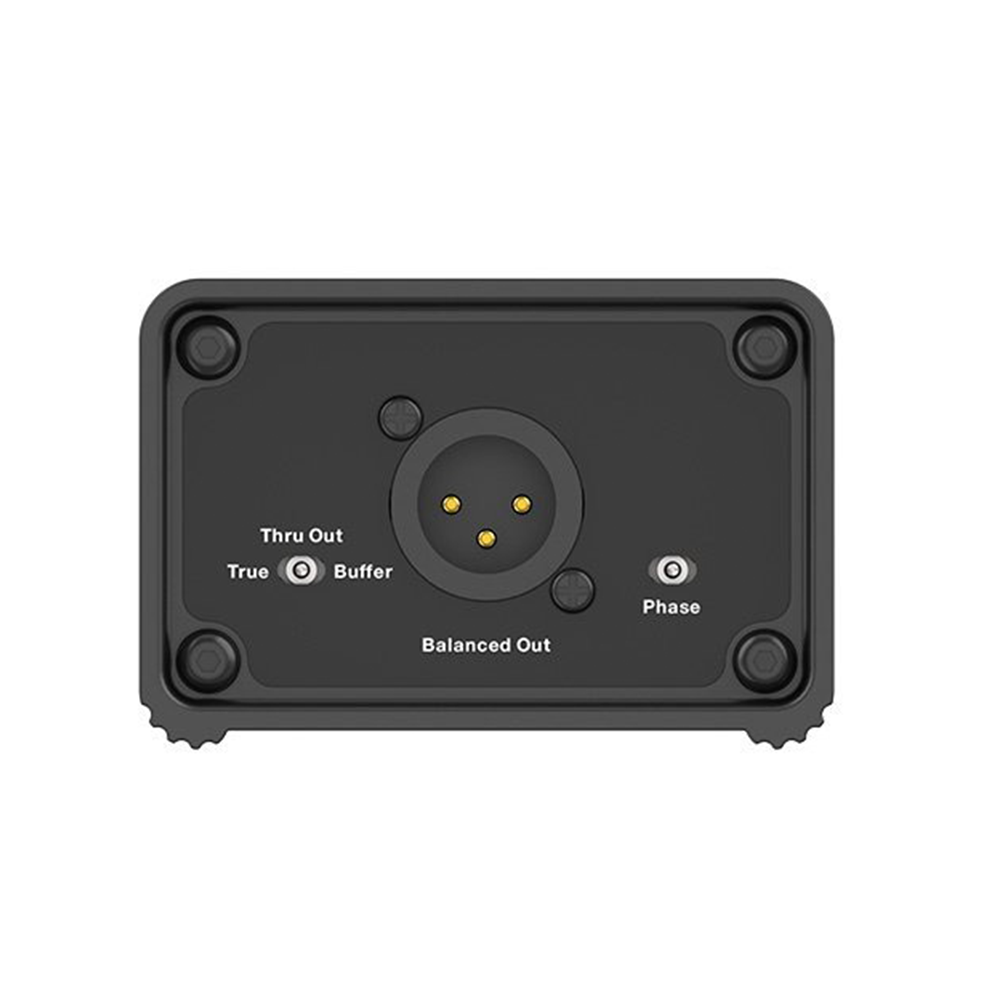

Signal phase reverse shifter
GND lift shifter

SPECIFICATIONS:

Total harmonic distortion:0.002%@-5dBu
Phase Deviation:2°@20Hz; 0°@1kHz
Dynamic range:118dB
Noise Floor:Below 0 dBu
Frequency response:20Hz-20kHz(±0.2dB)
Input Impedance:1M Ohms, unbalanced
Output Impedance:200 Ohms, balanced

Price-Flex

Price Flex

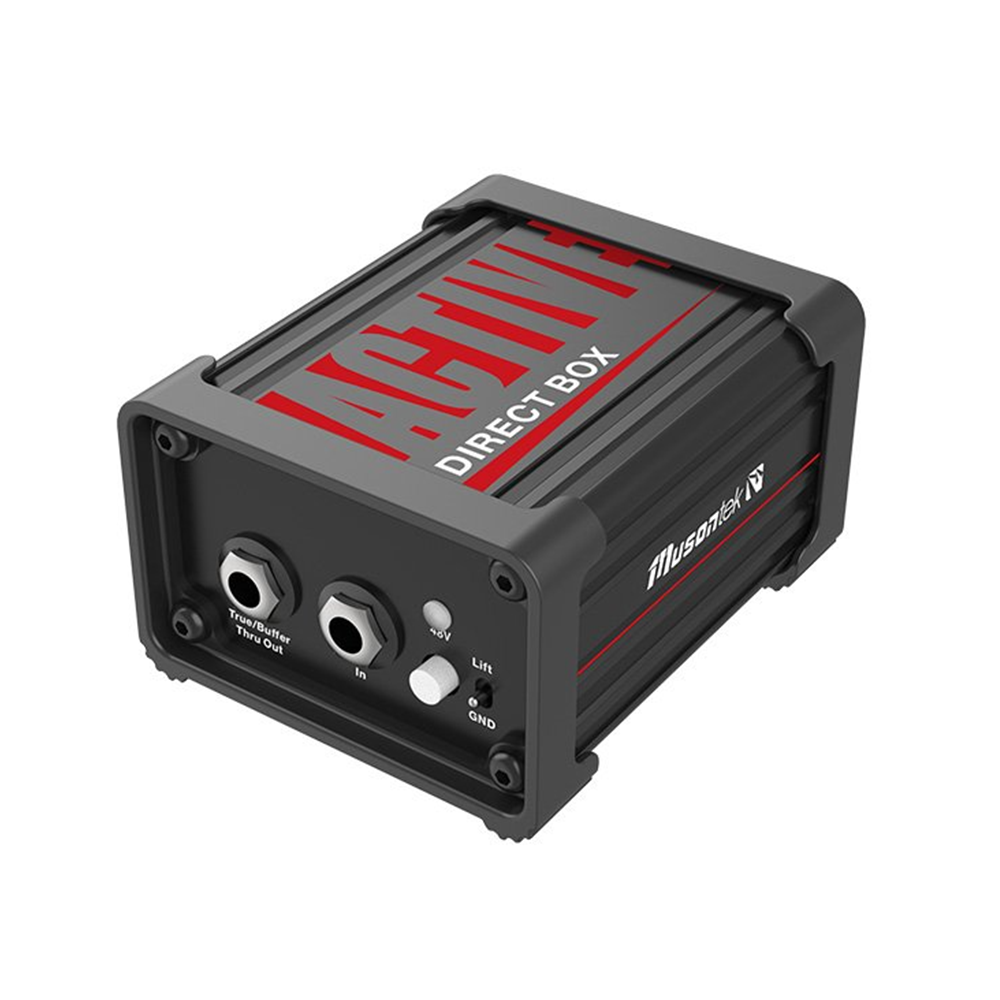

Name: ROXTONE MUSONTEK ACTIVE DI BOX
Brand: Roxtone
SKU: AD1L
Availability: InStock
