Sennheiser XSW 1-Ci1- B Wireless Instrument Set

Name: Sennheiser XSW 1-Ci1- B Wireless Instrument Set
SKU: SEN-506995
Availability: InStock

0 customer reviews

Check stock before ordering

Sennheiser XSW 1-Ci1- B Wireless Instrument Set - Image 2

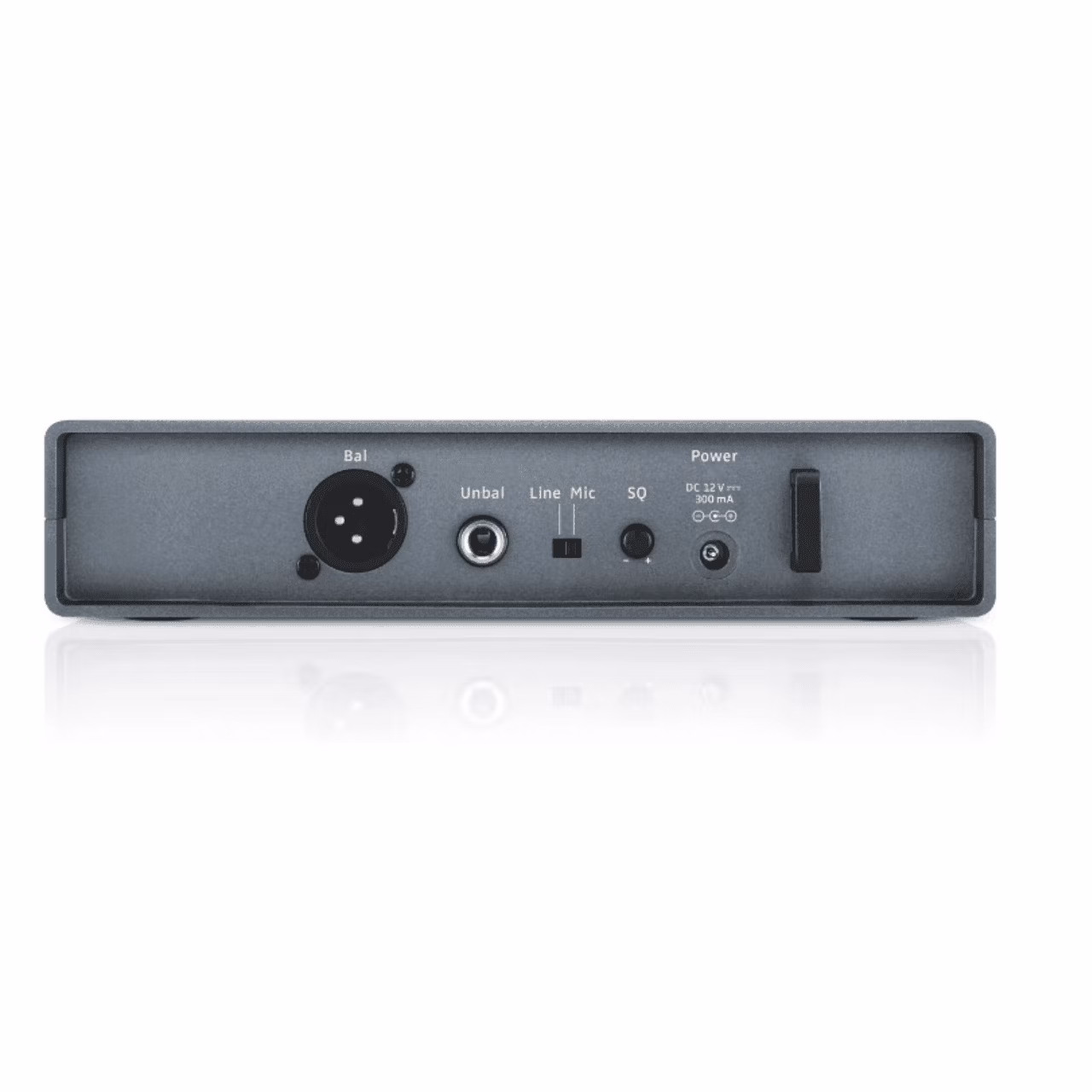

Sennheiser XSW 1-Ci1- B Wireless Instrument Set - Image 3

Sennheiser XSW 1-Ci1- B Wireless Instrument Set - Image 4

View details

R7,595.00

Sennheiser XSW 1-Ci1-B Wireless Instrument Set, 10 Ch UHF, 614-638MHz

Availability: In stock

Add to quote

SKU: SEN-506995 Categories: Microphones Wireless Systems Brand: Sennheiser

Product Description

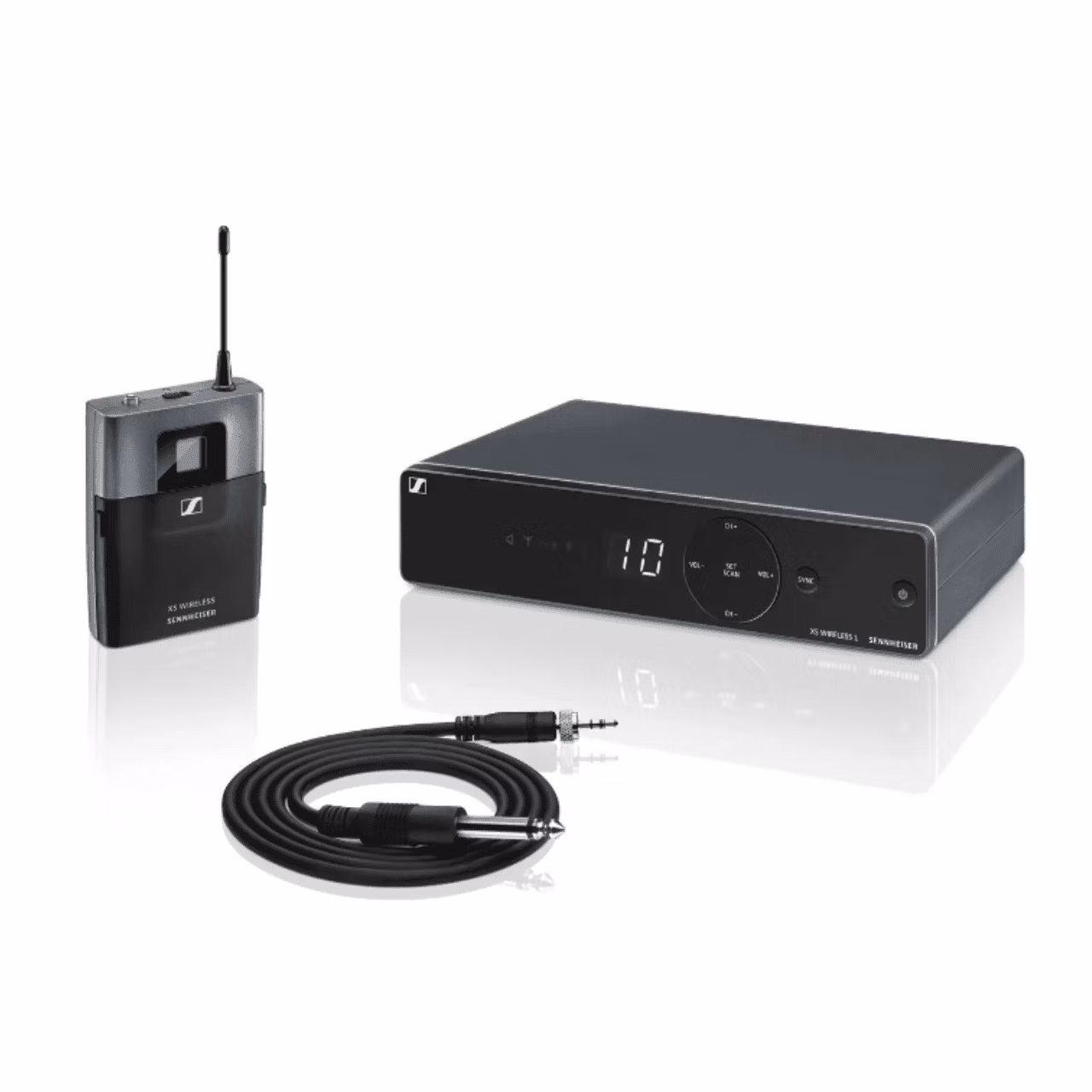

Sennheiser XSW 1-Ci1- B Wireless Instrument Set

Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable.

Compact bodypack transmitter, rugged instrument cable
Antenna-switching diversity reception
Integrated antennas
Automatic frequency management and synchronization via remote channel for easy setup
Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels

General Specifications

Dimensions

Receiver: approx. 200 x 42 x 127 mm

Bodypack transmitter: approx. 71 x 96 x 28 mm
THD, total harmonic distortion: ≤ 0.9%
Weight: approx. 340g (receiver), approx. 95g (transmitter)
Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: Wideband FM
Power supply: Receiver: 12 V DC nom. / 300 mA Transmitter: 2 AA size batteries, 1.5 V
Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: Rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range: 614-638 MHz
Sensitivity: < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation: 130 dB
Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas
