WIRELESS GUITAR COMBO SYSTEM WITH SM58

SM58 and Bodypack + Guitar cable with dual analogue wireless transmission

The BLX1288/SM58 Wireless Guitar Combo System with SM58, an industry-standard, highly versatile cardioid dynamic vocal microphone, tailored to deliver warm and clear vocal reproduction combines simple setup and an intuitive interface for performance you can trust in.

MAIN FEATURES

Available Transmitter Form factors: Bodypack, Handheld
Operating range (up to): 100 m (Under typical conditions)

BLX88 Dual Wireless Receiver for BLX Wireless System

Up to 12 compatible systems (region dependent)
Microprocessor-controlled internal antenna diversity
One touch QuickScan locates the best open Frequency
¼” and XLR audio outputs
Two color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload/clipping)

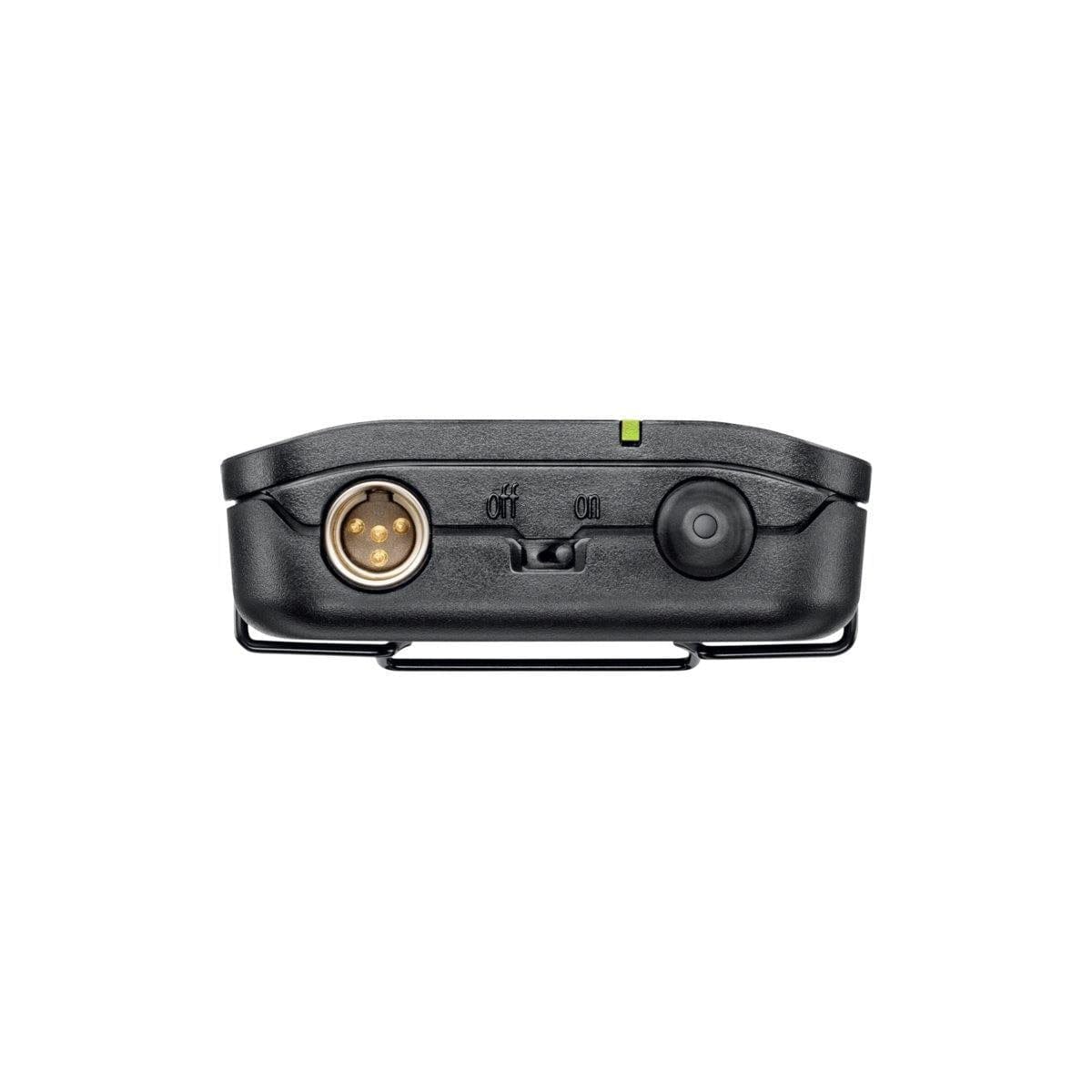

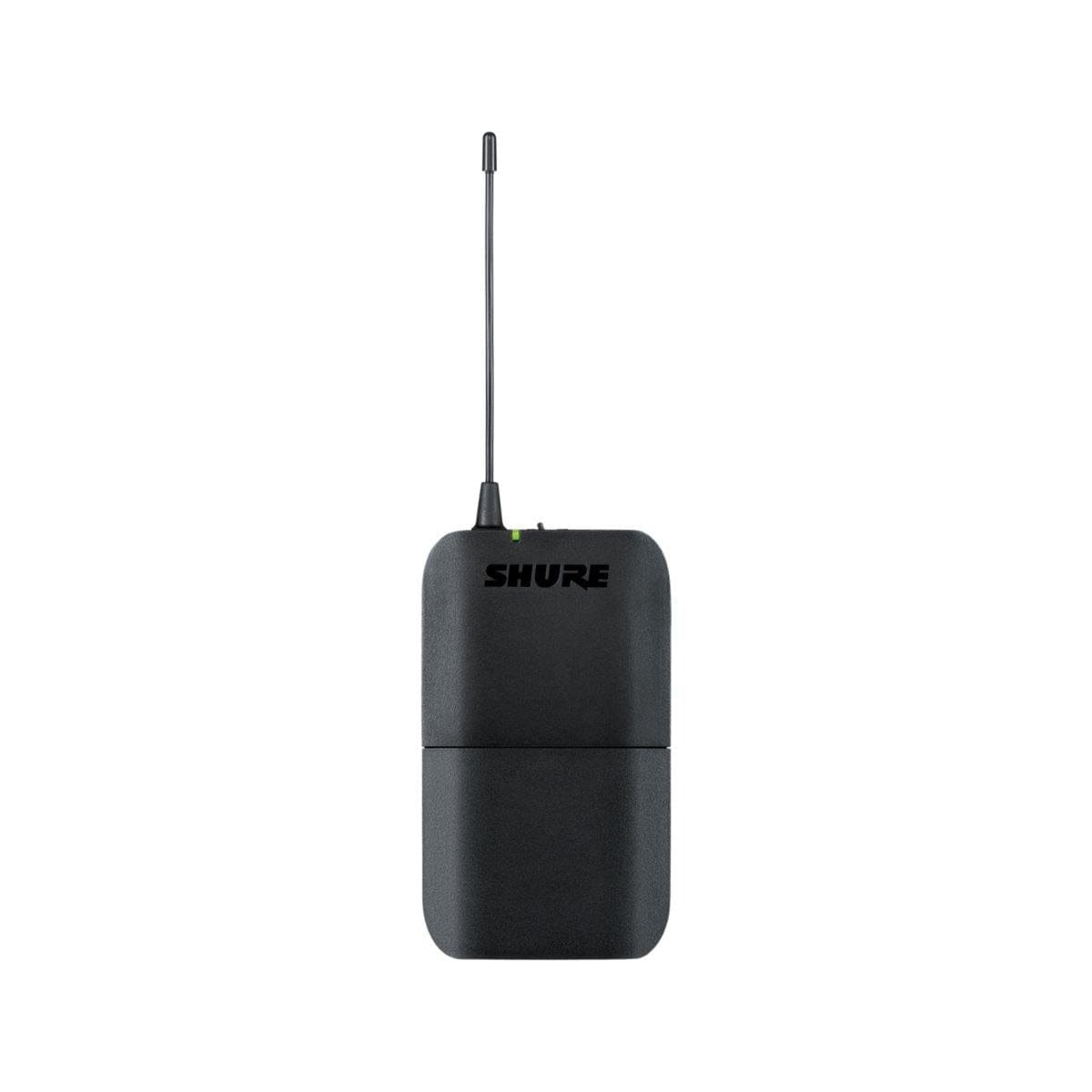

BLX1 Wireless Bodypack Transmitter

Power and battery status LED
Adjustable gain control
Quick and easy frequency matching
AA batteries (included) provide up to 14 hours of continuous use
100 m (300 ft.) operating range (line of sight)

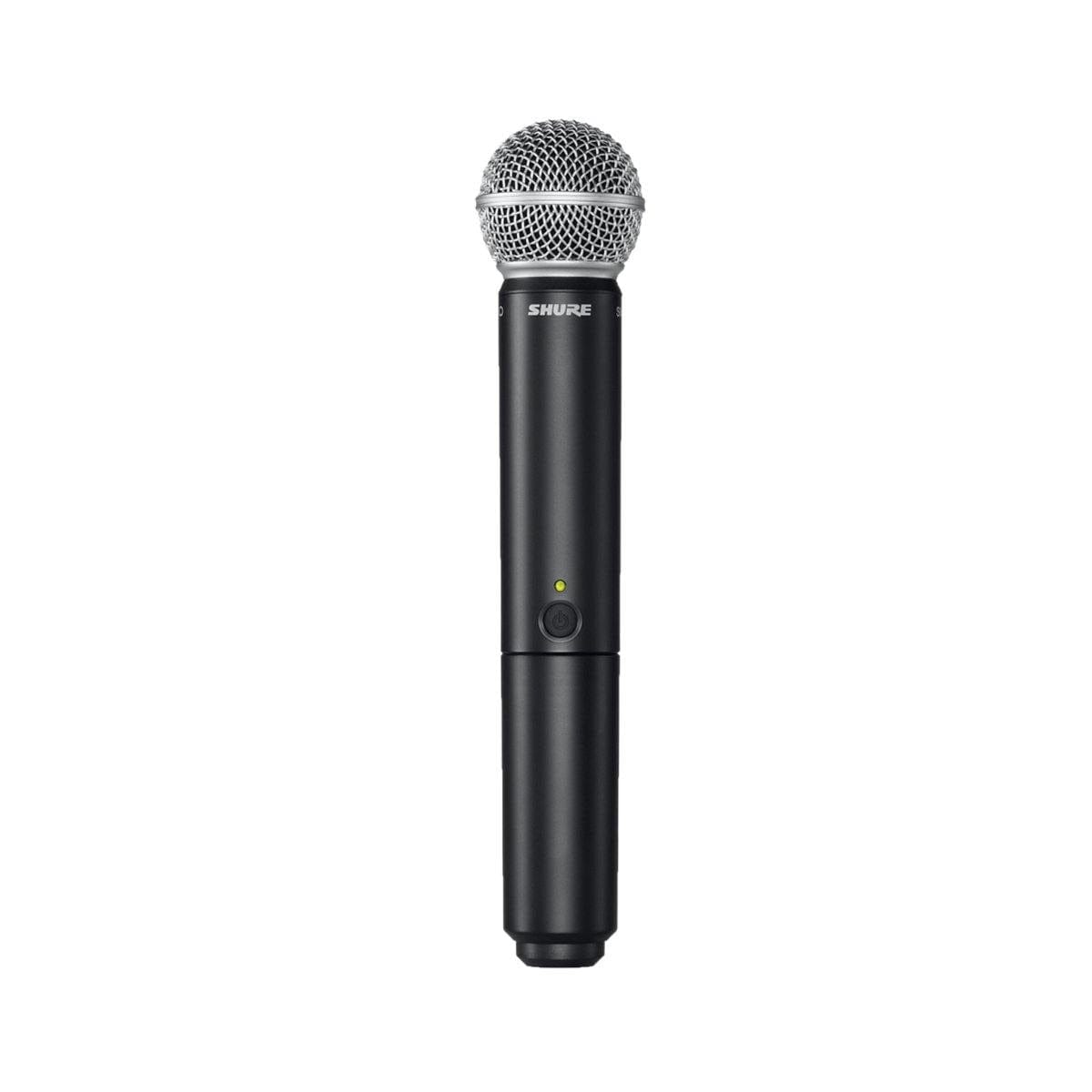

BLX2/SM58 Handheld transmitter with SM58 capsule

Power and battery status LED
Adjustable gain control
Quick and easy frequency matching
AA batteries (included) provide up to 14 hours of continuous use
100 m (300 ft) operating range (line of sight)
Integrated microphone capsule design
-10 dB gain attenuation
Lightweight, rugged construction
Color ID caps (available separately)

FURNISHED ACCESSORIES

AMOUNT	PART TITLE
1	Swivel AdapterPART WA371
1	Power SupplyPART PS24E
1	Thread AdapterPART 31B1856
1	Instrument cablePART WA302

TECHNICAL SPECIFICATIONS

BLX1288/SM58 Specifications

Set Type:

Guitar/Handheld Combo

Amount of Bodypacks:

Amount of Handhelds:

BLX88 Specifications

Weight:

429 g

Height x Width x Depth:

40.0 × 388.0 × 116.0 mm

Transmission:

Analog

Type of Power Supply:

External

Receiver Housings:

Molded ABS

Active Antenna Possible:

Bias via BNC:

Encryption:

High Density Mode:

Interference Detection:

Remote Control:

Number of compatible systems info:

DANTE-Enabled Products:

Scan Features:

Quick Scan

Sync Features:

None

Detachable Antennas:

Network ability:

Software control :

Logic:

Cascade:

Rack Hardware:

Optional: URT2

Receiver Displays:

LEDs

Receiver type:

Dual

Line Mic Switch:

Image Rejection:

50 dB, typical

RF Sensitivity:

-105 dBm, for 12dB SINAD, typical

Phantom Power Protection:

BLX1 Specifications

Weight:

75 g

Height x Width x Depth:

110.0 × 64.0 × 21.0 mm

Battery life alkaline:

14 h

Form Factor:

Bodypack

Transmitter housings:

Molded ABS

Audio Mute:

Detachable Antennas:

Switchable RF power:

Batteries:

Battery Status:

Multi-Color LED

Connectors:

TQG

Frequency Diversity:

Functionality:

Transmitter

Gain adjustment range:

26 dB

High Density Mode:

Included antenna:

1/4 wave

Input impedance:

1000 kΩ

Transmission:

Analog

BLX2/SM58 Specifications

Weight:

340 g

Height x Width x Depth:

224.0 × 53.0 × 53.0 mm

Transmitter weight:

218 g

Battery life alkaline:

14 h

Form Factor:

Handheld

Transmitter housings:

Molded ABS

Audio Mute:

Detachable Antennas:

Switchable RF power:

Batteries:

Battery Status:

Multi-Color LED

Frequency Diversity:

Functionality:

Transmitter

High Density Mode:

Transmission:

Analog

Additional Information
