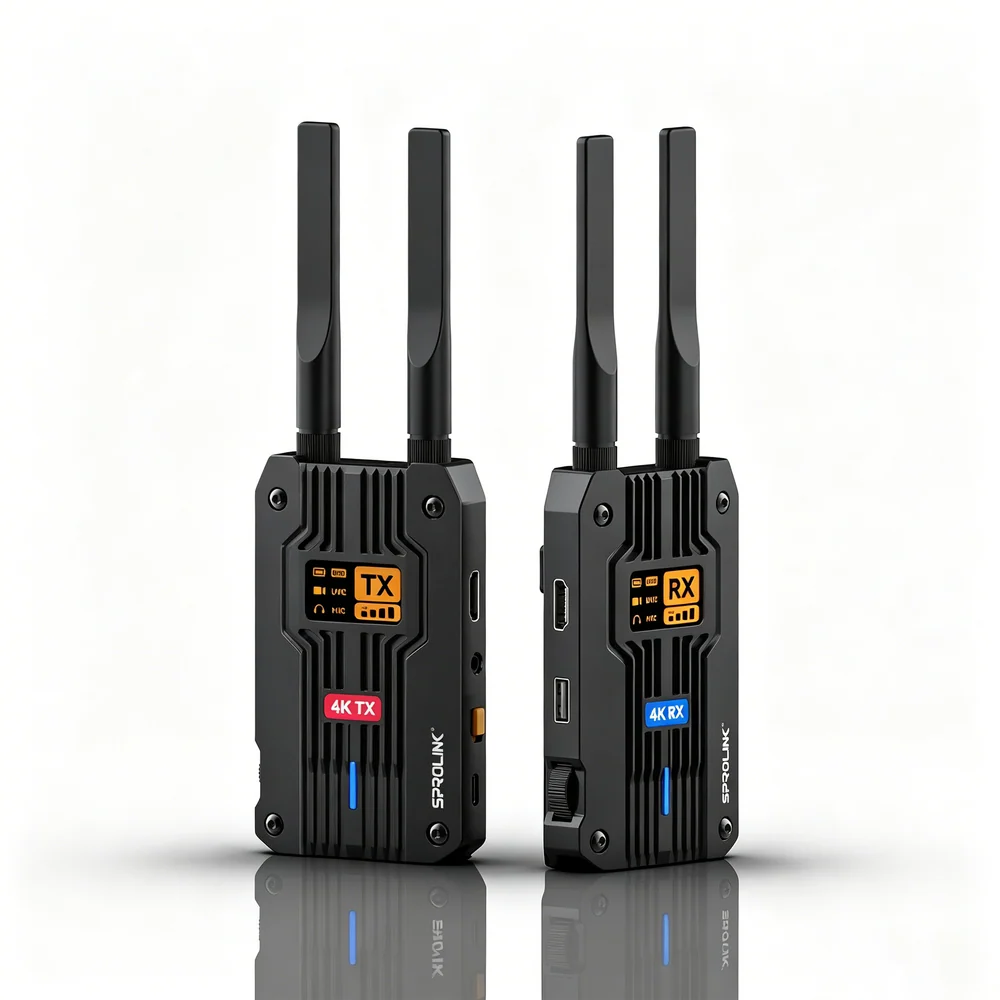

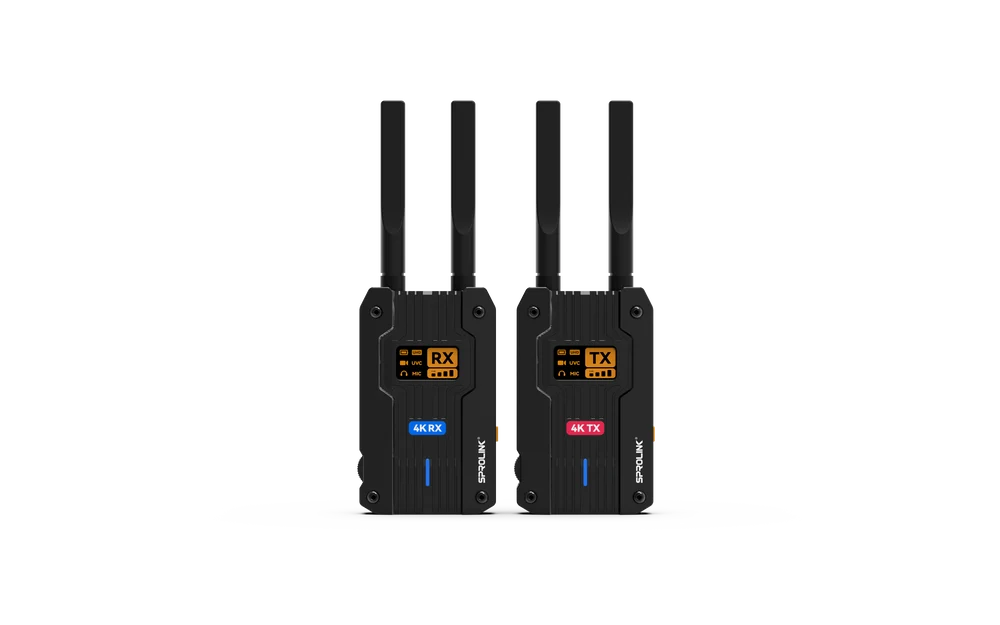

【Product Overview】
The Sprolink Airlink is a professional 4K wireless video transmission system designed for filmmakers, live streamers, and production teams. With support for 4K@30fps HDMI input, UVC driver-free connectivity, and ultra-low 60ms latency, it delivers pristine image quality over 300 meters (1000ft) line-of-sight. Whether you’re using a DJI Pocket 3, action camera, DSLR, or webcam, Airlink simplifies your workflow with plug-and-play operation and versatile power options.
【Key Features】
🎥 4K Ultra HD & Lossless Transmission
Supports 4K@30fps HDMI input with sharp, lossless image quality
Ideal for professional monitoring, filmmaking, and high-resolution live streaming
📡 Long Range & Stable Dual Band
300m (1000ft) line-of-sight transmission
2.4GHz + 5.8GHz dual-band simultaneous transmission – 2.4GHz ensures stable connection, 5.8GHz dedicates to 4K A/V stream
⚡ Ultra-Low Latency
<60ms delay for real-time monitoring and live production
📲 1-Transmitter to 4-Receivers
One TX can connect up to 4 RX units simultaneously – perfect for director, cameraman, and clients to monitor together
🔄 HDMI Loop-out
Local HDMI loop-out with zero delay – connect an on-site monitor without extra splitting
🖥️ UVC Plug & Play
Connect TX to Pocket 3, action cameras, or webcams via USB – no drivers needed
Simplifies live streaming – direct connection to PC/Mac for OBS, Zoom, etc.
🎛️ KVM Control
Attach keyboard & mouse to RX to remotely control the host PC – ideal for presentations or remote production
📱 Horizontal / Vertical Screen Switching
Compatible with Pocket 3 – convert vertical UVC image to full-screen landscape

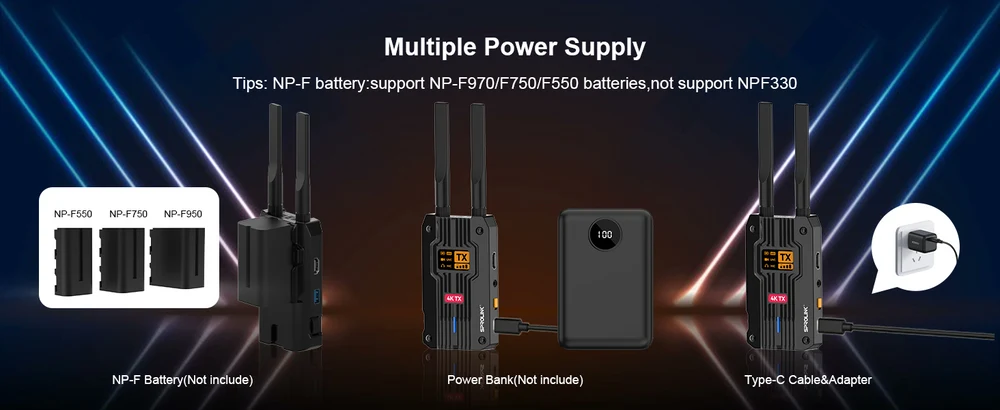

🔋 Dual Power Supply
Supports NP-F series batteries (F550/F750/F970, not F330)
Type-C 5V/2A input – use power banks or adapters
TX also powers Pocket 3 – no extra battery packs, clean cable management
🎧 Audio Support
3.5mm audio input on TX / output on RX – connect mic or soundbar
【Technical Specifications】
Parameter TX RX
Video Interface HDMI 2.0 Input, HDMI 2.0 Loop-out HDMI 2.0 Output
USB Interface USB-C 3.0 (UVC Input), USB-A 3.0 USB-C 3.0, USB-A 3.0 (KVM)
Audio 3.5mm Input 3.5mm Output
Antenna 2x RP-SMA (Male) 2x RP-SMA (Male)
Power Supply NP-F battery / Type-C 5V/2A NP-F battery / Type-C 5V/2A
Signal Format Up to 2160P60, 2160P30, 1080P60, etc. Same
Frequency 2.4GHz & 5.8GHz Same
Power Consumption <7.5W <6.5W
Latency <60ms <60ms
Operating Temp -20℃ ~ 60℃ -20℃ ~ 60℃
Dimensions (no antenna) 118H x 71L x 28W mm Same
Weight ~210g ~210g

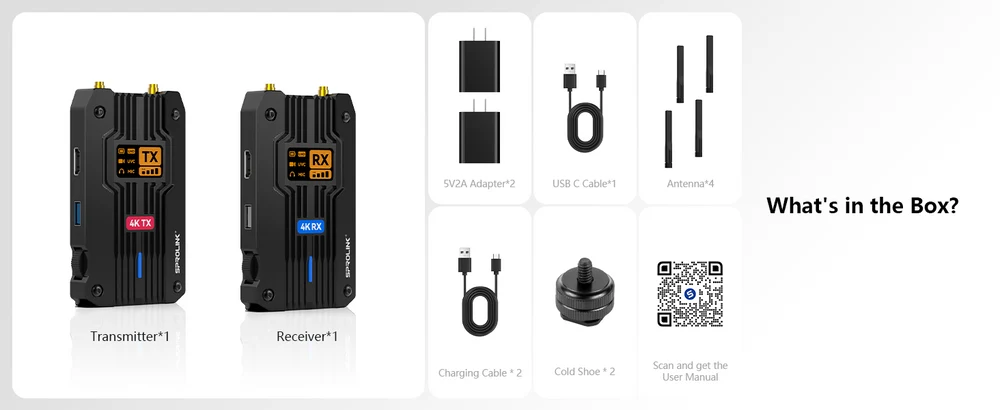

【What’s in the Box】
Wireless Transmitter ×1
Wireless Receiver ×1
Cylindrical Antenna (2.4GHz/5.8GHz) ×4
5V/2A Adapter ×2
Charging Cable ×2
USB-C Cable ×1
Cold Shoe Mount ×1

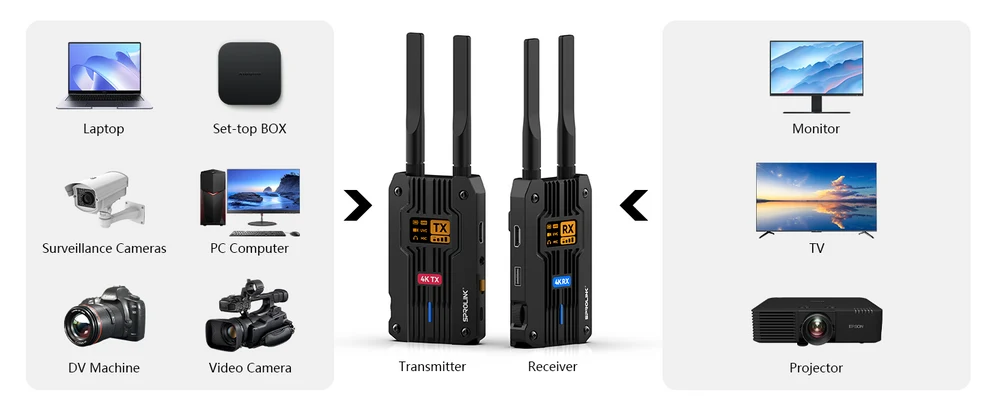

【Applications】
Live streaming (OBS, Twitch, YouTube)
On-set video monitoring (film, commercial, event)
Conference room & lecture hall wireless presentation
Home theater & gaming projection (low latency)
Remote PC control via KVM
