3,000-Watt Power Output: The Turbosound iQ15B delivers an impressive 3,000 watts of power through Klark Teknik’s Class-D amplifier technology. This ensures high efficiency, strong output, and reliable performance for demanding environments.

Klark Teknik DSP Technology: The integrated Digital Signal Processor (DSP) offers precise control over the system, including dynamic EQ, transparent limiting, and speaker modeling presets. These presets accurately emulate industry-standard speakers, providing flexibility for various audio setups.

15″ High-Excursion Low-Frequency Driver: The iQ15B is equipped with a 15″ driver with a 4″ voice coil, allowing for fast transient response and deep, distortion-free bass, even at high volumes.

ULTRANET Digital Audio Networking: The ULTRANET system uses CAT5 cables to transmit pristine multi-channel audio signals between ULTRANET-enabled devices, such as digital mixers and powered speakers. This technology reduces setup time and eliminates interference common with analog connections.

USB Remote Control and Firmware Updates: A USB port provides convenient access for remote control of DSP settings via a PC or Mac. It also supports firmware updates, ensuring the subwoofer stays up to date with the latest features and improvements.

Durable Birch Plywood Enclosure: The iQ15B’s birch plywood construction, finished in semi-matt black, ensures maximum durability in both portable and installed setups. The powder-coated perforated steel grille protects the internal components during transport and use.

Integrated 36mm Pole Mount: A 36mm pole mount allows the iQ15B to support a satellite speaker, making it easy to integrate into a full-range sound system.

Plated Steel Castors: The subwoofer is equipped with plated steel castors with rubber tires, providing smooth mobility and easy transport during setup and breakdown.

Specifications:

System:

• Frequency Response:
  50 Hz – 130 Hz ±3 dB
  40 Hz – 130 Hz -10 dB
• Nominal Dispersion:
  Half Space
• Maximum SPL:
  130 dB peak
• Crossover Type:
  Active

Transducers:

• Driver:
  1 x 15″ (385.7 mm) LF driver
• Voice Coil:
  4″ (101.6 mm)

Limiter:

• Type:
  Peak and RMS

Amplifier:

• Maximum Output Power:
  3,000 W
• Amplifier Type:
  Class-D
• Protection:
  Short circuit, open circuit, thermal

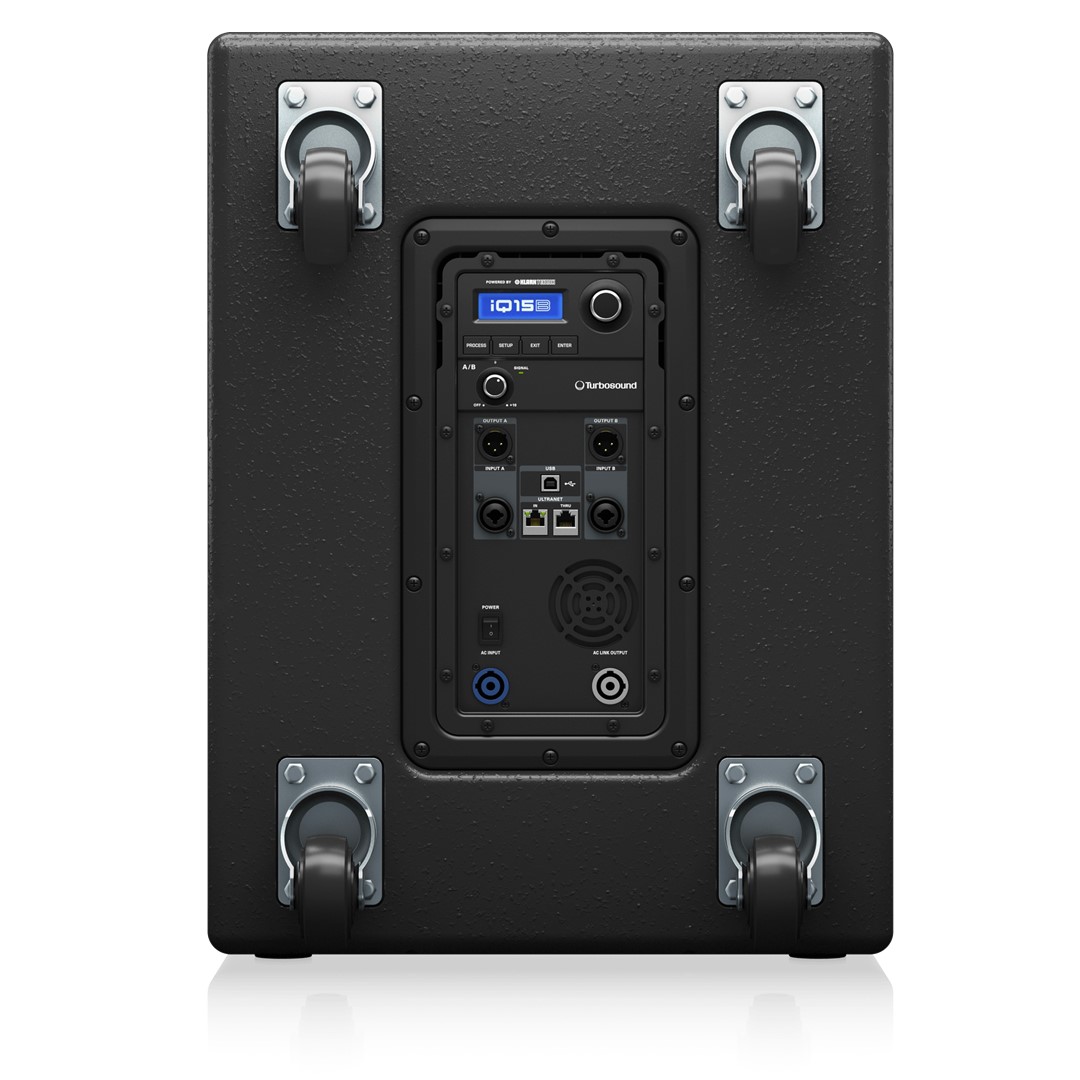

Connections:

• Inputs (A/B):
  2 x combo jack/XLR
• Input Sensitivity:
  Line +4 dBu
• Input Impedance:
  20 kΩ unbalanced, 40 kΩ balanced
• Maximum Input Level:
  +21 dBu
• Outputs (A/B):
  2 x XLR (Linked to input)
• ULTRANET Input/Link:
  2 x RJ45
• Mains Supply:
  Neutrik powerCON input 20A and link 15A

Controls:

• DSP Interface:
  Rotary push-encoder, buttons for PROCESS, SETUP, EXIT, ENTER
• Mixer Section:
  Gain control (Channels A and B)

User DSP Functions:

• Factory EQ Presets:
  Positioning, Sound Mode
• Display:
  LCD 128 x 32, blue backlit
• Delay:
  0 – 300 ms
• Equalization:
  High and low shelving EQ, 2 x parametric EQ
• Limiter:
  Zero attack input limiter
• Presets:
  20 total, 19 user-definable
• Crossover:
  Low Pass L-R 24 dB/oct
• Protection:
  Lock-out function for all settings

Ultranet Digital Network:

• System Cabling:
  CAT5

Power Supply:

• Power Consumption:
  200 W @ 1/8 max power

Enclosure:

• Dimensions (HWD):
  602 x 444 x 495 mm (23.7 x 17.5 x 19.5 inches)
• Net Weight:
  30.6 kg (67 lbs)
• Construction:
  Birch plywood, screwed, and glued
• Finish:
  Semi-matt black painted
• Grille:
  Powder-coated perforated steel
• Pole Mount:
  36 mm
• Castors:
  Plated steel with rubber tires
