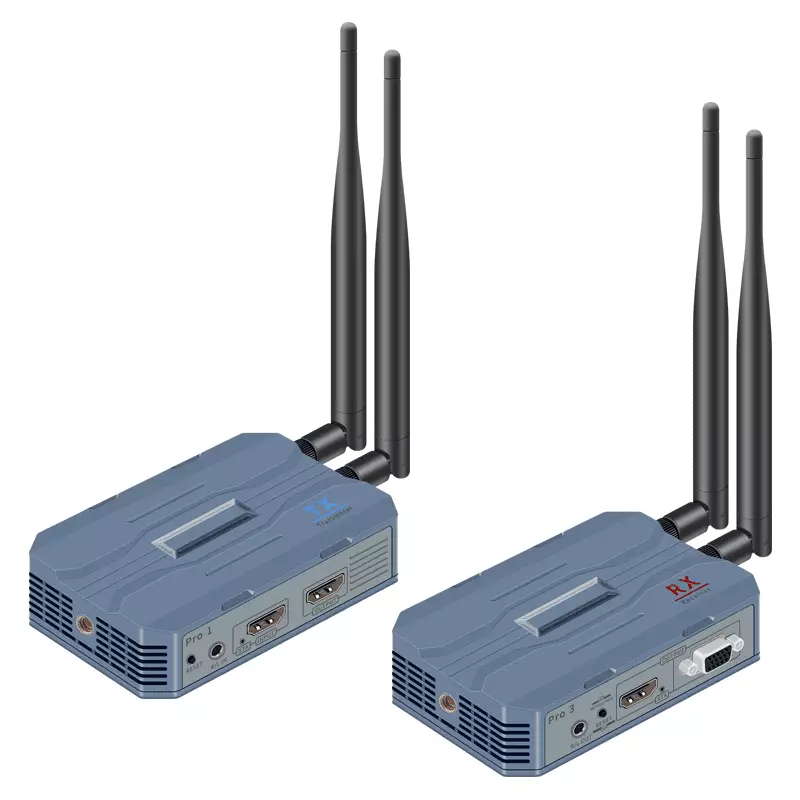

The Pro1 is 1080P@60Hz FULL HD transmitter It is a standard H.265/H.264 codec TCP/IP HD transmission product, this main feature is that the same RX with different TX can be used in 1080P/4K@30Hz and other application scenarios! In addition to supporting HDMI audio and video transmission, this product also has a TX local Loopout, remote KM keypad and IR back control, 3.5mm audio input, output and other features for users to choose.

FEATURES:

• HDMI video and audio transmission via wireless WIFI, up to 200 meters
• HDMI 1.4 compatible
• In accordance with standard HDCP1.4 ,high-bandwidth digital content
• protection technology
• HD video signal resolution up to 1920×1080@60Hz, 4K@30Hz
• Support transmitter with HDMI Loopout
• One transmitter (TX) can be connected to up to 4 receivers (RX) when
• transmitting wirelessly
• HDMI and VGA output
• IR connection (if required)
• Audio connection (if required)
• Connect USB keyboard and mouse (if required)

SPECIFICATIONS:

• Pro1: (1080P TX)

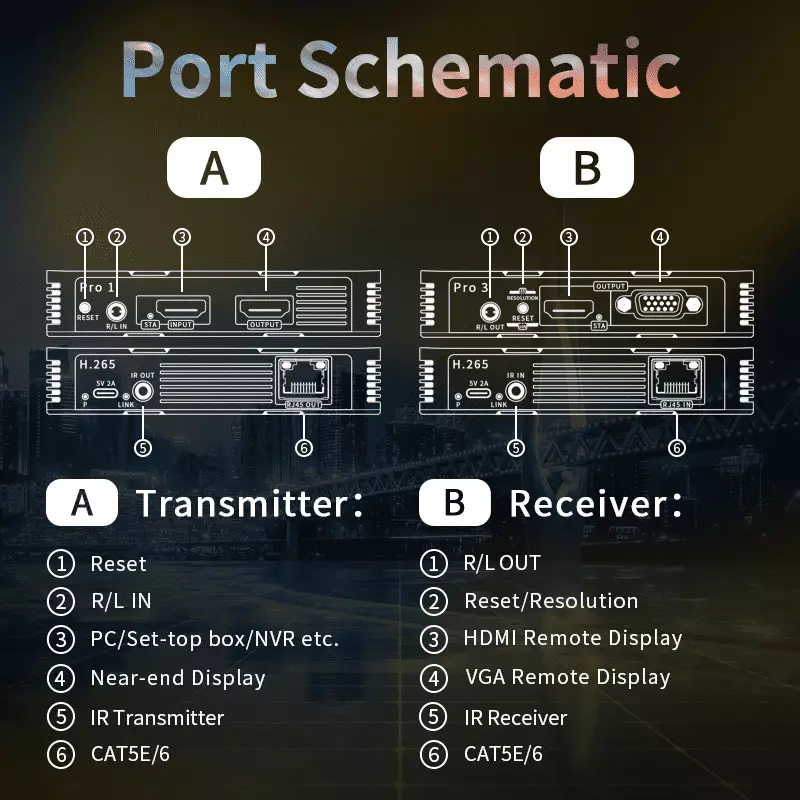

• Input: port HDMI 1、IR 1、5V 1、R/L 1
• Output port: HDMI 1、RJ45 1
• Max. distance: Wireless transmission up to 250m
• Codec: H.265、H.264
• Default IP: TCP/IPV4 TX:192.168.1.166 RX：192.168.1.167
• latency: ≈0.1s
• HDMI cable: ≤10m
• IR control: 30kHz-60kHz
• R/L audio (select): 3.5mm stereo audio；32kHz，44.1kHz and 48kHz
• Power supply: DC5V 2A
• Size: 123(L)x  80(W) x 28(H)mm
• Material: ABS
• Color: Grey
• Operating Temperature: -20℃~60℃
