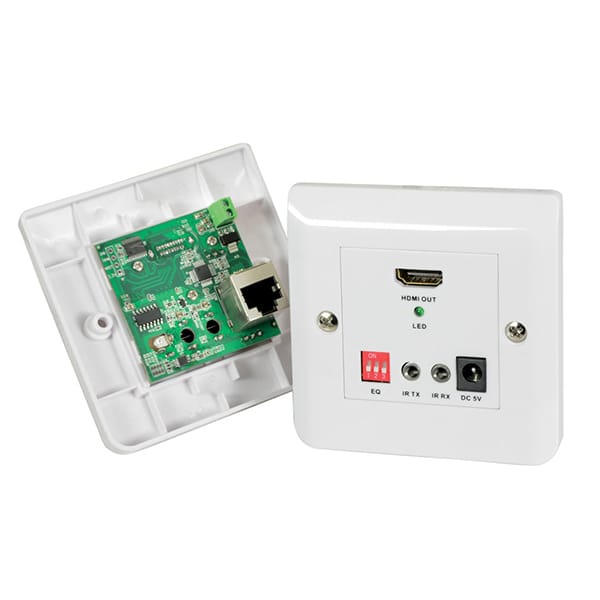

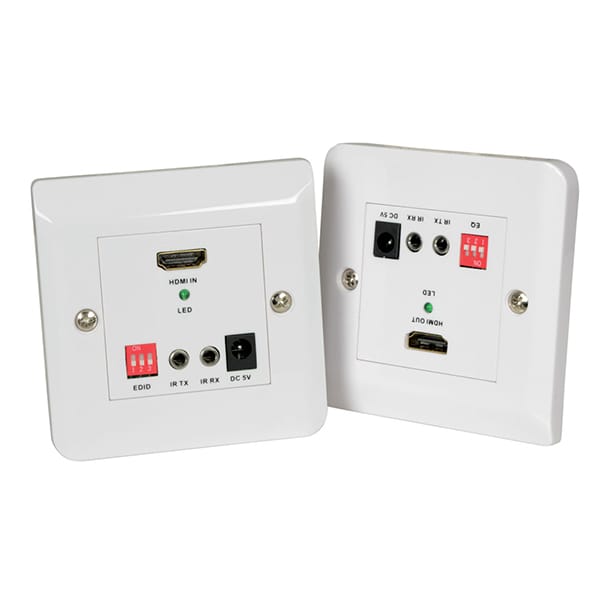

AVLINK – 50M HDMI EXTENDER OVER SINGLE CAT5E/6 WITH BI-DIRECTIONAL IR

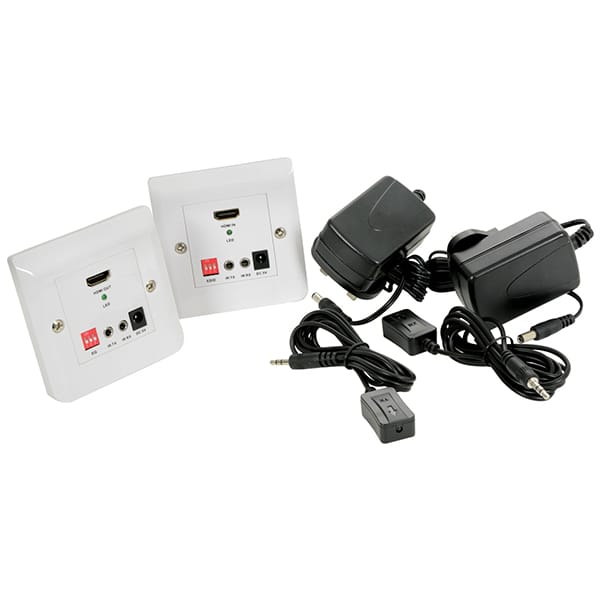

This extender kit with EDID works by sending HDMI and IR signals via a single shielded network cable from the input wallplate to the output wallplate without signal loss for a distance of up to 50m. Also included in the kit are 2 UK power supplies and IR transmission and receiver cables.

HDMI version: High speed with 3D support

HDCP version: 1.2

Video resolution: 1080P/1080i/720P/576P/576i/480P/480i

Audio output: Surround sound up to 7.1ch or digital stereo

Transmission distance: 1080p @ 50m max (using Cat6)

Data transfer rate: Max 6.75Gbps

Operating temperature range: -5°C to +35°C

Operating humidity range: 5% to 90% RH (no condensation)

Power supply: 5V/1.2A DC

Power consumption: 3W (max)

Dimensions: 86 x 86 x 33mm (each unit)

Weight: 47g (each unit)
